SKU: LBE4K1248

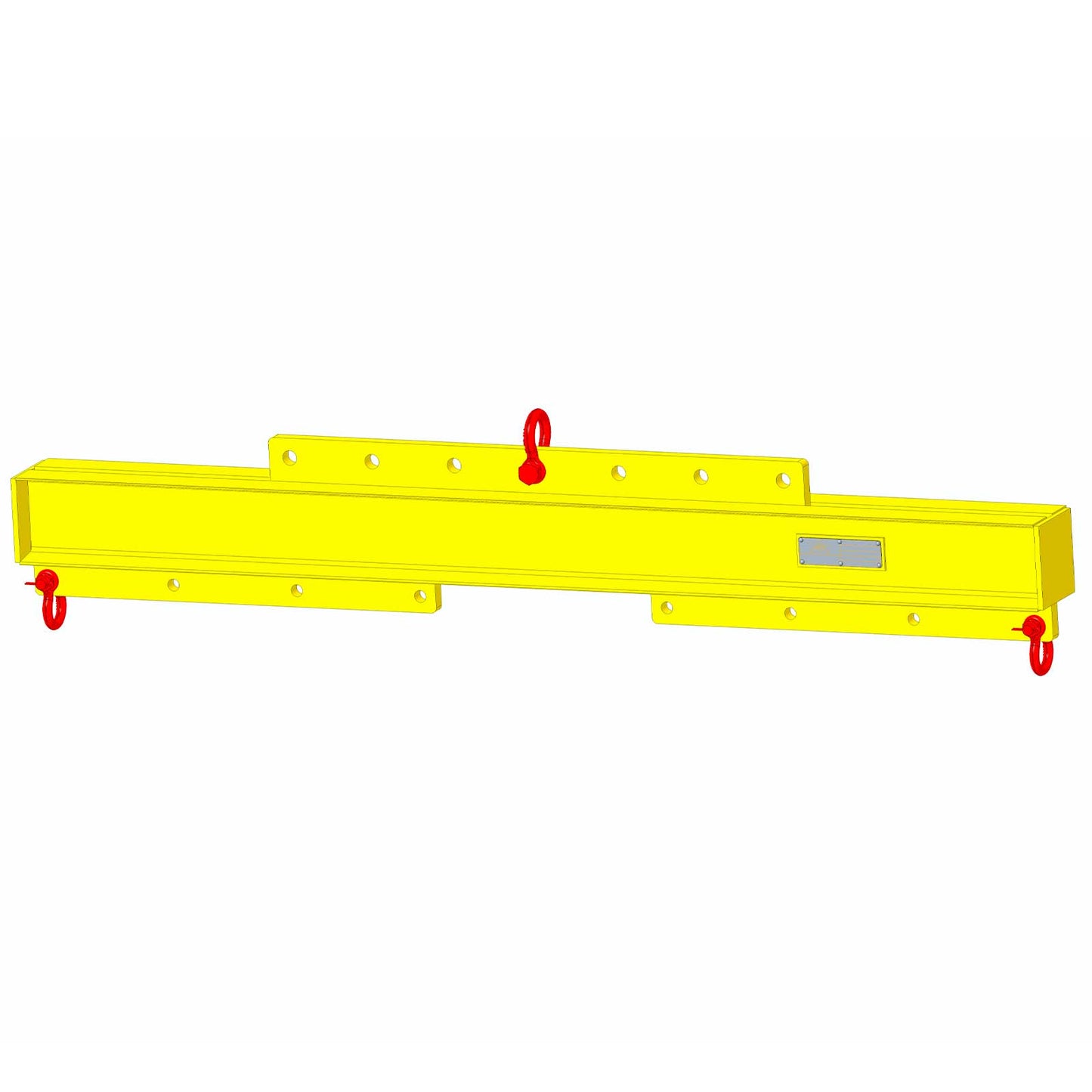

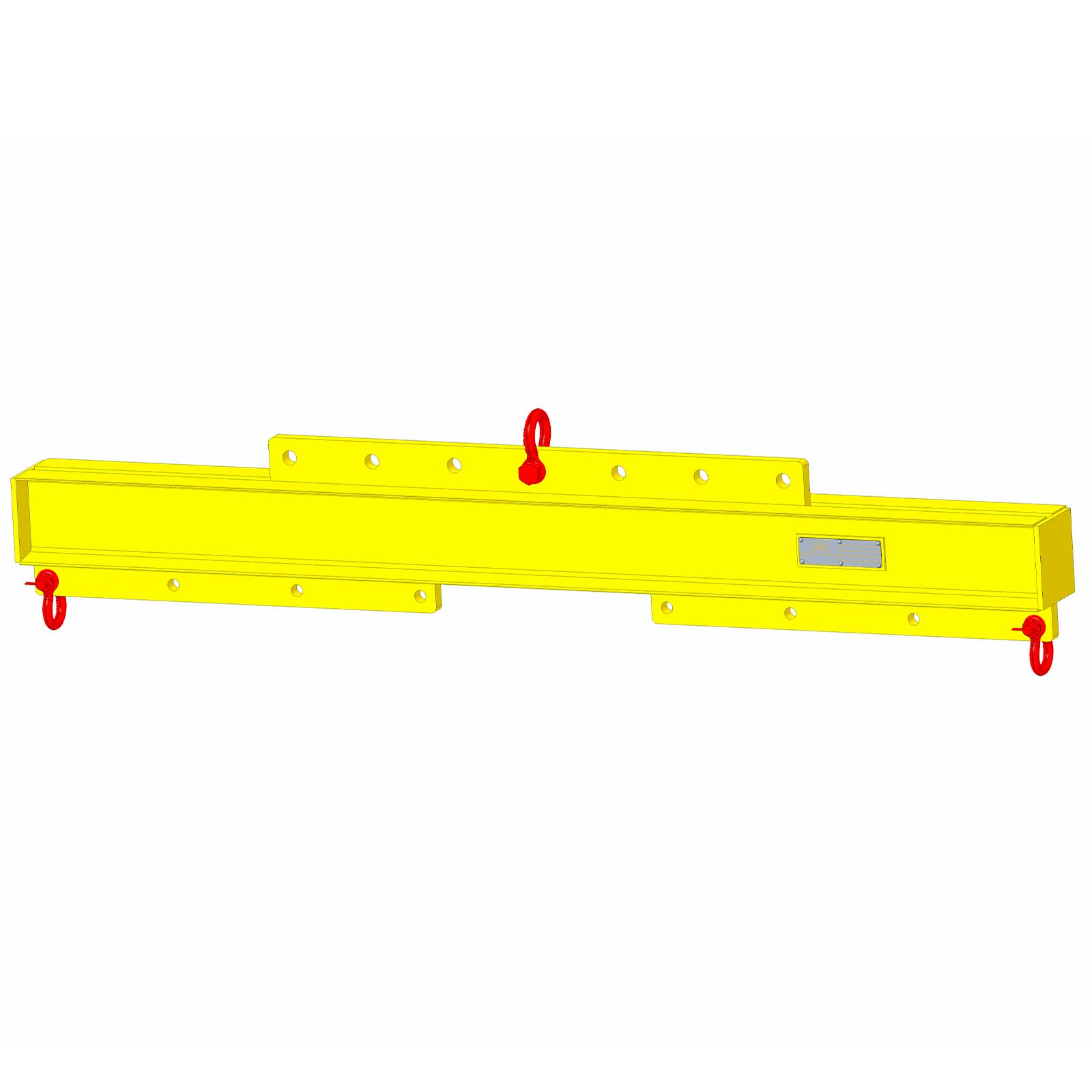

Adjustable Length Economy Lifting Beam - 4,000 Lb. Capacity - 4' Max Spread
Adjustable Length Economy Lifting Beam - 4,000 Lb. Capacity - 4' Max Spread!
Continue Browsing
Adjustable Lifting Beams
Lifting Beams & Spreader Bars
Rigging Supplies & Rigging Hardware
Related Articles
$1,627.28
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsCustom Configuration Options
Connect with an ExpertPayment Options
Specifications
Working load limit: 2 tons (US) / 4,000 lbs.
Brand part number: 13924

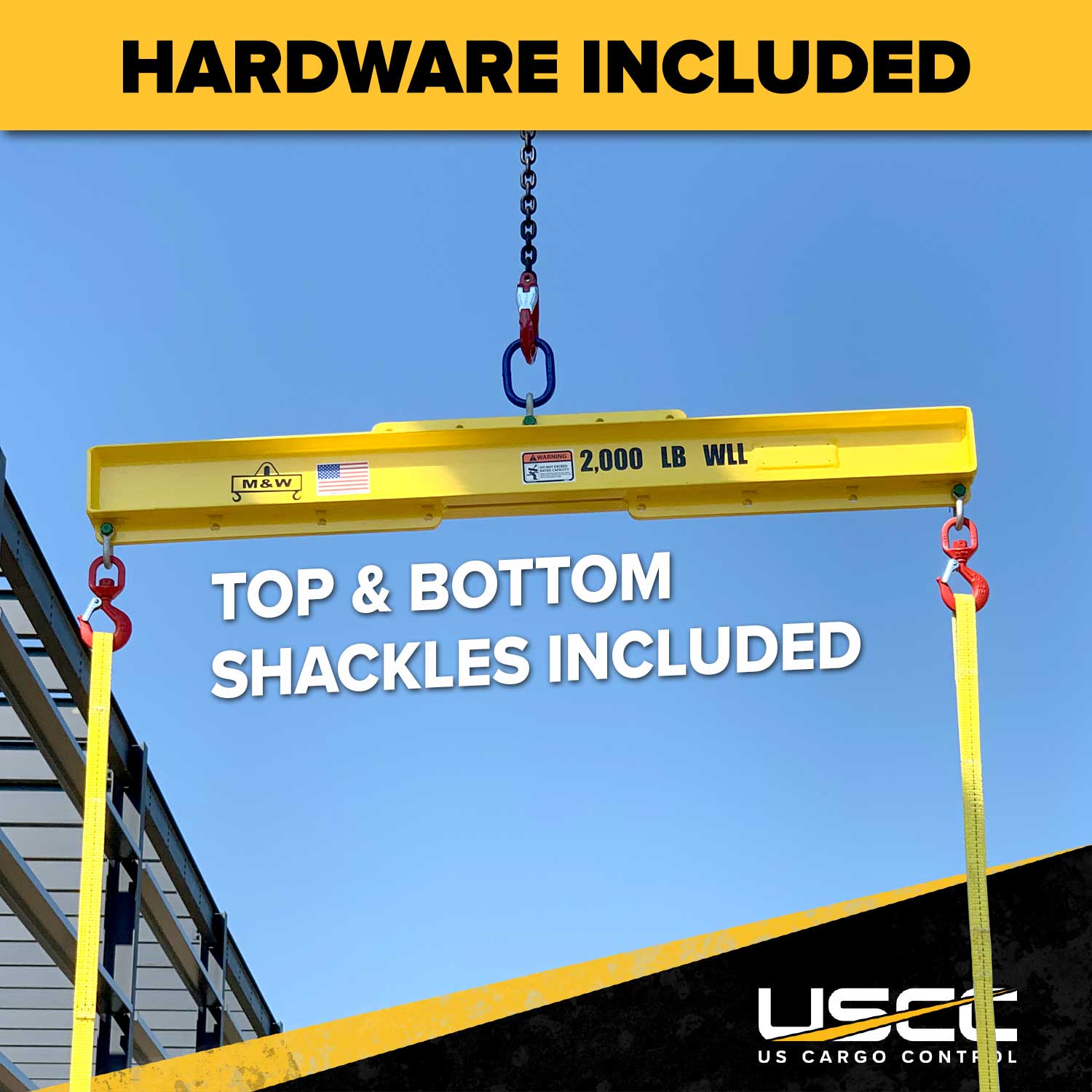

End fitting: Top & Bottom Shackles Included
Finish: High visibility yellow paint
Manufacturer name: M&W
Material: Steel
Spread: 1' - 4'
Product weight: 65 lbs.
Rated for Overhead Lifting: Yes
Safety factor: 3:1
Shackle size: Top shackle(s): 1/2”
Bottom shackle(s): 7/16”
Bottom shackle(s): 7/16”
Shipping and returns: This item ships complete with proof testing certificate; it cannot be returned due to safety risks associated with used materials.
Standards: Exceeds all ASME B30.20 and OSHA regulations.
Proof loaded per OSHA requirements.
Proof loaded per OSHA requirements.

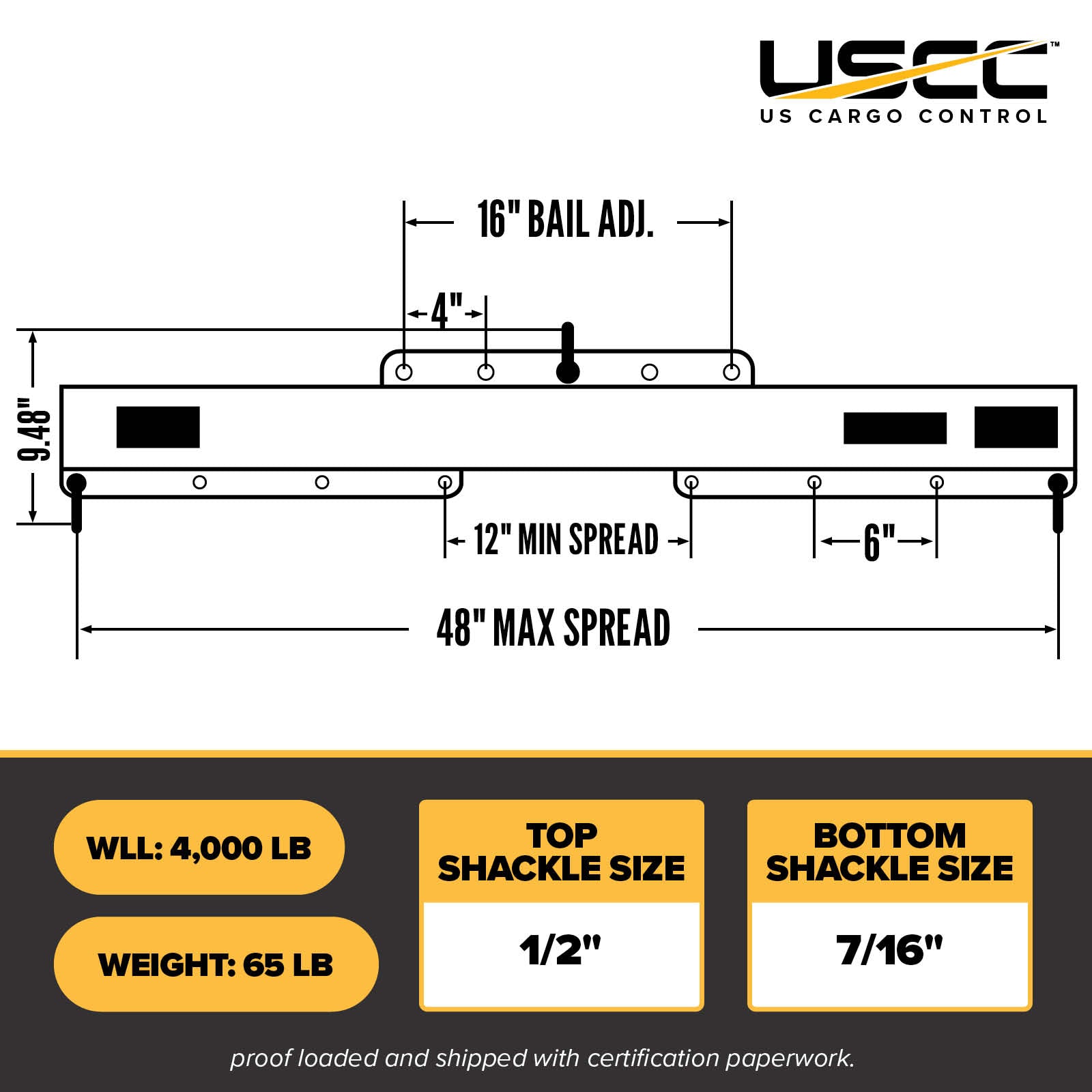

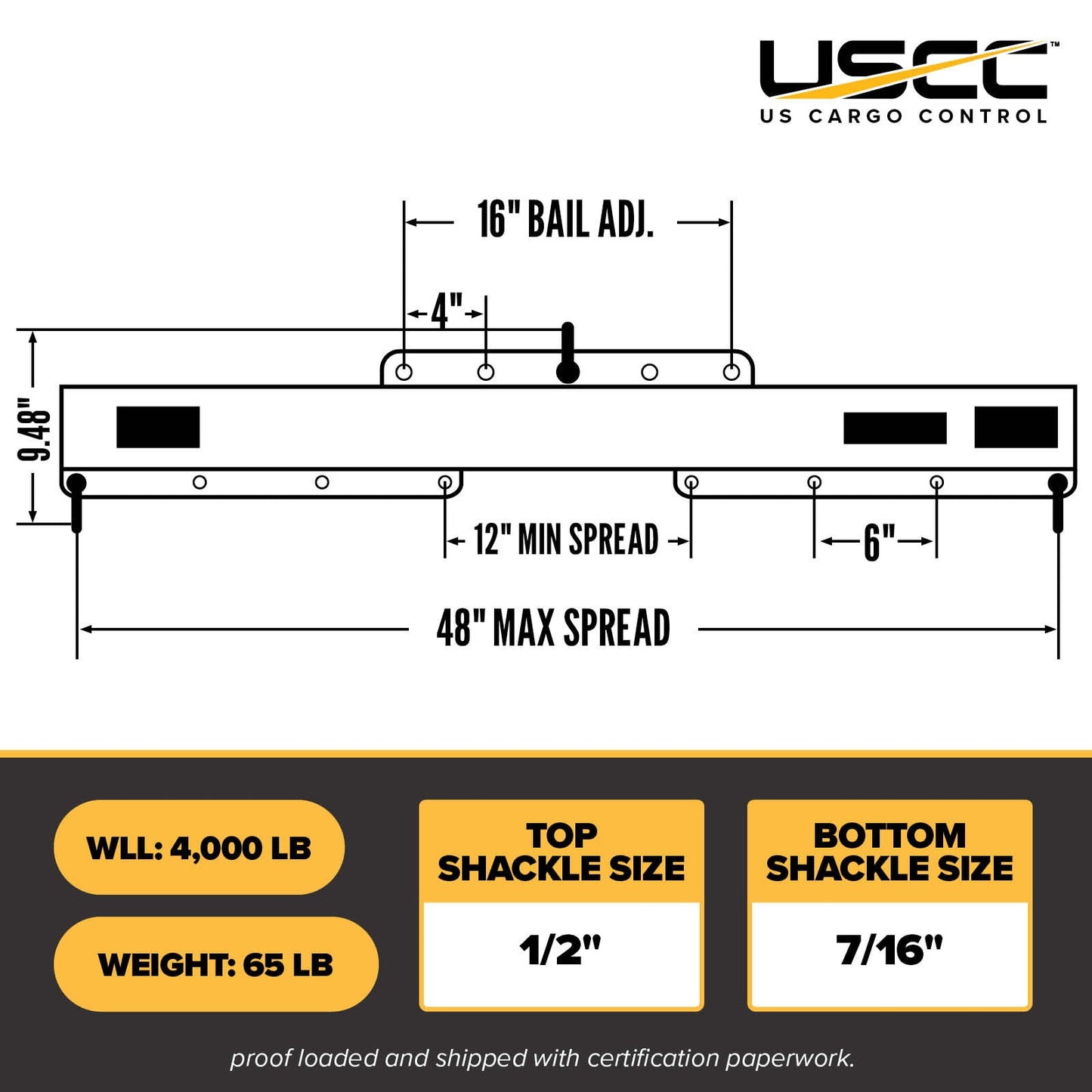

Additional Info: Headroom: 9.48"
Bail Adjustment Length: 16"
Bail Adjustment Increments: 4"
Bail Adjustment Length: 16"
Bail Adjustment Increments: 4"
Description
Different load sizes are easily accommodated via adjustable lifting points. An adjustable lifting bail also centers unbalanced loads. Fitted with shackles, but additional hardware configurations also available upon request. Equipped for RFID Tracking Chip for logistics management.
Made in the USA and machined to exacting tolerances. Proof loaded per OSHA requirements; exceeds all OSHA and ASME B30.20 regulations (certification paperwork included).
RFID tracking chip equipped. Lifting Beams Made in the USA by M&WCalifornia Residents: WARNING
