SKU: 430FH-Y-BOX
4" x 30' Winch Straps with Flat Hook - Box of 10 | Yellow
4" x 30' Winch Straps with Flat Hook - Box of 10 | Yellow!
$134.29
$139.90
4% off
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Assembly break strength: 16,200 lbs.
Color: Yellow
Length: 30'
Working load limit: 5,400 lbs.
End fitting: Flat Hook
Material: Polyester webbing
Product weight: 4.8 lbs.
Quantity: 10
Webbing break strength: 20,000 lbs.
Width: 4"
Additional Info: Design Factor: 3:1
Description

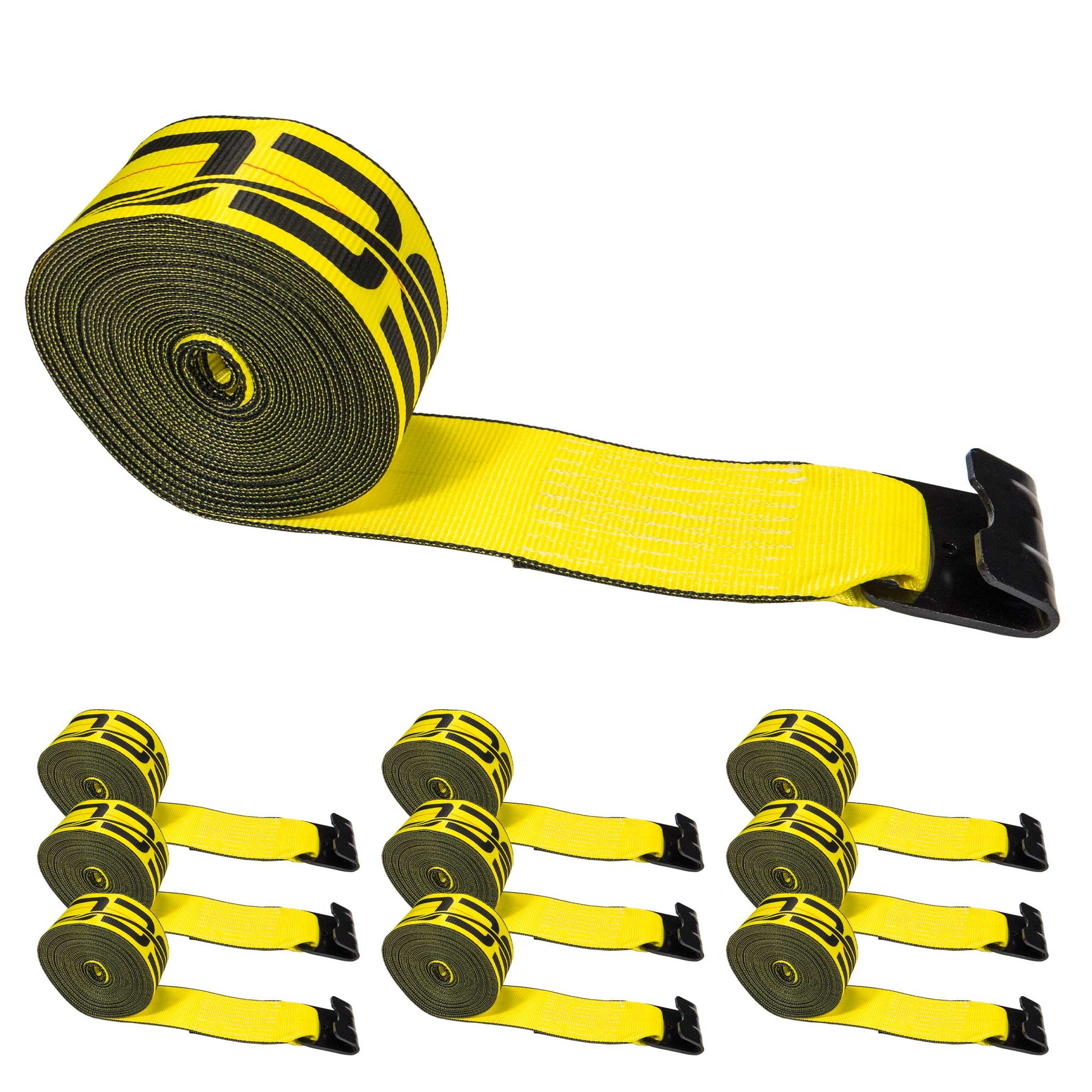

10-Pack of 4" x 30' Yellow Heavy Duty Winch Straps with Flat Hook

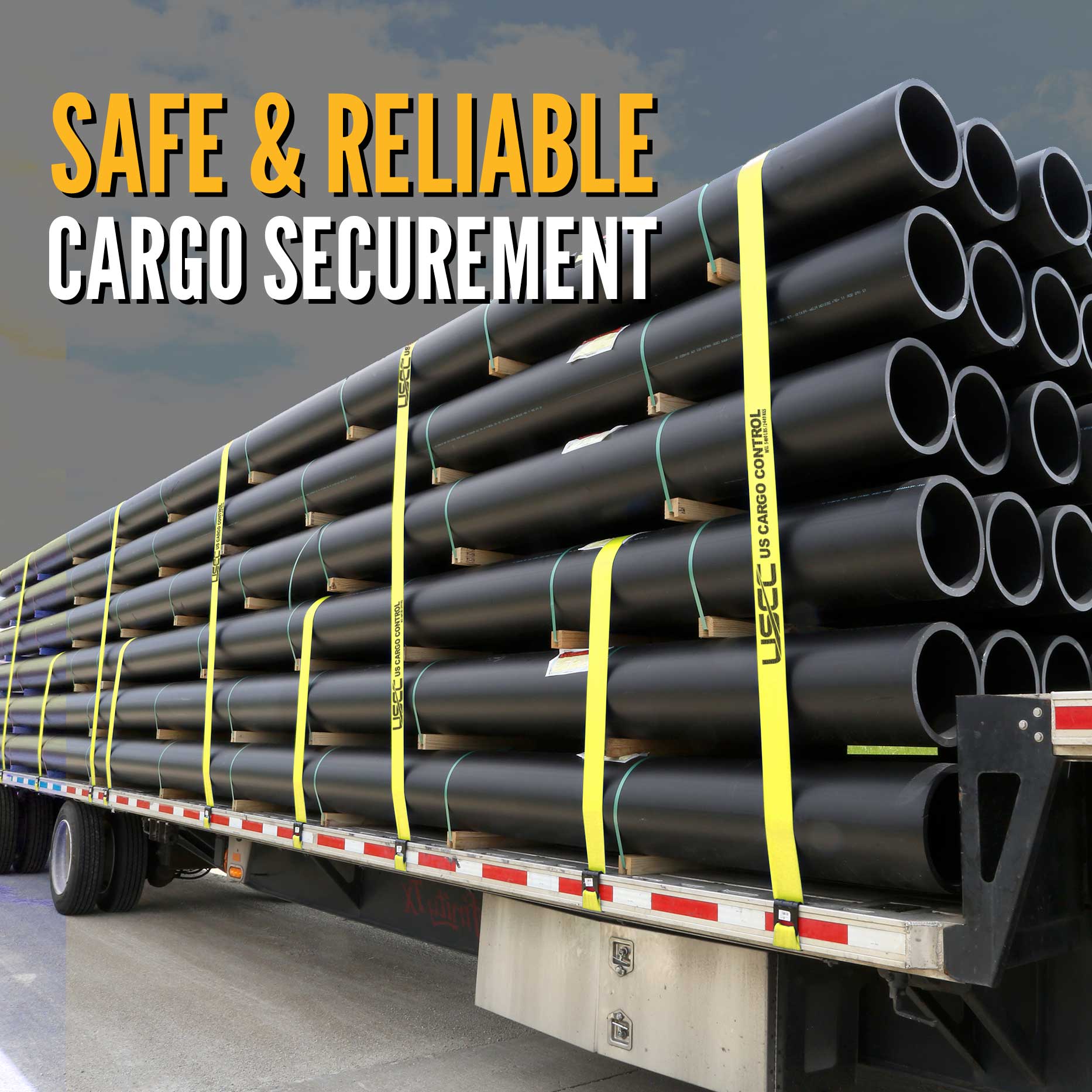

Trailer winch straps are one of the most common pieces of tie down equipment for flatbeds and other trailers. Used in combination with winches and other related hardware, their versatility makes them the ideal choice for a wide range of cargo.
The rugged polyester webbing offers very little stretch and is abrasion-, UV-, and water-resistant.
HD Truck Strap Features

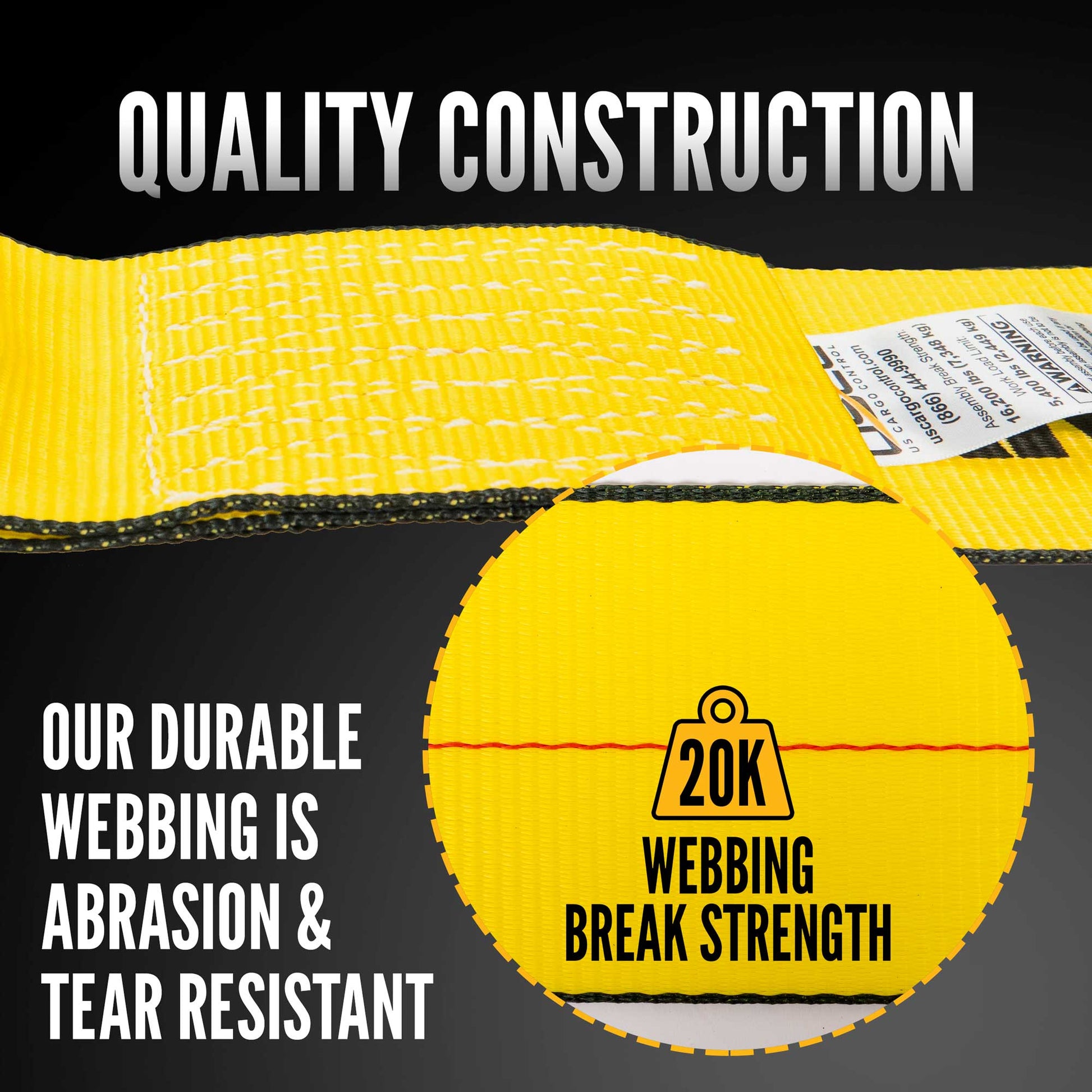

The yarn used to make our webbing is slightly thicker than that offered by most competitors, with more picks per inch used to create each strap. It's also heat-sealed on the end. Together, these features provide better resistance to abrasion, tearing, and cutting, so your winch straps will last longer.
The 30-foot length strap fits standard 4" winches.
Compliant with Industry Standards

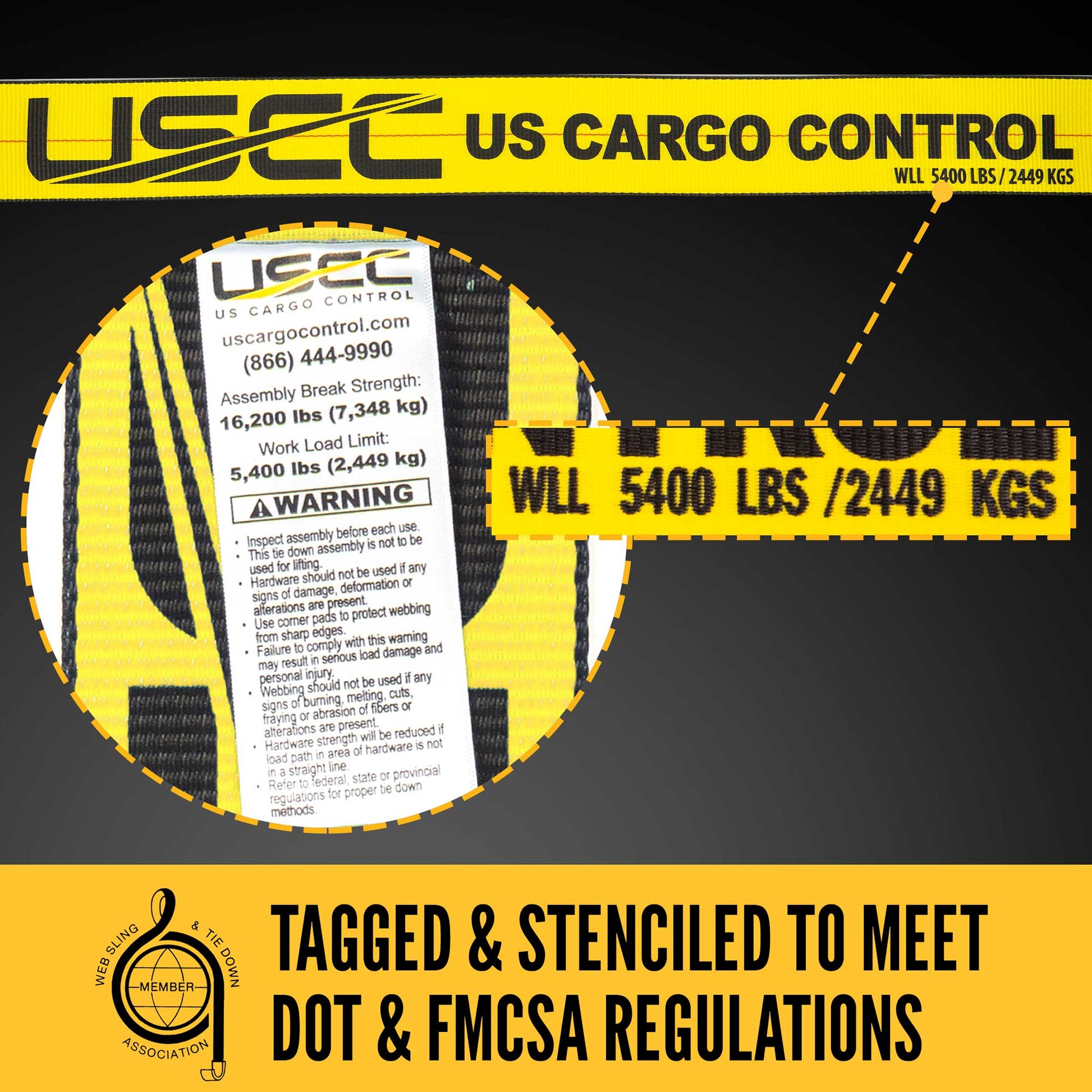

All of our trailer winch straps are tagged and stenciled with the working load limit to meet FMCSA and DOT regulations, CVSA and WSTDA guidelines, and North American Cargo Securement standards.
Learn more about proper load handling and securement in the WSTDA safety bulletins.
Why Choose Flat Hook End Hardware?

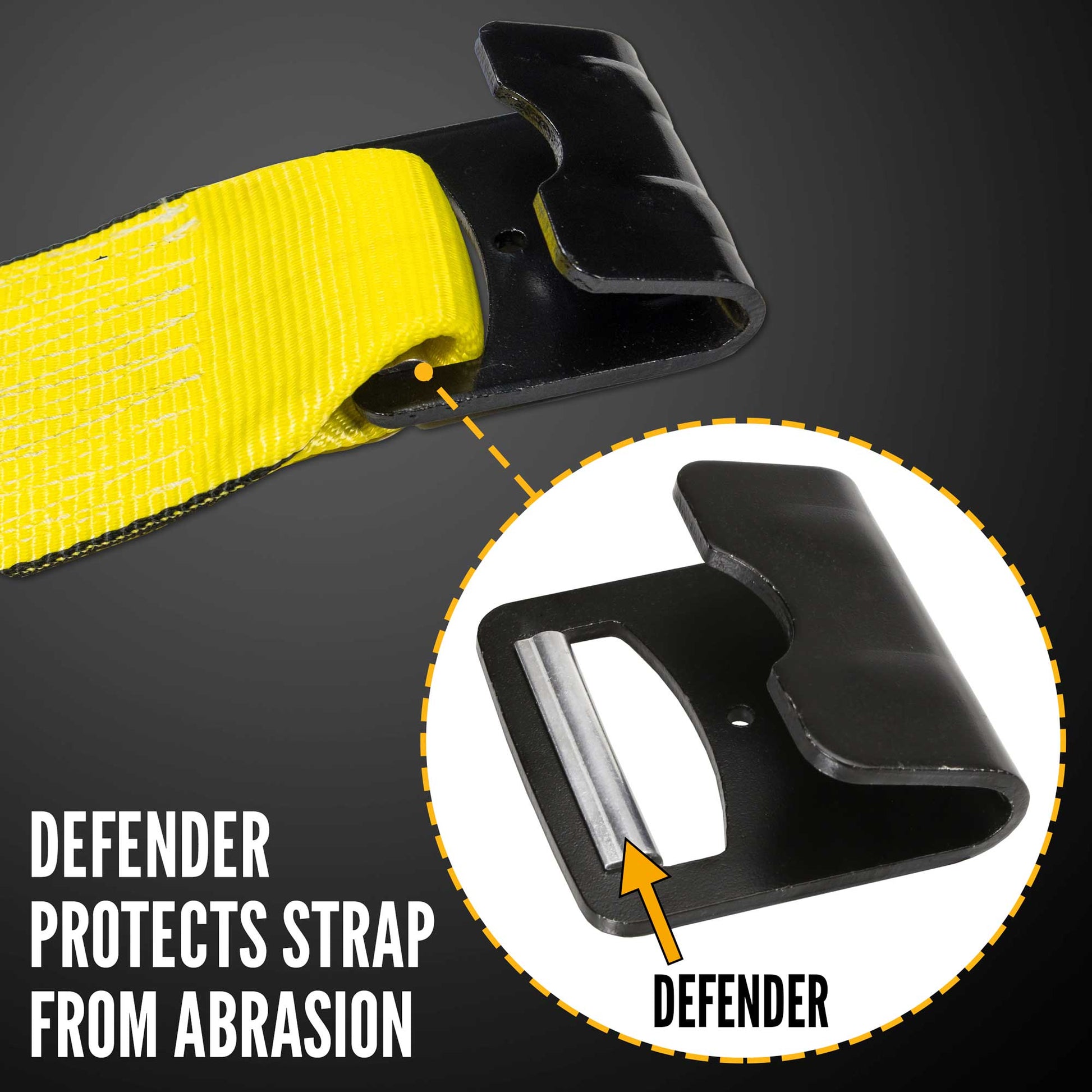

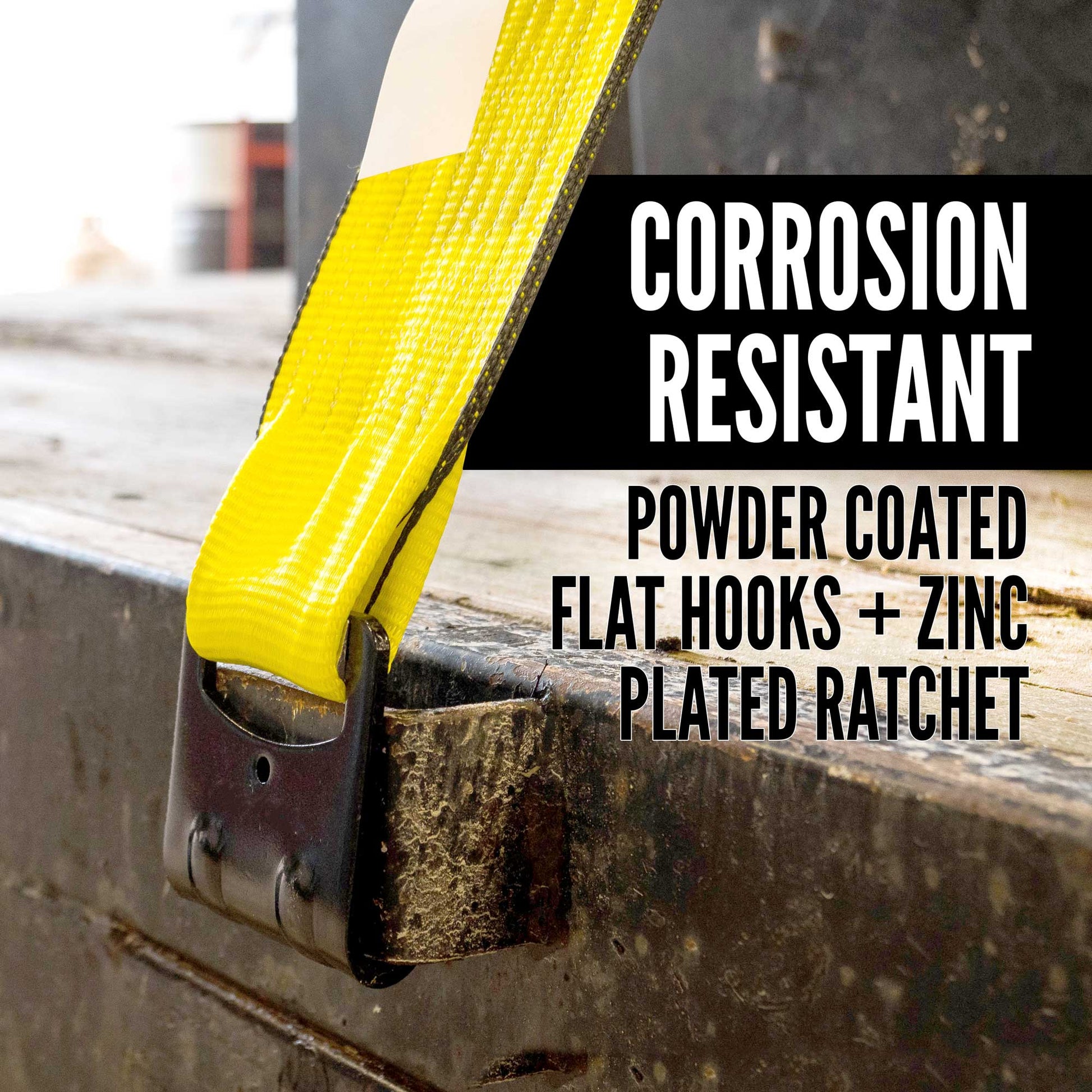

Flat hooks have a wide contact area to better distribute tie down force, making them a reliable choice for most loads. They also include a built-in defender to prevent webbing wear and tear and prolong the life of your strap. A black powder coat finish looks sharp and adds protection from the elements. If you don't have a railing to clamp onto or your anchor point space is limited, flat hooks might not be the best choice.
Custom Winch Straps Available
Looking for a combination of length, color, or hardware you don't see on the website? Want straps stenciled with your company name or logo? We also offer custom tie down straps!
Winch Use Guidelines
According to the WSTDA (section 4.6.8): "When using web tie downs with a winch or ratchet, a minimum of 2 and a maximum of 4 wraps of webbing shall be wound on the winch or ratchet mandrel. Excessive wraps of webbing on the mandrel may reduce the working load limit (WLL) of the web tie down and may interfere with proper operation."
What is Design Factor?
Another term defined by the WSTDA, design factor is the "ratio of the breaking strength to the working load limit" and should be 3:1 for these tie down straps. This builds in a level of redundancy to account for unknown factors, keeping you, your crew, and those around you safe.
Comprehensive Cargo Securement Supplies
Complete your tie down system with winch bars and truck winches, as well as corner protectors and CORDURA cargo strap protectors.
