SKU: 302WHBL
3" x 11" Fixed End with Wire Hook / Bolt Loop | No Ratchet
3" x 11" Fixed End with Wire Hook / Bolt Loop | No Ratchet!
$13.29
Get 11+
$12.90/ea
Get 25+
$12.63/ea
Get 50+
$12.23/ea
Blazing Fast Shipments
Shipping & ReturnsBuy in Bulk
Request a QuoteQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Assembly break strength: 16,200 lbs.
Color: Yellow
Length: 11"
Working load limit: 5,400 lbs.
End fitting: Wire Hook / Double J-Hook
Product weight: 2 lbs.
Ratchet handle: Standard
Shipping and returns: This item cannot be returned due to being made to order.
Width: 3"
Description

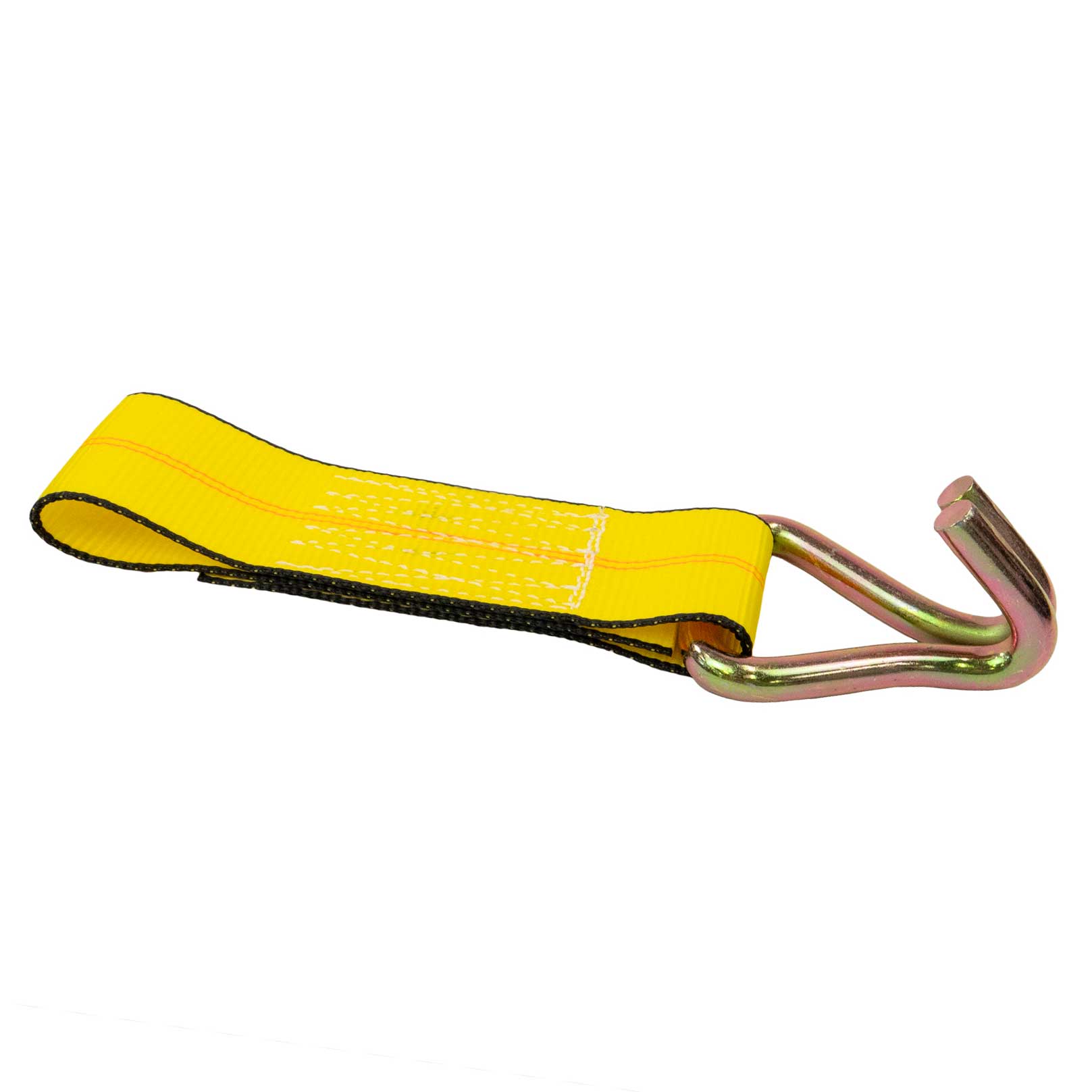

3" x 11" Yellow Tie Down Strap with Wire Hook / Double J-Hook & Bolt Loop

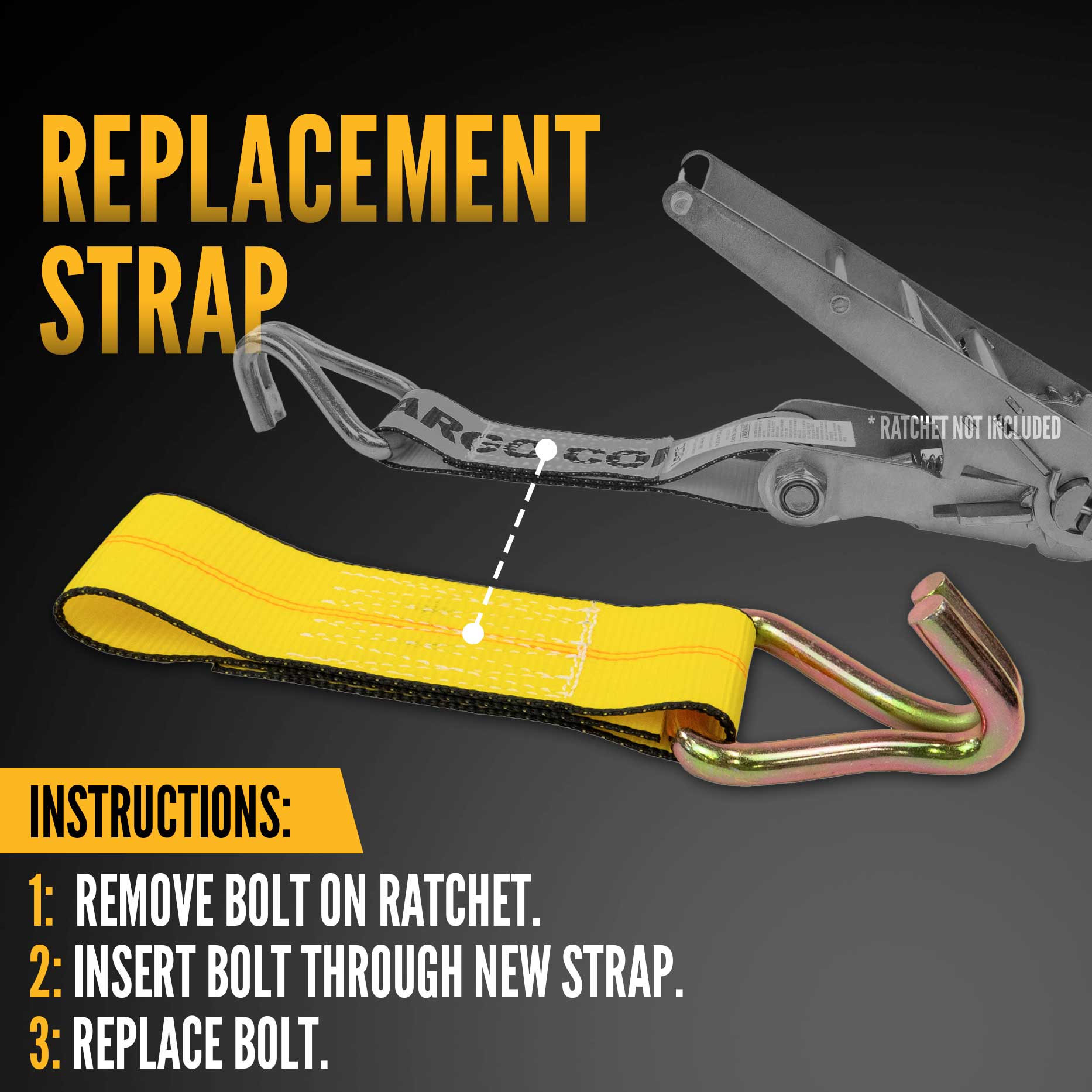

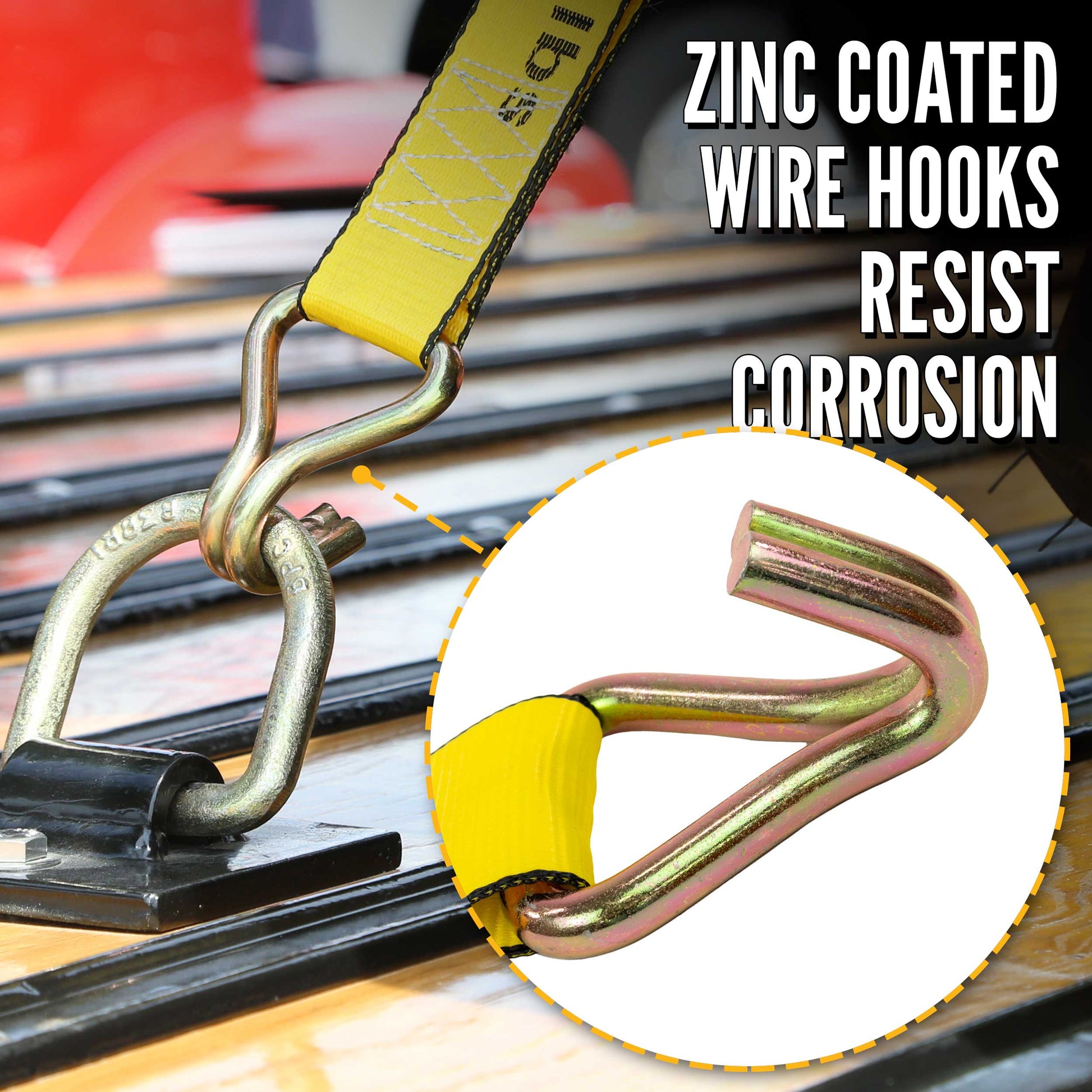

Update your fixed end without needing to buy an entire ratchet tie down with this heavy-duty 3"replacement strap. Made from durable yellow polyester webbing, it has a wire hook on one end and a sewn bolt loop on the other to connect to your ratchet. The wire hook has a yellow zinc coating that adds protection from the elements.
Three Inch Ratchet Strap Features
The yarn used to make our webbing is slightly thicker than that offered by most competitors, with more picks per inch used to create each strap. It's also heat-sealed on the end. Together, these features provide better resistance to abrasion, tearing, and cutting, so your ratchet straps will last longer.
3" Double J-Hook Tie Down Strap Industry Compliance

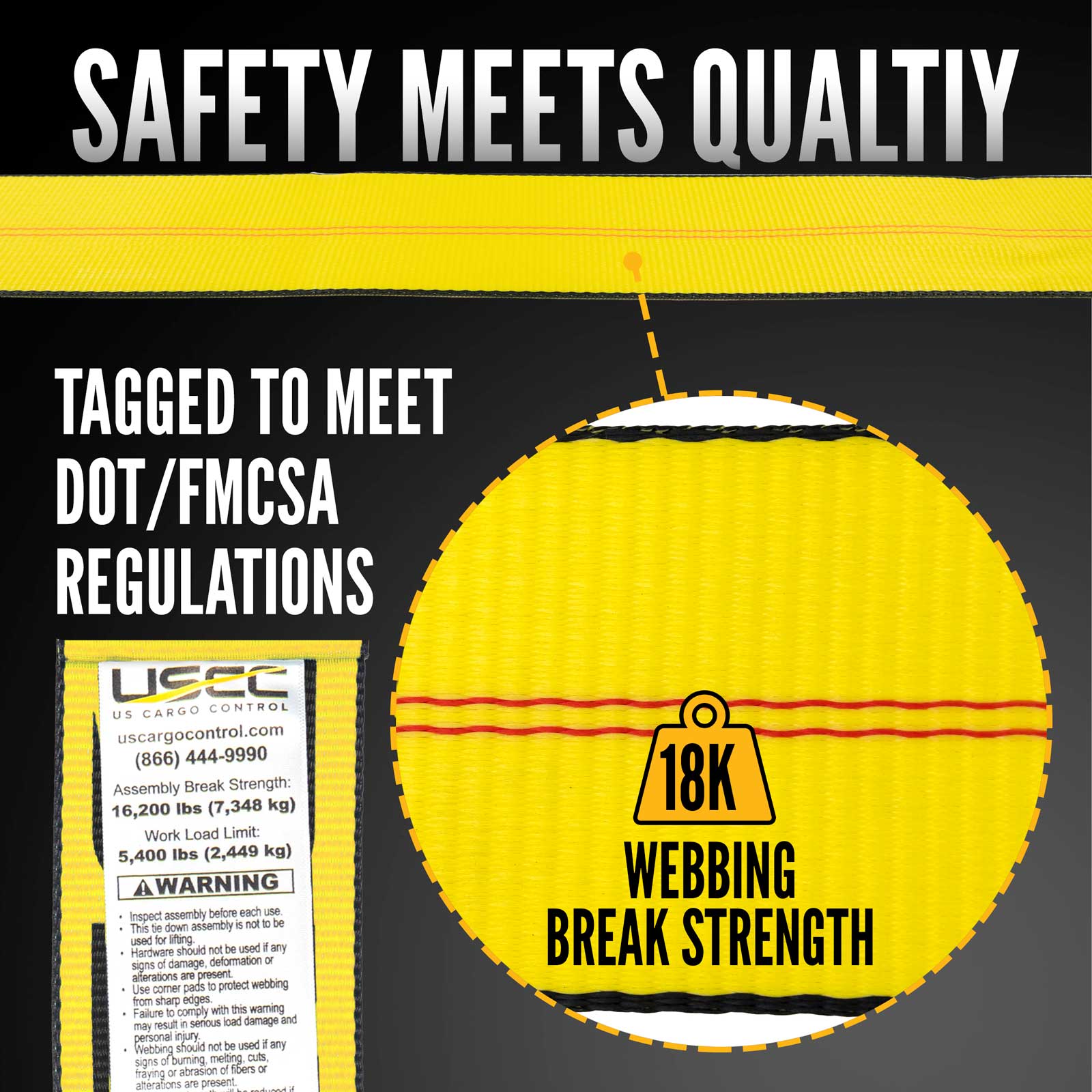

All of our ratchet straps are tagged and stenciled with break strength and working load limit to meet FMCSA and DOT regulations, CVSA and WSTDA guidelines, and North American Cargo Securement standards.
Learn more about proper load handling and securement in the WSTDA safety bulletins.
Why Choose Wire Hook End Hardware?
Wire hooks or double-J hooks are stronger and more durable than standard S-hooks. They are a versatile securement option and can even be used in applications where anchor point space is tight or the connection is harder to reach. They can easily attach to D-rings and other narrow anchor points.
Custom Ratchet Straps Available
Looking for a combination of length, color, or hardware you don't see on the website? Want straps stenciled with your company name or logo? We also offer custom tie down straps!
Ratchet Use Guidelines
According to the WSTDA (section 4.6.8): "When using web tie downs with a winch or ratchet, a minimum of 2 and a maximum of 4 wraps of webbing shall be wound on the winch or ratchet mandrel. Excessive wraps of webbing on the mandrel may reduce the working load limit (WLL) of the web tie down and may interfere with proper operation."
What is Design Factor?
Another term defined by the WSTDA, design factor is the "ratio of the breaking strength to the working load limit" and should be 3:1 for these tie down straps. This builds in a level of redundancy to account for unknown factors, keeping you, your crew, and those around you safe.
Complete Your Tie-Down System
US Cargo Control is your one-stop shop for all cargo securement products, including strap protection, transport chain and binders, corner protectors, and more.
