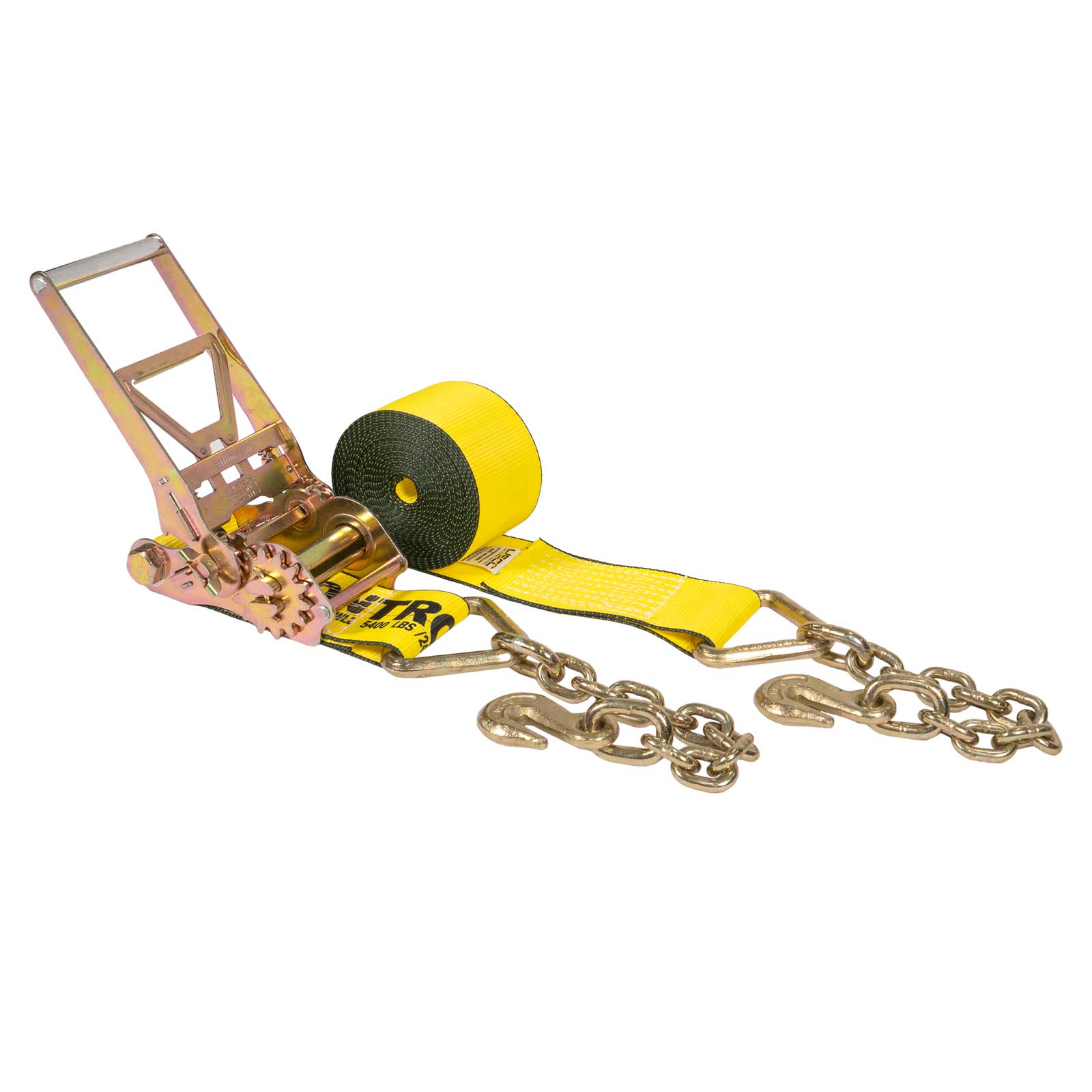

4" x 30' Chain End Ergo Ratchet Straps

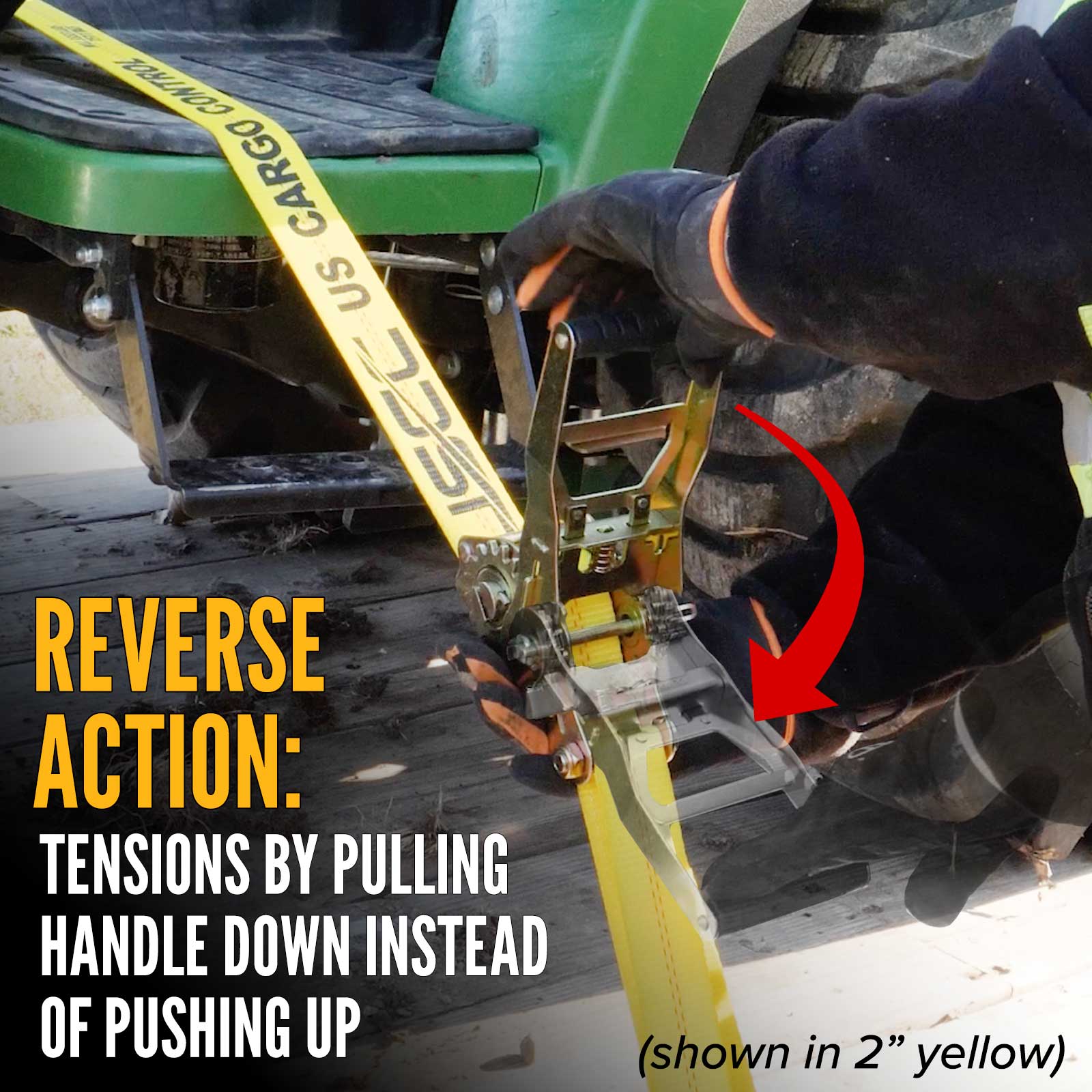

Load securement just got a whole lot safer and easier with our cutting-edge 4" x 30' reverse-action ratchet strap. Unlike traditional ratchets, this innovative strap tightens when you pull down, significantly reducing the effort required to achieve a secure hold.

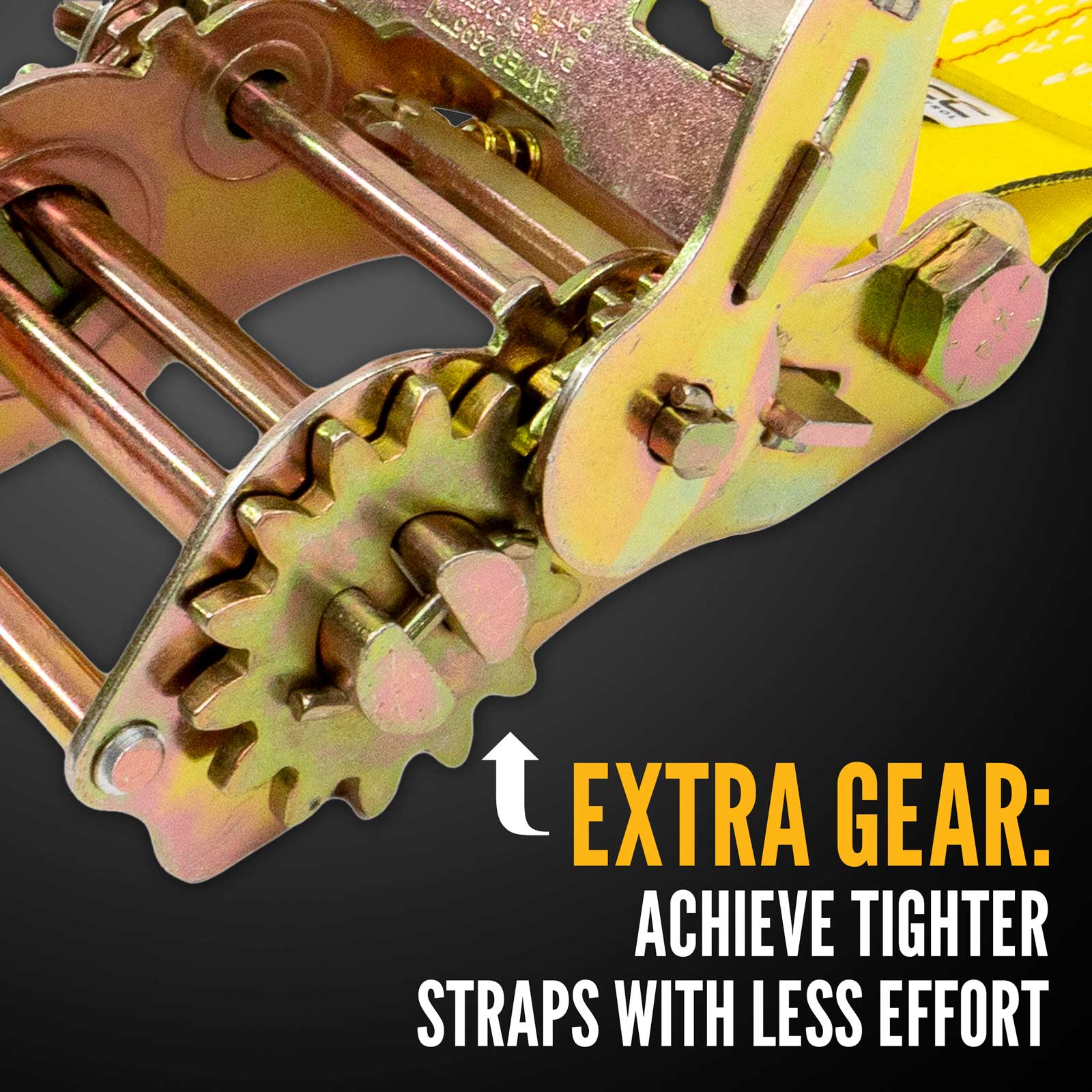

An additional gear in the ratchet’s construction allows you to pull the ratchet handle down using your arms and body weight, eliminating the need to strain your back, neck, and shoulders by pushing up. This reduces the risk of injuries, promotes better posture, and ensures stable footing, particularly crucial in adverse weather conditions such as icy or snowy environments.

Reverse-Action Ratchet Strap Features

• Provides more gear clicks when the handle is in motion for superior tension control

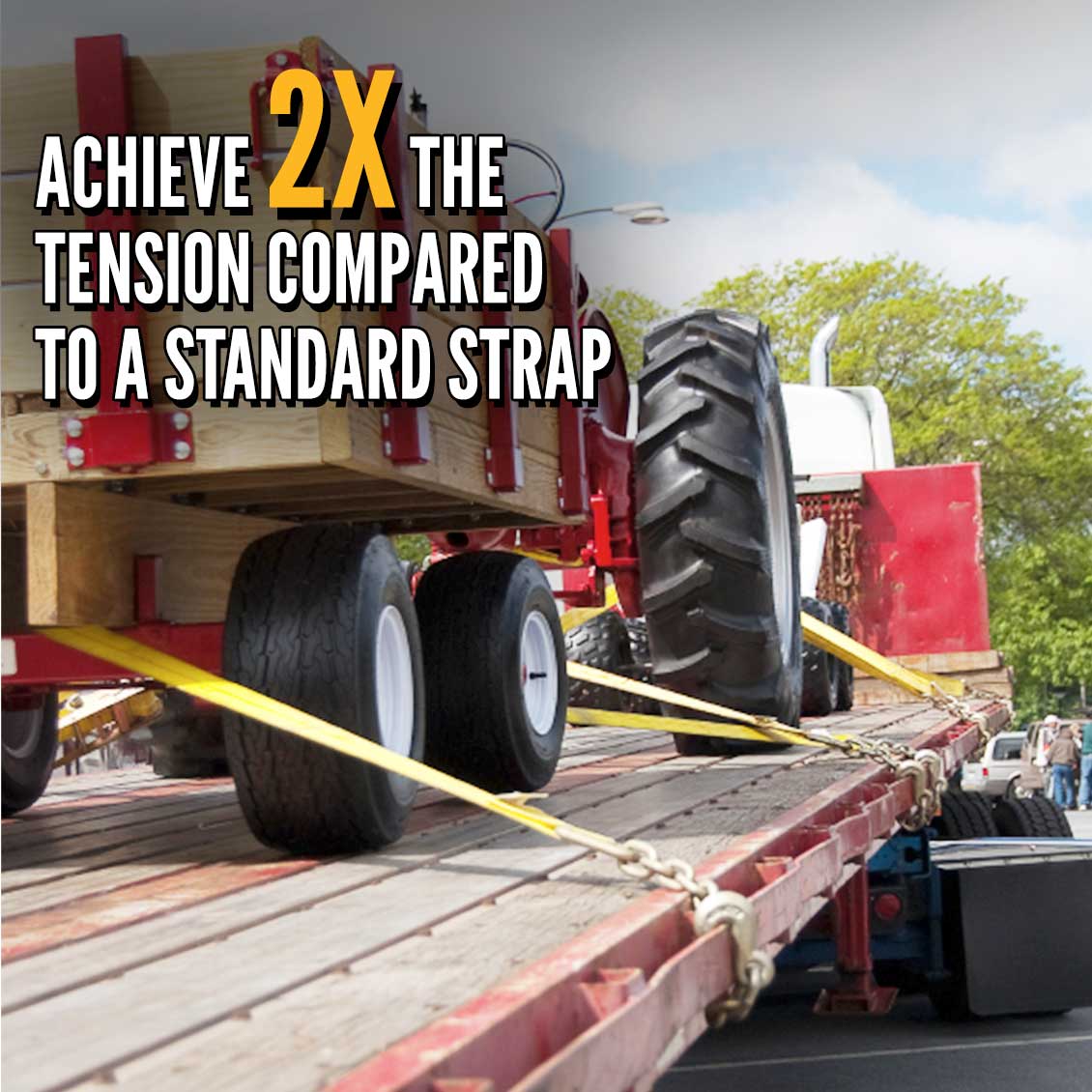

• You can achieve nearly twice the tension on the strap with equal or less effort (tested in-house against a standard ratchet)

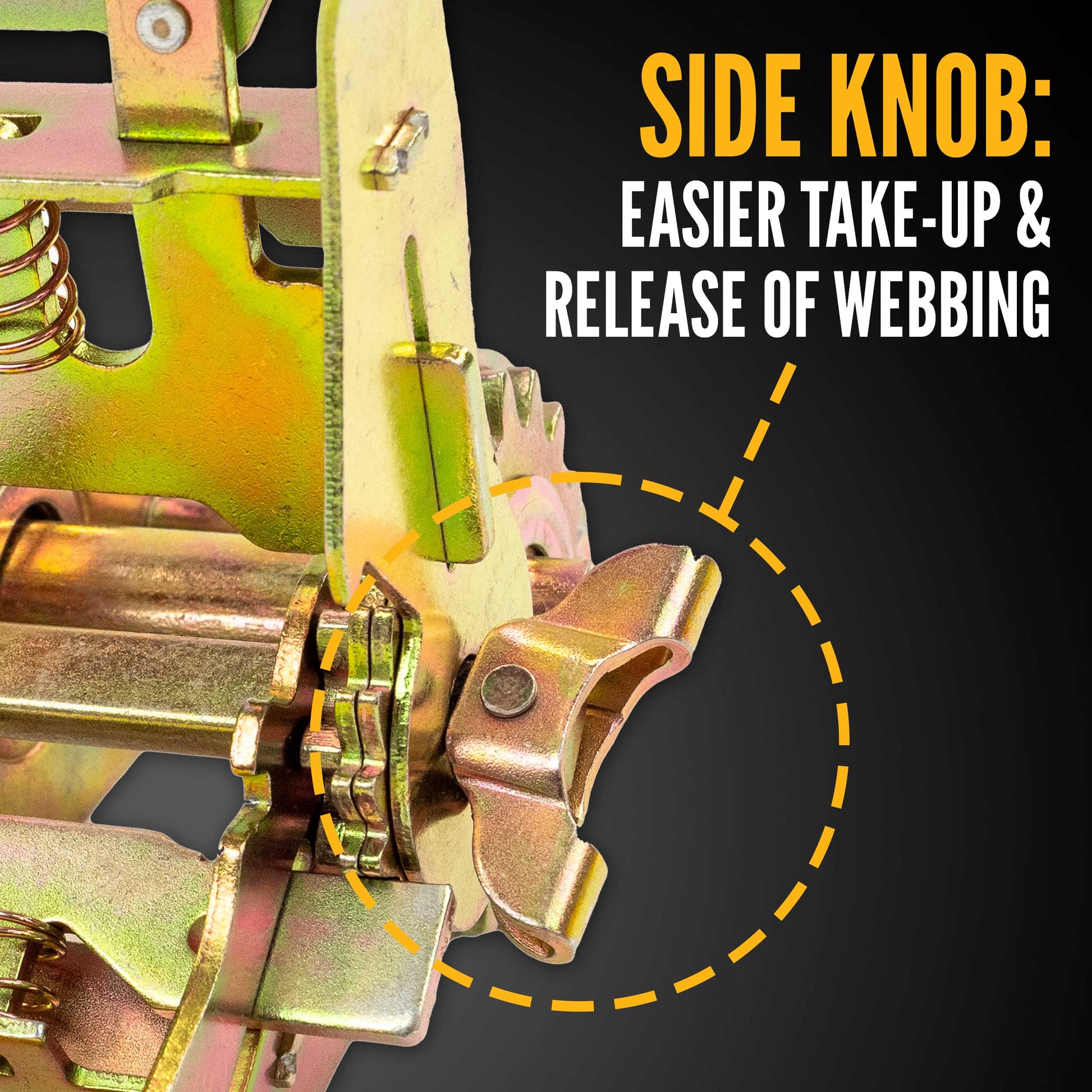

• Convenient side knob lets you spin the mandrel to eliminate strap slack, streamlining webbing take-up and release

Ratchet straps are a staple in the transportation industry - the polyester straps are rugged yet soft to protect your cargo, and the ratcheting mechanism makes it simple to achieve a tight, secure hold. The 4" polyester webbing offers superior strength with very little give and, unlike cam straps, ratchets don't rely solely on operator strength, so you can add the perfect amount of tension to the strap.

HD Ratchet Strap Features

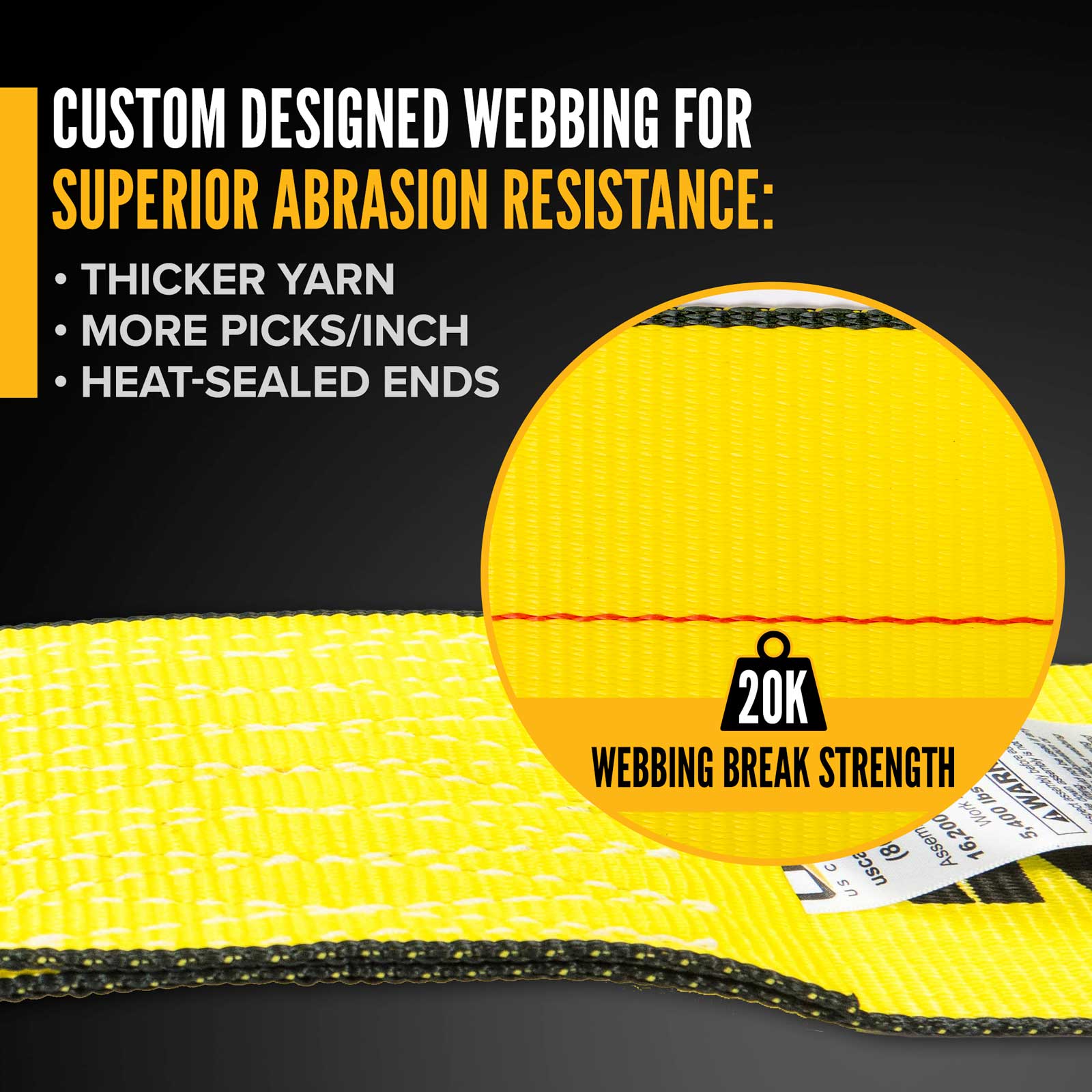

The yarn used to make our webbing is slightly thicker than that offered by most competitors, with more picks per inch used to create each strap. It's also heat-sealed on the end. Together, these features provide better resistance to abrasion, tearing, and cutting, so your ratchet straps will last longer.

The ratchet and chain extensions all have a protective zinc coating for corrosion-resistance.

Compliant with Industry Standards

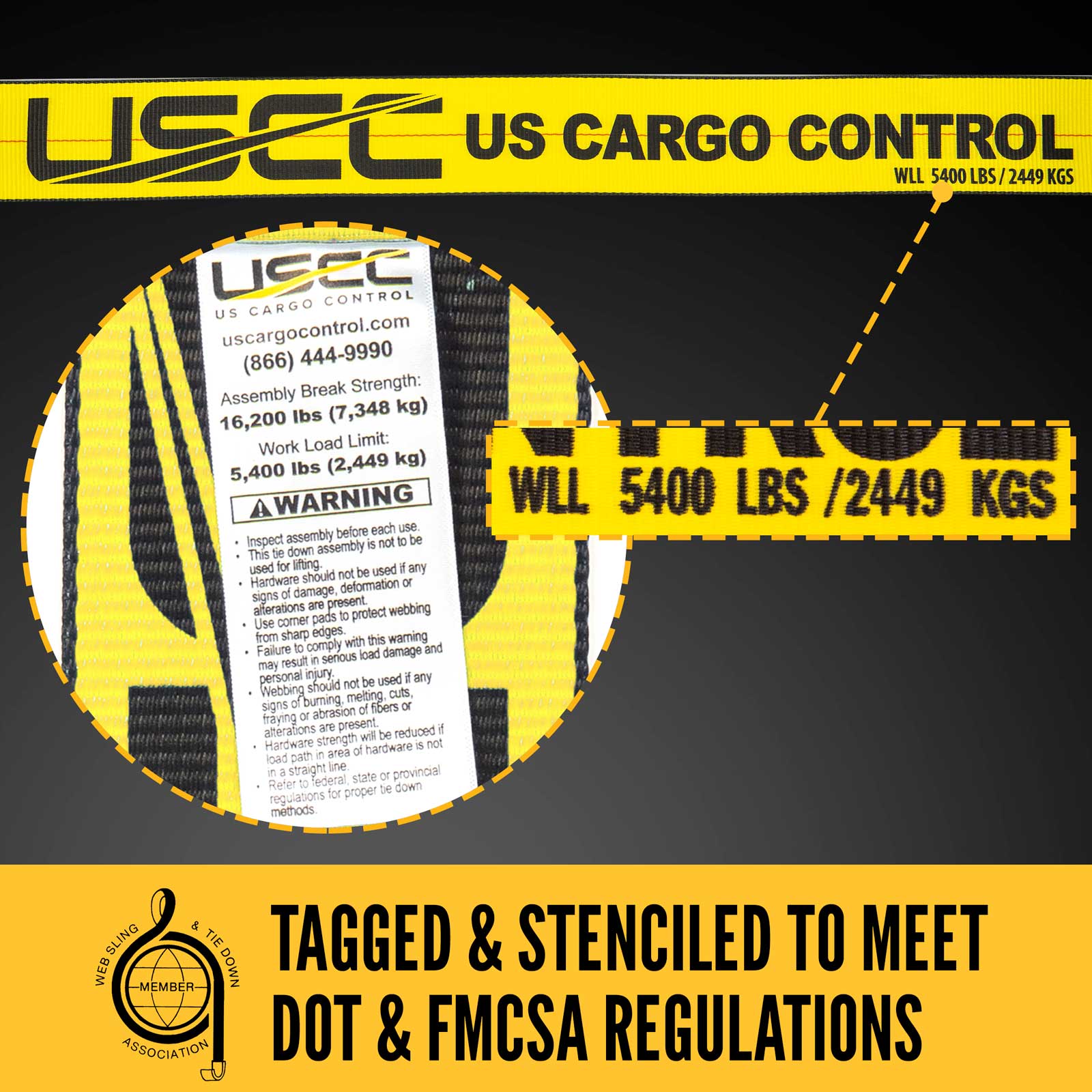

All of our ratchet straps are tagged and stenciled with break strength and working load limit to meet FMCSA and DOT regulations, CVSA and WSTDA guidelines, and North American Cargo Securement standards.

Learn more about proper load handling and securement in the WSTDA safety bulletins.

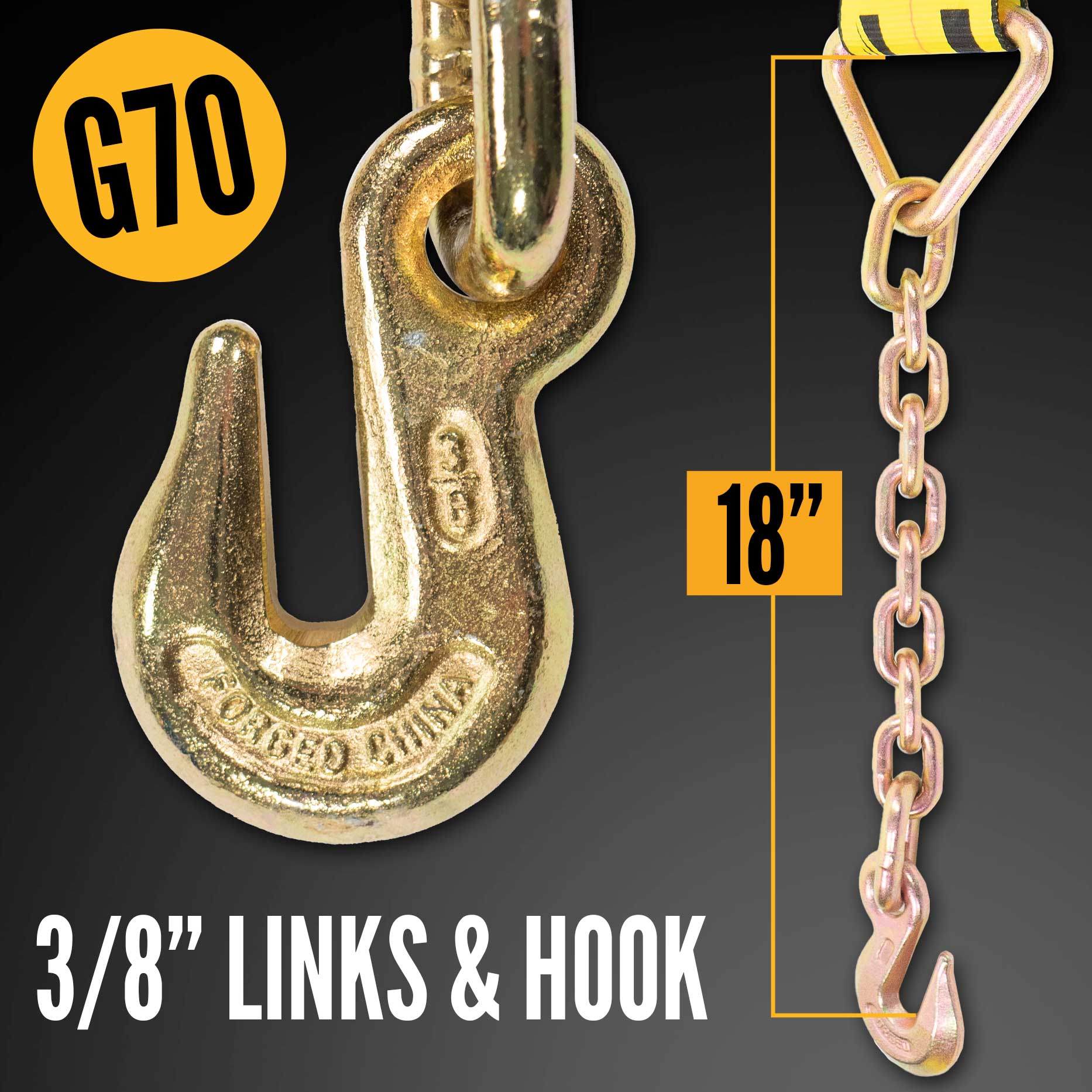

Why Choose 3/8" Chain Extension End Hardware?

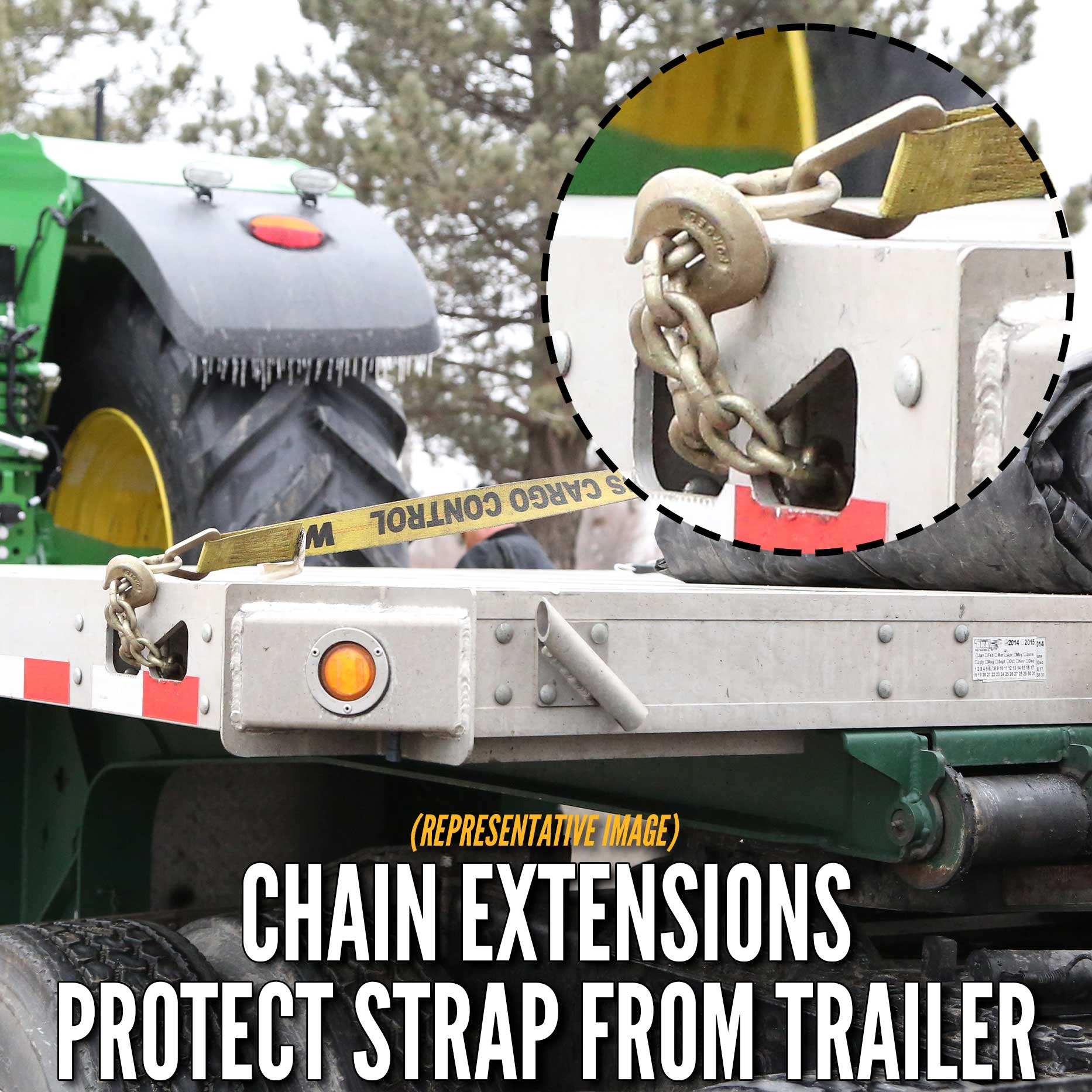

Chain extensions allow you to combine the strength of grade 70 transport chain with the softness of polyester webbing. You can use the rub rails or stake pockets on your truck or trailer to tie down your cargo without risking damage to the webbing part of the strap. The extensions are 18" long with a 4" D-ring and clevis grab hook for quick and secure connections.

Custom Ratchet Straps Available

Looking for a combination of length, color, or hardware you don't see on the website? Want straps stenciled with your company name or logo? We also offer custom tie down straps!

Ratchet Use Guidelines

According to the WSTDA (section 4.6.8): "When using web tie downs with a winch or ratchet, a minimum of 2 and a maximum of 4 wraps of webbing shall be wound on the winch or ratchet mandrel. Excessive wraps of webbing on the mandrel may reduce the working load limit (WLL) of the web tie down and may interfere with proper operation."

What is Design Factor?

Another term defined by the WSTDA, design factor is the "ratio of the breaking strength to the working load limit" and should be 3:1 for these tie down straps. This builds in a level of redundancy to account for unknown factors, keeping you, your crew, and those around you safe.

Comprehensive Cargo Securement Supplies

Complete your tie down system with strap protection, D-rings, corner protectors, and more. We also offer transport chains and binders as an alternative tie-down solution.
