SKU: ATF96AL
96" Flanged L-Track | Aluminum
96" Flanged L-Track | Aluminum!
SKU: ATF96AL
$79.47
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Color: Unpainted
Grade: 6061T-T6
Length: 96"
Height: 0.6"
Material: Aluminum
Product weight: 6.35 lbs.
Type: Flanged L-Track
Width: 2"
Additional Info: Mount Type: Flush Mount
Drilled Hole Diameter: 1/4"
Compatible Fasteners: 1/4", 6mm, or #12 fasteners
Drilled Holes: 25
Connection Points: 96
Drilled Hole Diameter: 1/4"
Compatible Fasteners: 1/4", 6mm, or #12 fasteners
Drilled Holes: 25
Connection Points: 96
Description

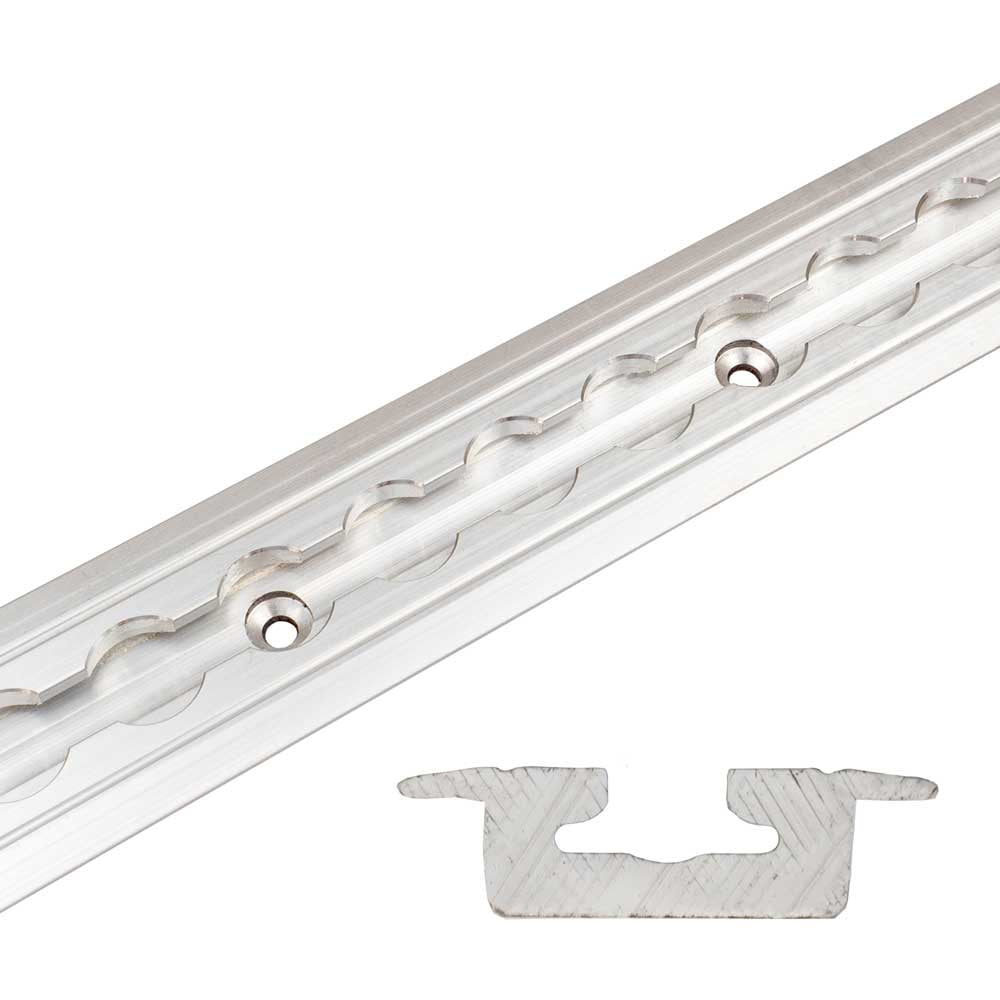

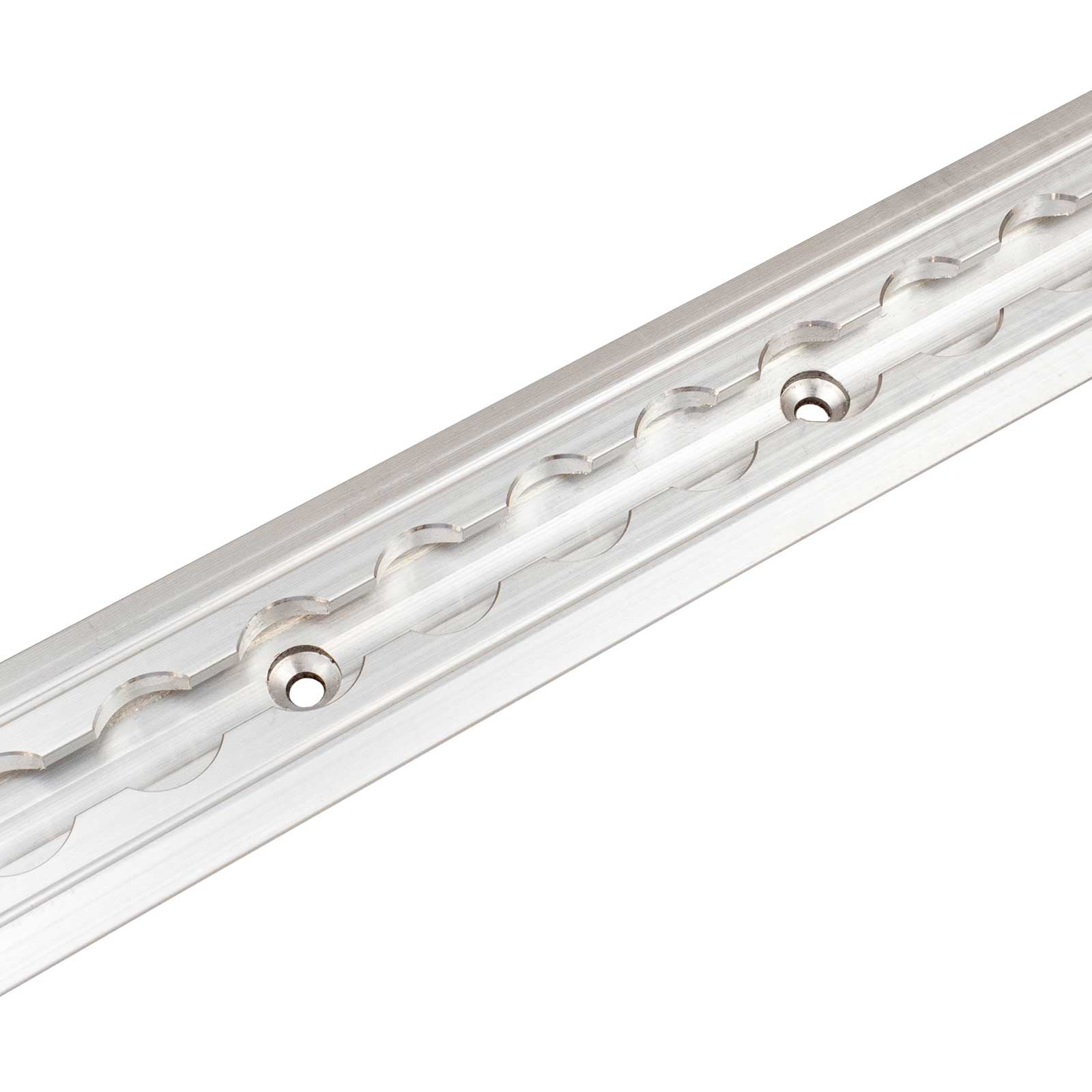

96" Recessed L-Track

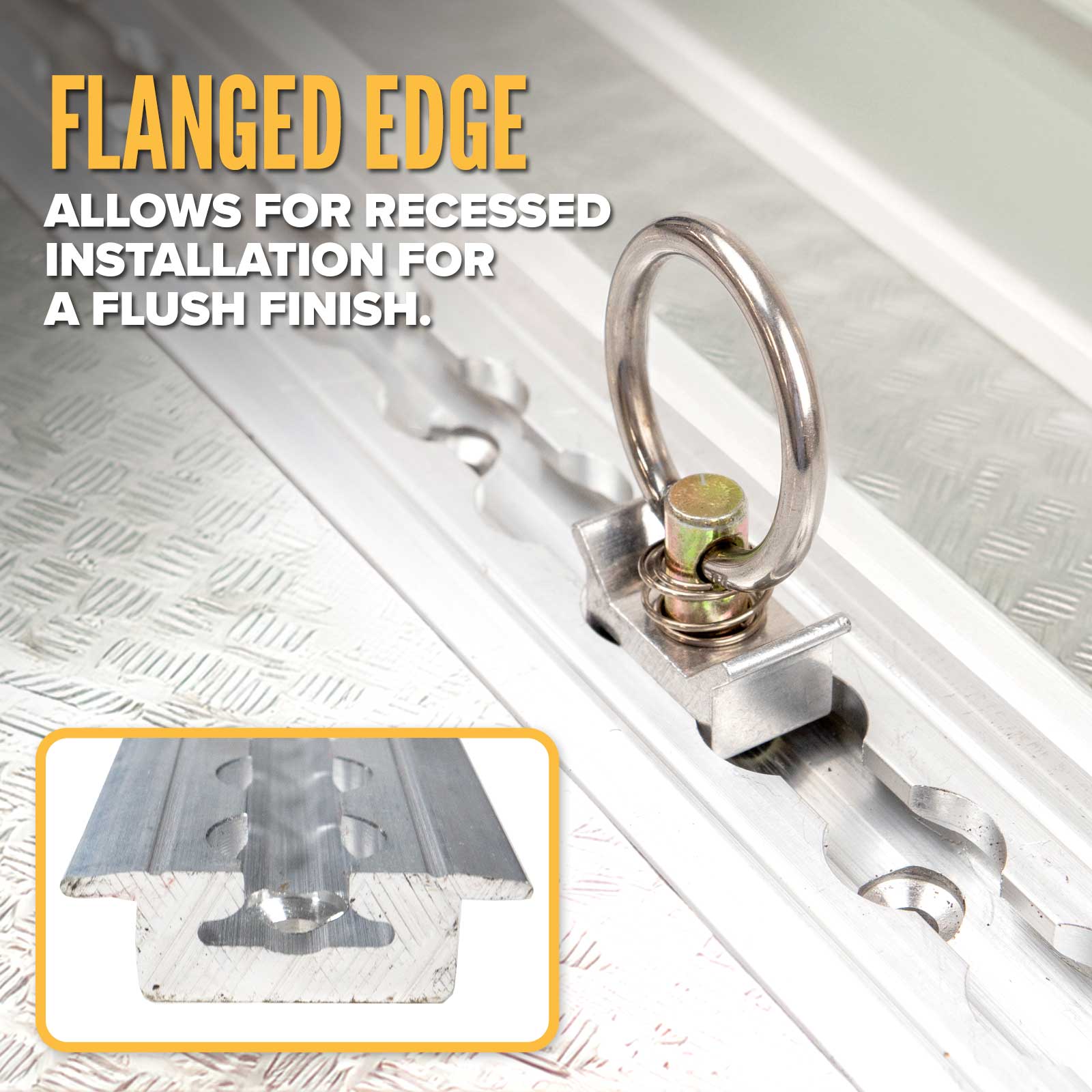

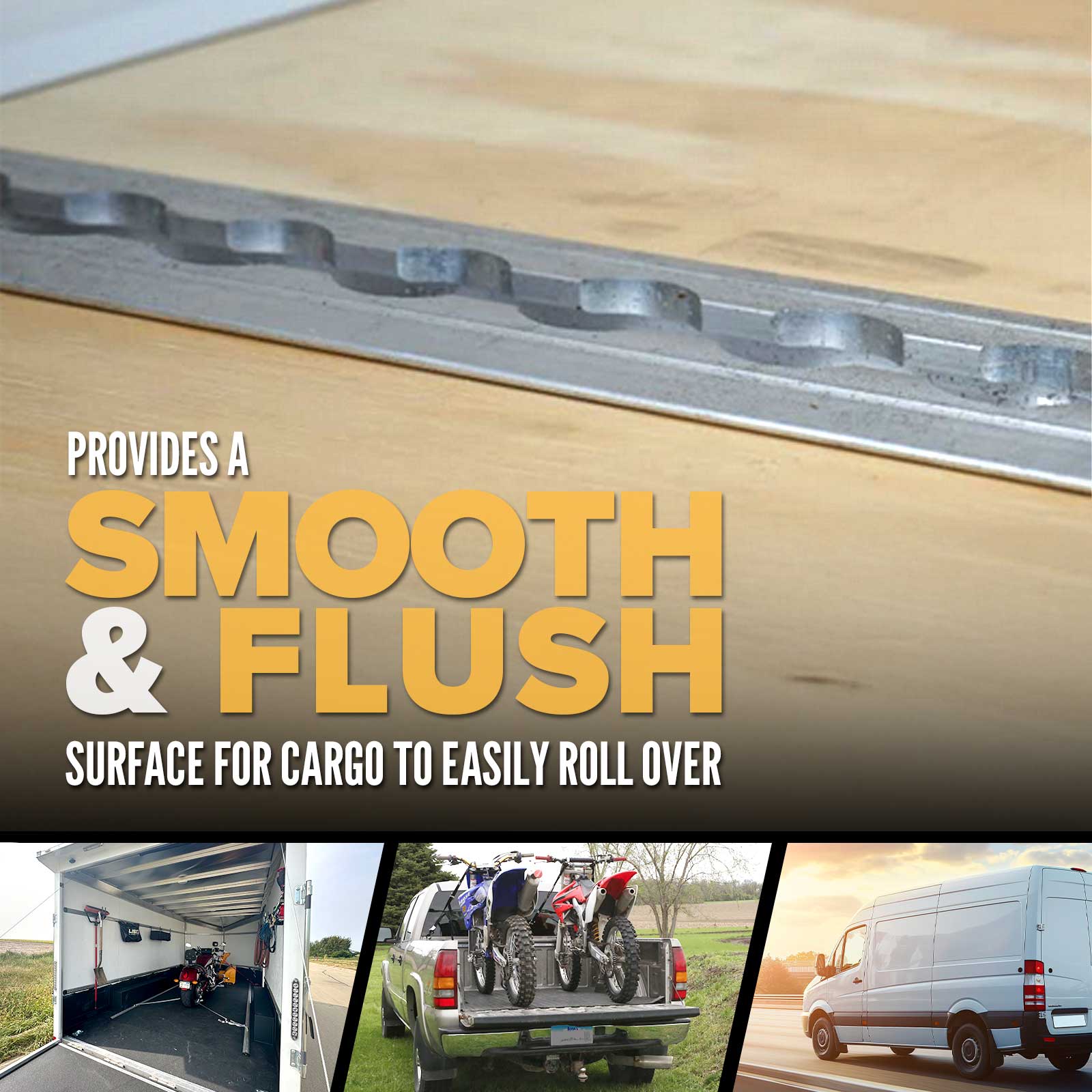

Flanged L-track features a flanged-edge design that allows for recessed installation, eliminating abrupt edges on the surface. This flush-surface benefit makes it ideal for securing motorcycles, ATVs, garden tractors, utility carts, and other wheeled items in pickup truck beds, toy haulers, and enclosed trailers.

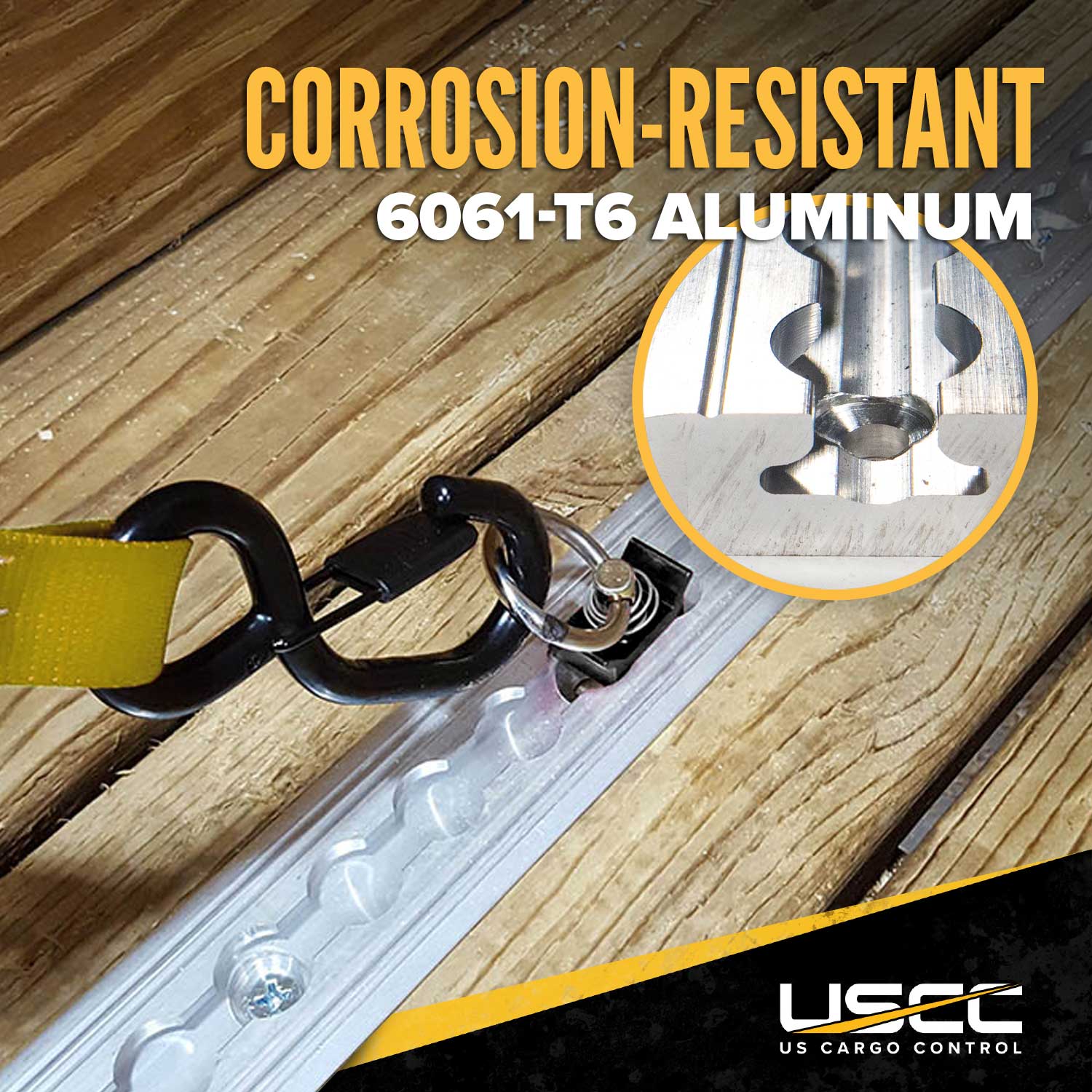

This tie down track is made from lightweight grade 6061-T6 aluminum for superior corrosion-resistance, and it has connection points along the full length of the track. This gives you the flexibility to customize your anchor point location depending on your cargo.
What's the Load Rating on This L-Track?
Due to the many variables involved in installing L-track - the fasteners used, the mounting surface, etc. - we cannot provide a blanket working load limit. The track is designed to be at least as strong as any of the compatible straps and fittings we sell to use with it, but it is up to the installer to determine that the track is properly installed to provide sufficient strength.
If you need assistance with this, consult your trailer manufacturer for installation suggestions. For more information, please refer to WSTDA T-5 section 3.4.
How Do I Install Recessed L-Track?

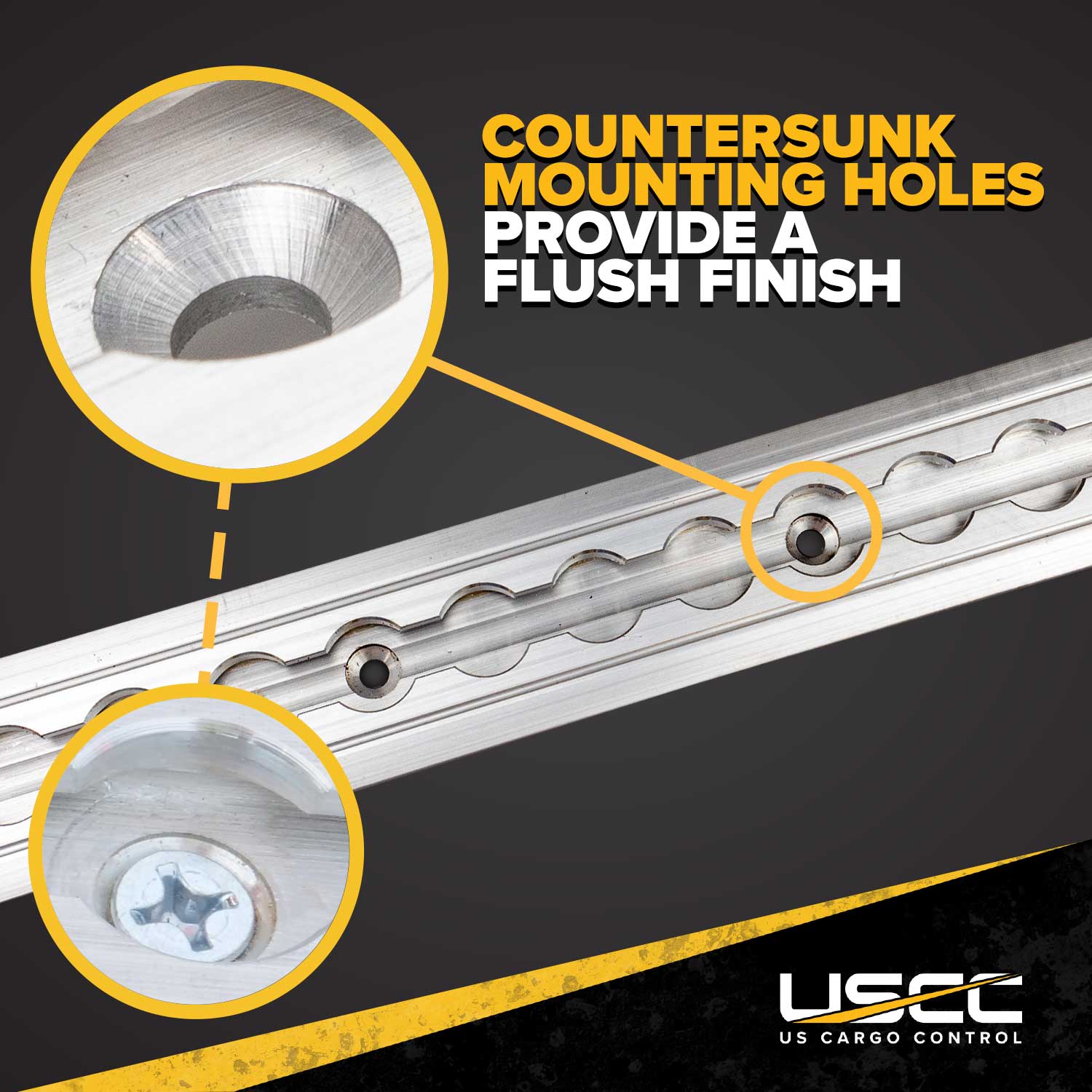

Our flanged track has pre-drilled holes that are compatible with our fastener pack, as well as many other common screws for convenient installation - 1/4", 6mm, or #12 fasteners.
For the strongest installation, we recommend bolting the fastener with a nut and washer (along with some Loctite). Wood screws and self-drilling screws can also be used, but won't be as strong.
8' Flanged L-Track Features:

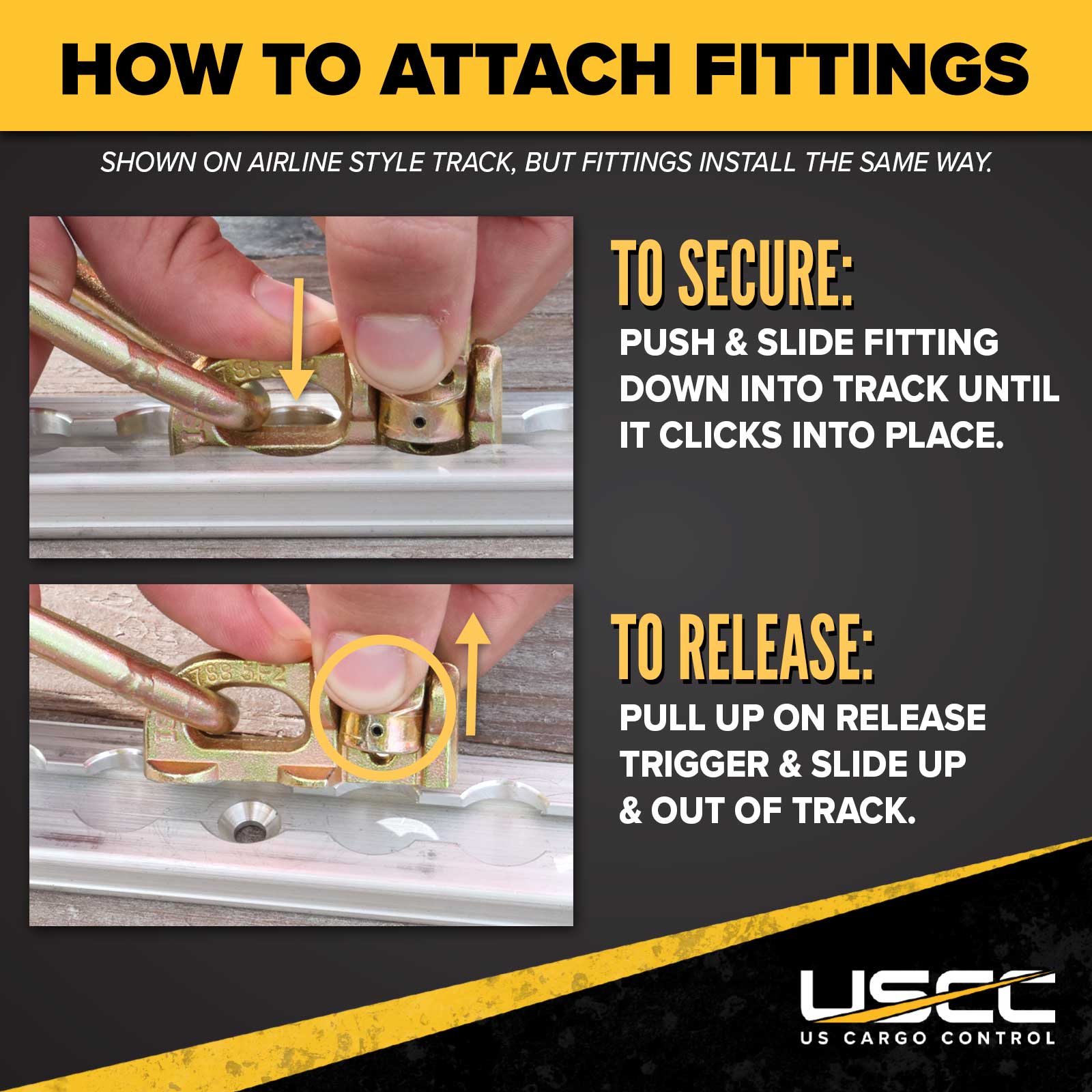

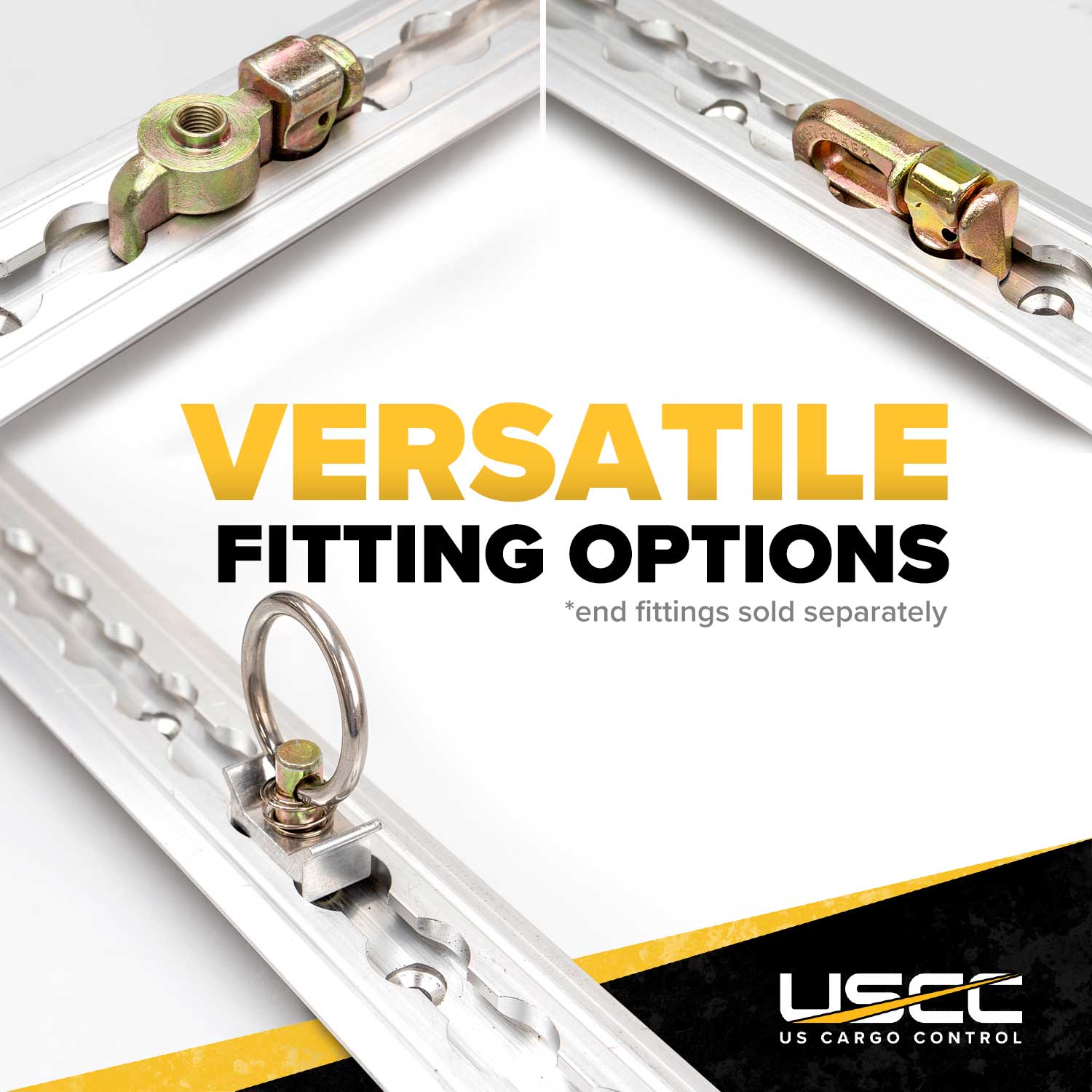

- Versatile Accessories: We carry a wide range of L-track-compatible fittings (both single and double stud) and straps so it's easy to create the tie-down system you need. The straps connect directly to the track, while the fittings will work with any standard S-hook straps you have lying around. You can even request a custom cargo net with L-track fittings.
-
Made in USA: Quality you can count on.

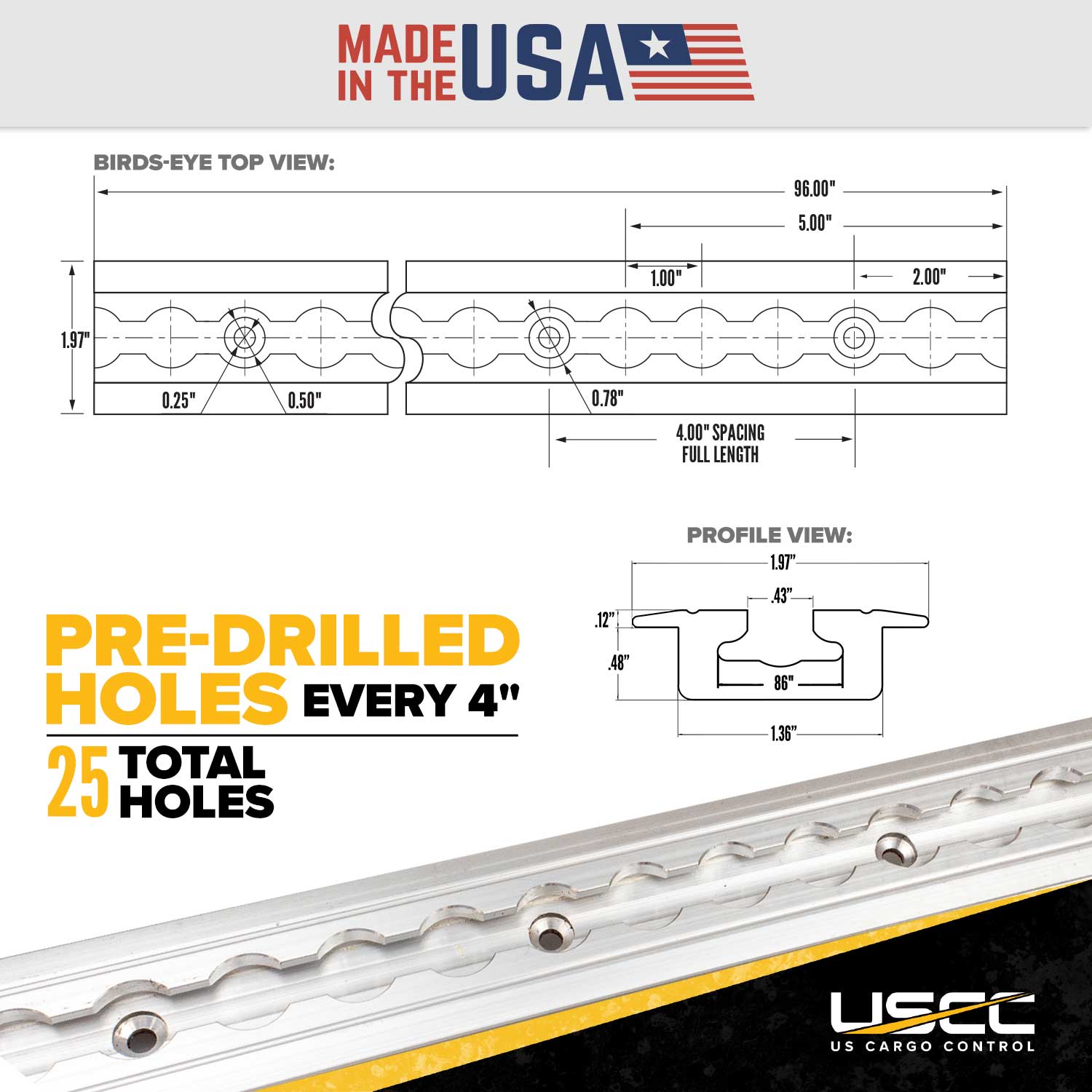

- Install Holes Every 4"
- Unpainted: The unpainted aluminum finish looks sharp, but is also perfect for custom paint jobs - take it to an autobody shop so it will match your truck!
-

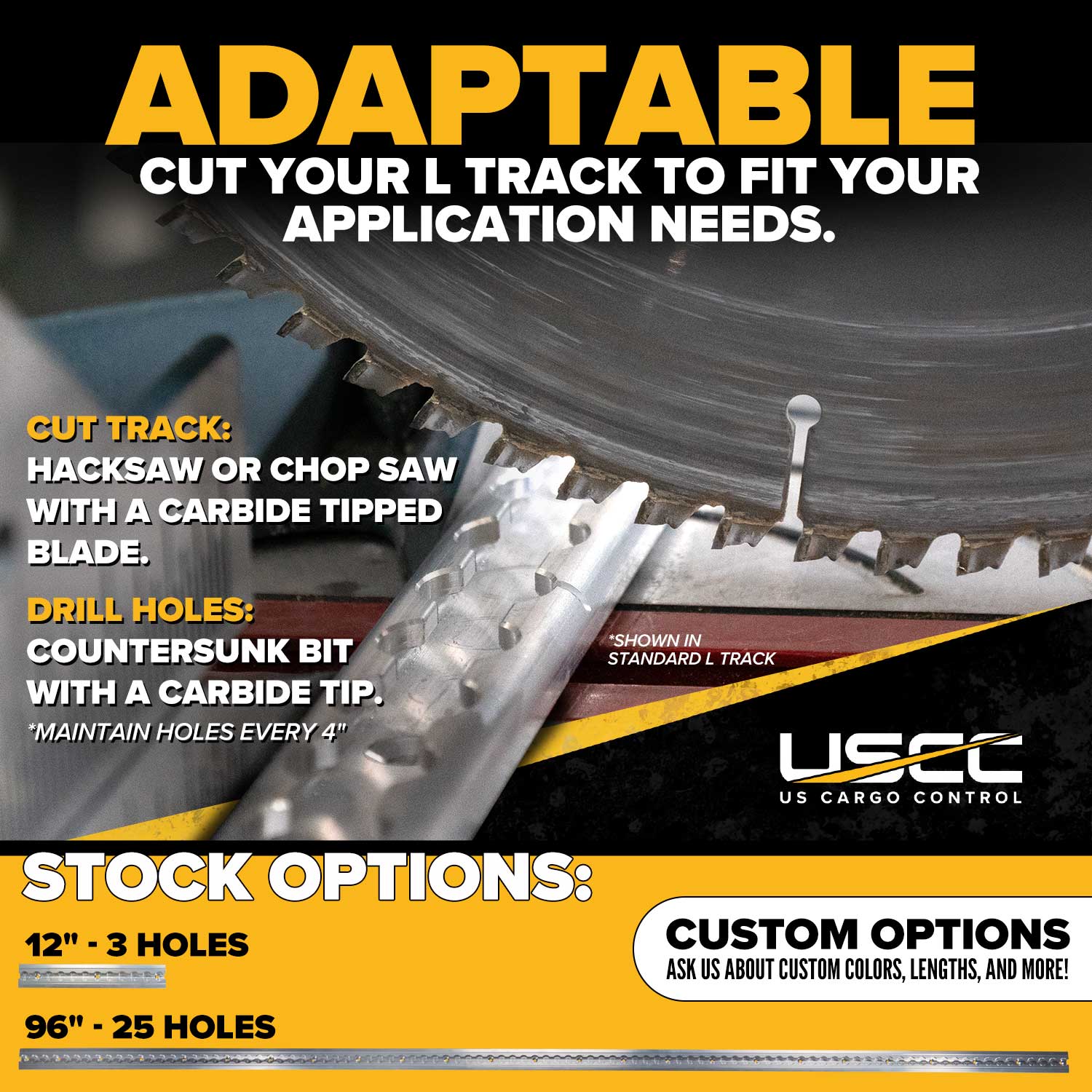

Adaptable: If the length or hole placements don't work for you, this flanged L-track can be cut or drilled. For cutting, use a hacksaw or chop saw with a carbide tip blade. For drilling, use a countersink bit.
- Easy to Install and Use: If you need help getting started, check out our How to Use and Install L-Track and L-Track Systems - video demonstrations included!
- Custom Options Available: If you are looking for a size, hole setup, or color option you don't see on our website, give us a call! We can help you find what you are looking for.
-
Please Note: Our recessed L-track is designed for recreational and cargo control use; it is not certified for official wheelchair restraint use in buses, vans, and other transport vehicles.
For even more L-track system components, browse our L-track fittings and accessories and L-track straps to find everything you need to build your own custom L-track system. If you have any questions, call to speak to one of our product experts.
