SKU: HET10GV
Galvanized 10' Horizontal E Track
Galvanized 10' Horizontal E Track!
SKU: HET10GV
$37.99
Get 10+
$37.24/ea
Get 25+
$36.10/ea
Get 60+
$34.96/ea
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Color: Unpainted
Length: 10'
Finish: Galvanized
Product weight: 16 lbs.
Shipping and returns: Due to the length of this item, this needs to ship on truck freight. For a freight quote please call 866-444-9990 or 5’ and 8’ pieces can ship ground.
Width: 4.87"
Additional Info: Gauge: 12
Description

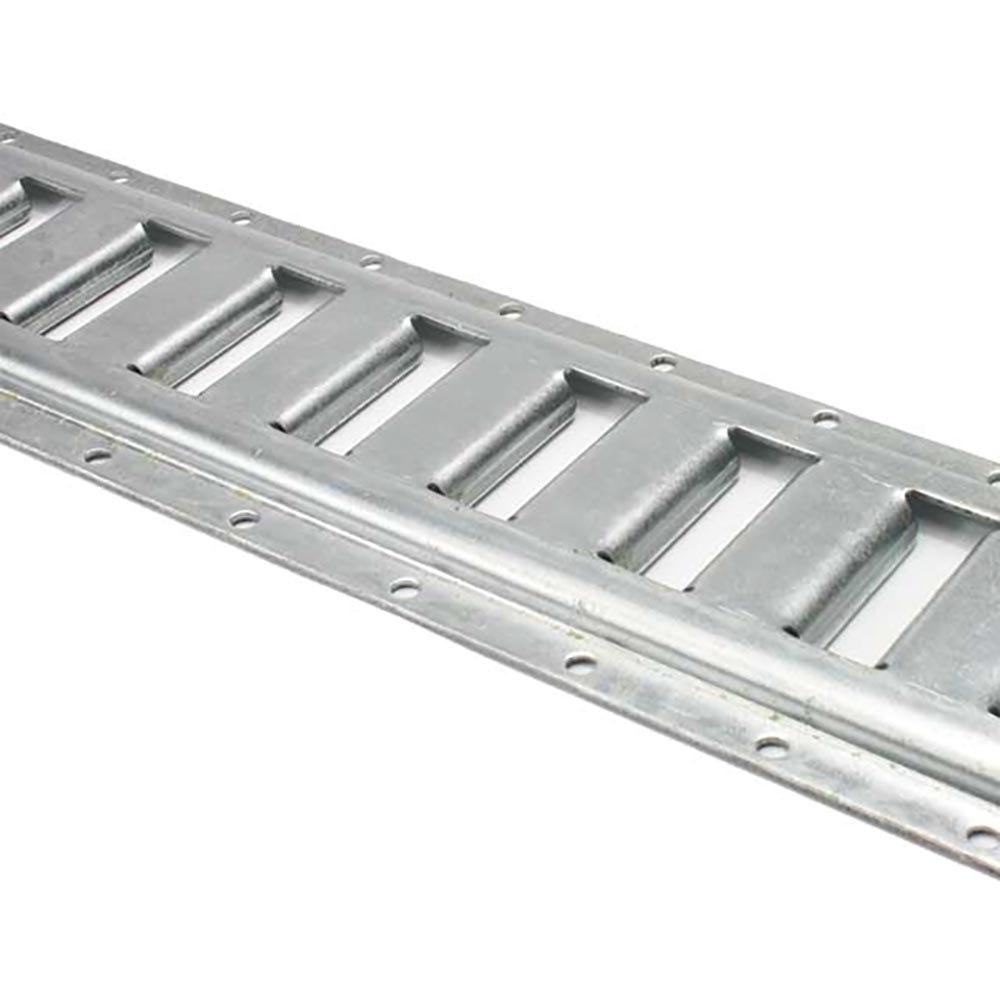

Galvanized Steel 10 Ft E-Track

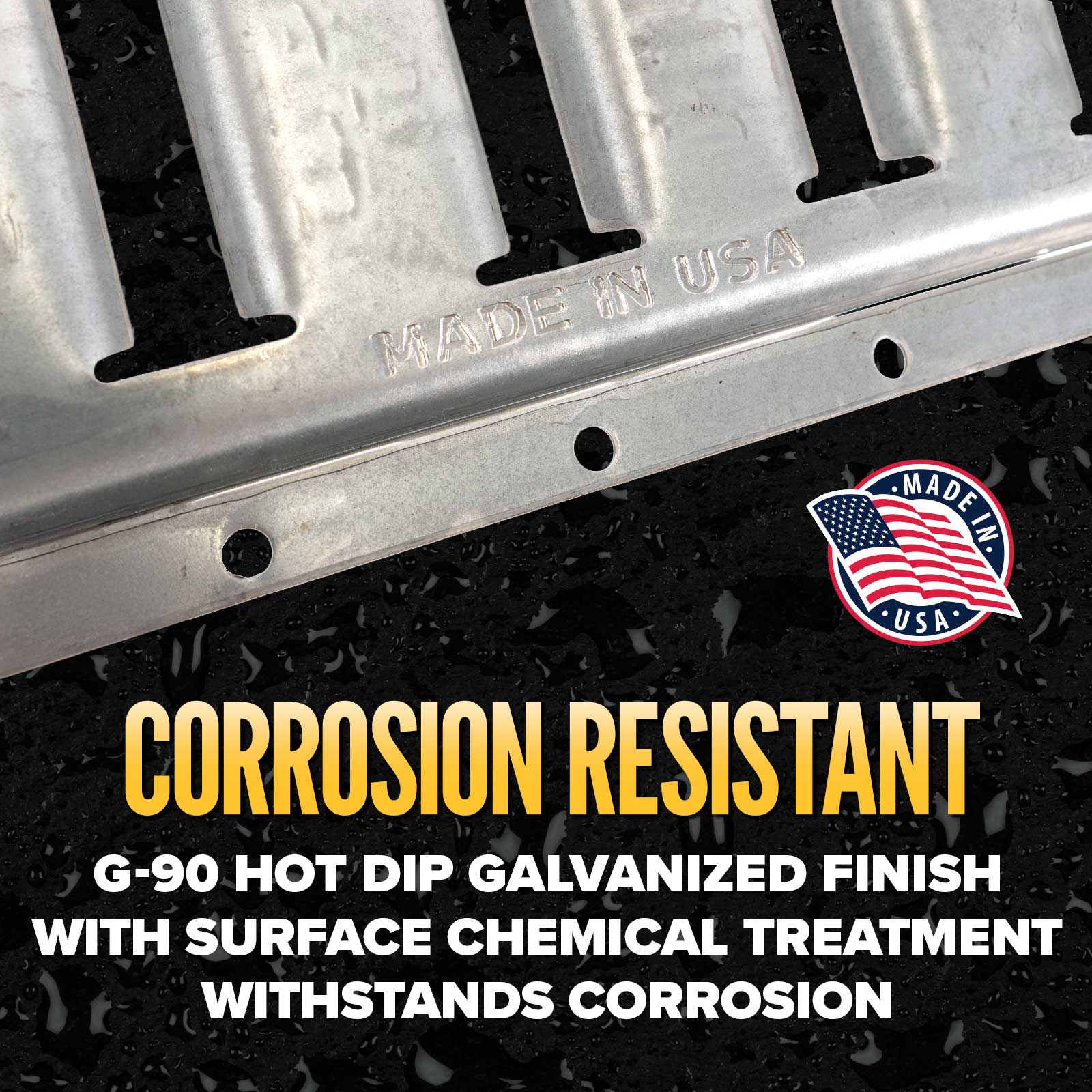

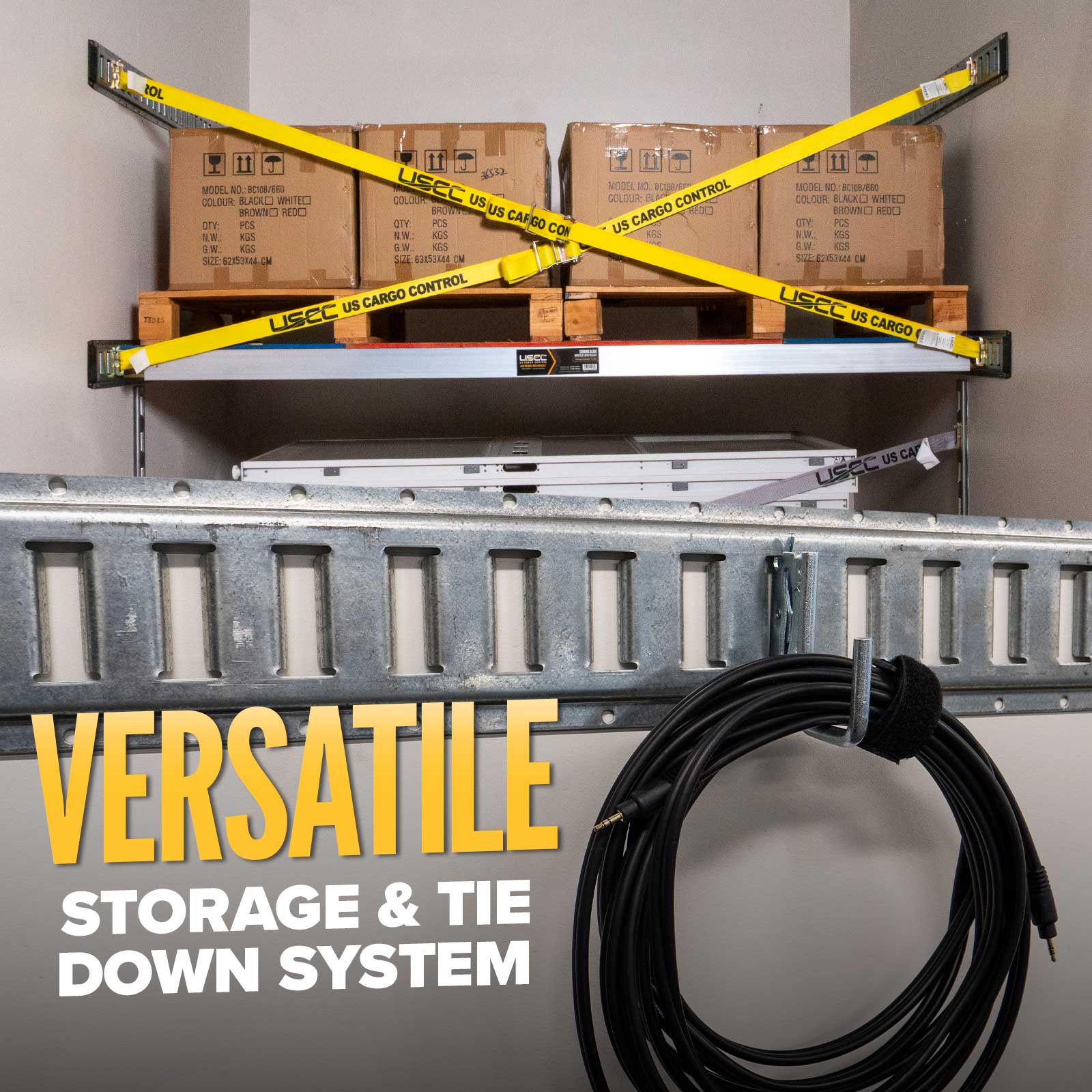

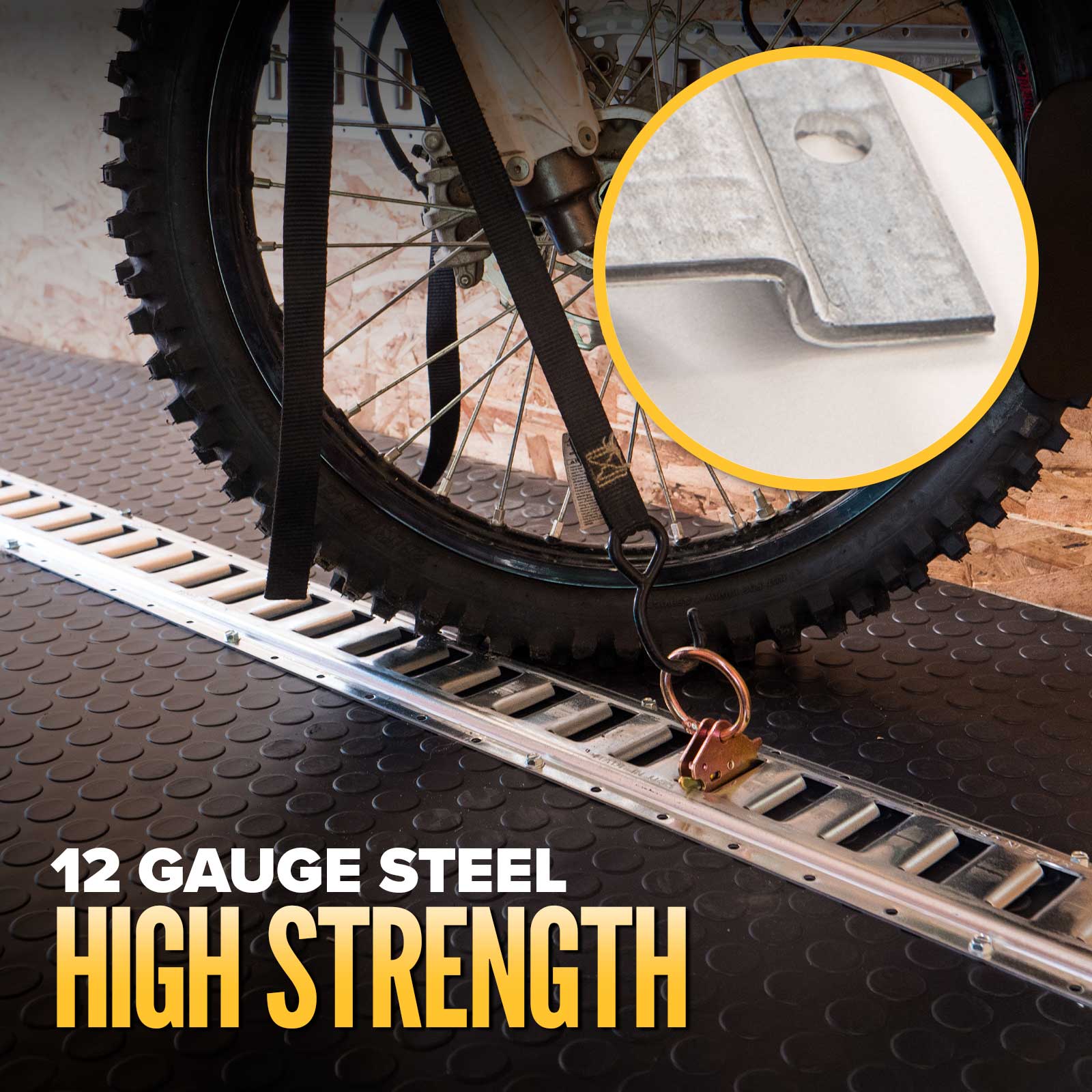

Series E-Track is made of high-strength 12-gauge steel for increased durability and provides a versatile, secure, and convenient way to tie-down a wide variety of cargo for transport. Our 10 ft E-Track rails have a G-90 hot dip galvanized finish with a surface chemical treatment to withstand corrosion.

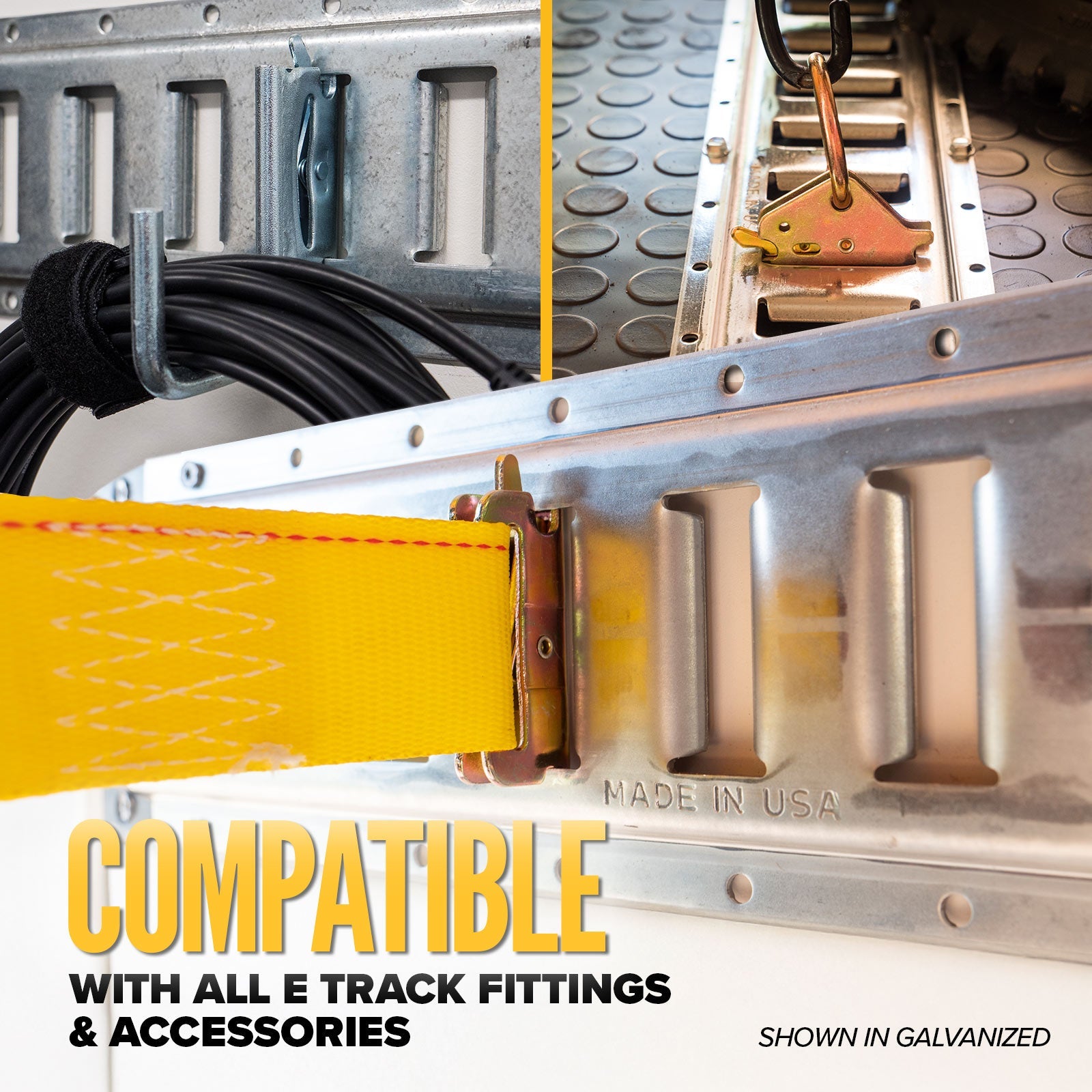

These rails can be used in conjunction with our E-Track Ratchet Straps and Cam Straps as well as Rope Tie Offs, Spring E Fittings with D-Rings and shoring/decking beams for a variety of tie-down applications.
E-Track Features:
- Horizontal E-track alignment: slots run perpendicular to the rail

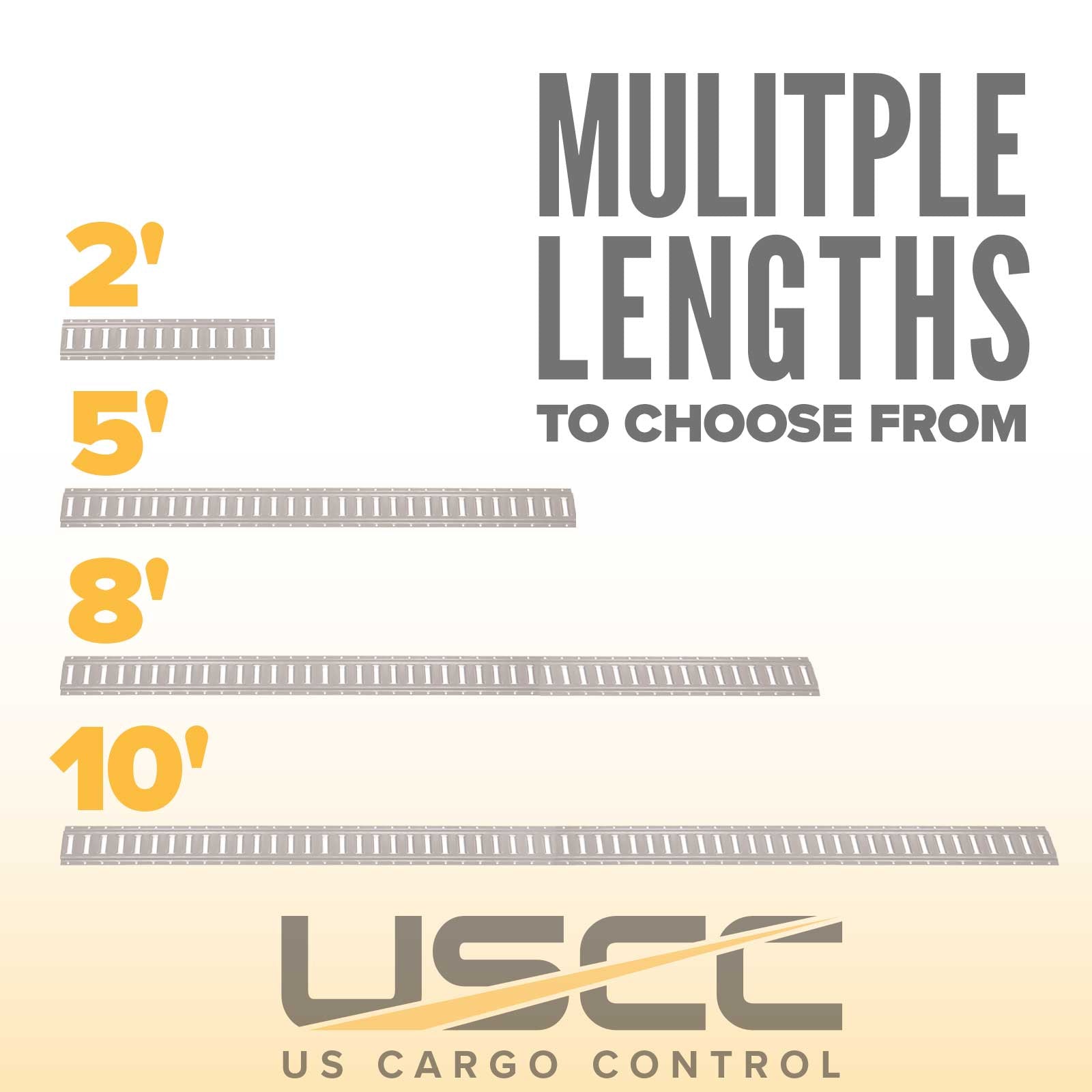

- Length: 10 feet. Also available in 2', 5', and 8'lengths.

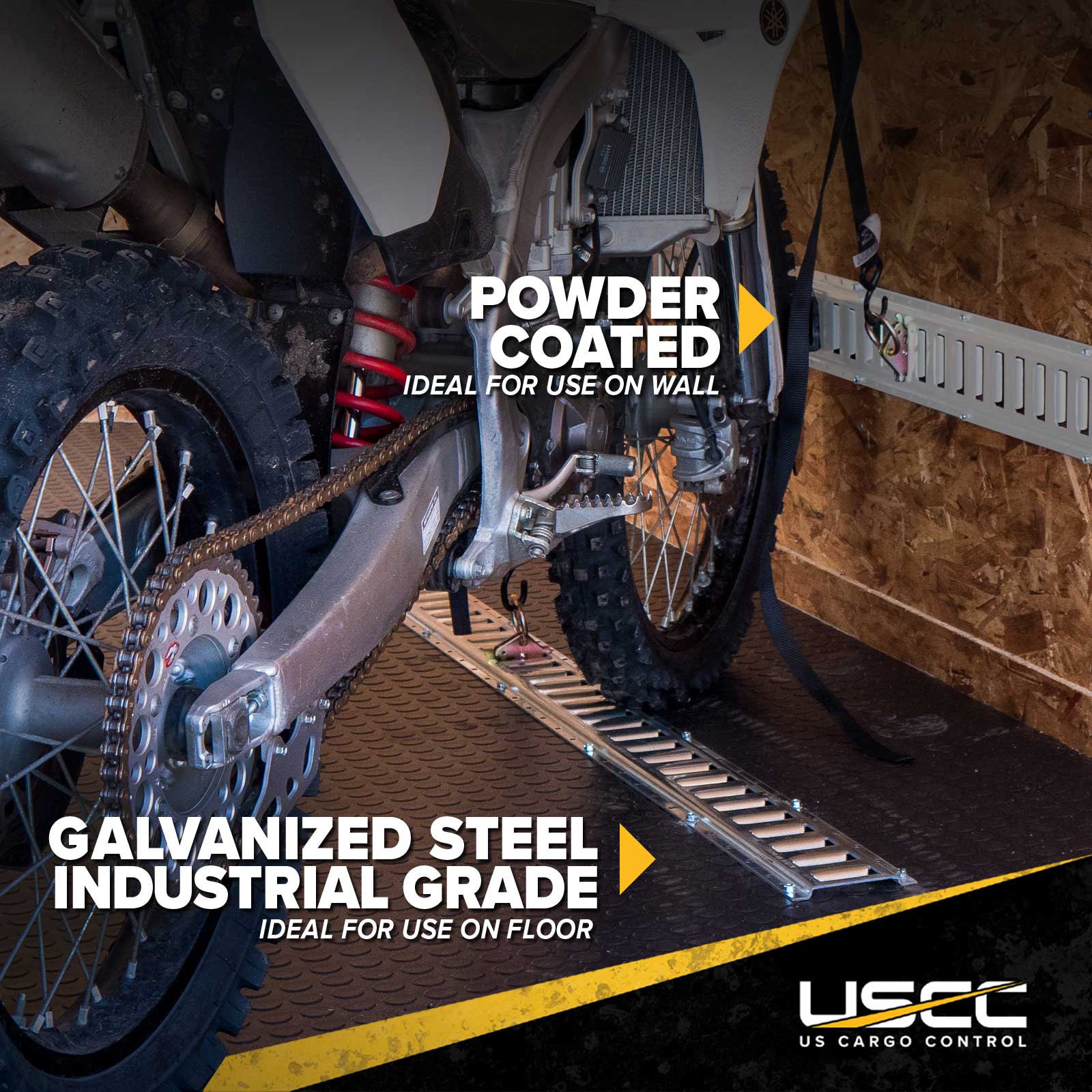

- Can be installed on either the floor or wall of your trailer

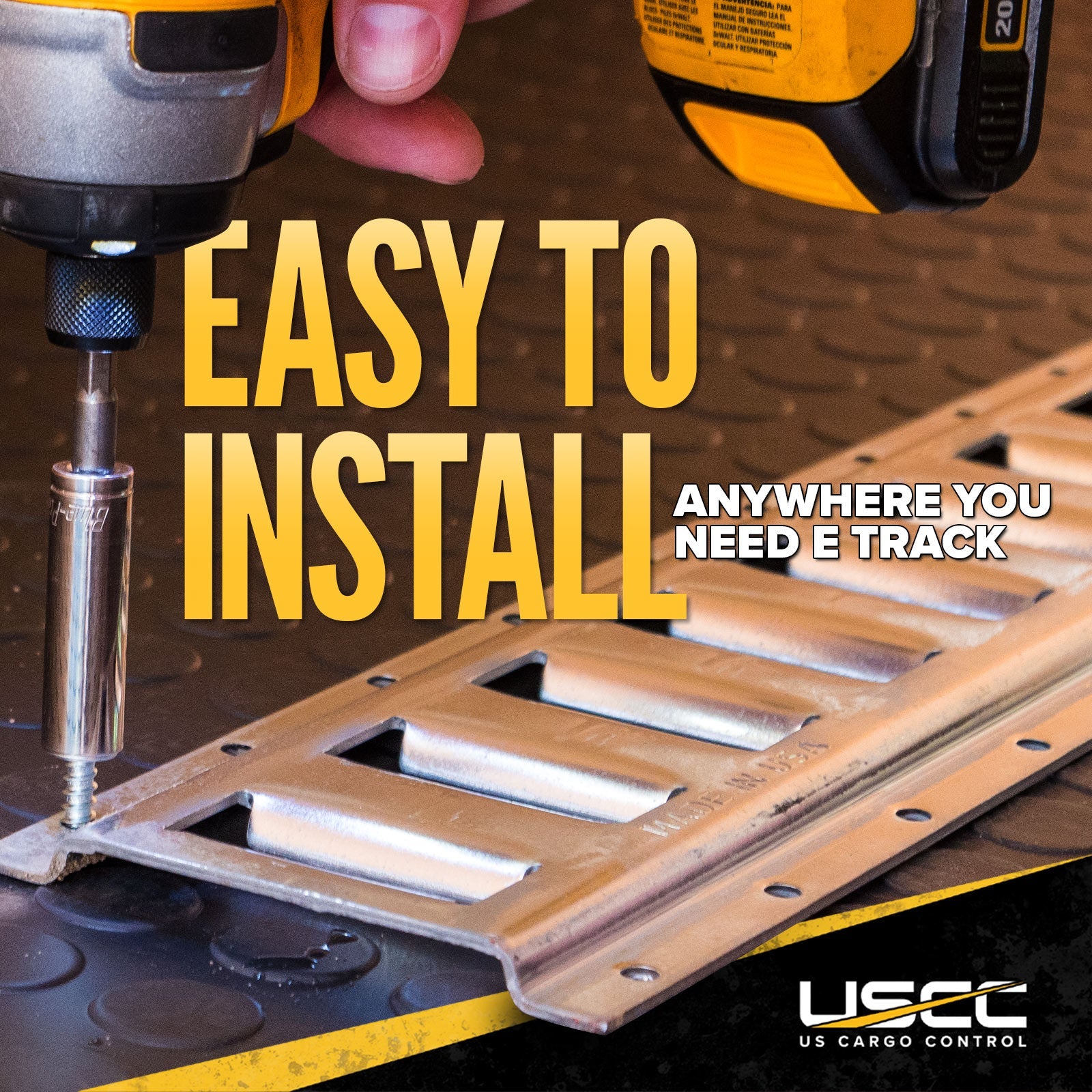

- Can be attached using screws, rivets, or welding
- Ideal for equipment and larger cargo that needs to be secured to the wall

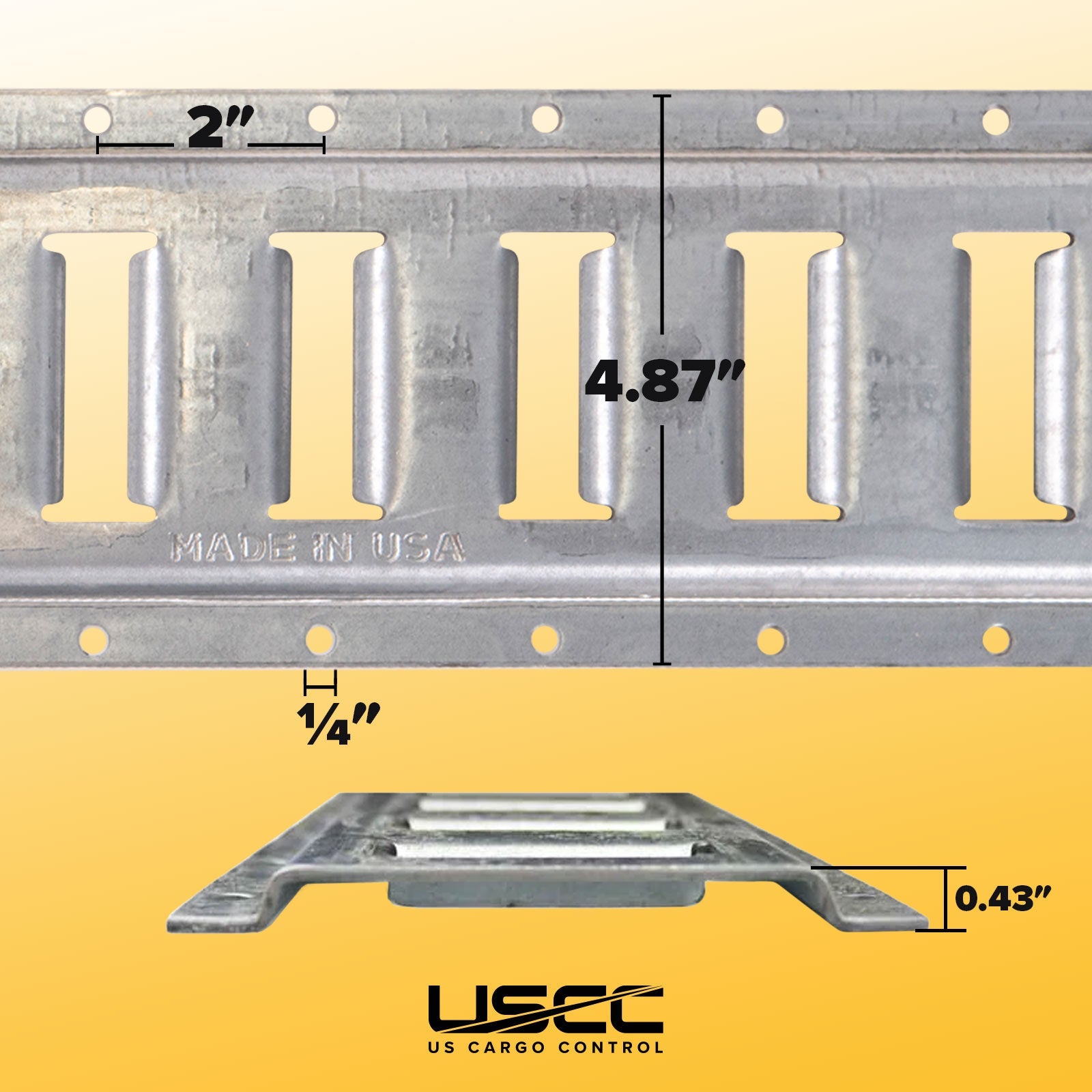

- E-track width: 4.87" - see the spec image for more dimensions
What's the Load Rating on This E-Track?
Due to the many variables involved in installing E-track - the fasteners used, the mounting surface, etc. - we cannot provide a blanket working load limit. The track is designed to be at least as strong as any of the compatible straps and fittings we sell to use with it, but it is up to the installer to determine that the track is properly installed to provide sufficient strength. If you need assistance with this, consult your trailer manufacturer for installation suggestions. For more information, please refer to WSTDA T-5 section 3.4.
Accessories & More
Explore our full line of products and create your custom E-Track cargo containment system today!
We also have painted lengths of horizontal E-track rails available, as well as vertical options in both galvanized and powder-coated finishes.
Don't forget E-track fasteners and E-track screws for your 10 ft E-track setup!
Please note: our E-track is designed for recreational and cargo control use; it is not certified for official wheelchair restraint use in buses, vans, and other transport vehicles.
California Residents: WARNING
How to Install E-Track On A Flatbed Trailer | How to Install E-Track on Trailer Floor
×
-
How to Install E-Track On A Flatbed Trailer | How to Install E-Track on Trailer Floor -
Placing E-Track | Where and How to Install E-Track in Trailer | E Track Trailer Installation
