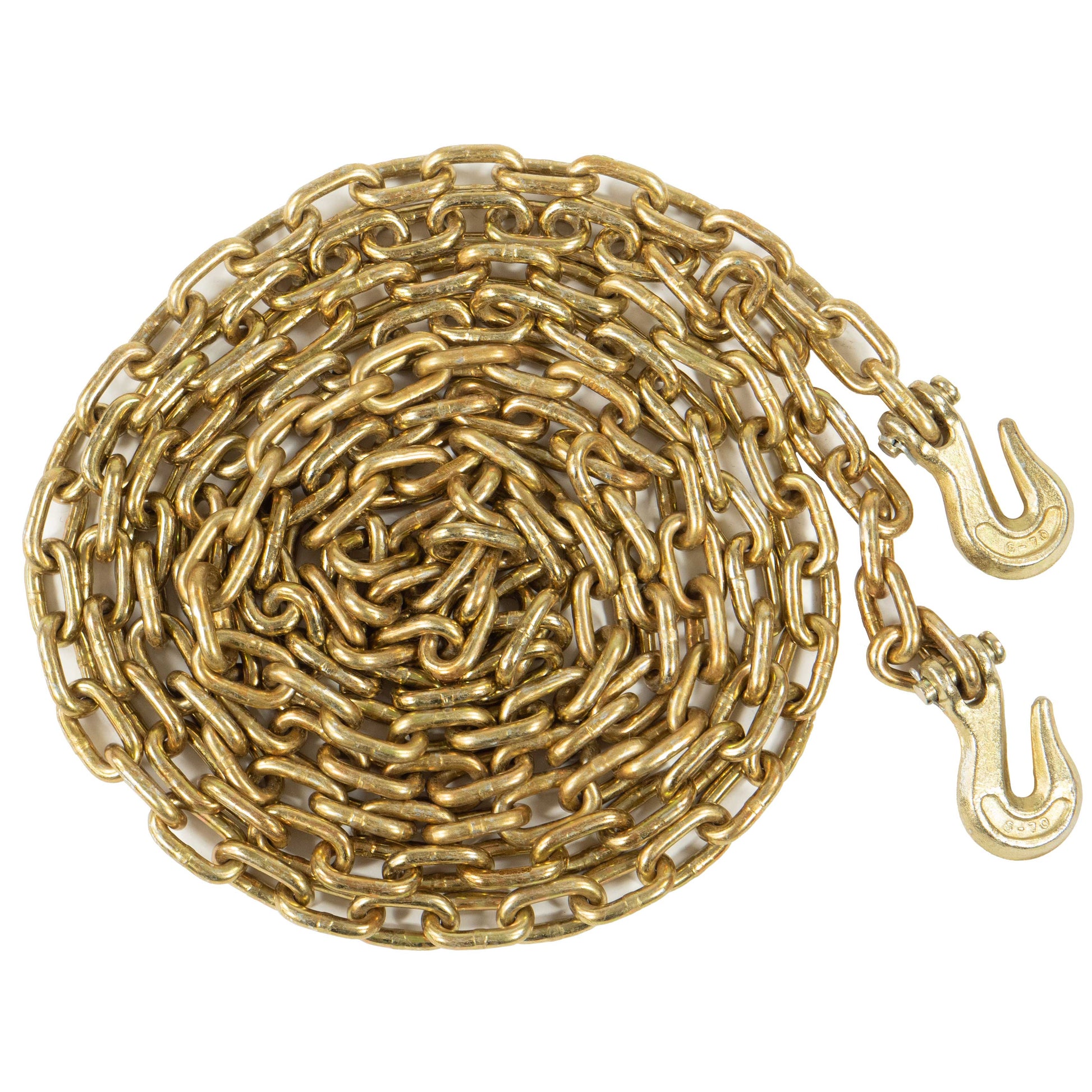

5/16" x 20' Grade 70 Transport Chain with Clevis Grab Hooks
5/16" x 20' Grade 70 Transport Chain with Clevis Grab Hooks!
SKU: TC5162070
$39.99
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsQuestions? Need it custom?
We Can Help!Payment Options
Specifications

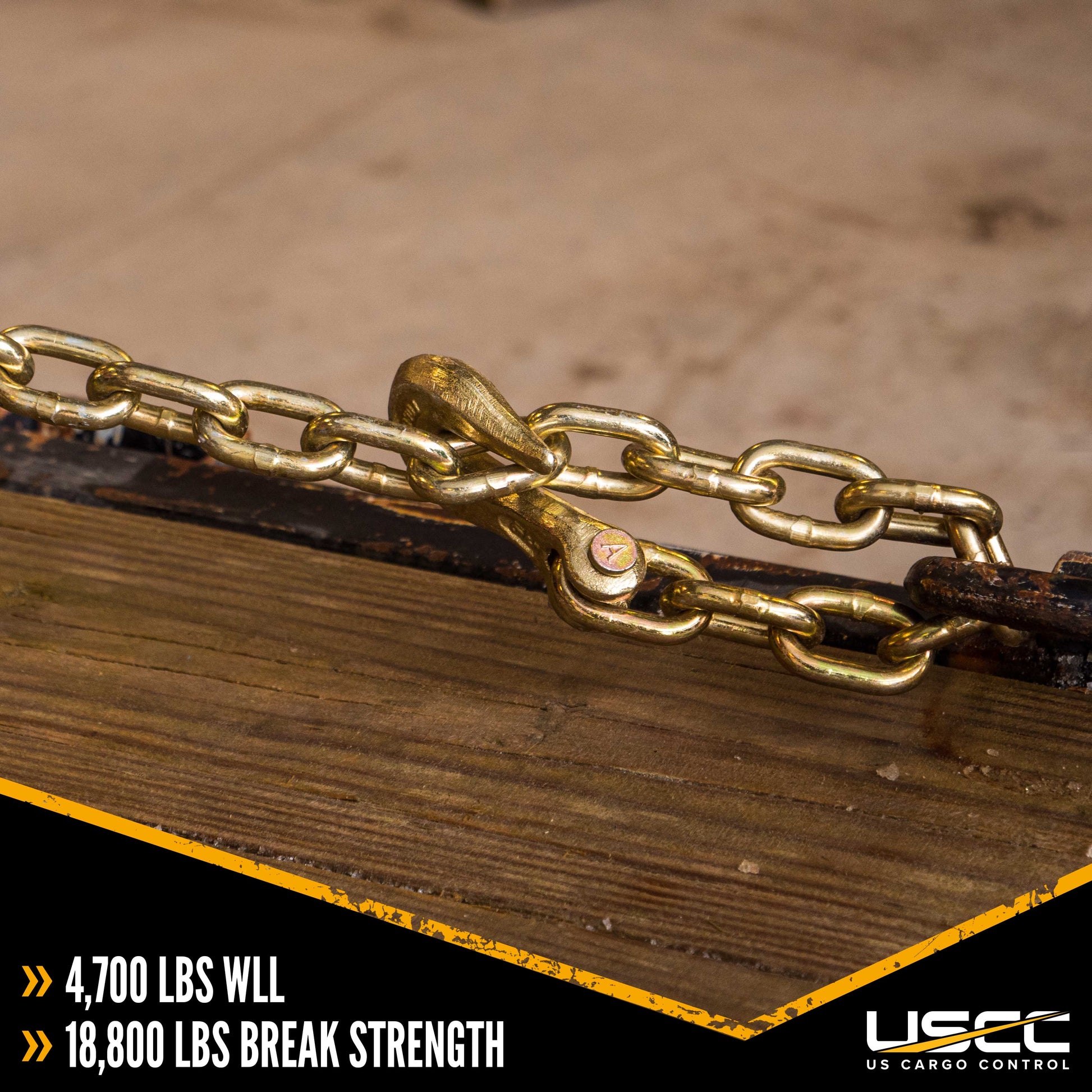

Assembly break strength: 18,800 lbs.
Grade: 70

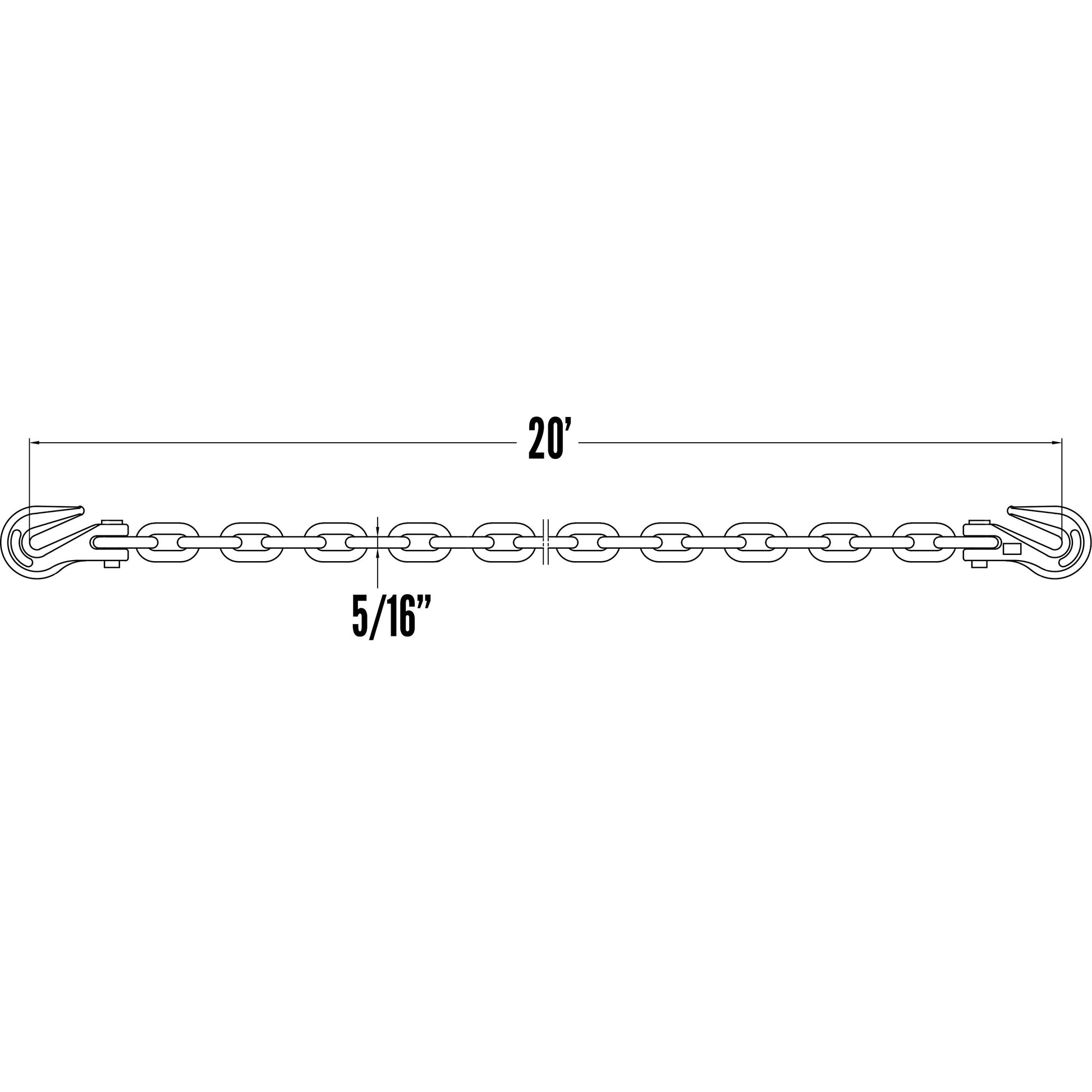

Length: 20'
Working load limit: 4,700 lbs.
Chain size: 5/16"
End fitting: Clevis Grab Hook
Finish: Yellow Zinc Chromate
Material: Carbon Steel
Product weight: 20.6 lbs.
Safety factor: 4:1
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Additional Info: Link size: Standard
Items are made to order and most ship same day - exceptions apply to large orders.
Items are made to order and most ship same day - exceptions apply to large orders.
Description
5/16" x 20' Grade 70 Tie Down Chain
Grade 70 chain - also known as transport chain - is the most popular tie down chain option. 20% stronger than grade 43 chain, it is more durable for stabilizing large loads and is well-suited for most cargo securement jobs where chain is used.
4,700 lbs. Transport Chain Construction

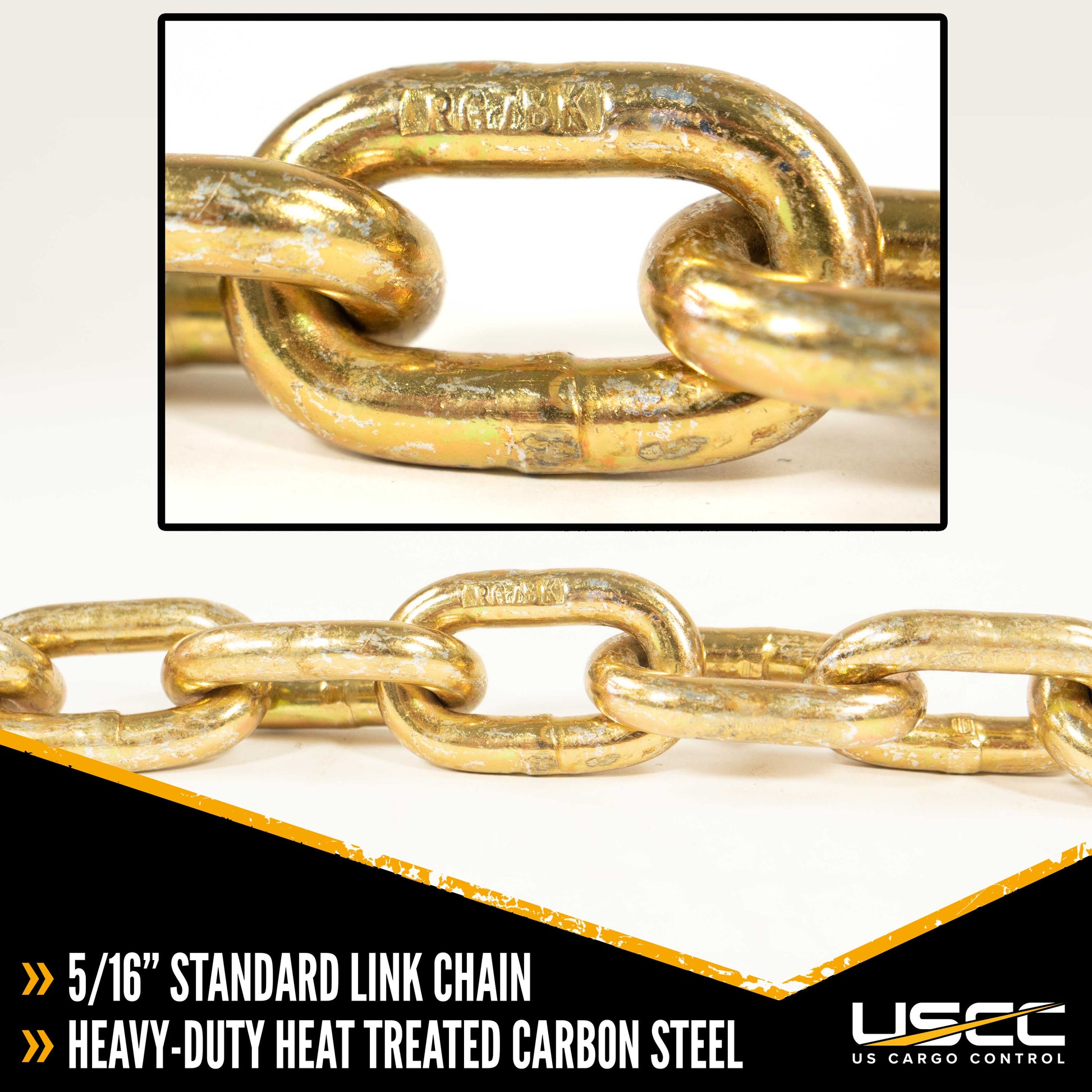

Constructed using high-strength carbon steel, this chain is heat-treated and strength-tested to ensure superior quality and performance. It has a yellow zinc chromate finish that conforms to ATSM B633 Type II for corrosion protection and quick identification as a grade 70 tie down chain.

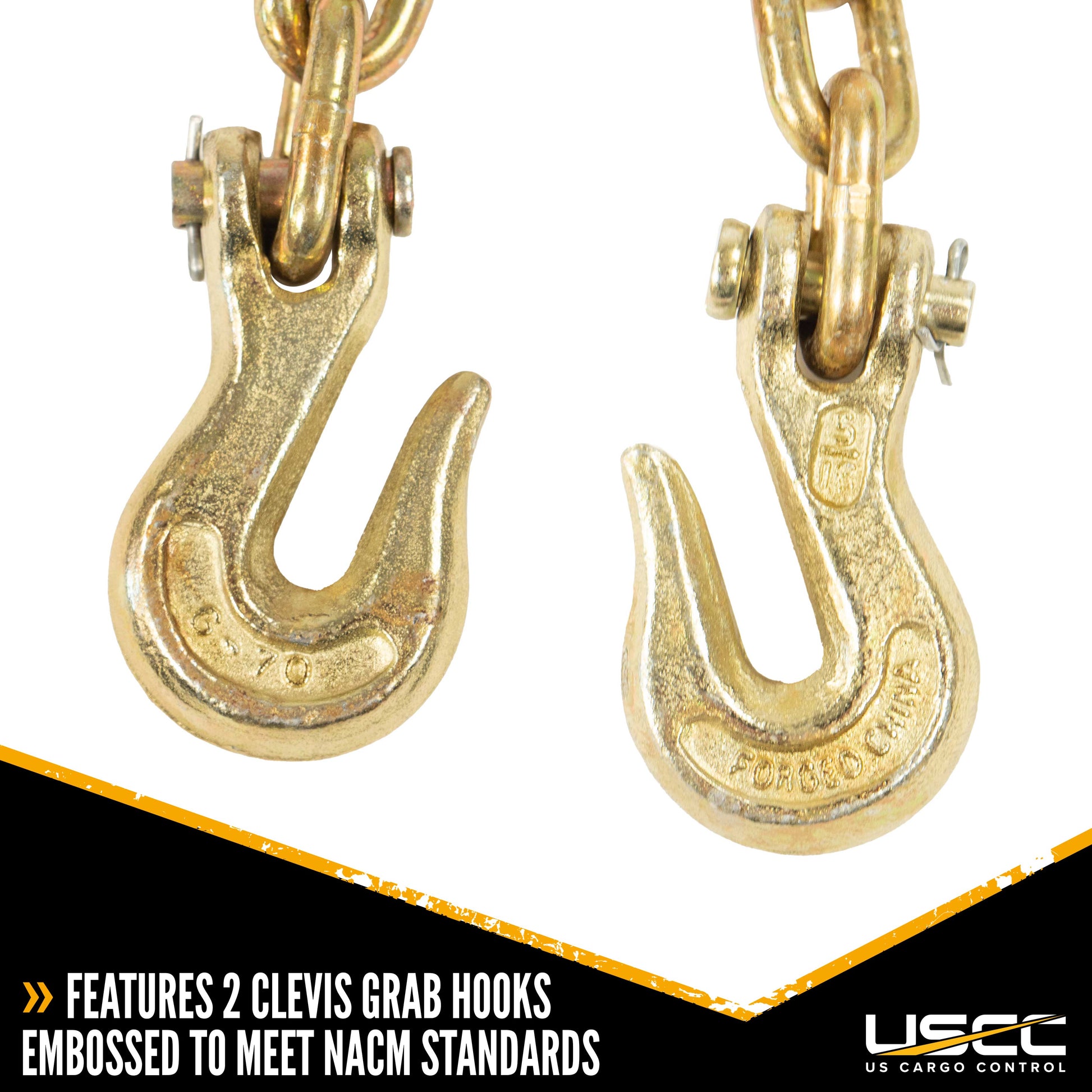

The hooks are made from forged carbon steel with a non-cradle design that allows them to fit through a flatbed trailer rub rail for quick yet secure connections. The shallow throat opening lets you easily connect to chain, and the cotter pin means you can replace damaged hooks with little hassle.
Note: Grade 70 chain is not approved for overhead lifting.
G70 Tie Down Chain Industry Compliance
All of our tie down chain is DOT compliant and meets or exceeds FMCSA CFR49 Section 393.104 and NACM Welded Steel Chain Specifications. The hooks are embossed with the size and the grade, and the chain has grade embossing on the links. This ensures you can quickly identify the chain you need, and that inspections are stress-free.

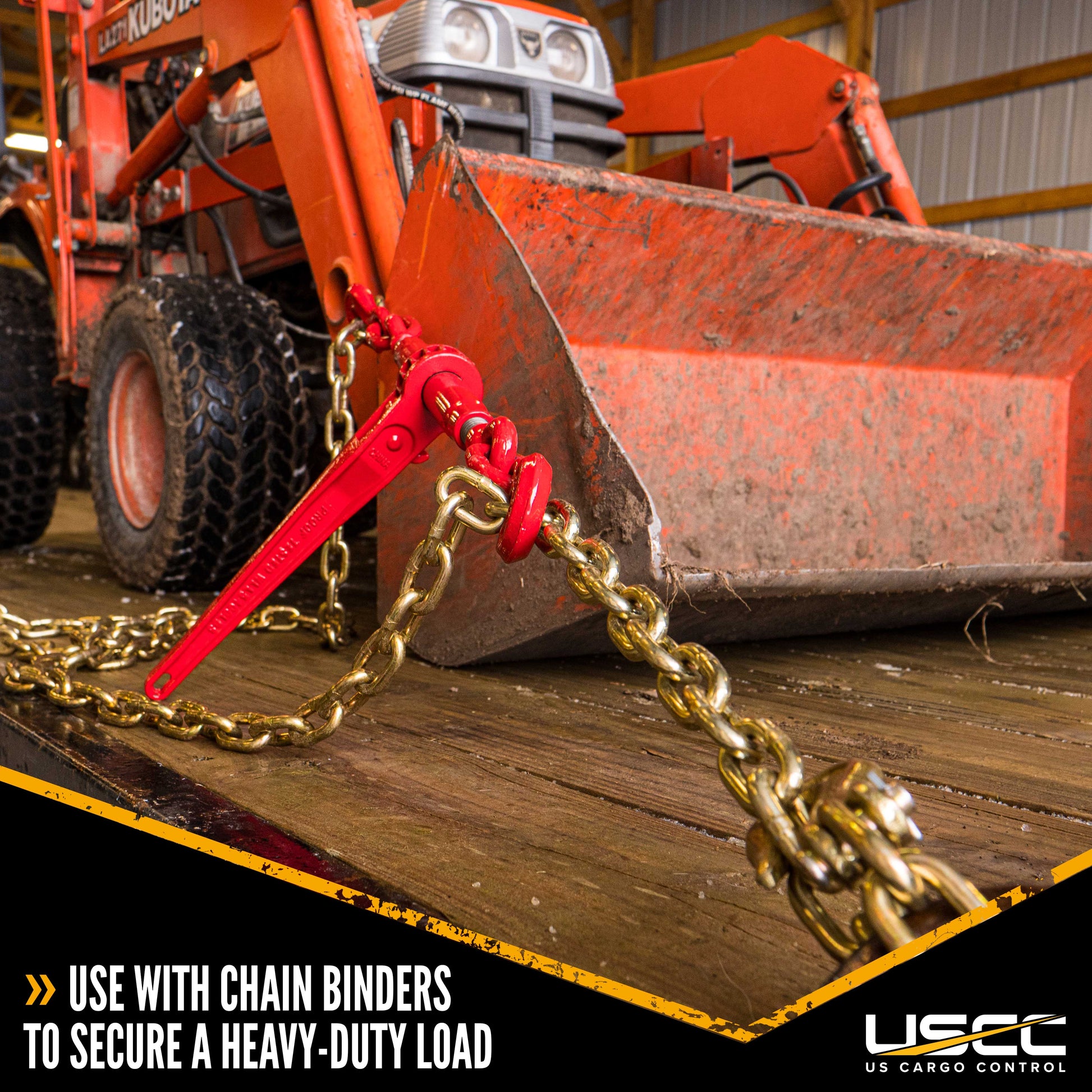

Compatible Chain Binders
- 5/16" - 3/8" Lever Binder
- 5/16" - 3/8" Recoil-Less Lever Binder
- 5/16" - 3/8" Ratchet Binder
- 5/16" - 3/8" Heavy-Duty Ratchet Binder
- 5/16" - 3/8" CM Ratchet Binder
- 5/16" - 3/8" Crosby Lebus Ratchet Binder
- 5/16" - 3/8" Peerless Ratchet Binder Plus
- 5/16" - 3/8" Peerless Quikbinder Plus
Save by buying the chain and binder together in our chain and binder kits.
Custom Tie Down Chain & More
Make sure you have everything you need to get your cargo safely from point A to point B with compatible chain binders, steel corner protectors, safety flags / load banners, and more! We even offer custom tie down chain configurations, so you can create the perfect product for your application. We have both manufacturing and testing capabilities in-house, letting us build exactly what you need and confirm that it exceeds industry standards.
A made-in-the-USA version of this chain is also available.
Chain Grade Breakdown
Not sure which chain grade you need? Call to speak to one of our product experts or refer to our helpful chart!
| Grade | Material | WLL (lbs) | ||||
| 9/32" (1/4") | 5/16" | 3/8" | 1/2" | 5/8" | ||
| 70 | Carbon Steel | 3,150 | 4,700 | 6,600 | 11,300 | 15,800 |
| 80 | Alloy Steel | 3,500 | 4,500 | 7,100 | 12,000 | 18,100 |
| 100 | Alloy Steel | 4,300 | 5,700 | 8,800 | 15,000 | 22,600 |
| 120 | High Strength Alloy Steel |
5,200 | 6,600 | 10,600 | 17,900 | 27,500 |
