SKU: BTAS1-14-D
Bolt Type Anchor Shackle - Chicago Hardware - 1-1/4" Galvanized Steel - 12 Ton
Bolt Type Anchor Shackle - Chicago Hardware - 1-1/4" Galvanized Steel - 12 Ton!
No reviews
![](http://www.uscargocontrol.com/cdn/shop/files/made-in-usa-badge-circle_60x.png?v=12861113187896857461)
1
/
of
6
SKU: BTAS1-14-D
Bolt Type Anchor Shackle - Chicago Hardware - 1-1/4" Galvanized Steel - 12 Ton
Bolt Type Anchor Shackle - Chicago Hardware - 1-1/4" Galvanized Steel - 12 Ton!
No reviews
Call to Order
Regular price
$143.39
Sale price
$143.39
Regular price
Unit price
/
per
0% off
Request Bulk Pricing
Payment methods
Accepted payments:
Fill out the form below or give our sales consultants a call at 866-421-3586.
Specifications
Specifications
- Working load limit: 12 ton
- Inside width: 3.25"
- Mouth width: 2"
- Finish: Galvanized
- Safety factor: 6:1
- Manufacturer name: Chicago Hardware
- Brand part number: 20660 0
- Inside height: 4.5"
- Pin size: 1-1/4"
- Shackle size: 1-1/4"
- Standards: Meets or exceeds all requirements of ASME B30.26 and Federal Specification RR-C-271
- Type: Bolt Type Anchor
- Material: Drop-Forged Steel
- Product weight: 10.07 lbs.
- Shipping & Returns: This item cannot be returned due to safety risks associated with used materials.
Description
Description
Bolt type shackles can be used in applications where round pin or screw pin shackles are used, however, a bolt type shackle is a better choice in permanent or long-term applications, or if there's a risk of a load sliding on the shackle pin, causing it to rotate. The added safety element from the use of the bolt/nut/cotter pin is the reason why this type of shackle is also known as a safety anchor shackle.
Made in the USA of galvanized steel.
California Residents: WARNING
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
RELATED BLOG POSTS
1
/
of
3
Reviews + Q&A
Reviews + Q&A
×
![Bolt Type Anchor Shackle - Chicago Hardware - 1-1/4](http://www.uscargocontrol.com/cdn/shop/files/chicago-hardware-bolt-type-anchor-shackles.01_bc9ff51d-9e04-474e-be87-6cc7b6e087ab.jpg?crop=center&height=50&v=1711572650&width=50)
![Bolt Type Anchor Shackle - Chicago Hardware - 1-1/4](http://www.uscargocontrol.com/cdn/shop/files/chicago-hardware-bolt-type-anchor-shackles.02_c3fc7041-6d1f-4c41-bd61-68a61103d440.jpg?crop=center&height=50&v=1711572651&width=50)
![Bolt Type Anchor Shackle - Chicago Hardware - 1-1/4](http://www.uscargocontrol.com/cdn/shop/files/chicago-hardware-bolt-type-anchor-shackles.03_8aca1b15-f9e8-4394-8c96-1d559b0e344e.jpg?crop=center&height=50&v=1711572649&width=50)
![Bolt Type Anchor Shackle - Chicago Hardware - 1-1/4](http://www.uscargocontrol.com/cdn/shop/files/chicago-hardware-bolt-type-anchor-shackles.04_e9402445-5c01-4548-a4ce-9ead245e916d.jpg?crop=center&height=50&v=1711572649&width=50)
![Bolt Type Anchor Shackle - Chicago Hardware - 1-1/4](http://www.uscargocontrol.com/cdn/shop/files/chicago-hardware-bolt-type-anchor-shackles.05_6bb60962-4727-4642-a506-f3ee02b5218b.jpg?crop=center&height=50&v=1711572651&width=50)
![Bolt Type Anchor Shackle - Chicago Hardware - 1-1/4](http://www.uscargocontrol.com/cdn/shop/files/chicago-hardware-bolt-type-anchor-shackles.06_b3bdd977-3679-423e-a74b-32e1ba0f7aaa.jpg?crop=center&height=50&v=1711572649&width=50)
![Bolt Type Anchor Shackle - Chicago Hardware - 1-1/4" Galvanized Steel - 12 Ton primary image](http://www.uscargocontrol.com/cdn/shop/files/chicago-hardware-bolt-type-anchor-shackles.01_bc9ff51d-9e04-474e-be87-6cc7b6e087ab.jpg?v=1711572650&width=1445)
![Bolt Type Anchor Shackle - Chicago Hardware - 1-1/4" Galvanized Steel - 12 Ton parts of a shackle](http://www.uscargocontrol.com/cdn/shop/files/chicago-hardware-bolt-type-anchor-shackles.02_c3fc7041-6d1f-4c41-bd61-68a61103d440.jpg?v=1711572651&width=1445)
![Bolt Type Anchor Shackle - Chicago Hardware - 1-1/4" Galvanized Steel - 12 Ton shackle construction](http://www.uscargocontrol.com/cdn/shop/files/chicago-hardware-bolt-type-anchor-shackles.03_8aca1b15-f9e8-4394-8c96-1d559b0e344e.jpg?v=1711572649&width=1445)
![Bolt Type Anchor Shackle - Chicago Hardware - 1-1/4" Galvanized Steel - 12 Ton safety bolt and cotter pin](http://www.uscargocontrol.com/cdn/shop/files/chicago-hardware-bolt-type-anchor-shackles.04_e9402445-5c01-4548-a4ce-9ead245e916d.jpg?v=1711572649&width=1445)
![Bolt Type Anchor Shackle - Chicago Hardware - 1-1/4" Galvanized Steel - 12 Ton common shackle usage](http://www.uscargocontrol.com/cdn/shop/files/chicago-hardware-bolt-type-anchor-shackles.05_6bb60962-4727-4642-a506-f3ee02b5218b.jpg?v=1711572651&width=1445)

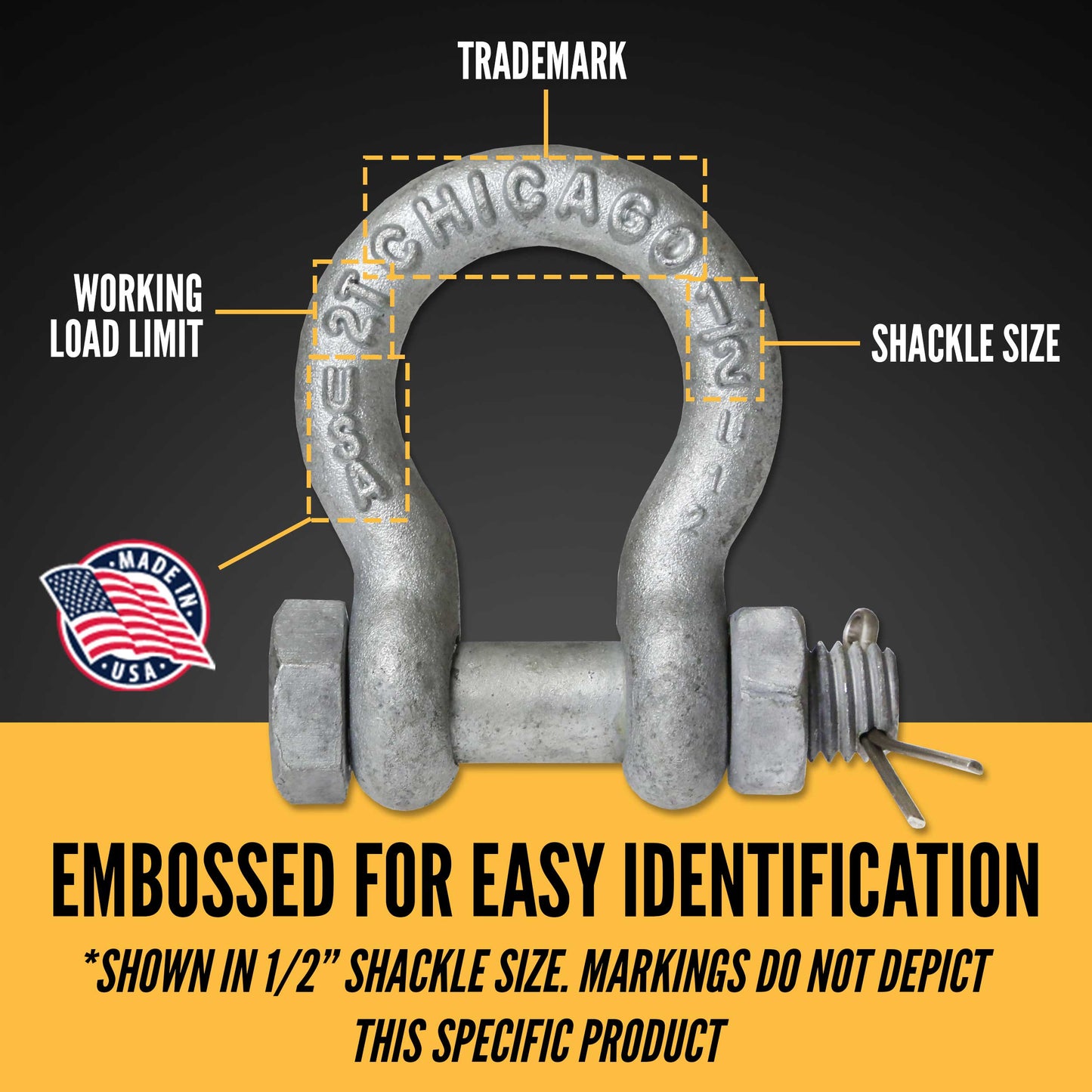

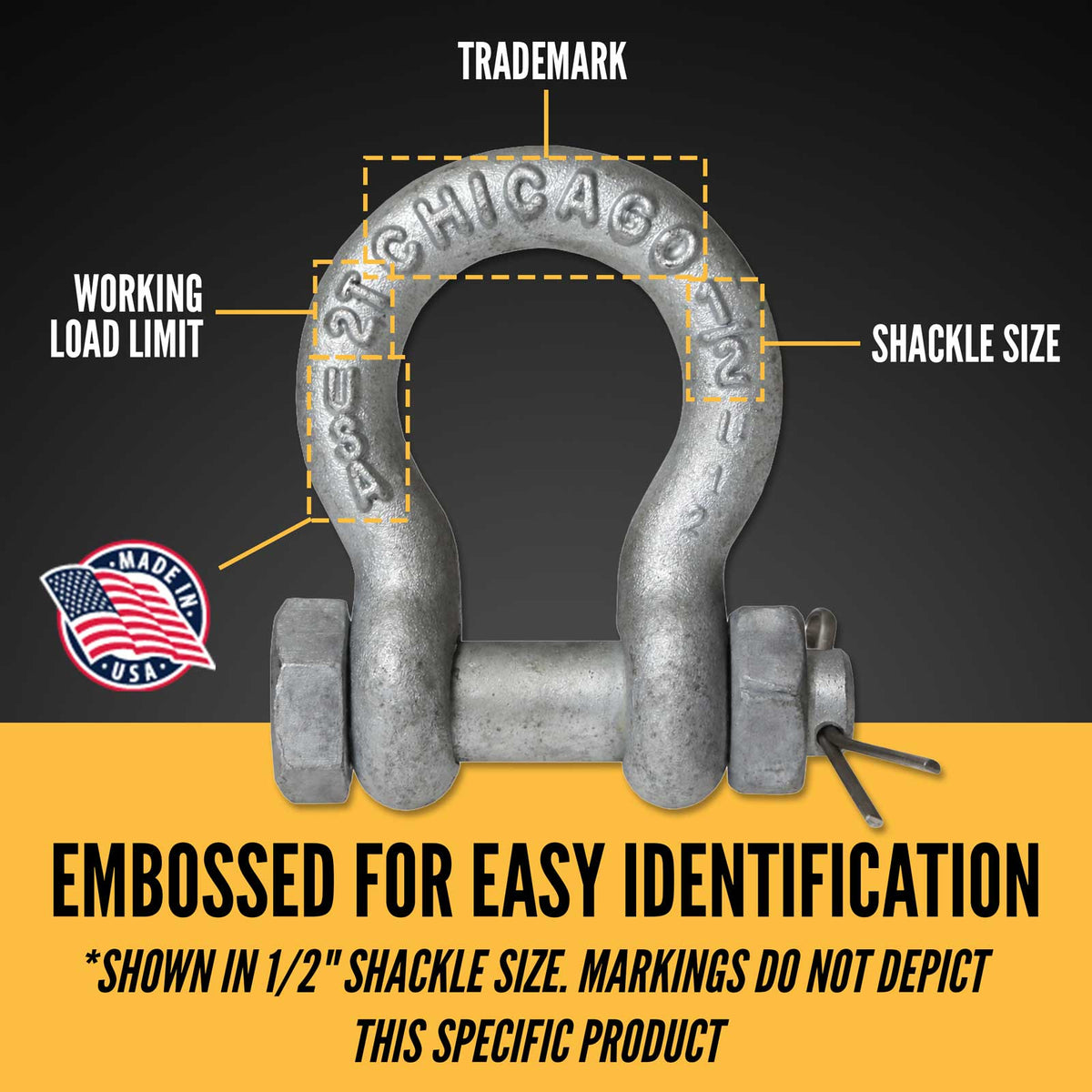

![Bolt Type Anchor Shackle - Chicago Hardware - 1-1/4" Galvanized Steel - 12 Ton embossed for easy identification](http://www.uscargocontrol.com/cdn/shop/files/chicago-hardware-bolt-type-anchor-shackles.06_b3bdd977-3679-423e-a74b-32e1ba0f7aaa.jpg?v=1711572649&width=1445)
×
