SKU: SPASA58-CR
5/8" Crosby® Alloy Screw Pin Anchor Shackle | G-209A - 5 Ton
5/8" Crosby® Alloy Screw Pin Anchor Shackle | G-209A - 5 Ton!
Authorized Distributor
$42.35
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Working load limit: 5 tons (Metric) / 11,023 lbs.
Brand part number: 1017516
Finish: Galvanized
Inside height: 2.38"
Inside width: 1.69"
Manufacturer name: Crosby®
Material: Alloy Steel
Mouth width: 1.06"
Pin size: 3/4"
Product weight: 1.4 lbs.
Safety factor: 4.5:1
Shackle size: 5/8"
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Standards: Meets or exceeds all requirements of ASME B30.26, Federal Specification RR-C-271, & ASTM A148M.
Type: Screw Pin Anchor
Description

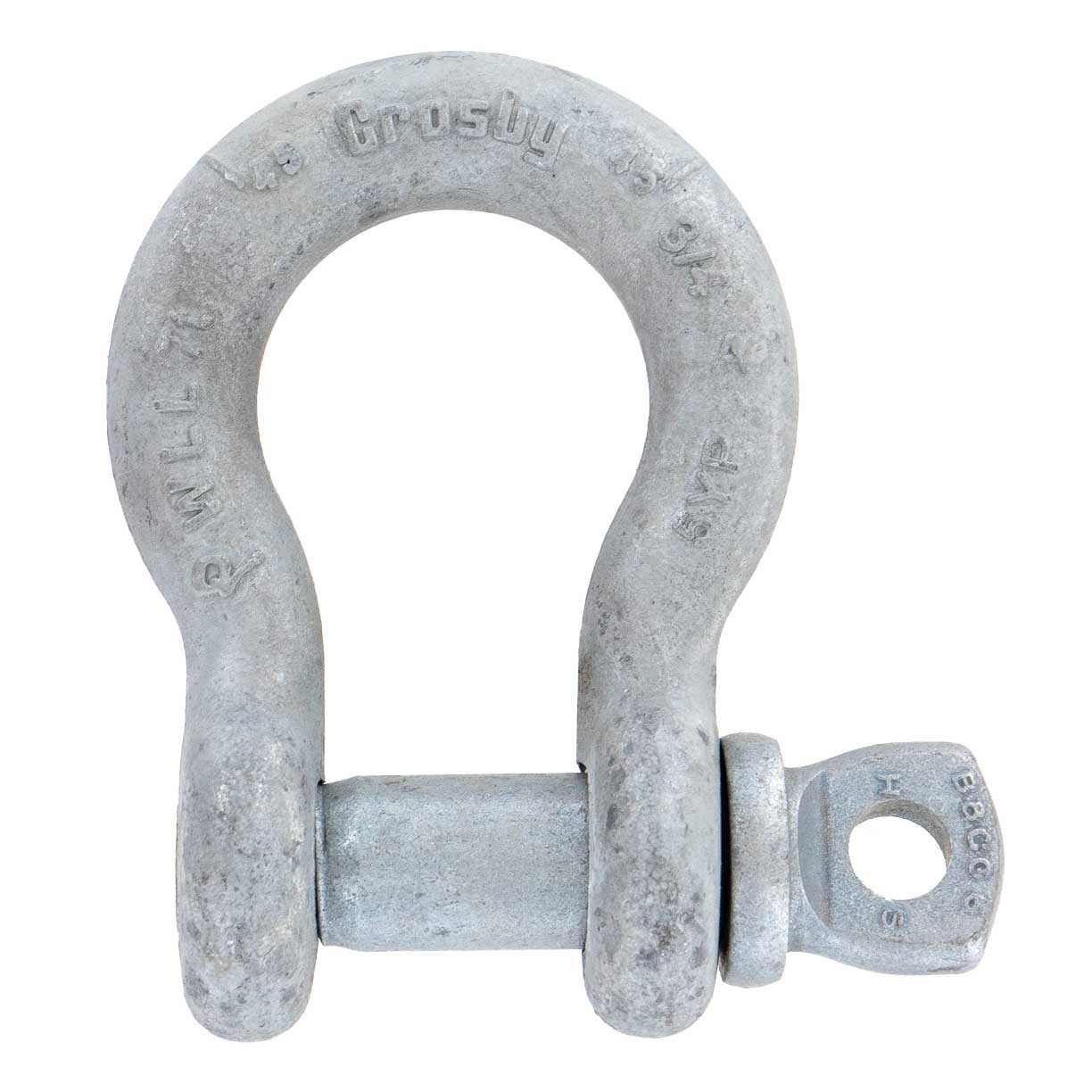

Crosby® 5 Ton Screw Pin Anchor Shackles

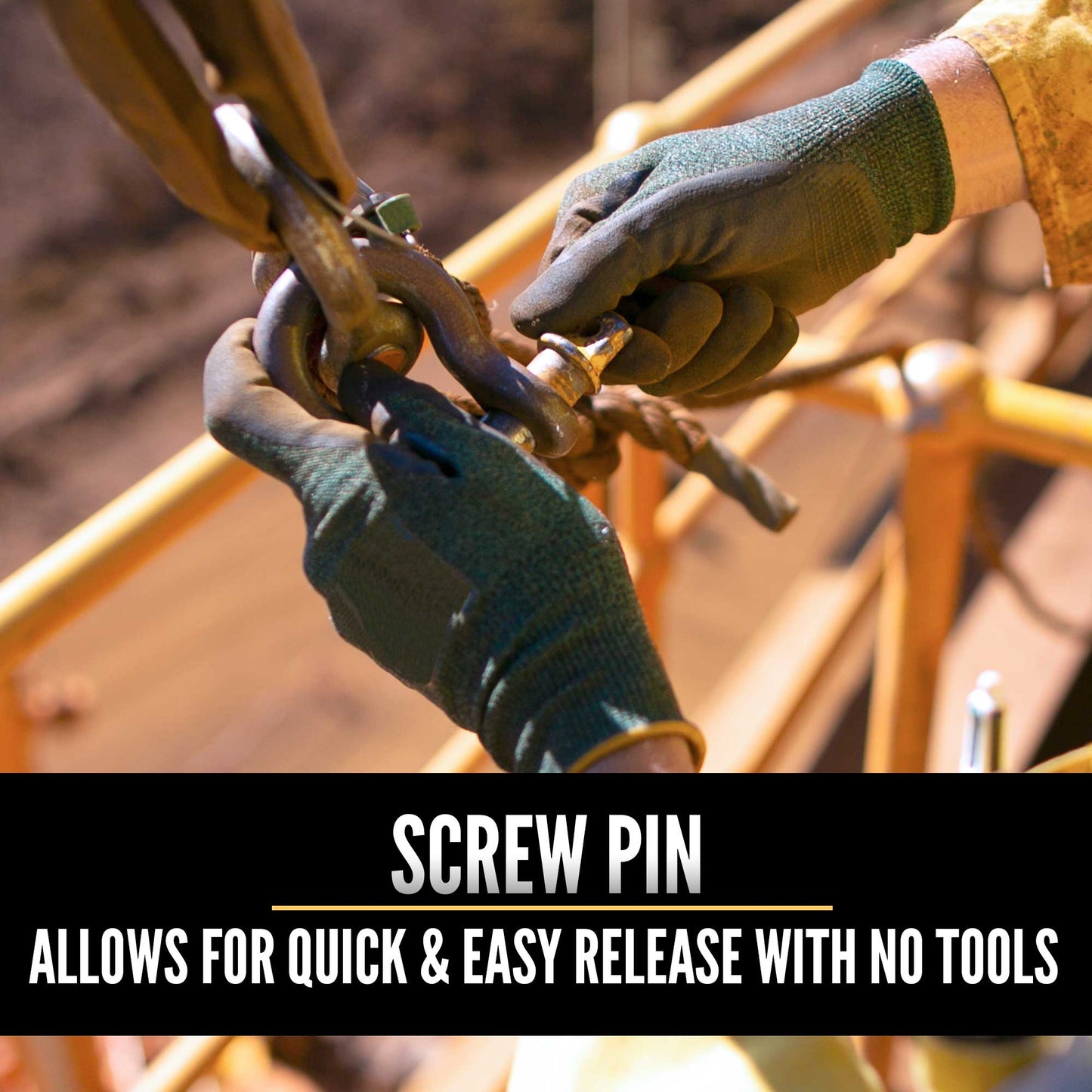

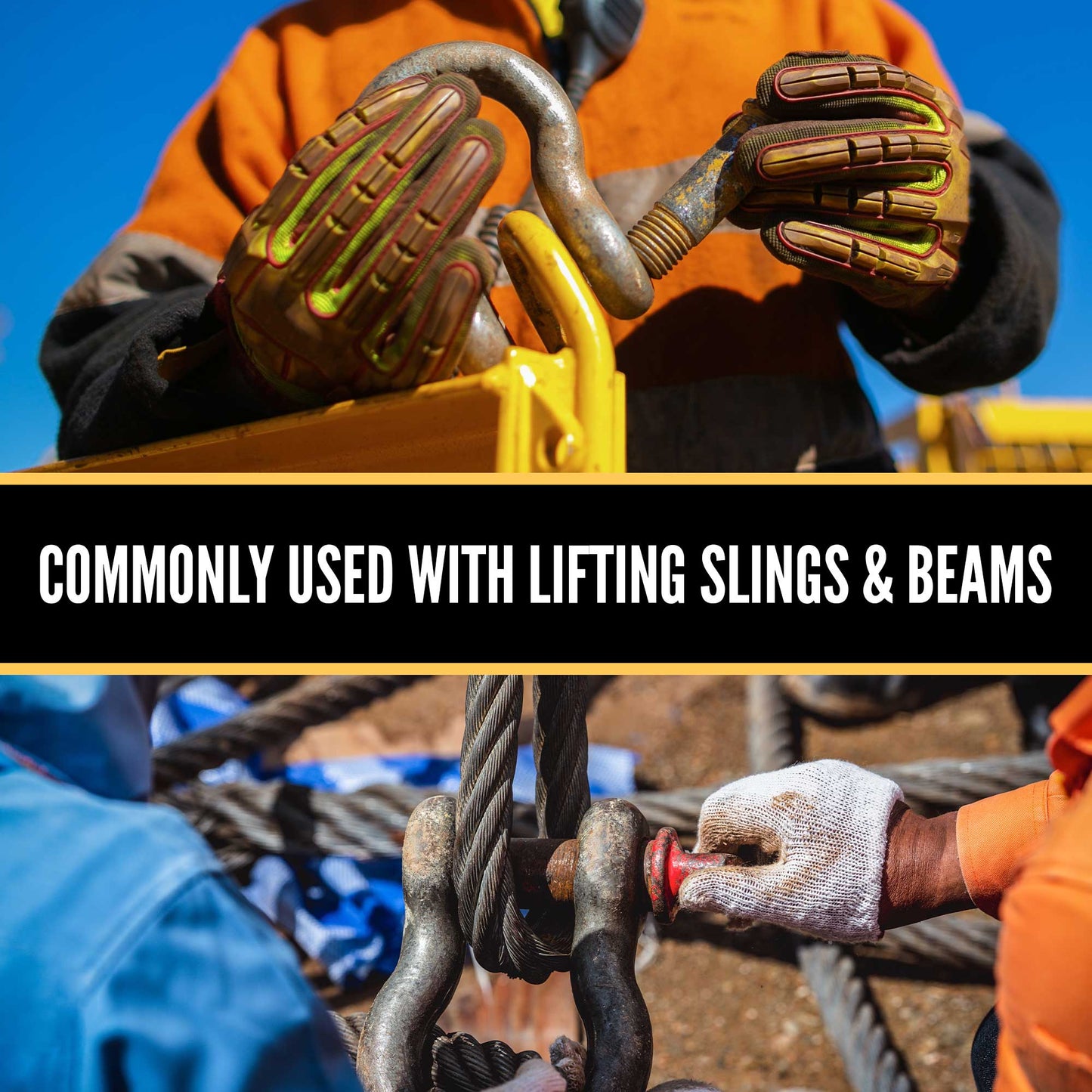

Anchor shackles have a rounded shape, which allows them to take loads from many directions without developing significant side load. That makes them ideal for use with multiple-leg slings, connecting slings to load rings, and accommodating a wider strap. The screw pin configuration works great in applications that are temporary, or require repeated and/or quick connections and disconnections.

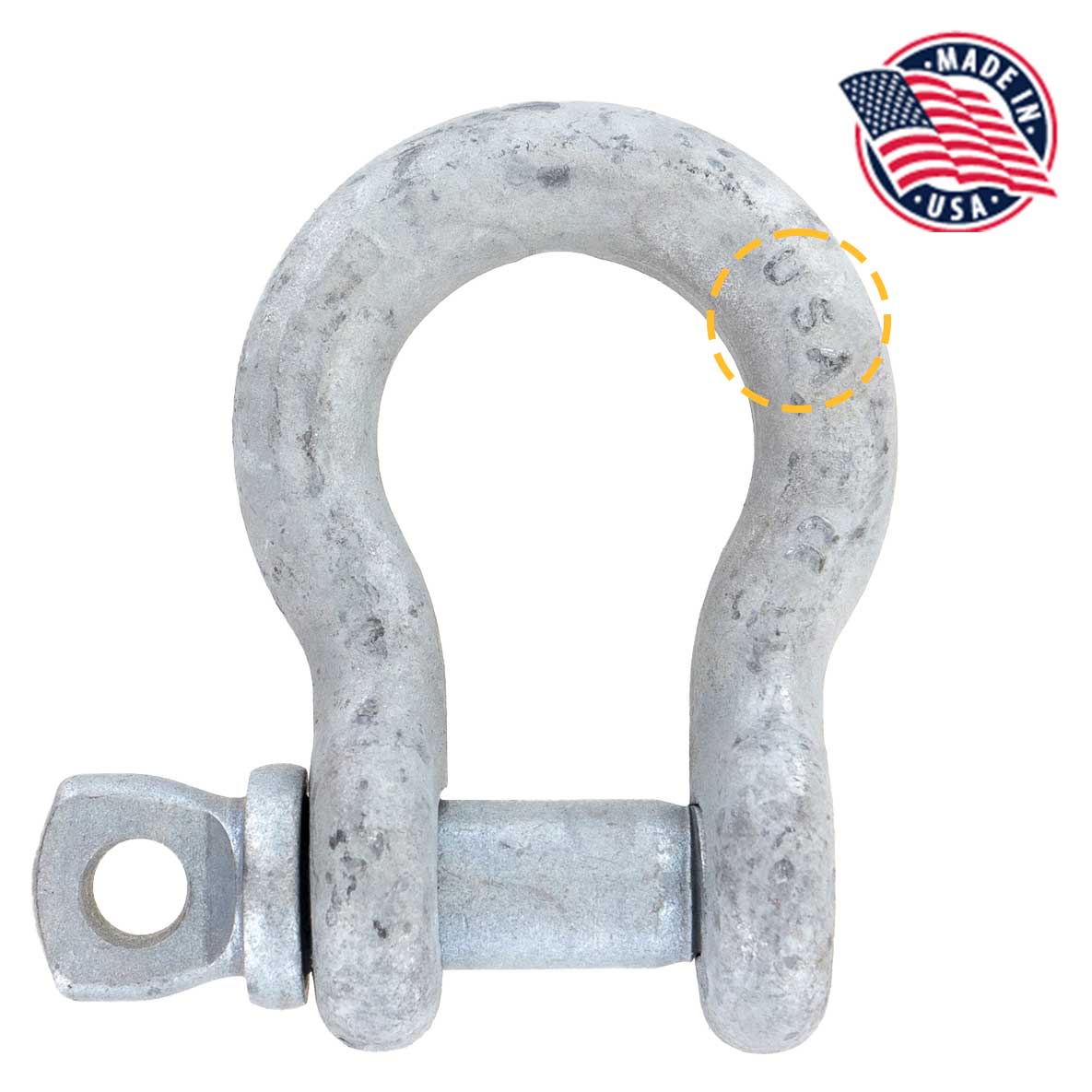

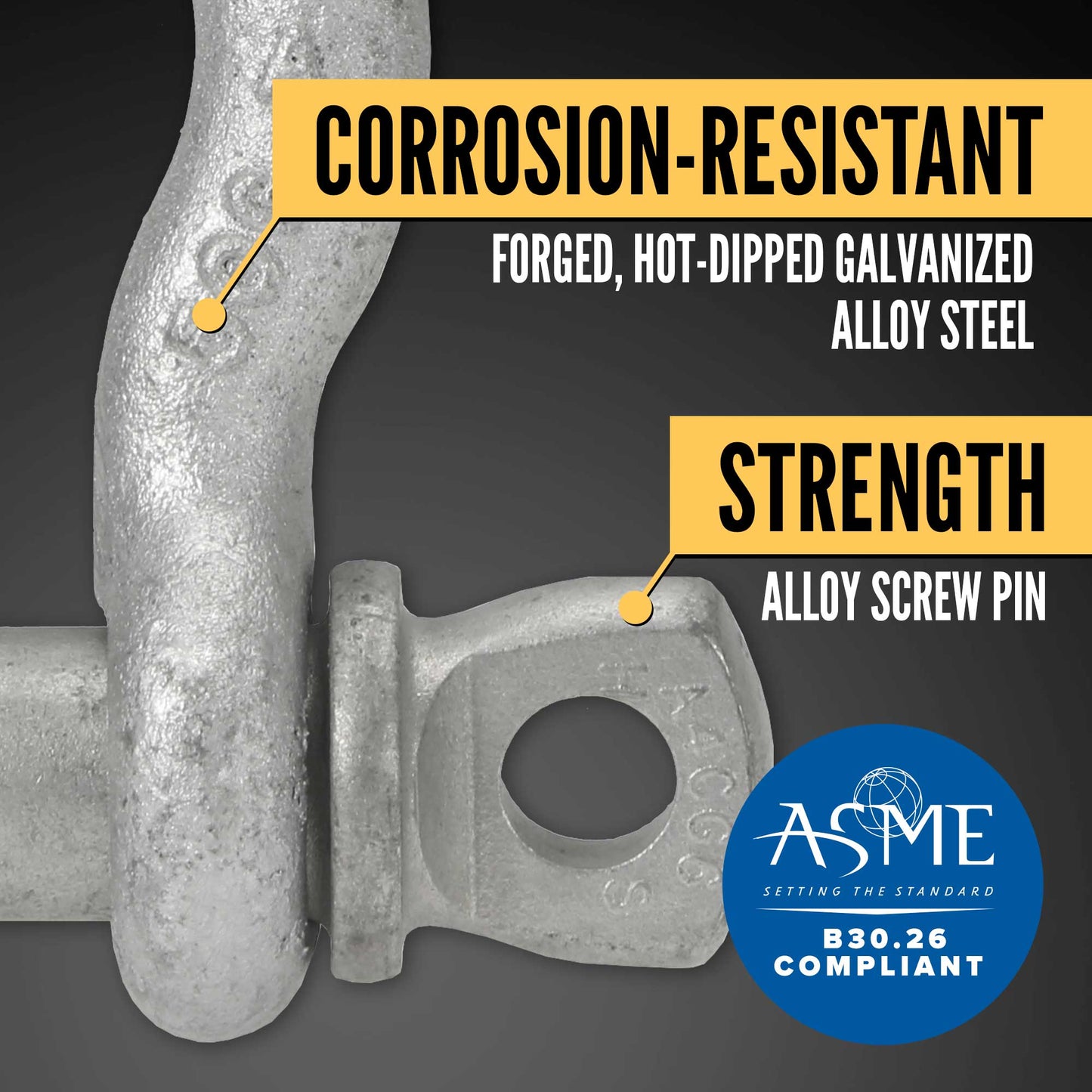

The USA-made Crosby alloy steel shackle is quenched and tempered for superior strength and comes with an alloy pin.
This screw pin anchor shackle is designed to perform. They can be furnished with proof-testing certificates to designated standards, such as DNV, ABS, Lloyds, etc. If you want this certification, please call to order and request the applicable testing.
G-209A Shackle Features

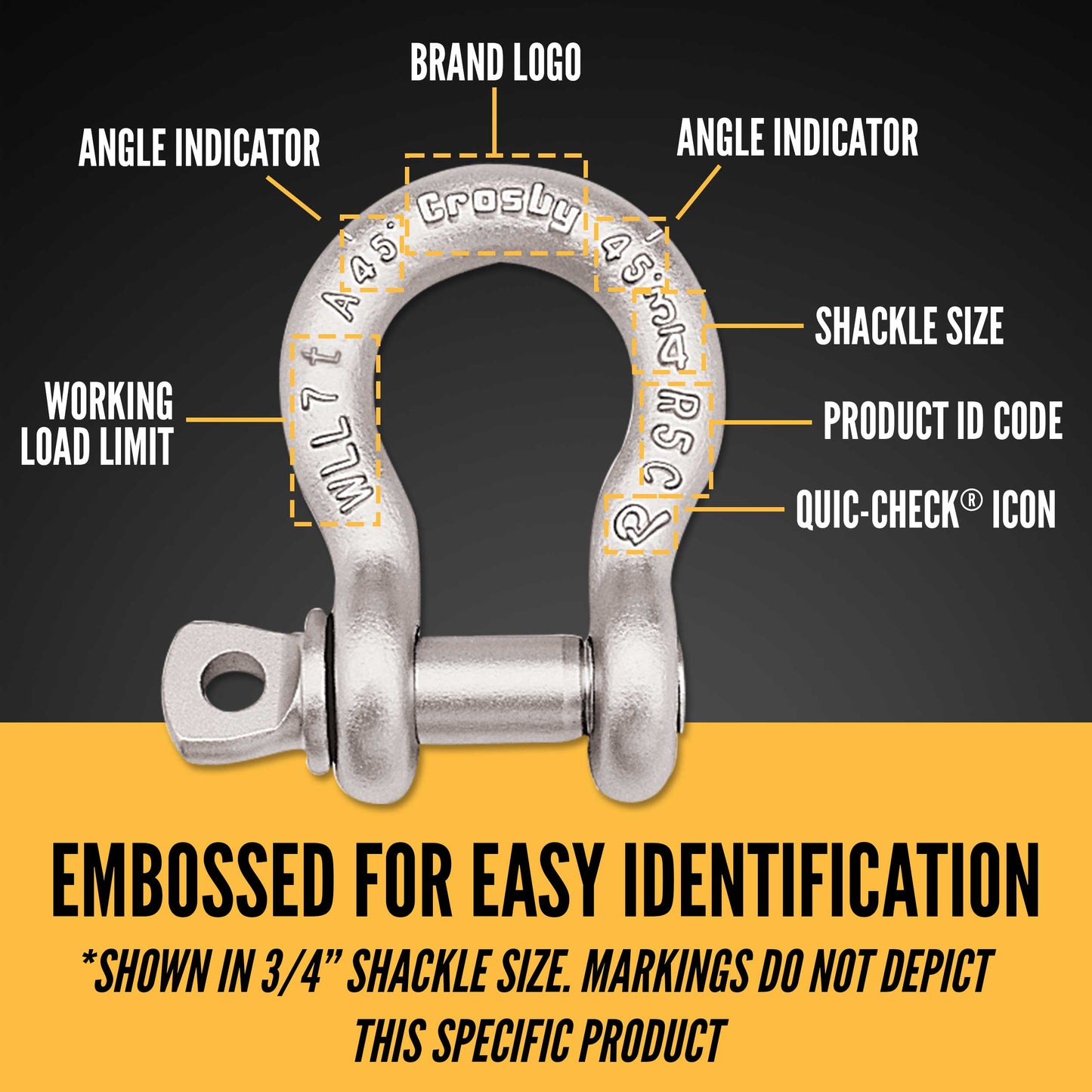

- Working load limit, PIC, and Crosby name on every shackle.
- Meets performance requirements of Grade 8 shackles.
Looking for other lifting and rigging products? Our wide selection includes lifting slings, turnbuckles, eye bolts, and more.
