SKU: BTCS12-CR
1/2" Crosby® Bolt Type Chain Shackle | G-2150 - 2 Ton
1/2" Crosby® Bolt Type Chain Shackle | G-2150 - 2 Ton!
Authorized Distributor
SKU: BTCS12-CR
1/2" Crosby® Bolt Type Chain Shackle | G-2150 - 2 Ton
Authorized Distributor
$43.85
Shackle Sizes:
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Working Load Limit: 2 tons
Safety Factor: 6:1
Inside Width: 0.81"
Inside Height: 1.66"
Mouth Width: 0.81"
Shackle Size: 1/2"
Pin Size: 5/8"
Material: Carbon Steel Shackle
Alloy Steel Pin
Alloy Steel Pin
Finish: Galvanized
Type: Bolt Type Chain
Product Weight: .8 lbs.
Standards: Meets or exceeds all requirements of ASME B30.26, Federal Specification RR-C-271, & ASTM A148M.
Manufacturer Name: Crosby®
Brand Part Number: 1019775
Shipping and Returns: This item cannot be returned due to safety risks associated with used materials.
Additional Info: WLL (lbs.): 4,409
Description
Crosby® 2 Ton Bolt Type Chain Shackles
Chain shackles from Crosby® offer some of the highest working load limits in the industry. Designed for straight line pulls or lifts only (side and racking load can cause excessive pressure on the straight legs of a chain shackle). The bolt closure is excellent for permanent or long-term applications, or if there’s a risk of a load sliding on the shackle pin, which can cause it to rotate.
These shackles are quenched and tempered for superior strength and have alloy pins.
G-2164 Shackle Features

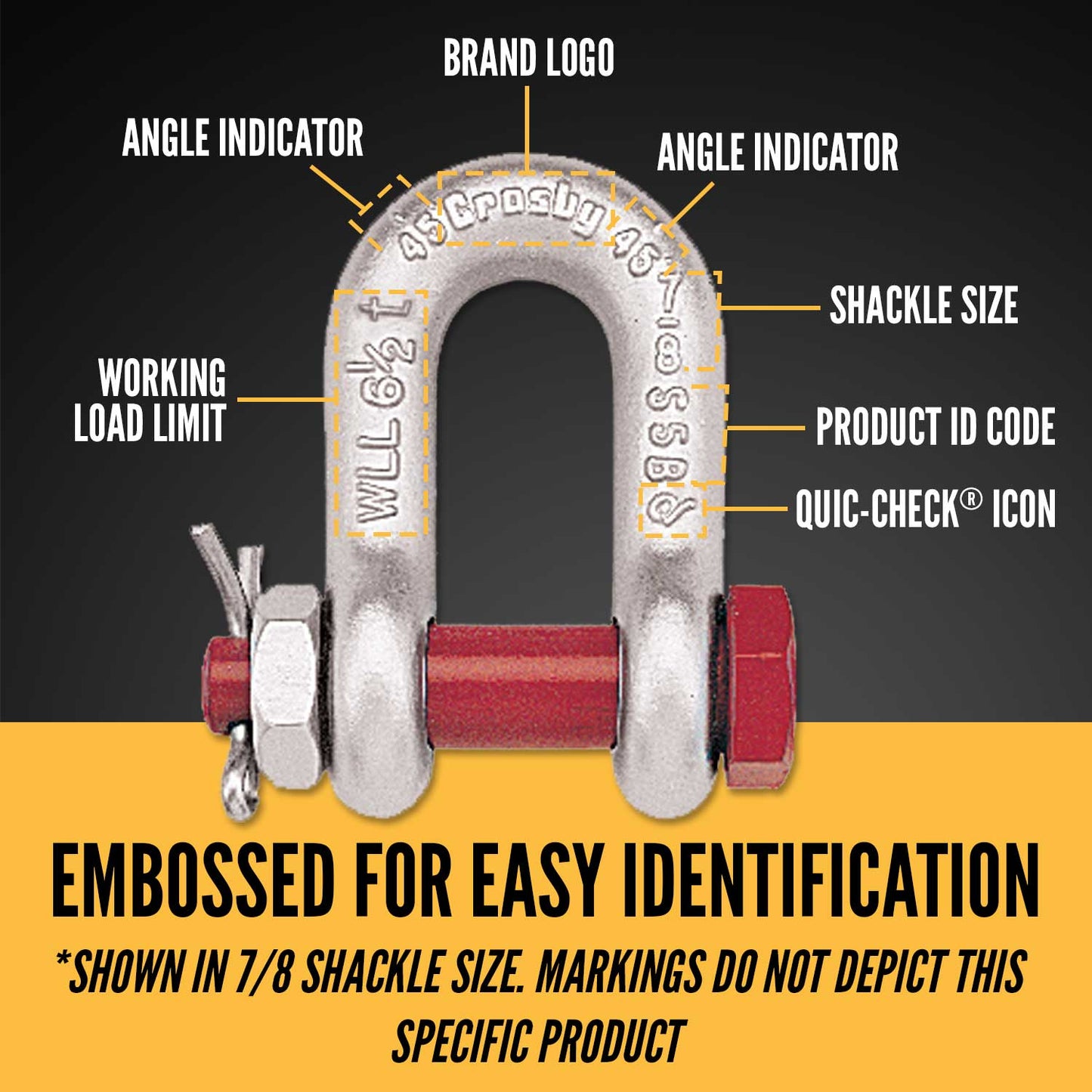

- Working load limit, PIC, Grade 6, and Crosby name on every shackle.
- Fatigue rated to 20,000 cycles at 1-1/2 times the WLL.
Looking for other lifting and rigging products? Our wide selection includes lifting slings, turnbuckles, eye bolts, and more.
