SKU: RPCS14-CR
1/4" Crosby® Round Pin Chain Shackle | G-215 - 0.5 Ton
1/4" Crosby® Round Pin Chain Shackle | G-215 - 0.5 Ton!
Authorized Distributor
$11.05
Blazing Fast Shipments
Shipping & ReturnsBuy in Bulk
Request a QuoteQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Working load limit: 0.5 tons (Metric) / 1,102 lbs.
Brand part number: 1018810
Finish: Galvanized
Inside height: 0.91"
Inside width: 0.47"
Manufacturer name: Crosby®
Material: Carbon Steel Shackle
Alloy Steel Pin
Alloy Steel Pin
Mouth width: 0.47"
Pin size: 5/16"
Product weight: .1 lbs.
Safety factor: 6:1
Shackle size: 1/4"
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Standards: Meets or exceeds all requirements of Federal Specification RR-C-271 & ASTM A148M.
Type: Round Pin Chain
Additional Info: Due to Crosby's system shutdown, some orders and items may be backordered. Please contact us for item availability and lead time.
Description

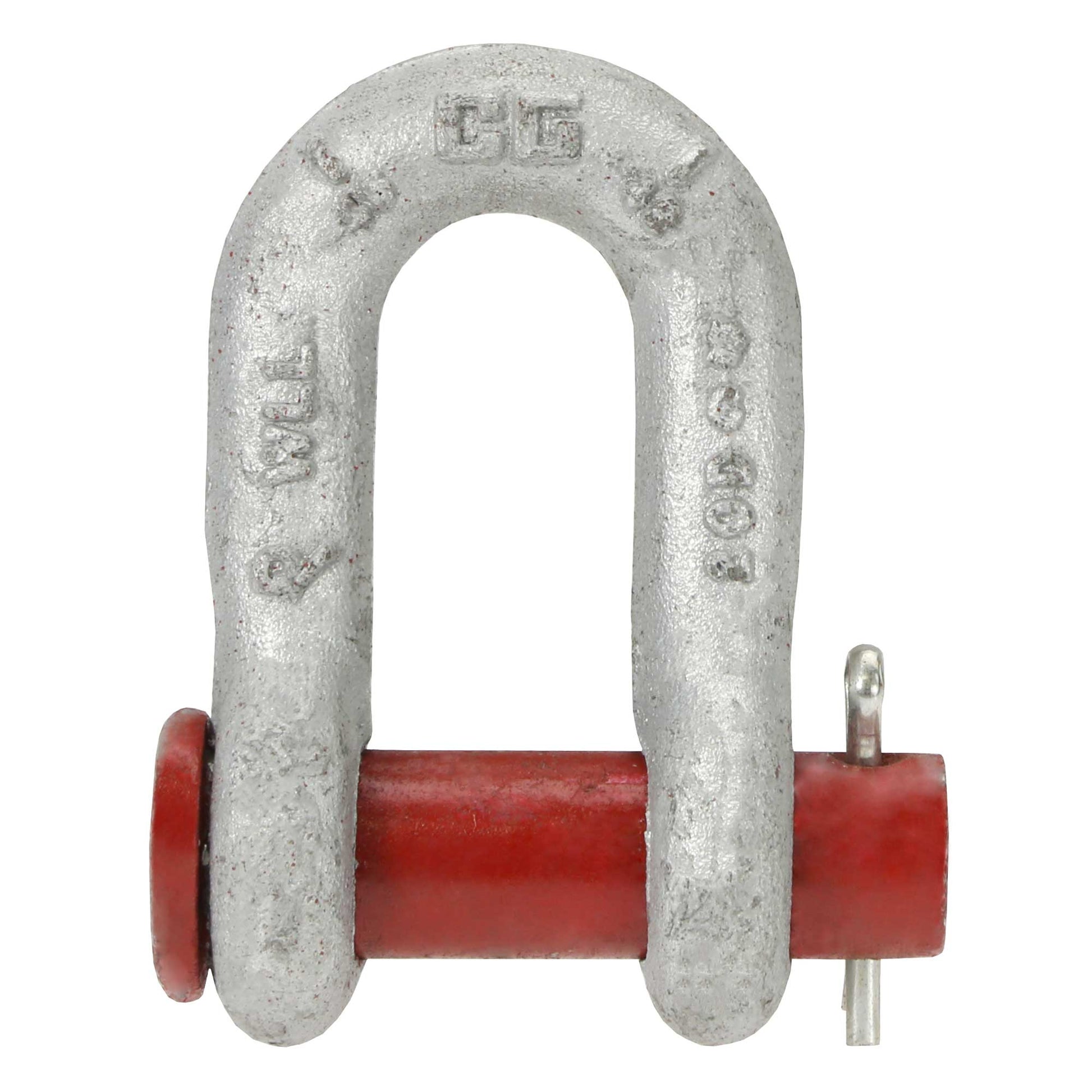

Crosby® .5 Ton Round Pin Chain Shackles

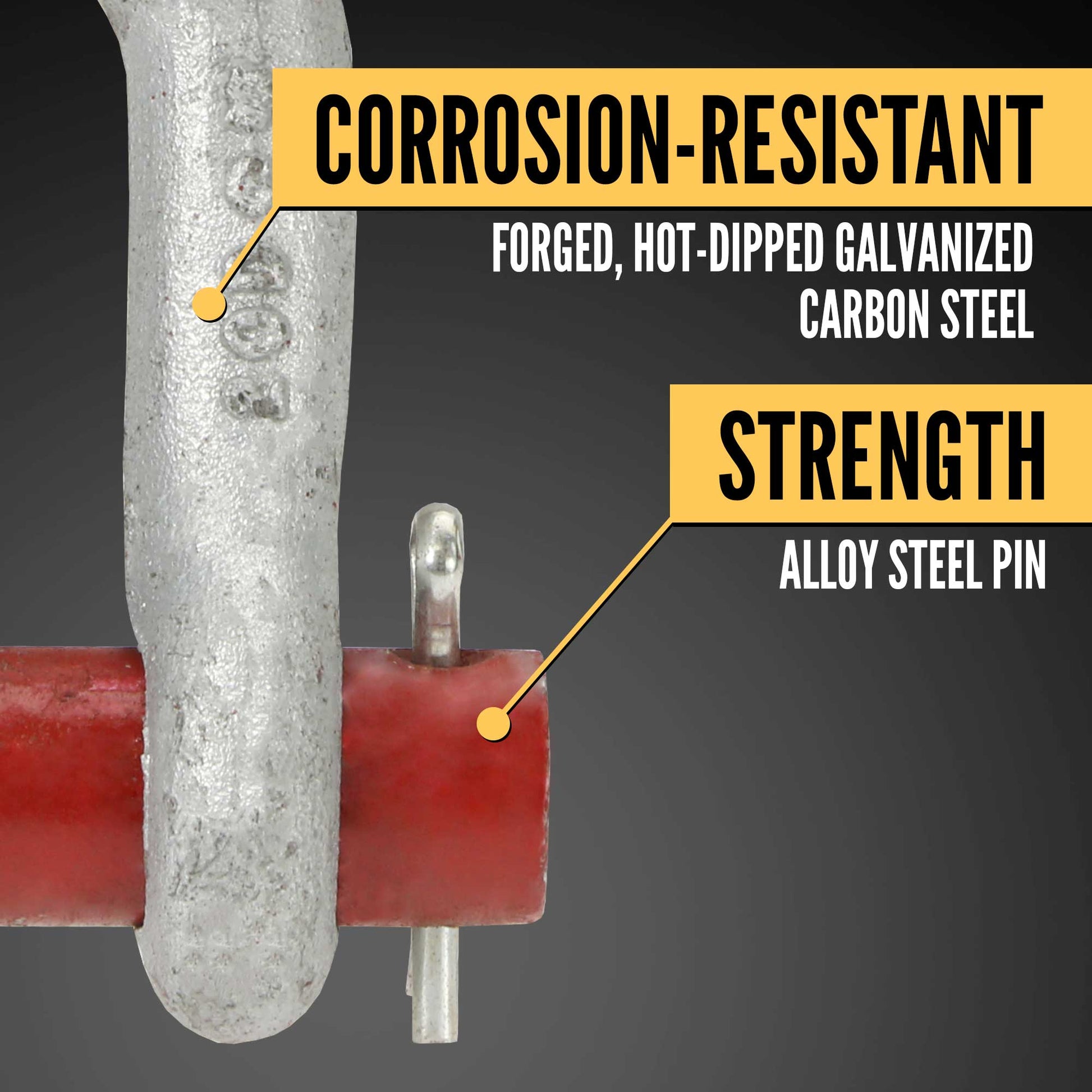

USA-made Crosby shackle is made from hot-dipped galvanized forged steel for corrosion-resistance and has an alloy pin for added strength.
They can meet DNV impact requirements of 42 Joules (31 ft-lb) at 4°F / -20°C upon request, and can be furnished with proof-testing certificates to designated standards, such as DNV, ABS, Lloyds, etc. If you want this certification, please call to order and request the applicable testing.
Why Choose Round Pin Chain Shackles?

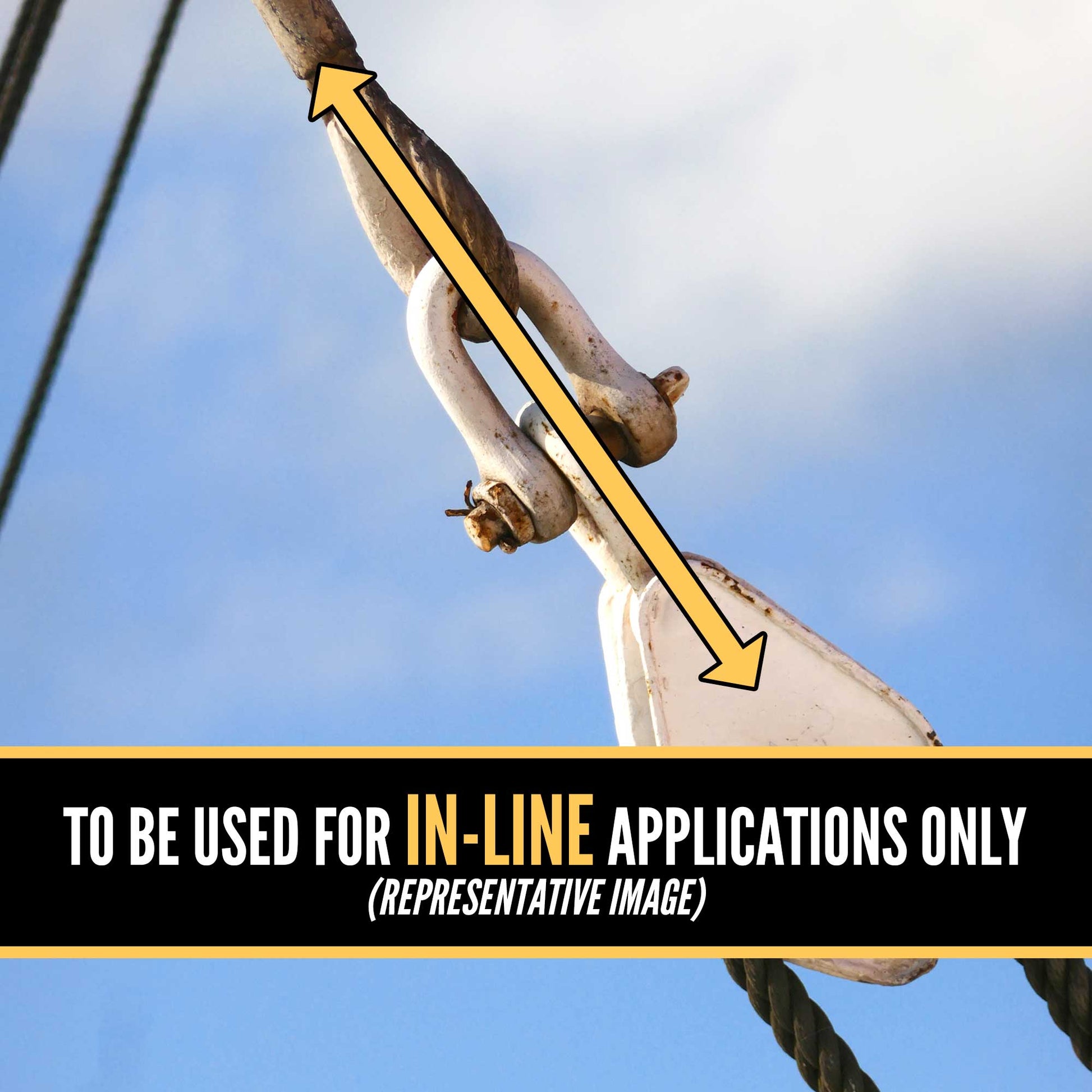

Round pin anchor shackles are a good option for applications where the pin may be subjected to torque or twisting, but not for situations where it will be subjected to an axial load. Chain shackles generally have a higher working load limit than anchor shackles, but are ideal for straight or inline pulls only. Side and racking loads may cause the shackle to twist or bend.
G-215 Shackle Features

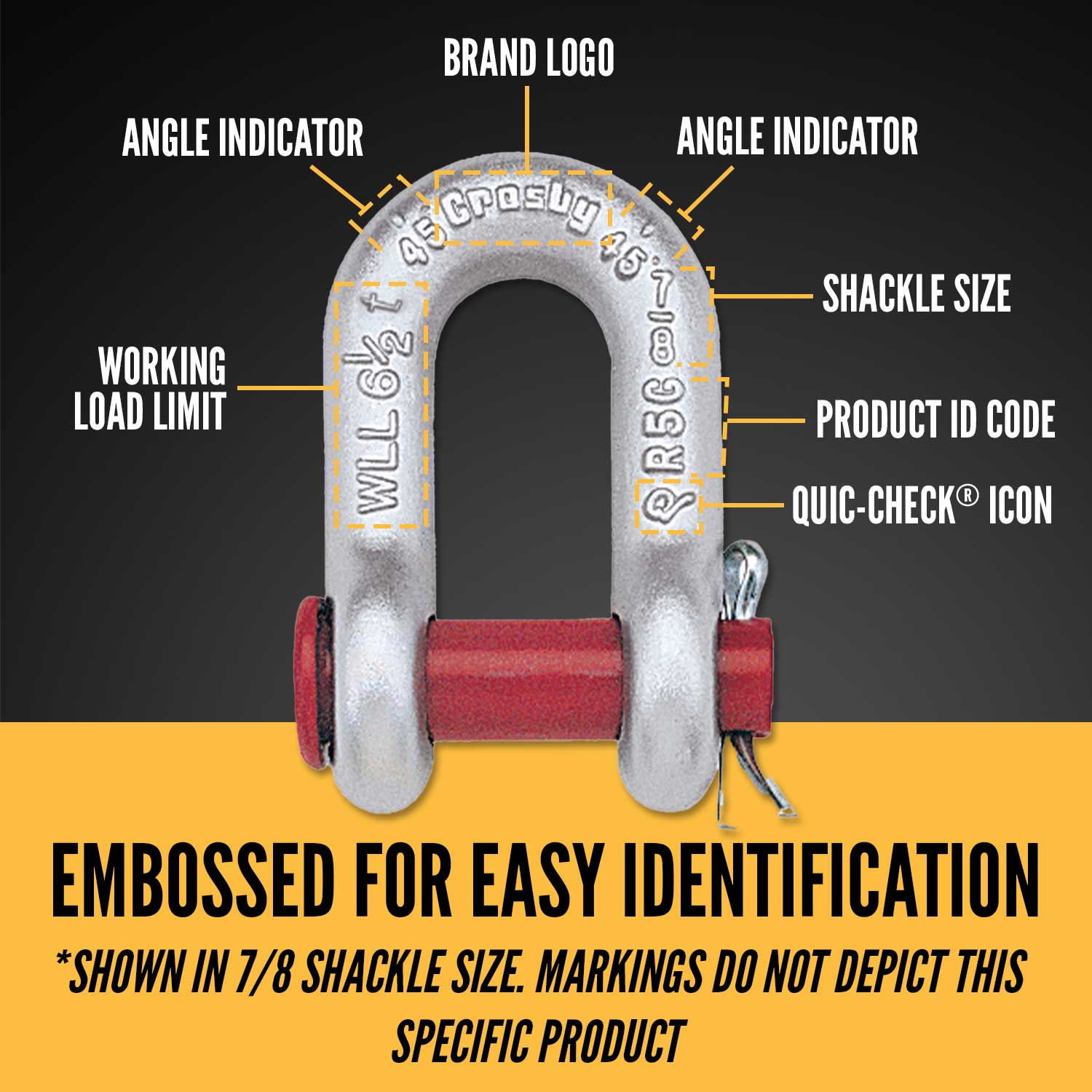

- Working load limit, PIC, and Crosby name on every shackle.
- Fatigue rated to 20,000 cycles at 1-1/2 times the WLL.
- Do not side load.
Looking for other lifting and rigging products? Our wide selection includes lifting slings, turnbuckles, eye bolts, and more.
