SKU: BPSSS12-12T-CR
Crosby® Bolt Type Sling Saver Shackle | S-252 - 3"- 12.5 Ton
Crosby® Bolt Type Sling Saver Shackle | S-252 - 3"- 12.5 Ton!
Authorized Distributor
SKU: BPSSS12-12T-CR
Authorized Distributor
$235.00
Blazing Fast Shipments
Shipping & ReturnsBuy in Bulk
Request a QuoteQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Working load limit: 12.5 tons (Metric) / 27,557 lbs.
Brand part number: 1020518
Finish: Painted
Inside height: 3.06"
Inside width: 3.25"
Manufacturer name: Crosby®
Material: Alloy Steel
Mouth width: 1.62"
Pin size: 1-1/4"
Product weight: 8 lbs.
Safety factor: 5:1
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Standards: Meets or exceeds all requirements of ASME B30.26, ASTM-A148M and WSTDA-RS1.
Type: Bolt Type Web Sling
Width: 3"
Additional Info: Width refers to the webbing width this shackle can accommodate.
Description

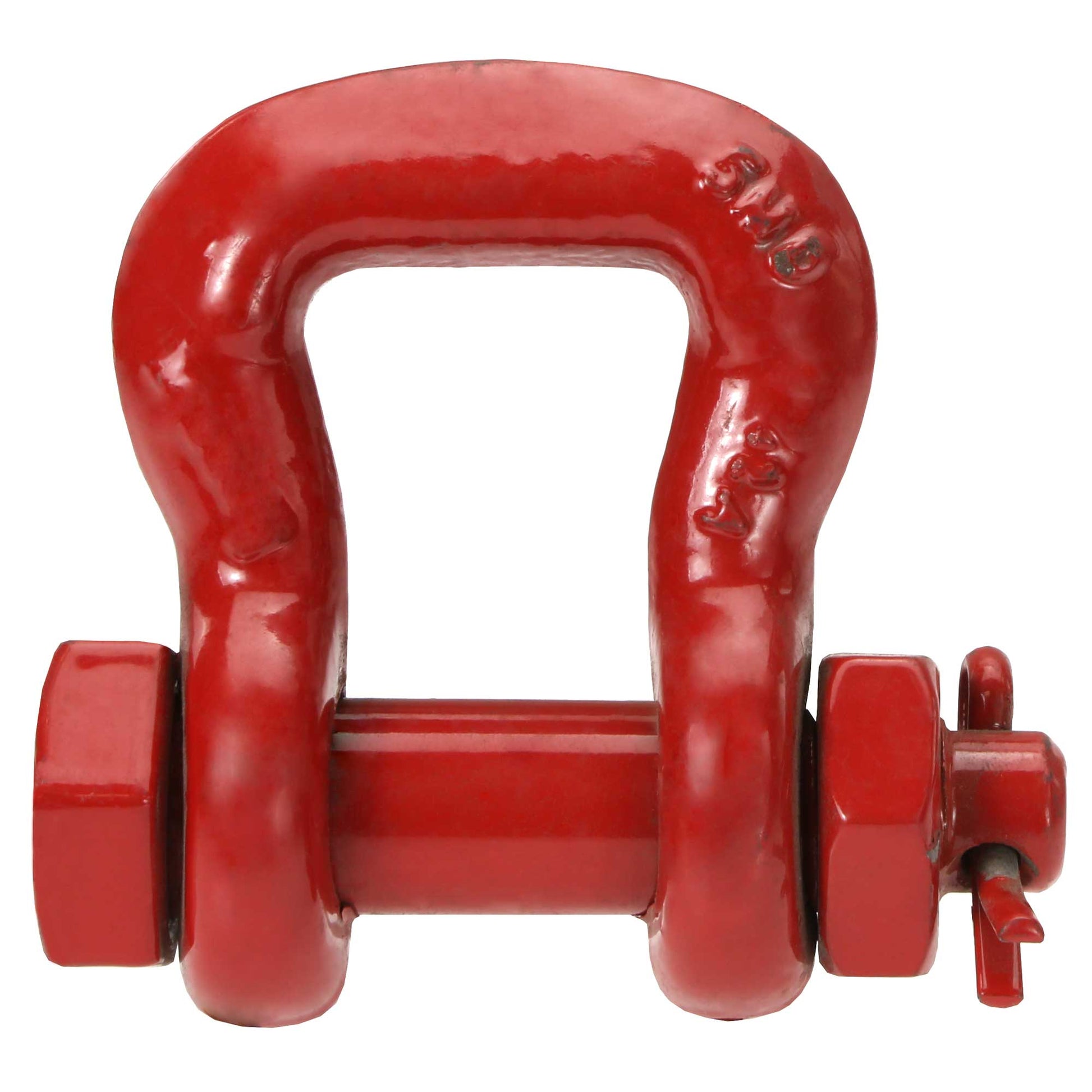

12.5 ton Crosby S-252 Web Sling Shackle

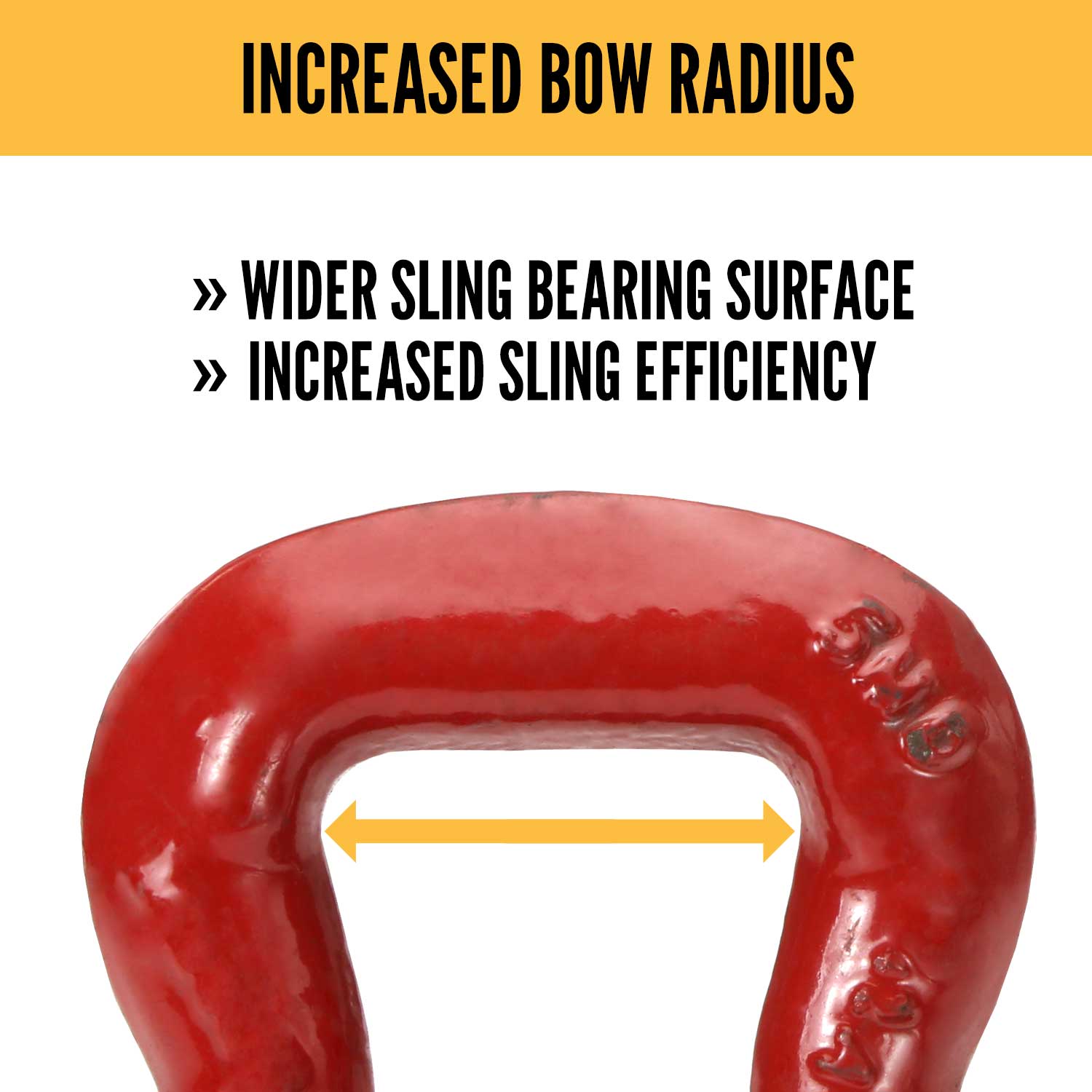

This Sling Saver shackle from trusted manufacturer Crosby has a squared bow that's excellent for connecting synthetic web slings and round slings to eye bolts, pad eyes, and lifting lugs. The wider sling-bearing surface offers an increased area for load distribution, which can increase the efficiency of the sling by at least 15% over standard chain and anchor bows and traditional eye hooks. This feature also allows 100% of the slings’ working load limit to be achieved.

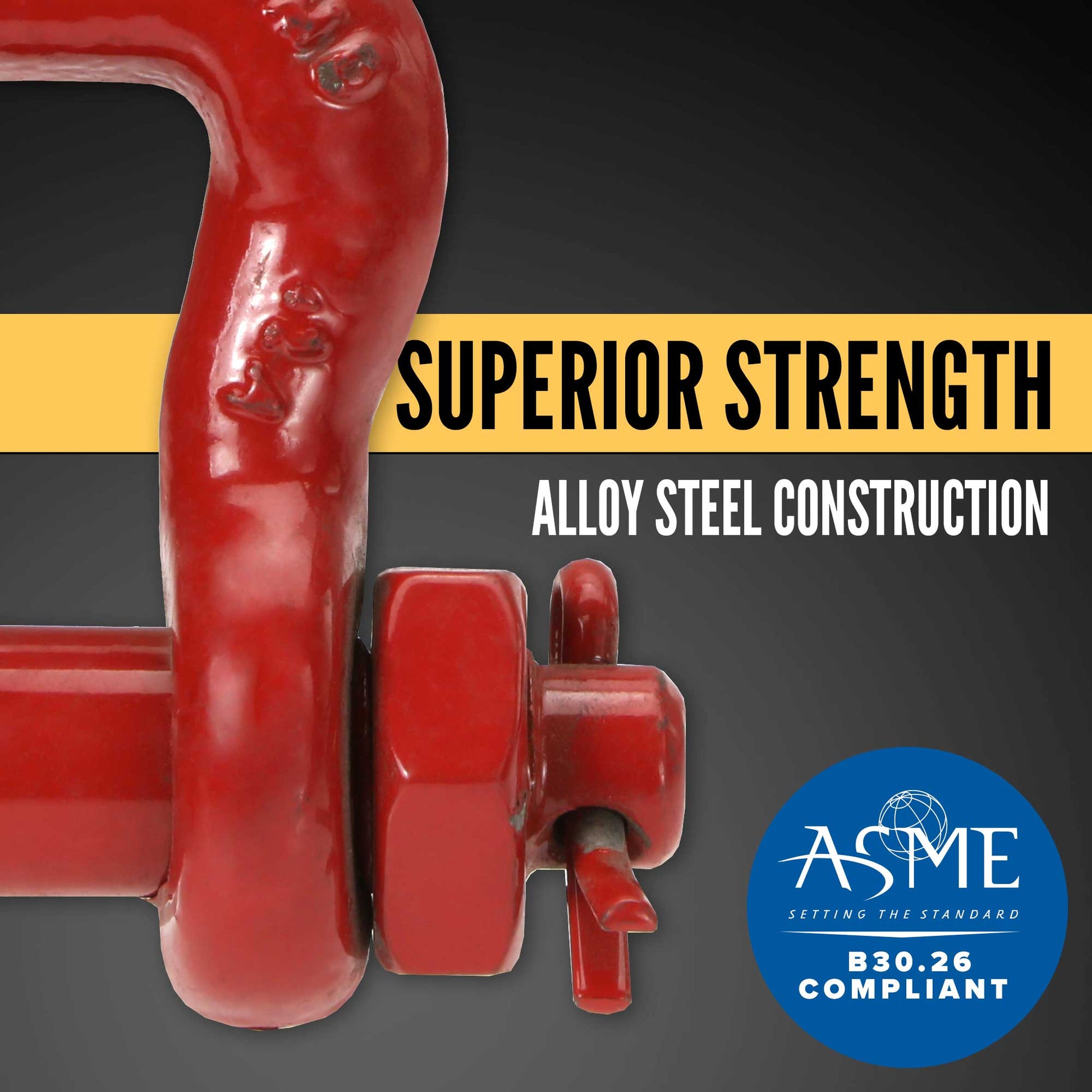

The alloy construction offers superior strength, as well as a non-slip surface that eliminates bunching and sliding.
Compatible Synthetic Slings
- Web sling eye width: 3"
- Round sling type(s): 7 & 8
Crosby S-252 Sling Saver Features
- Bolt type closure with cotter pin.
- Bolt pin features a larger diameter that provides better load distribution over screw pin types.

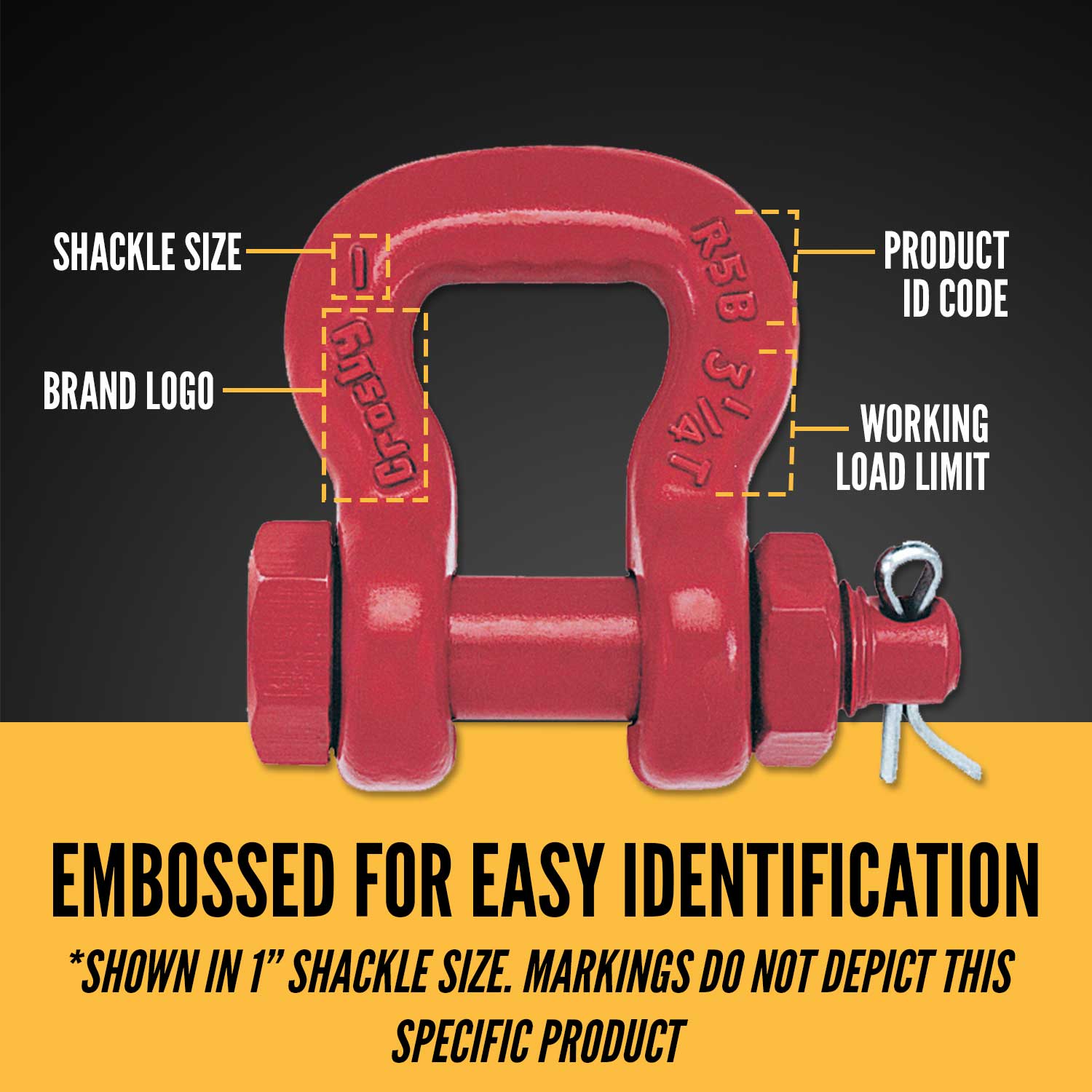

- Stamped with PIC, WLL, and Crosby brand name.
- Maximum proof load is 2.5 times the working load limit.
Looking for other lifting and rigging products? Our wide selection includes lifting slings, turnbuckles, eye bolts, and more.
