SKU: BPSSS50T-CR
Crosby® Bolt Type Sling Saver Shackle | S-252 - 6"- 50 Ton
Crosby® Bolt Type Sling Saver Shackle | S-252 - 6"- 50 Ton!
Authorized Distributor
$1,593.00
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Working load limit: 50 tons (Metric) / 110,231 lbs.
Brand part number: 1020551
Finish: Painted
Inside height: 7.7"
Inside width: 6.50"
Manufacturer name: Crosby®
Material: Alloy Steel
Mouth width: 3"
Pin size: 2-1/4"
Product weight: 50 lbs.
Safety factor: 5:1
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Standards: Meets or exceeds all requirements of ASME B30.26, ASTM-A148M and WSTDA-RS1.
Type: Bolt Type Web Sling
Width: 6"
Additional Info: Width refers to the webbing width this shackle can accommodate.
Description

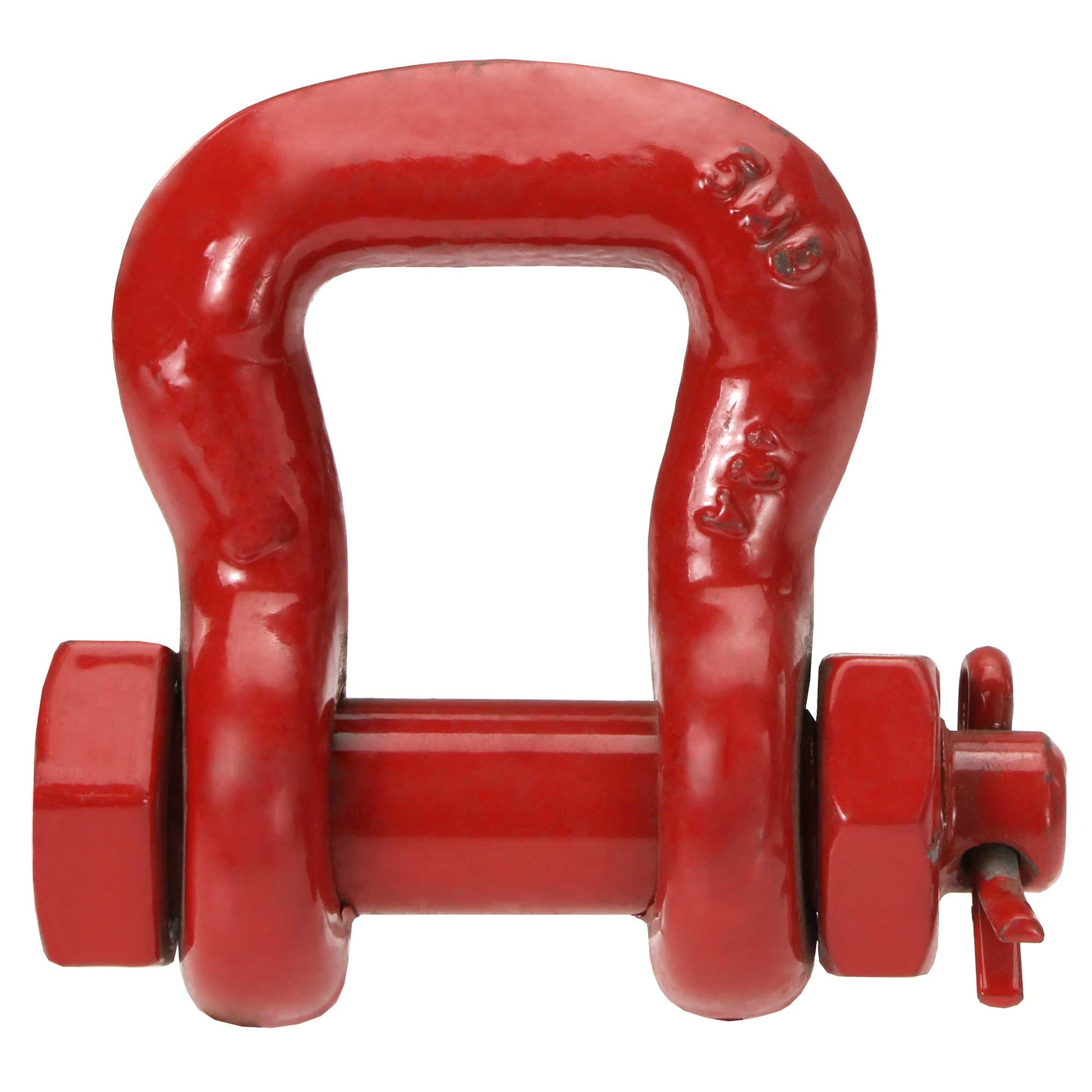

50 ton Crosby S-252 Web Sling Shackle
This Sling Saver shackle from trusted manufacturer Crosby has a squared bow that's excellent for connecting synthetic web slings and round slings to eye bolts, pad eyes, and lifting lugs. The wider sling-bearing surface offers an increased area for load distribution, which can increase the efficiency of the sling by at least 15% over standard chain and anchor bows and traditional eye hooks. This feature also allows 100% of the slings’ working load limit to be achieved.

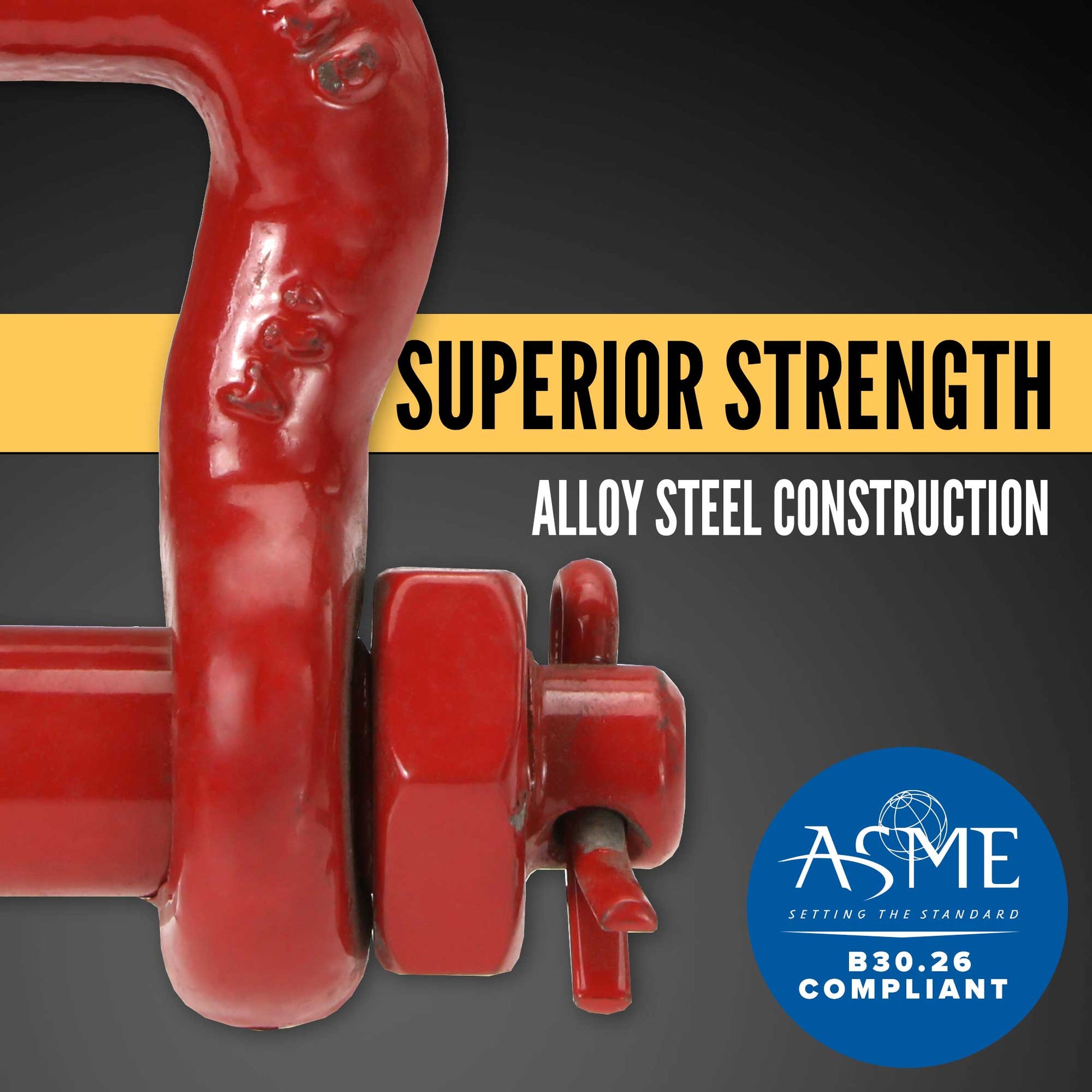

The alloy construction offers superior strength, as well as a non-slip surface that eliminates bunching and sliding.
Compatible Synthetic Slings
- Web sling eye width: 6"
- Round sling type(s): 13
Crosby S-252 Sling Saver Features
- Bolt type closure with cotter pin.
- Bolt pin features a larger diameter that provides better load distribution over screw pin types.

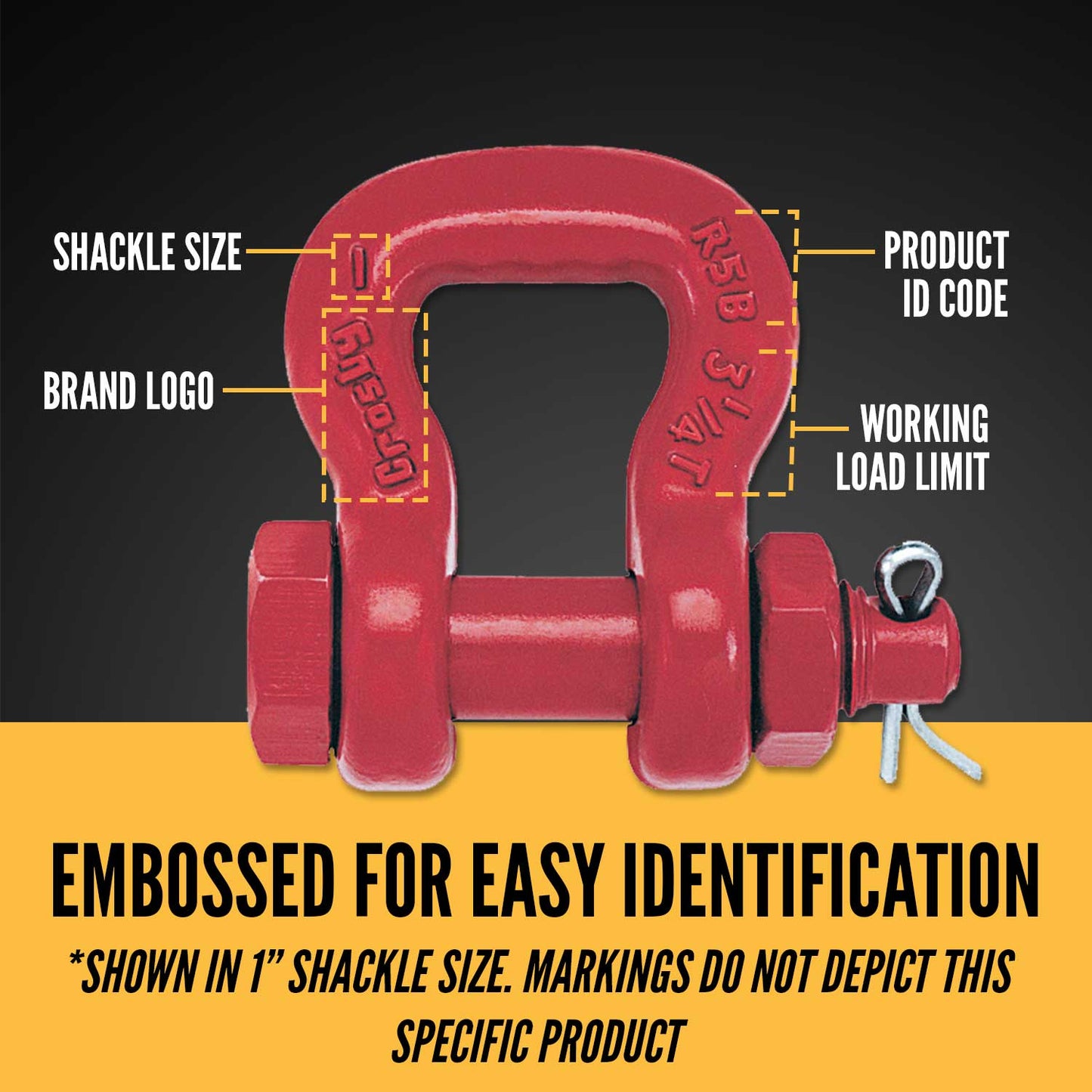

- Stamped with PIC, WLL, and Crosby brand name.
- Maximum proof load is 2.5 times the working load limit.
Looking for other lifting and rigging products? Our wide selection includes lifting slings, turnbuckles, eye bolts, and more.
California Residents: WARNING
-

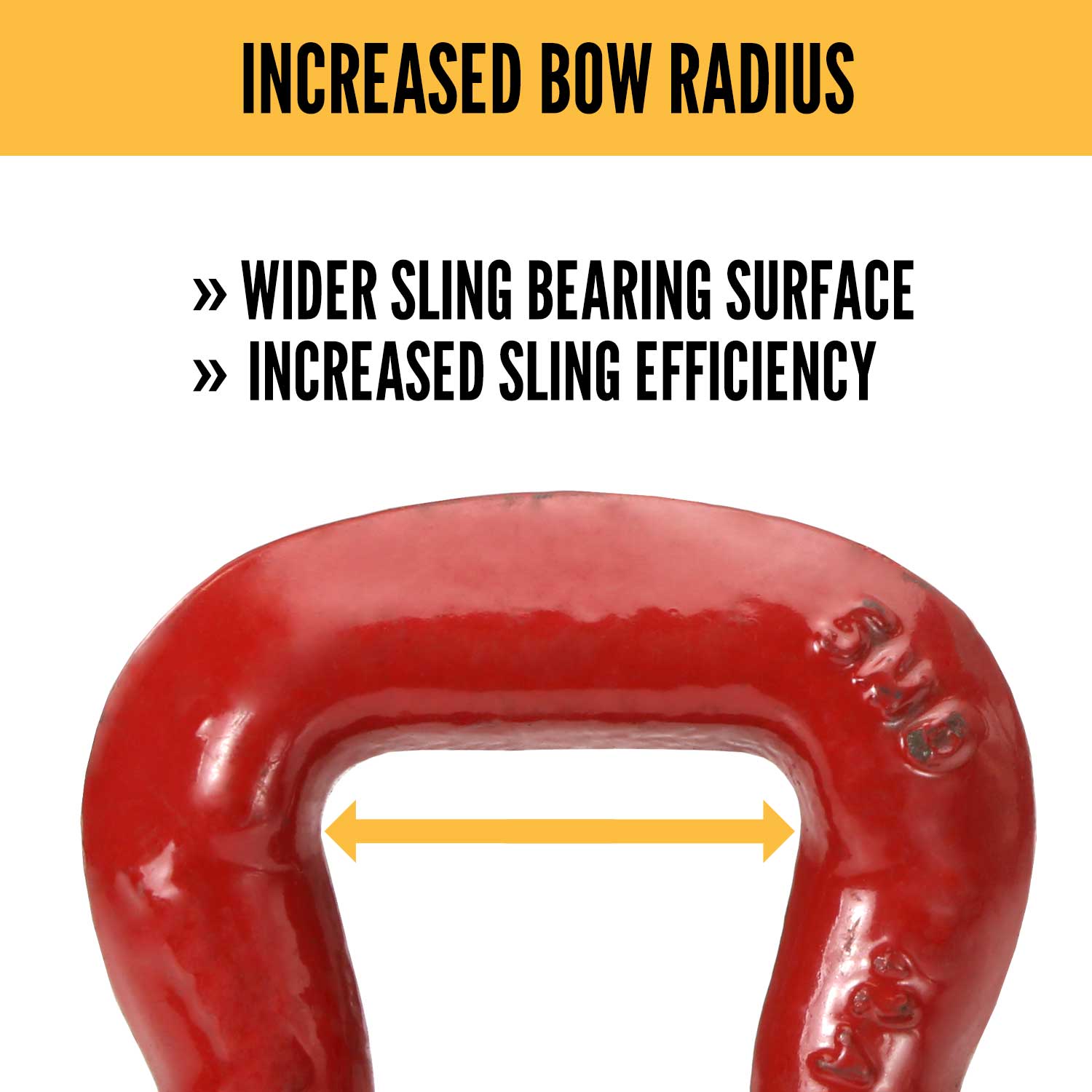

Increased Sling Efficiency
The wider bow width provides a wider sling-bearing surface, increasing the sling's efficiency by at least 15% over standard shackles. It also allows 100% of the sling's working load limit to be achieved. Ideal for use with synthetic web slings and round slings.
-
