SKU: SPSSS12-12T-CR
Crosby® Screw Pin Sling Saver Shackle | S-253 - 3"- 12.5 Ton
Crosby® Screw Pin Sling Saver Shackle | S-253 - 3"- 12.5 Ton!
Authorized Distributor
SKU: SPSSS12-12T-CR
Authorized Distributor
$176.20
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Working load limit: 12.5 tons (Metric) / 27,557 lbs.
Brand part number: 1020602
Finish: Painted
Inside height: 3.06"
Inside width: 3.25"
Manufacturer name: Crosby®
Material: Alloy Steel
Mouth width: 1.62"
Pin size: 1-1/4"
Product weight: 7.3 lbs.
Safety factor: 5:1
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Standards: Meets or exceeds all requirements of ASME B30.26, ASTM A148M, and WSTDA-RS1.
Type: Screw Pin Web Sling
Width: 3"
Additional Info: Width refers to the webbing width this shackle can accommodate.
Description
12.5 ton Crosby S-253 Web Sling Shackle

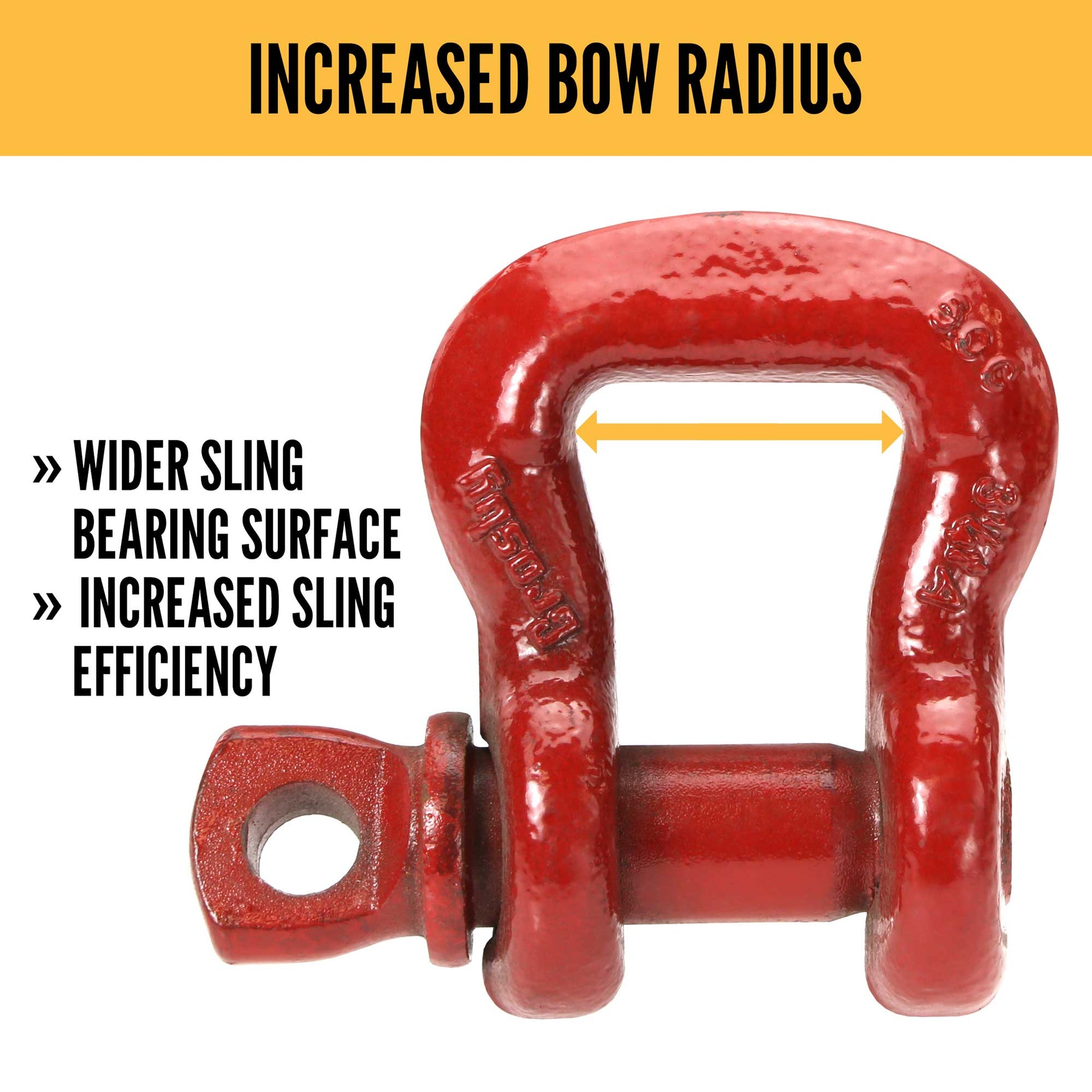

Sling Saver shackles from Crosby® have a more squared bow shape designed for use with web slings and round slings connecting to pad eyes, lifting lugs, and eye bolts. The wide surface offers a larger load distribution area, increasing the efficiency of the sling by at least 15% over standard chain and anchor bows and eye hooks. This design feature also allows for 100% of the slings’ Working Load Limit to be achieved.

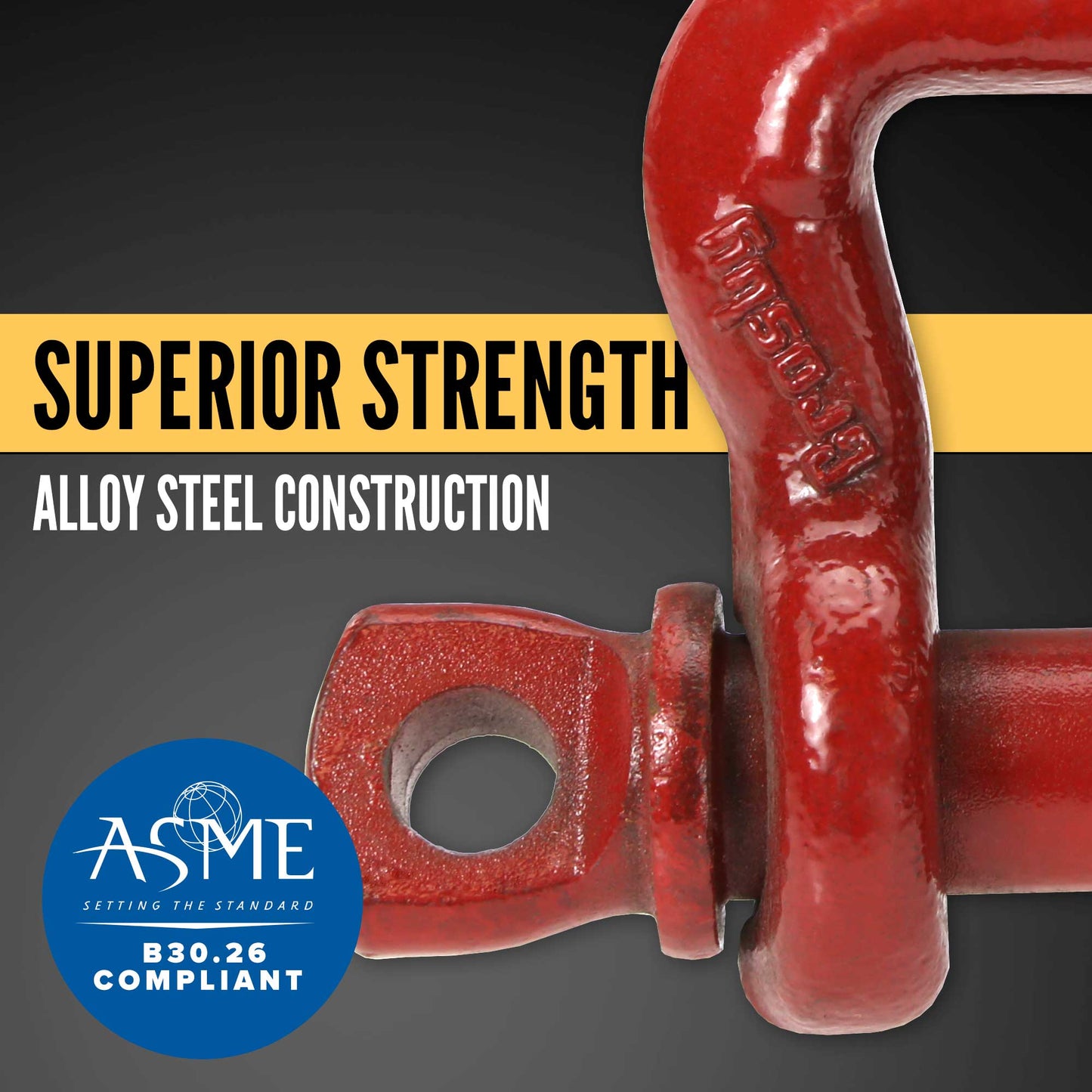

The alloy construction offers superior strength, as well as a non-slip surface that eliminates bunching and sliding.
Compatible Synthetic Slings
- Web sling eye width: 3"
- Round sling type(s): 7 & 8
Crosby S-253 Sling Saver Features

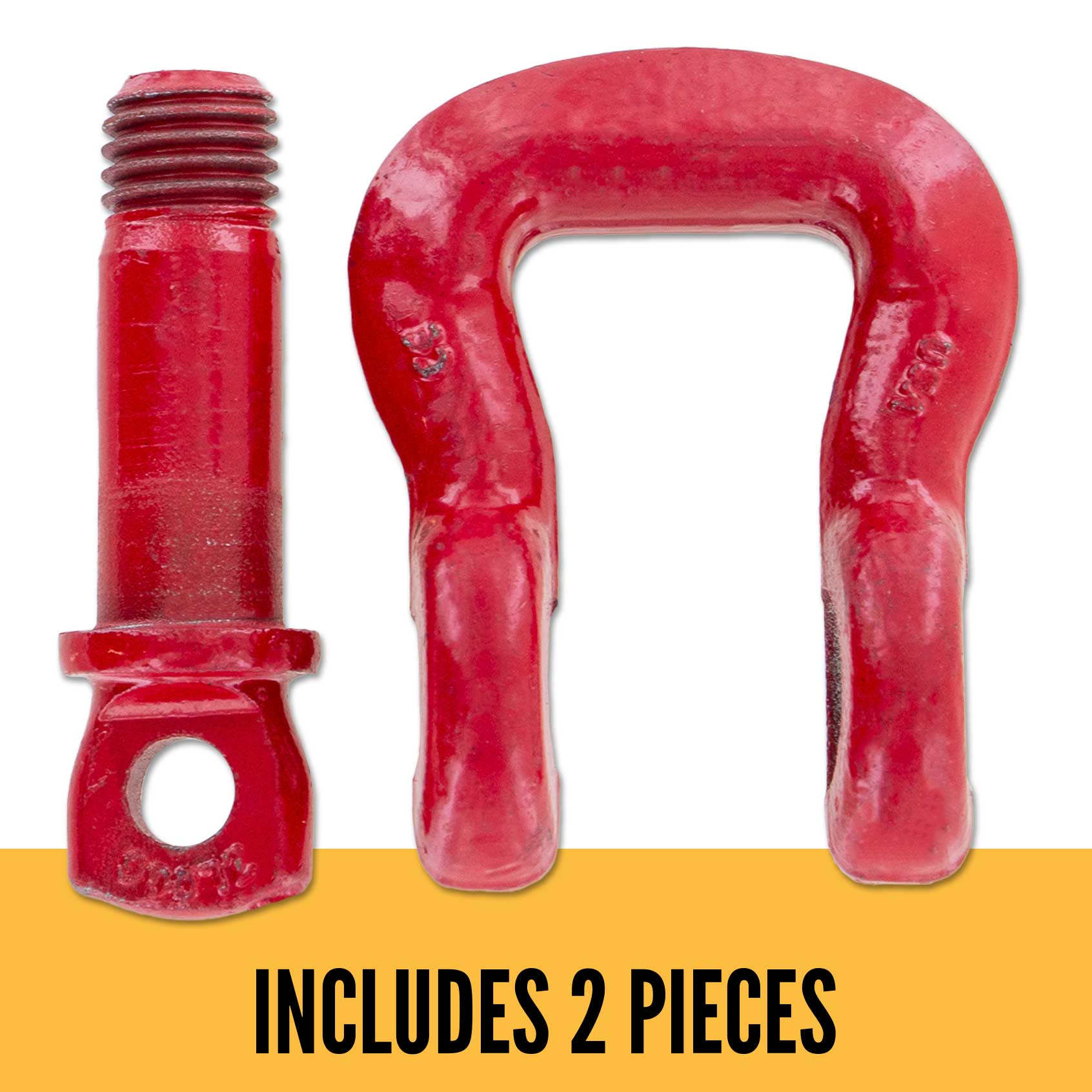

- Screw pin closure.

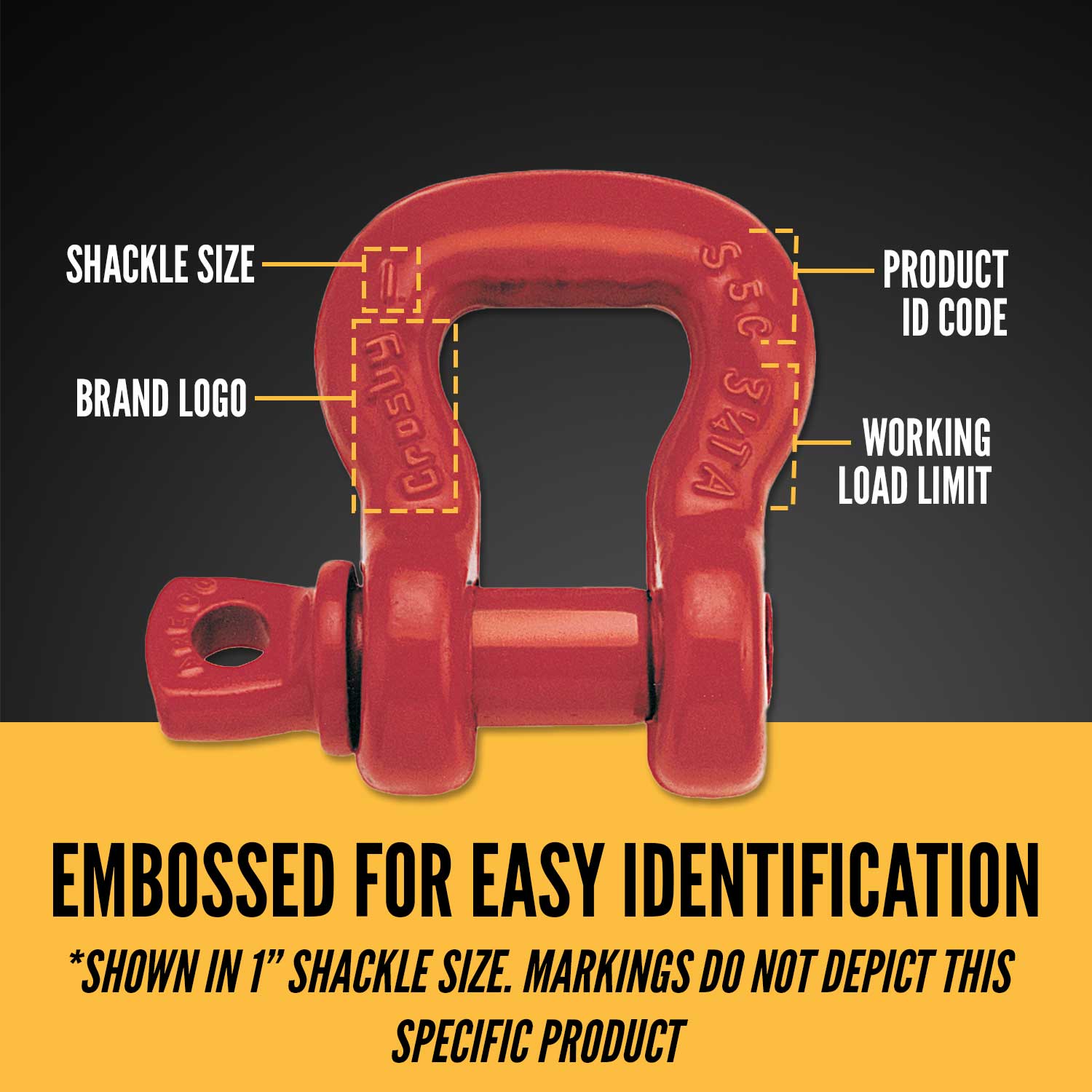

- Stamped with PIC, WLL, and Crosby brand name.
- Maximum proof load is 2.5 times the working load limit.
