SKU: CSB500-2
Dura-Lite Composite Spreader Beam - 1/4 Ton Capacity - 2' Spread
Dura-Lite Composite Spreader Beam - 1/4 Ton Capacity - 2' Spread!
Continue Browsing
Fixed Spreader Beams
Lifting Beams & Spreader Bars
Rigging Supplies & Rigging Hardware
Related Articles
$1,471.89
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsQuestions? Need it custom?
We Can Help!Payment Options

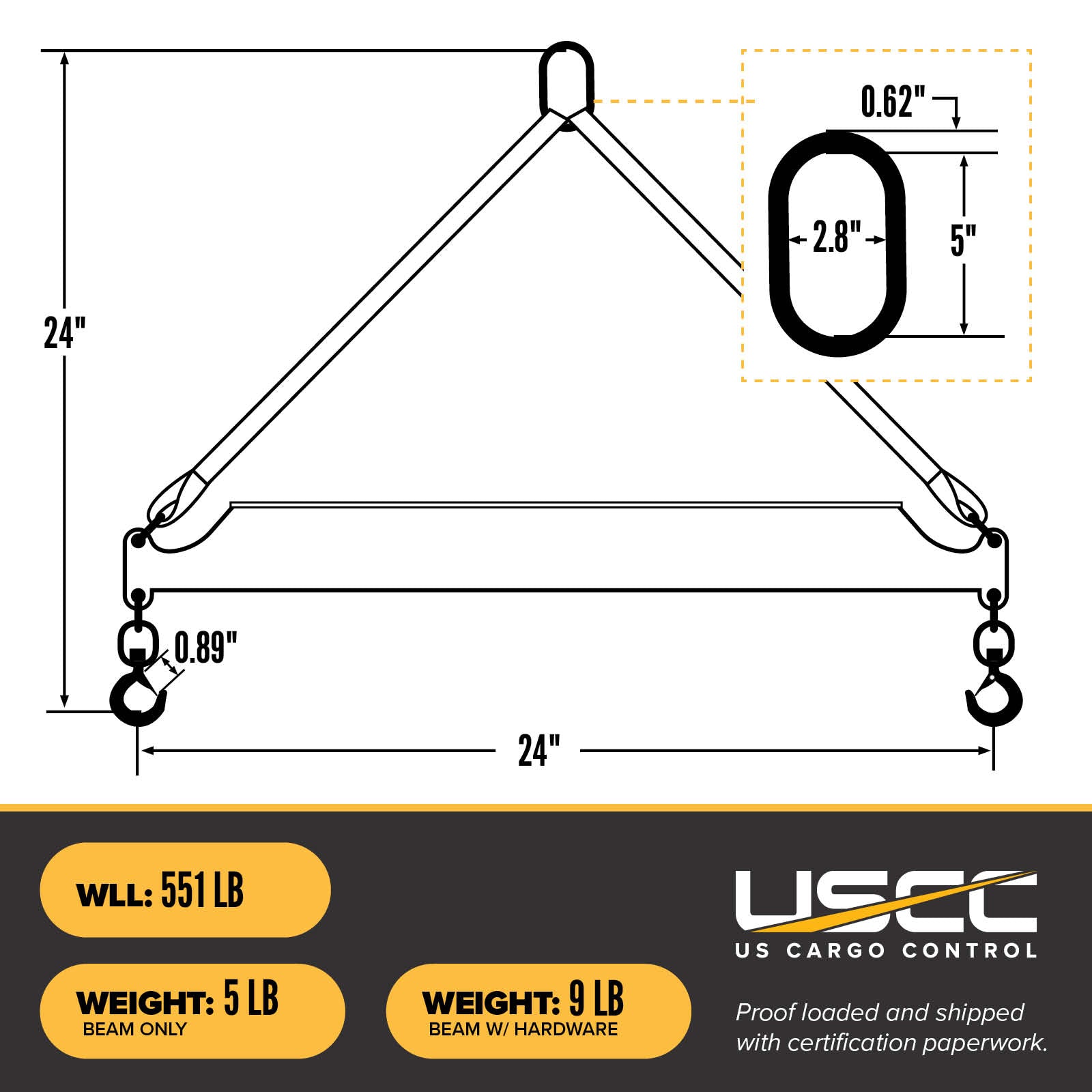

Specifications
Working load limit: 1/4 ton (US) / 551 lbs.
Bail Dimensions: Inside Width: 2.8"
Inside Length: 5"
Diameter: 0.62"
Inside Length: 5"
Diameter: 0.62"
Brand part number: 430-1/4-2

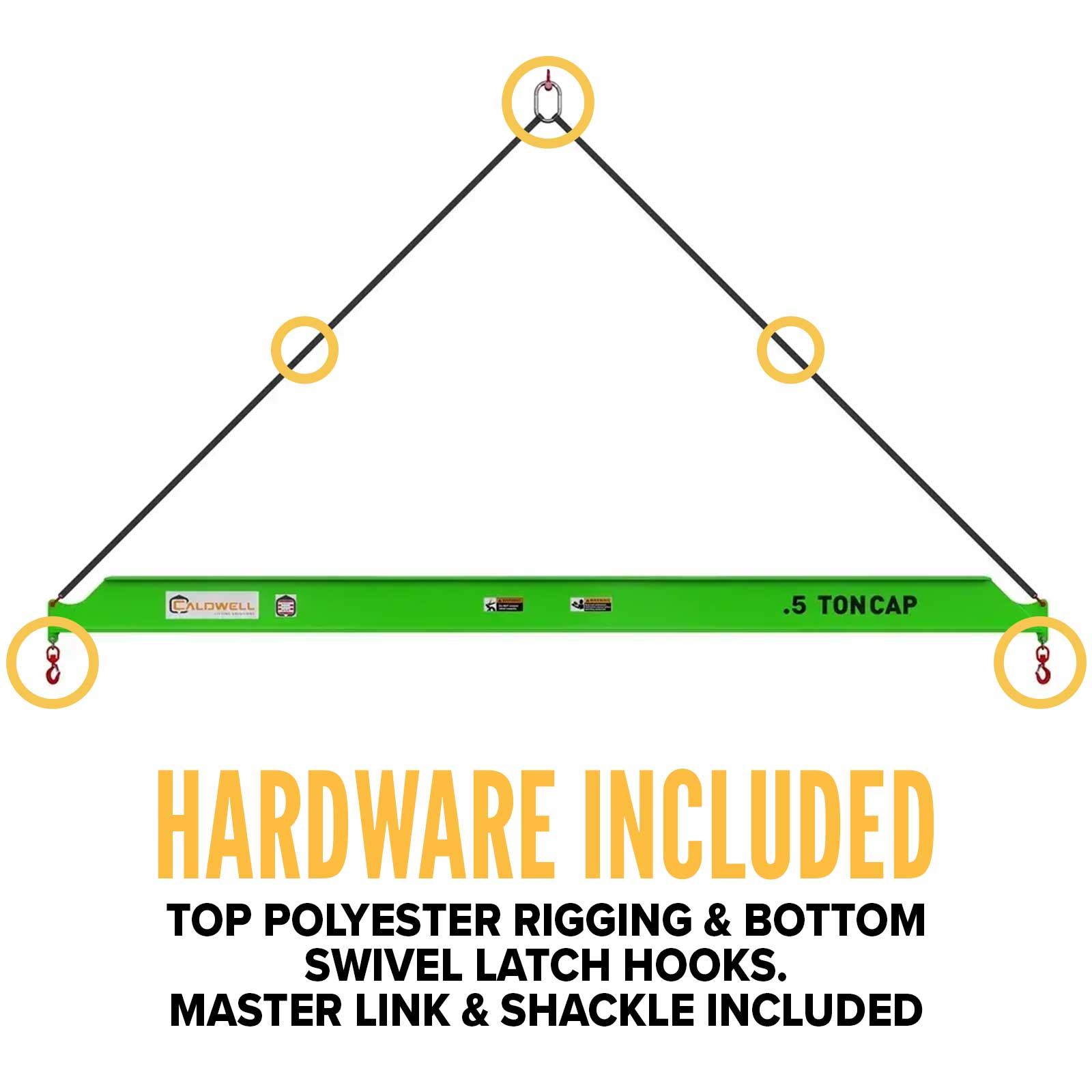

End fitting: Bottom Swivel Latch Hooks & Top Rigging Included
Finish: Acrylic Polyurethane
Manufacturer name: Caldwell
Material: Fiber-Reinforced Polymer Composite
Spread: 2'
Product weight: 8 lbs.
Rated for Overhead Lifting: Yes
Safety factor: 3:1
Shipping and returns: This item ships complete with proof testing certificate; it cannot be returned due to safety risks associated with used materials.
Standards: Complies with ASME B30.9, BTH-1, and B30.20, design category B, service class 4 regulations.
Throat opening: 0.89"
Additional Info: Headroom: 24"
Description

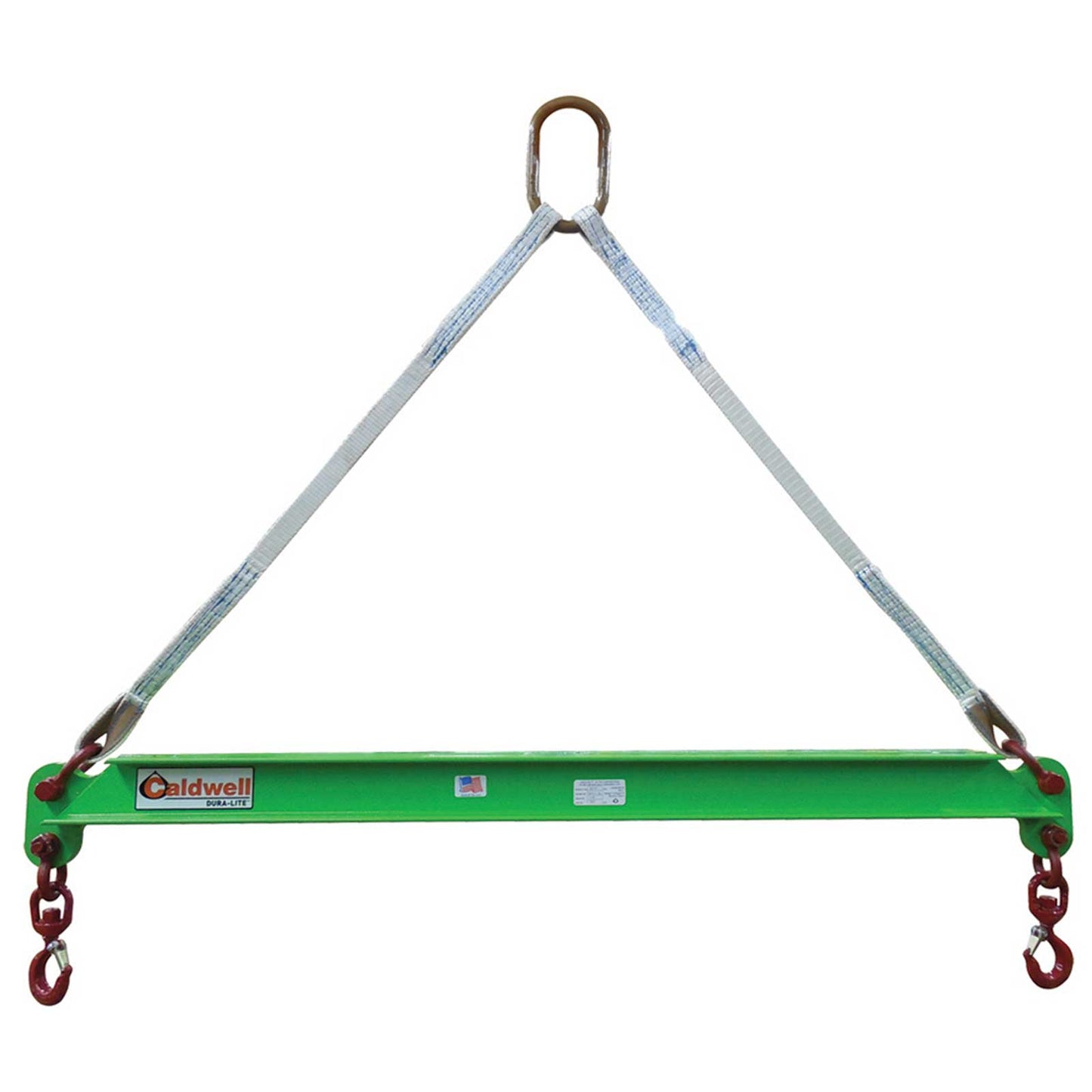

This two-foot spread, 500 lb. capacity Dura-Lite Composite Spreader Beam is incredibly strong, impact resistant, and lightweight. Its non-corrosive and non-conductive design make it ideal for a wide range of applications.
