SKU: WEBSS516X3-316

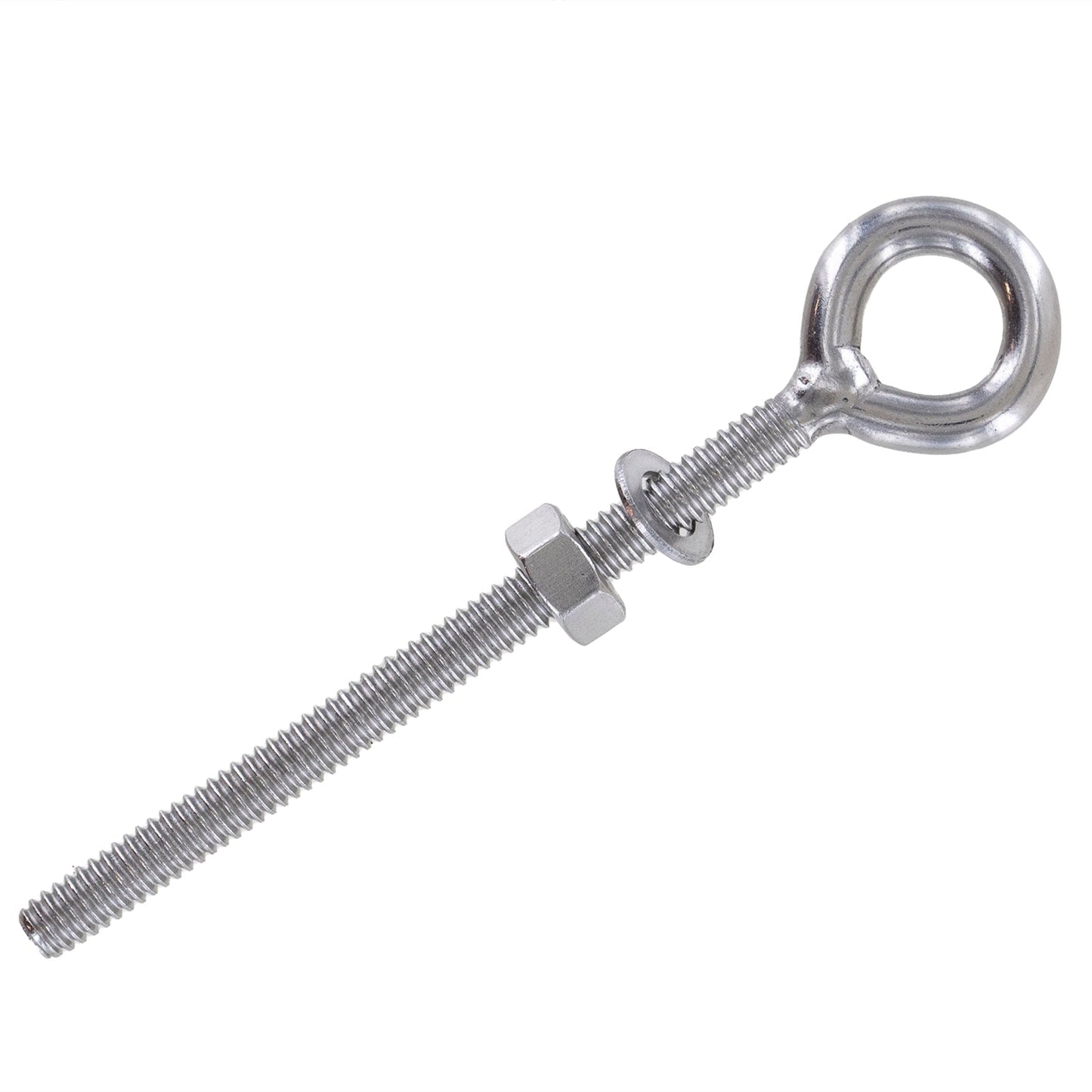

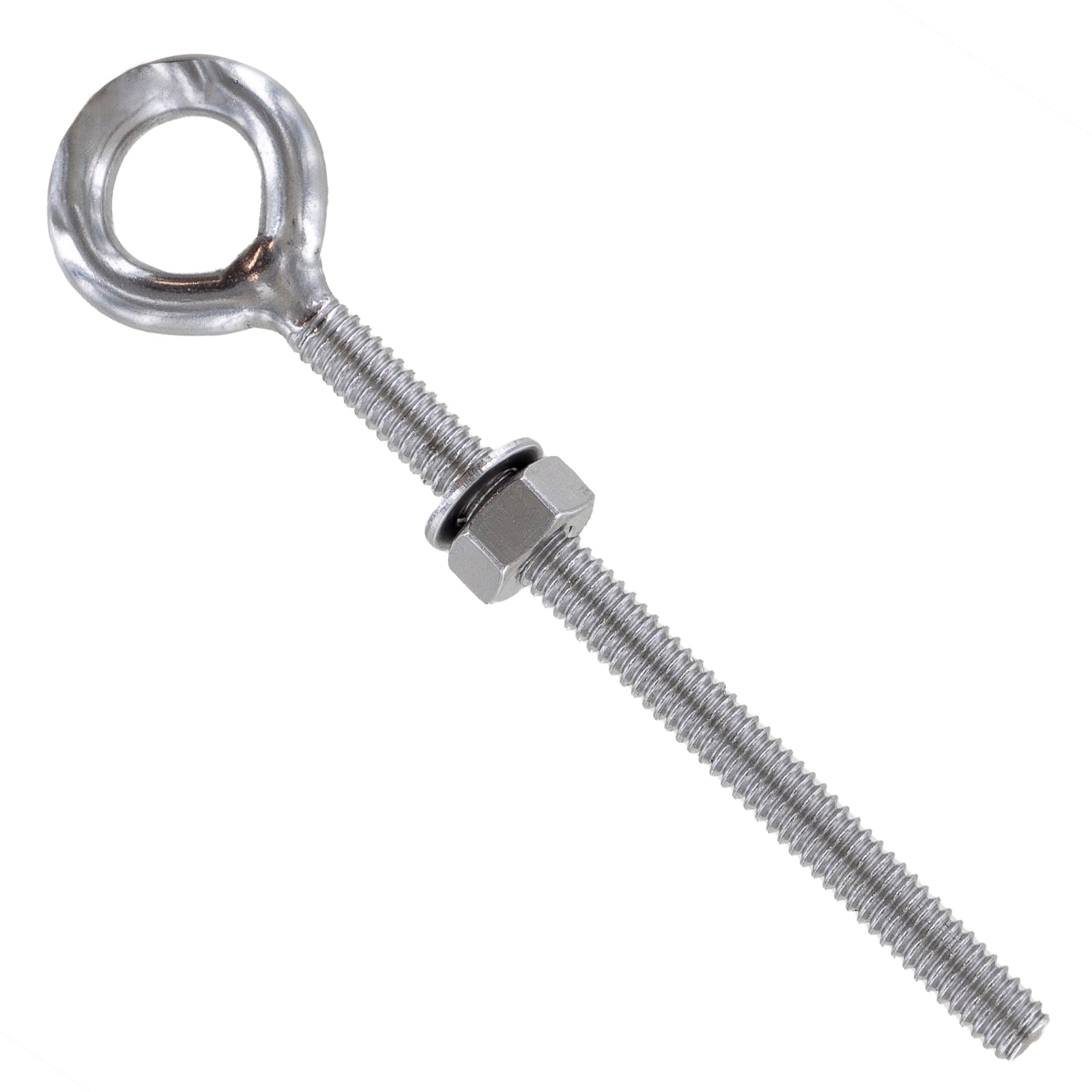

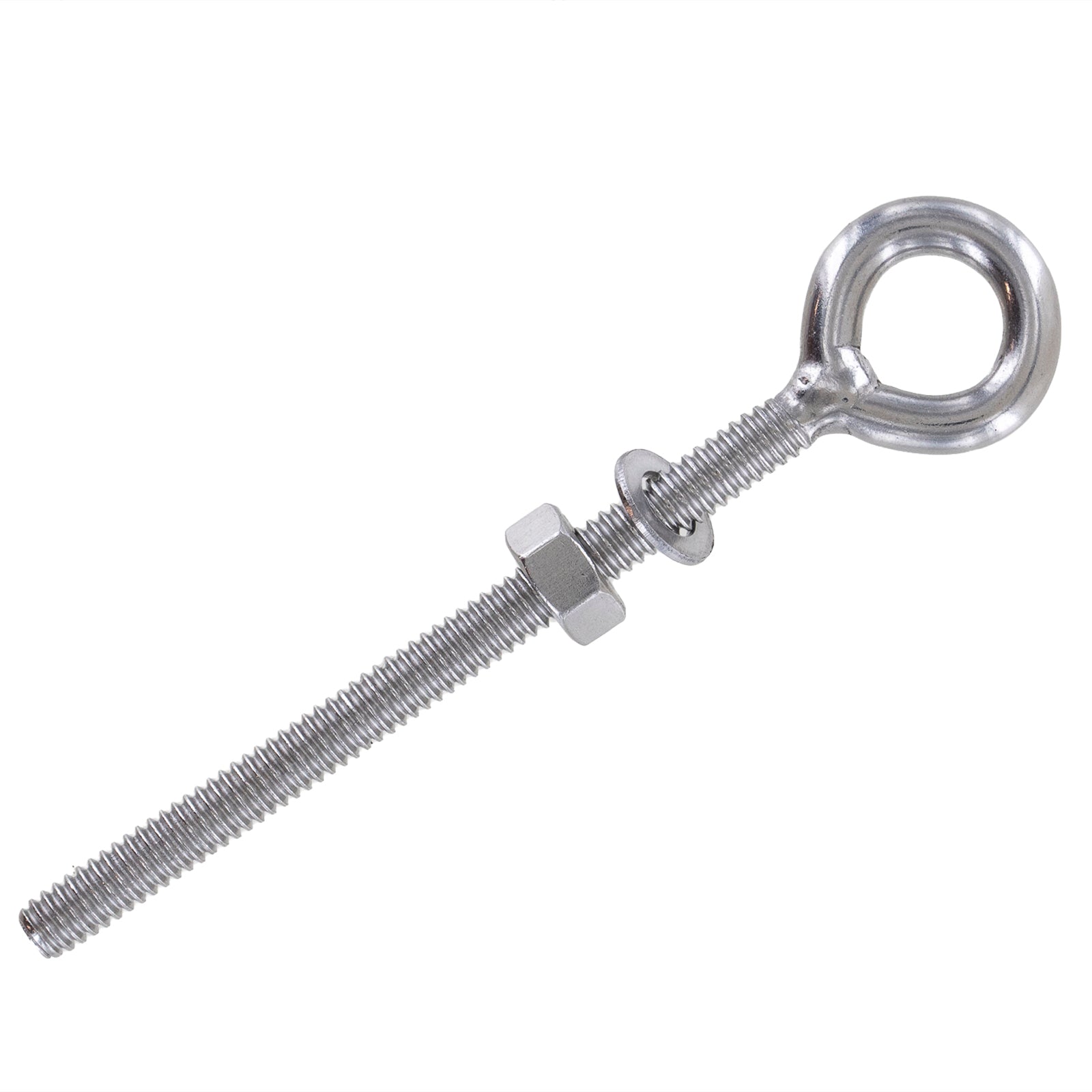

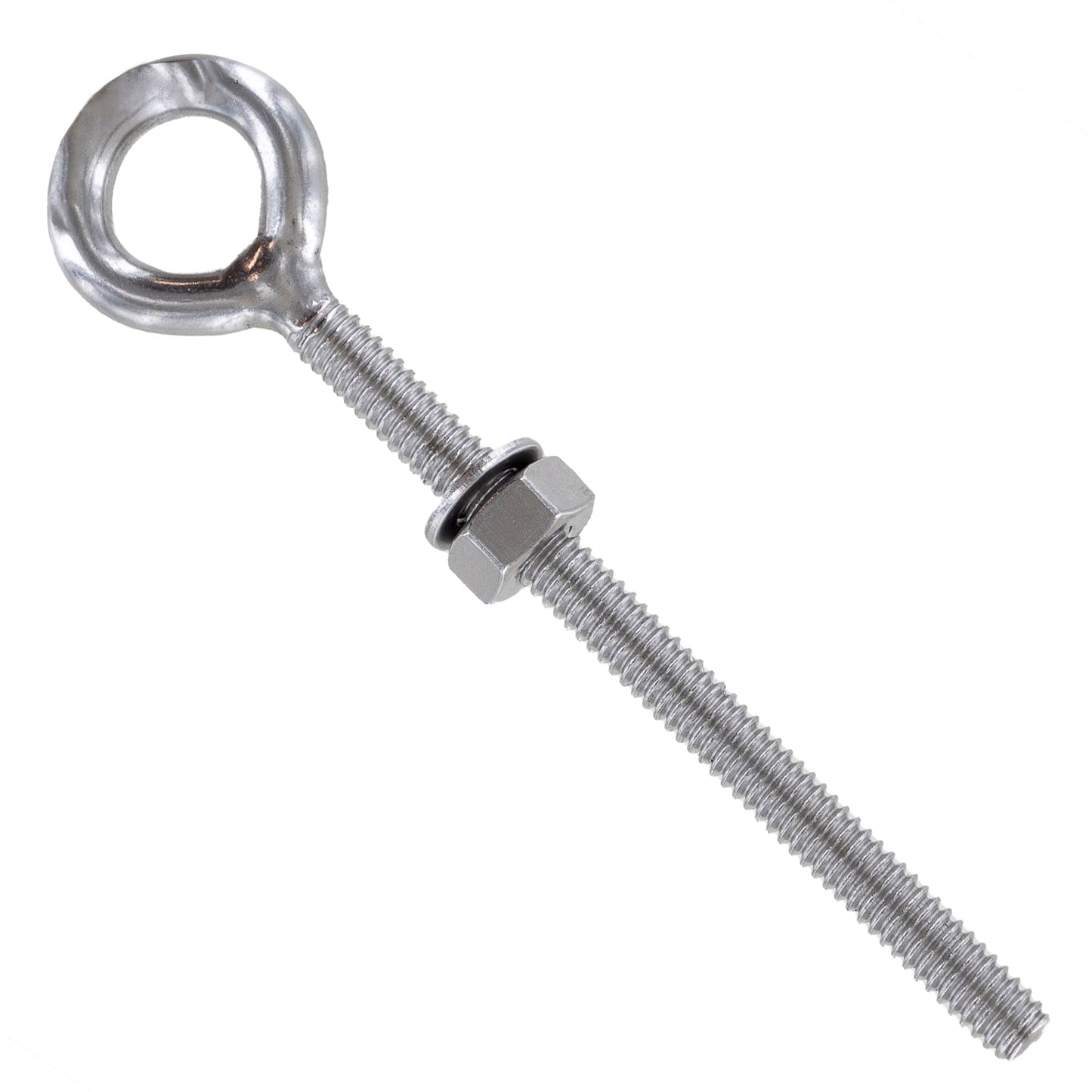

5/16" x 3-3/16 Stainless Steel Type 316 Welded Eye Bolt
5/16" x 3-3/16 Stainless Steel Type 316 Welded Eye Bolt!
SKU: WEBSS516X3-316
$4.39
Get 25+
$4.26/ea
Get 50+
$4.13/ea
Get 100+
$3.96/ea
Blazing Fast Shipments
Shipping & ReturnsBuy in Bulk
Request a QuoteQuestions? Need it custom?
We Can Help!Payment Options

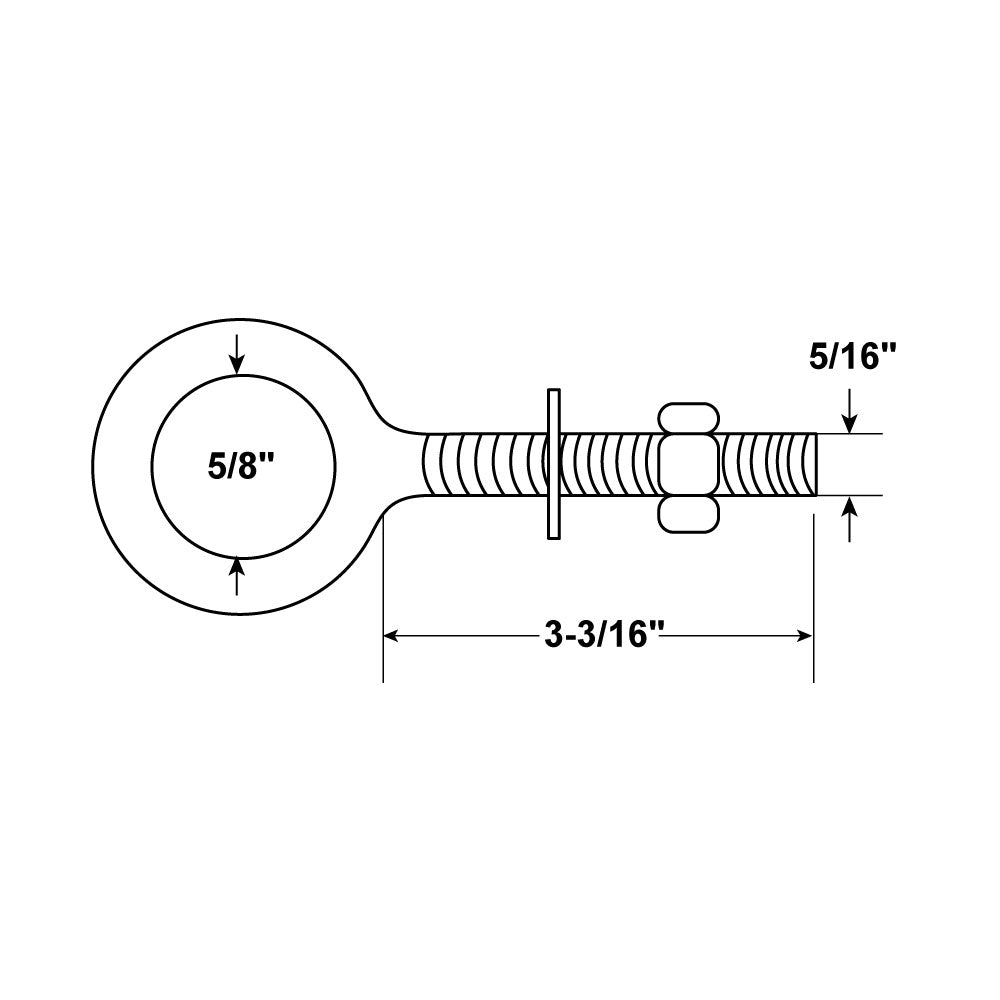

Specifications
Assembly break strength: 2,400 lbs.
Diameter: 5/16"
Grade: 316 Stainless Steel
Working load limit: 600 lbs.
Material: Steel
Overall length: 4.33"
Product weight: .1 lbs.
Safety factor: 4:1
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Standards: Meets or exceeds ASTM F541 & ASME B18.15 requirements.
Additional Info: Overall Width: 1.18"
Threads Per Inch: 17.9"
Thread Length: 3-3/16"
Threads Per Inch: 17.9"
Thread Length: 3-3/16"
Description
Welded design is excellent for use as a heavy duty anchor point to attach wire rope or other rigging hardware to a surface or object. Constructed from marine grade type 316 stainless steel, making it highly resistant to corrosion and ideal for marine applications or other harsh environments. Includes eye bolt, nut and washer.
Intended for straight line pulls only. For angled pulls, choose a Shoulder Eye Bolt.
