SKU: LBEF1K60
Fixed Length Economy Lifting Beam - 1,000 lb Capacity - 5' Max Spread
Fixed Length Economy Lifting Beam - 1,000 lb Capacity - 5' Max Spread!
Continue Browsing
Fixed Lifting Beams
Lifting Beams & Spreader Bars
Rigging Supplies & Rigging Hardware
Related Articles
$1,103.60
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Working load limit: 1/2 ton (US) / 1,000 lbs.
Bail Dimensions: Inside Width: 2.4"
Inside Length: 3.3"
Diameter: 0.63"
Inside Length: 3.3"
Diameter: 0.63"
Brand part number: 15046
Depth: 3.5"
End fitting: Bottom Shackles Included

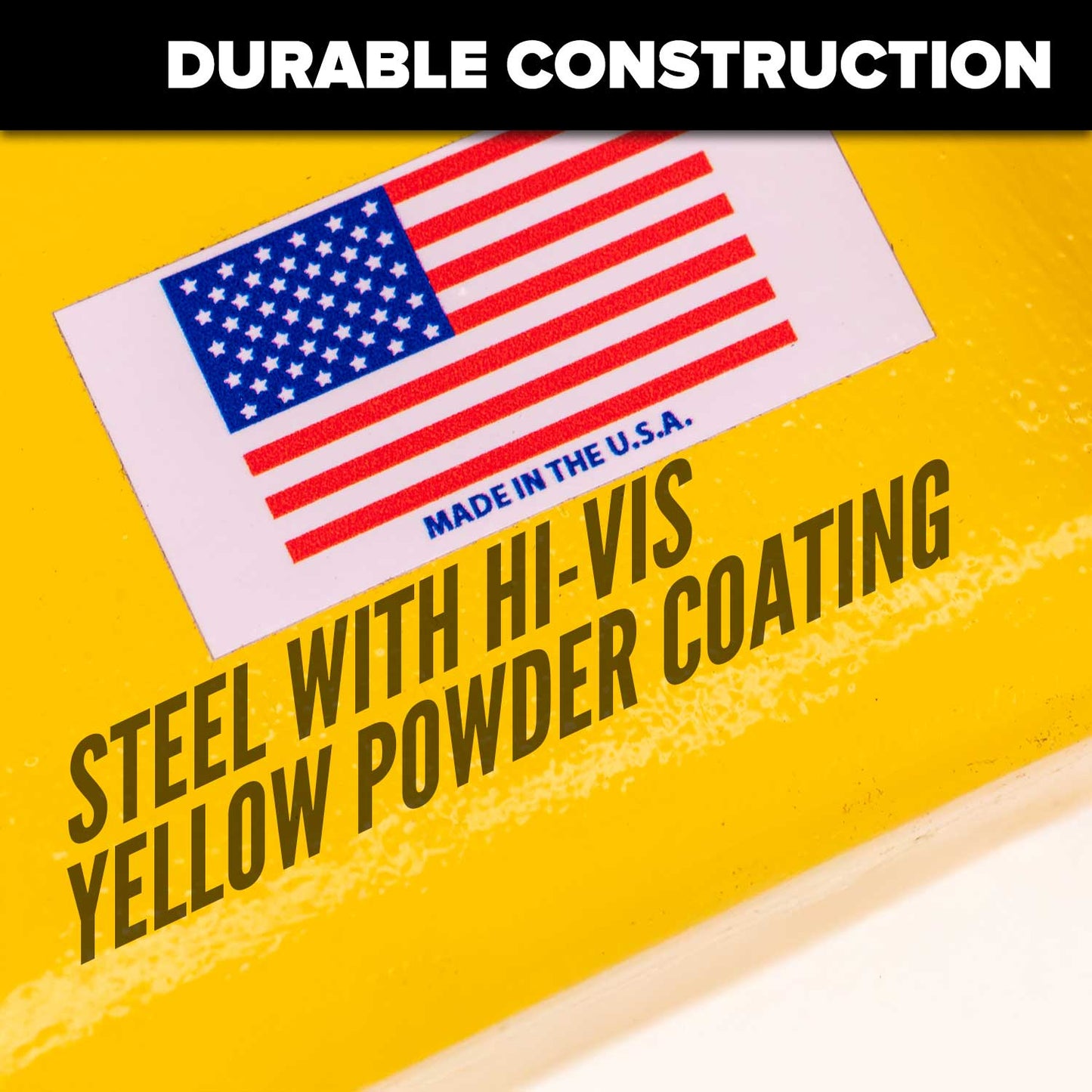

Finish: High visibility yellow paint
Manufacturer name: M&W
Spread: 5'
Product weight: 40 lbs.
Rated for Overhead Lifting: Yes
Safety factor: 3:1
Shackle size: 5/16"
Shipping and returns: This item ships complete with proof testing certificate; it cannot be returned due to safety risks associated with used materials.
Standards: Exceeds all ASME B30.20 and OSHA regulations.
Proof loaded per OSHA requirements.
Proof loaded per OSHA requirements.
Additional Info: Headroom: 10.5"
Description
Standard fixed style beam is excellent for general job site and warehouse use. Shackles and an oversized lifting eye make connections fast and easy. Machined to exacting tolerances and equipped for RFID Tracking Chip for logistics management. Manufactured to exceed all ASME B30.20 and OSHA regulations and proof loaded per OSHA requirements. All certification paperwork included. Made in the USA.
RFID tracking chip equipped. Lifting Beams Made in the USA by M&WCalifornia Residents: WARNING
