SKU: LBEF50060

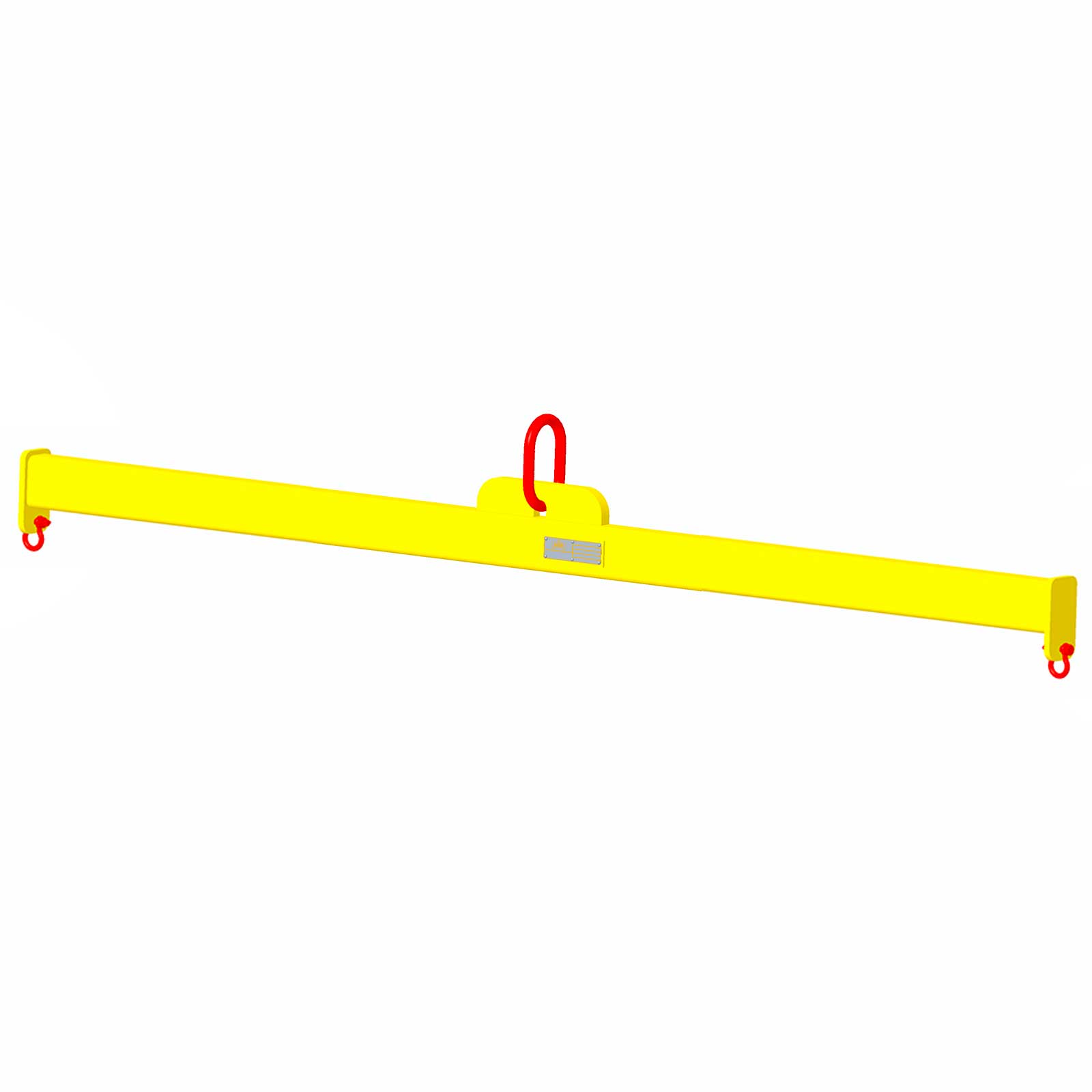

Fixed Length Economy Lifting Beam - 500 lb Capacity - 5' Max Spread
Fixed Length Economy Lifting Beam - 500 lb Capacity - 5' Max Spread!
Continue Browsing
Fixed Lifting Beams
Lifting Beams & Spreader Bars
Rigging Supplies & Rigging Hardware
Related Articles
$1,076.03
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsQuestions? Need it custom?
We Can Help!Payment Options

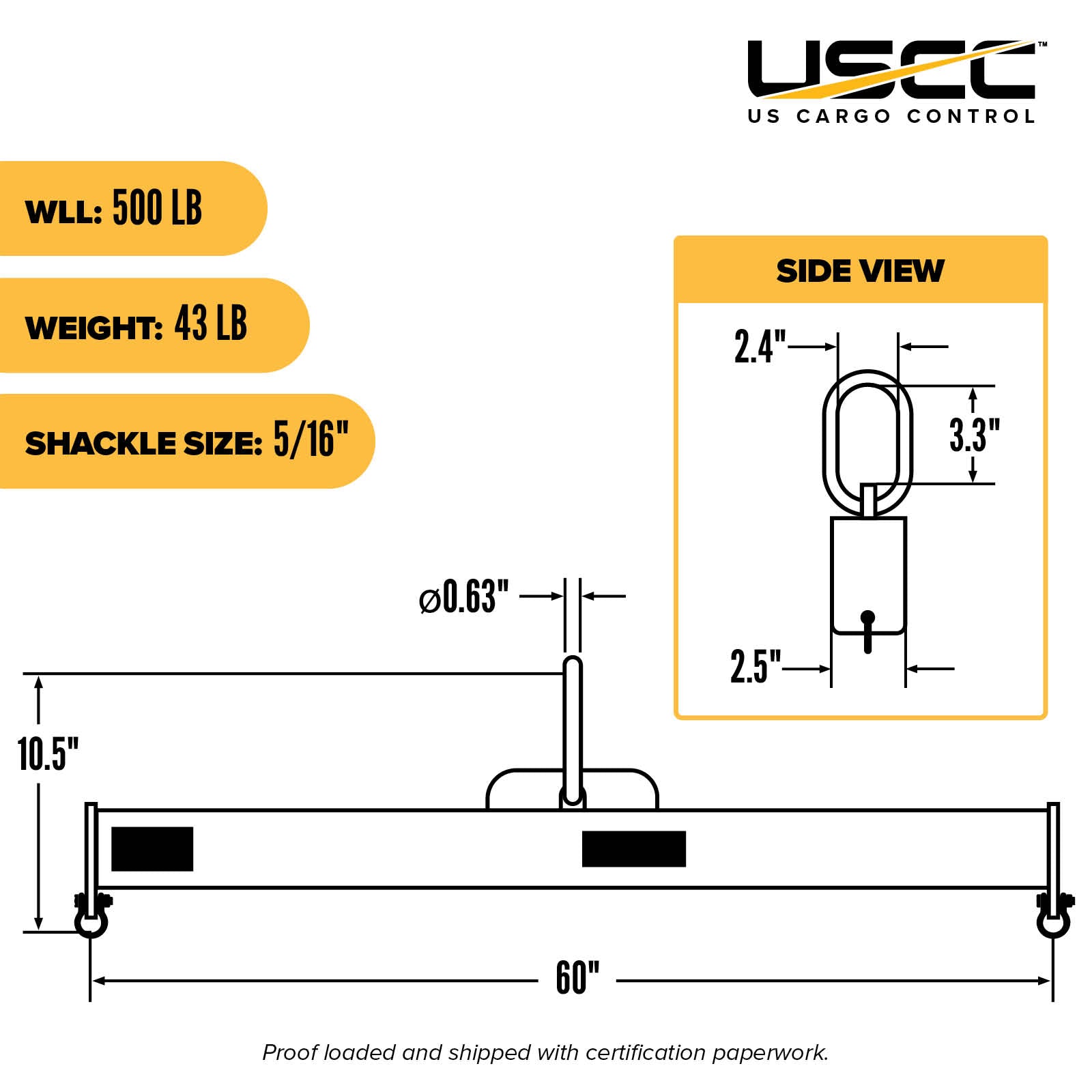

Specifications
Working load limit: 1/4 ton (US) / 500 lbs.
Bail Dimensions: Inside Width: 2.4"
Inside Length: 3.3"
Diameter: 0.63"
Inside Length: 3.3"
Diameter: 0.63"
Brand part number: 15034
Depth: 2.5"

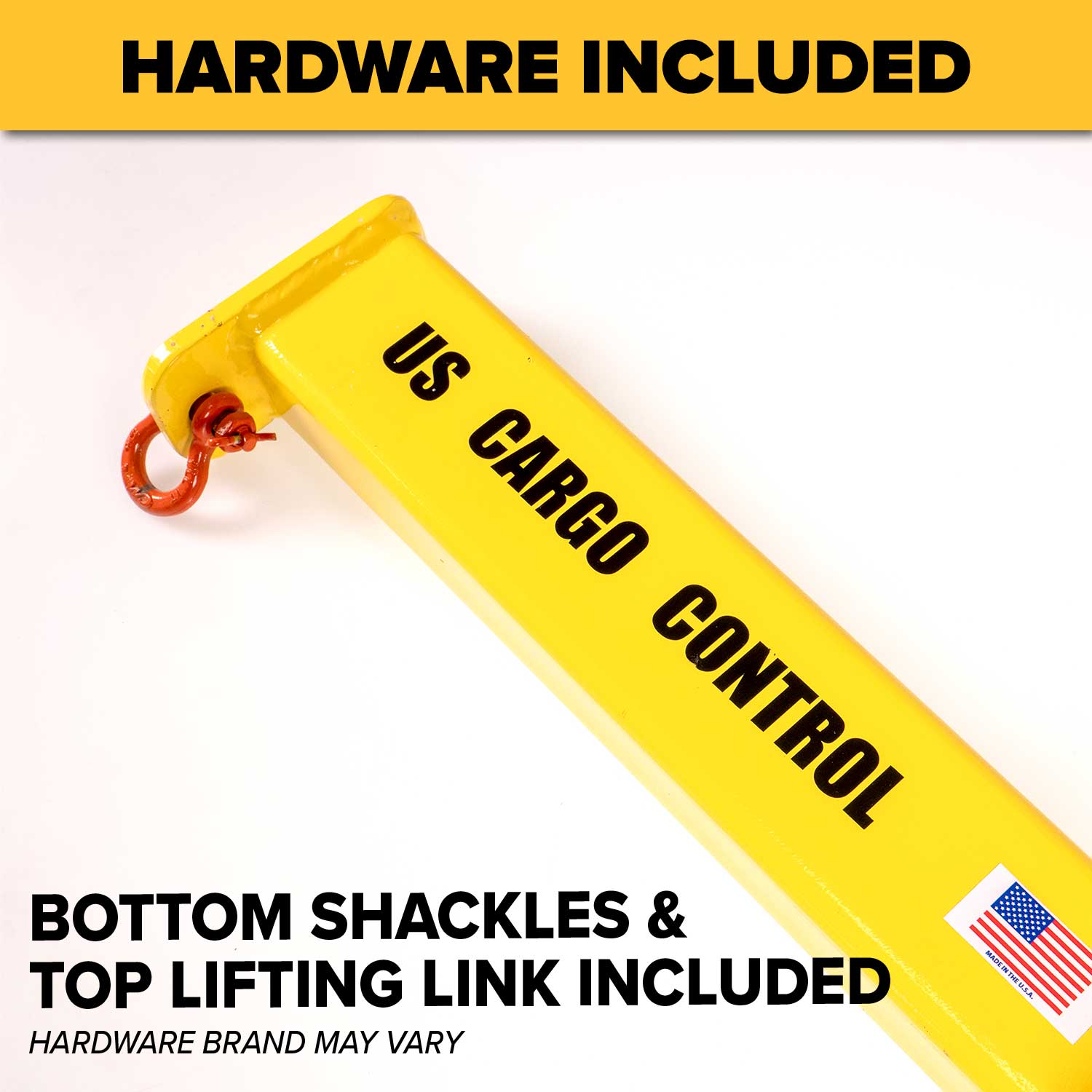

End fitting: Bottom Shackles Included

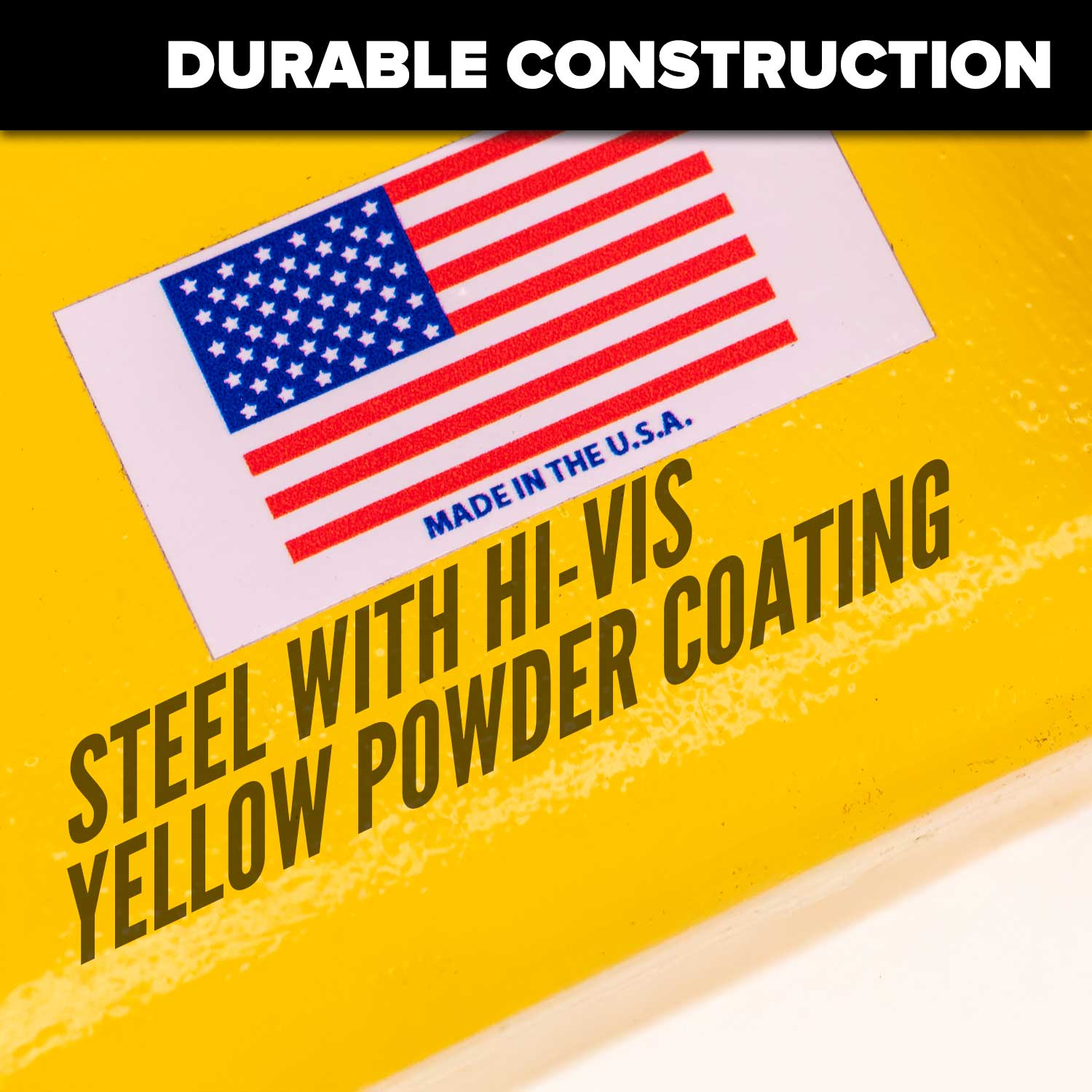

Finish: High visibility yellow paint
Manufacturer name: M&W
Spread: 5'
Product weight: 33 lbs.
Rated for Overhead Lifting: Yes
Safety factor: 3:1
Shackle size: 5/16"
Shipping and returns: This item ships complete with proof testing certificate; it cannot be returned due to safety risks associated with used materials.
Standards: Exceeds all ASME B30.20 and OSHA regulations.
Proof loaded per OSHA requirements.
Proof loaded per OSHA requirements.
Additional Info: Headroom: 10.5"
Description
Manufactured in the USA, with an oversized lifting eye, two shackles and RFID tracking compatibility. Proof loaded per OSHA requirements, exceeding ASME B30.20 and OSHA regulations; All certification paperwork is included with shipment.
RFID tracking chip equipped. Lifting Beams Made in the USA by M&WCalifornia Residents: WARNING
