Specifications

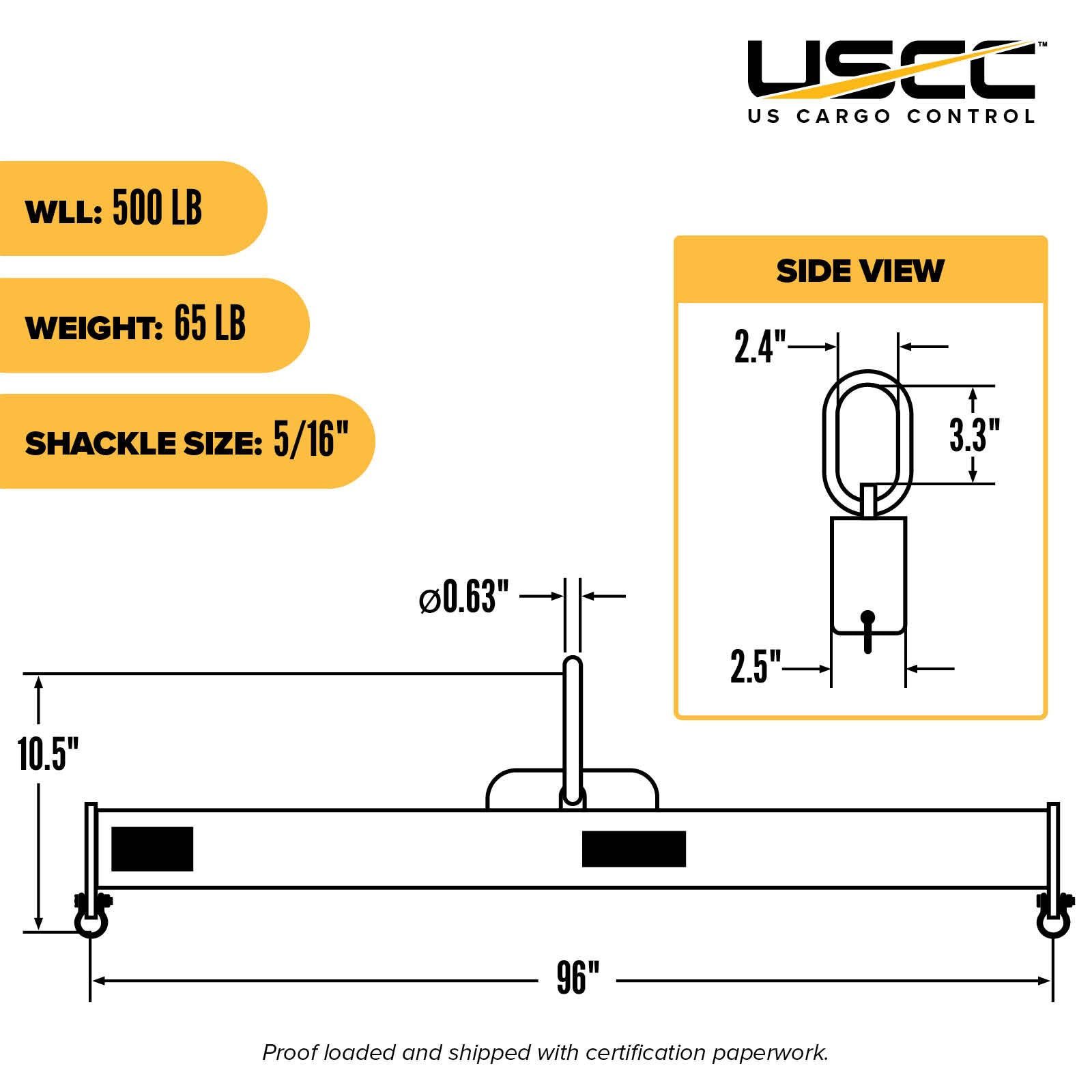

Working load limit: 1/4 ton (US) / 500 lbs.
Bail Dimensions: Inside Width: 2.4"
Inside Length: 3.3"
Diameter: 0.63"
Inside Length: 3.3"
Diameter: 0.63"
Brand part number: 11527
Depth: 2.5"

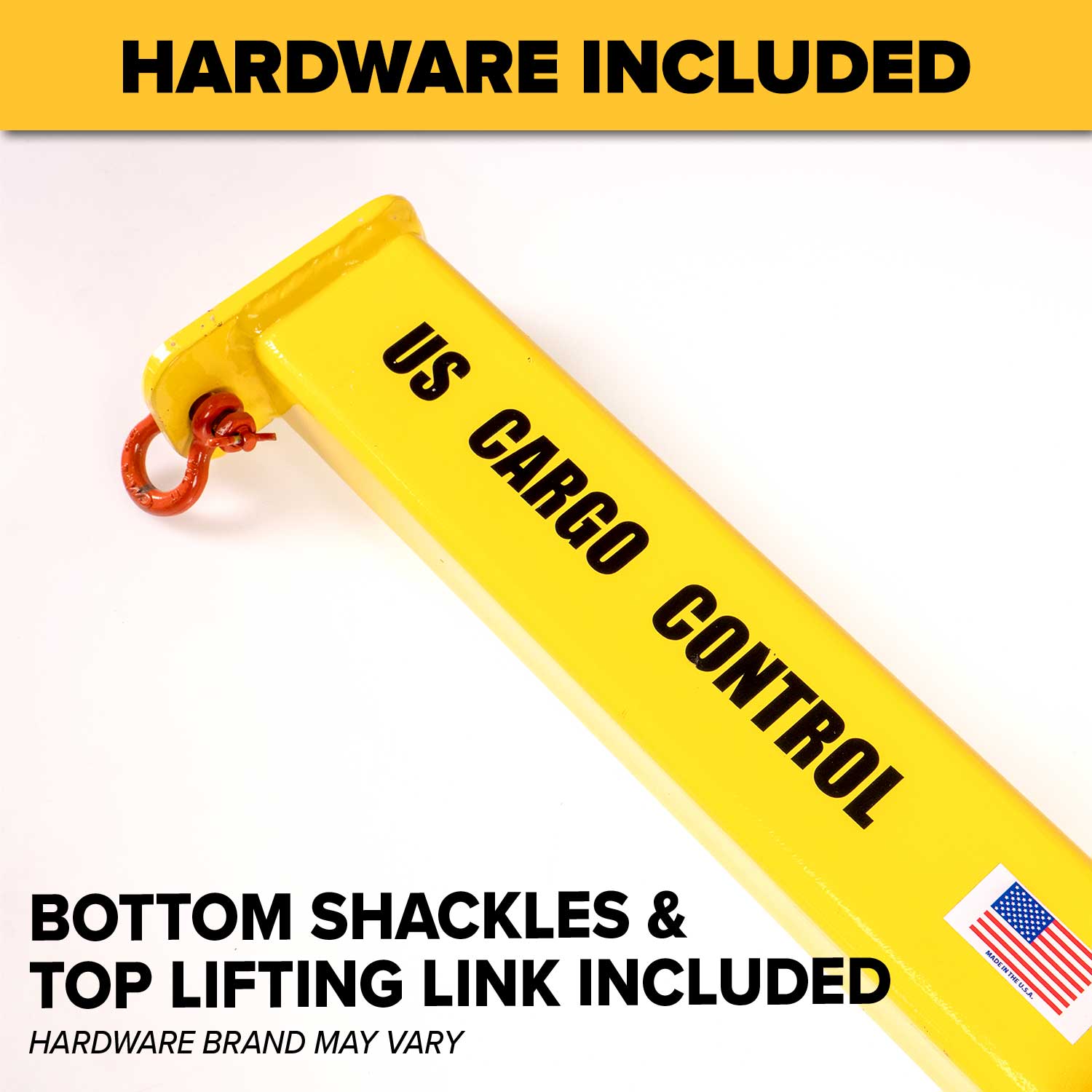

End fitting: Bottom Shackles Included
Finish: High visibility yellow powder coated paint
Manufacturer name: M&W
Material: Steel
Spread: 8'
Product weight: 49 lbs.
Rated for Overhead Lifting: Yes
Safety factor: 3:1
Shackle size: 5/16"
Shipping and returns: This item ships complete with proof testing certificate; it cannot be returned due to safety risks associated with used materials.
Standards: Exceeds all ASME B30.20 and OSHA regulations.
Proof loaded per OSHA requirements.
Proof loaded per OSHA requirements.
Additional Info: Headroom: 10.5"
Description

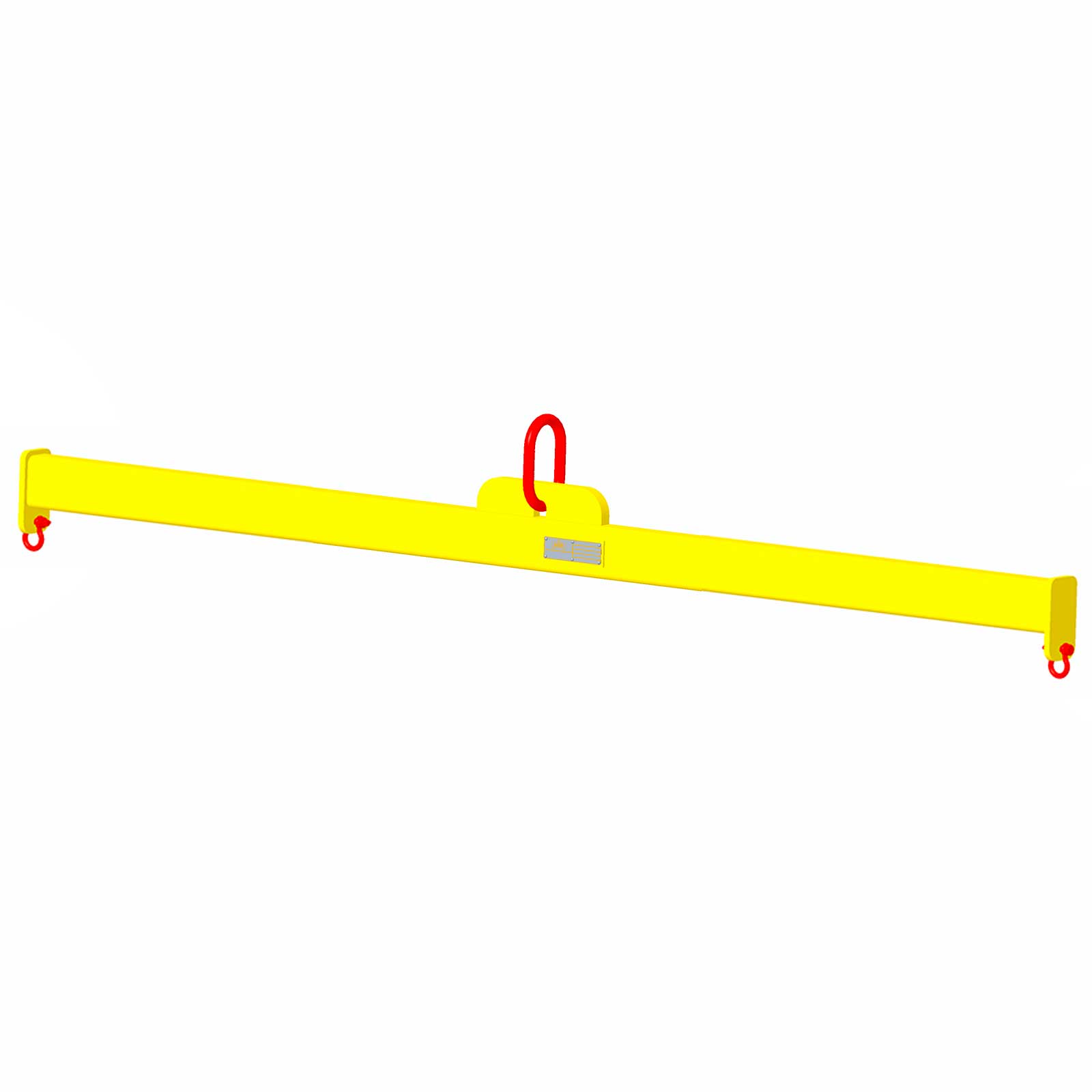

M&W 11527 Fixed Length Economy Lifting Beam
The Fixed Length Economy Lifting Beam is built for efficient and secure lifting on the job site or in the comfort of a warehouse. Fixed Length Economy Lifting Beams from M&W come supplied with standard shackle connections, which provide a strong and reliable attachment for different lifting applications. The durable steel construction ensures long-lasting performance, while the high-visibility yellow paint enhances safety on the job site. Ideal for warehouse and industrial use, this beam offers a simple yet effective solution for stable load handling.
Looking for other options for lifting beams? Check out our full lifting beam catalog.
Lifting Beams vs. Spreader Bars
When compared with spreader bars, lifting beams often use a singular center top lifting point that bears most of the load through bending forces and utilizes multiple attachment points underneath. Lifting beams often require less headroom to operate making them better suited for confined spaces.
8' Fixed Length Economy Lifting Beam Features:
- Made in the USA: Providing premium machined and welded quality that you can trust.
- Individually Proof-Loaded Per OSHA Requirements: Ships with certification paperwork.
- Industry-Compliant: Manufactured to exceed all ASME B30.20 and OSHA regulations.
- High Visibility Durable Powder Coat Finish: Powder coating is more resistant to scratches, chips, and other wear.
- 30-day limited manufacturer's warranty.
Custom Below-The-Hook Lifting Devices
Looking for a custom lifting beam or spreader bar? Get in touch with our product experts today - we'll work with you and an engineer to build the right configuration for you.
