SKU: LBLHA20K5

Low Headroom Adjustable Lifting Beam - 20,000 lb. Capacity - 3' to 5' Spread

Name: Low Headroom Adjustable Lifting Beam - 20,000 lb. Capacity - 3' to 5' Spread
Availability: BackOrder

Low Headroom Adjustable Lifting Beam - 20,000 lb. Capacity - 3' to 5' Spread!

1 4

Continue Browsing

Adjustable Lifting Beams

Lifting Beams & Spreader Bars

Rigging Supplies & Rigging Hardware

SKU: LBLHA20K5

Low Headroom Adjustable Lifting Beam - 20,000 lb. Capacity - 3' to 5' Spread

$3,392.74

Request Bulk Pricing

Call to Order

Request Bulk Pricing

Fill out the form below or give our sales consultants a call at 866-444-9990.

Blazing Fast Shipments

Shipping & Returns

Tailored Business Programs

Partner with Us

Custom Configuration Options

Connect with an Expert

Payment Options

Specifications

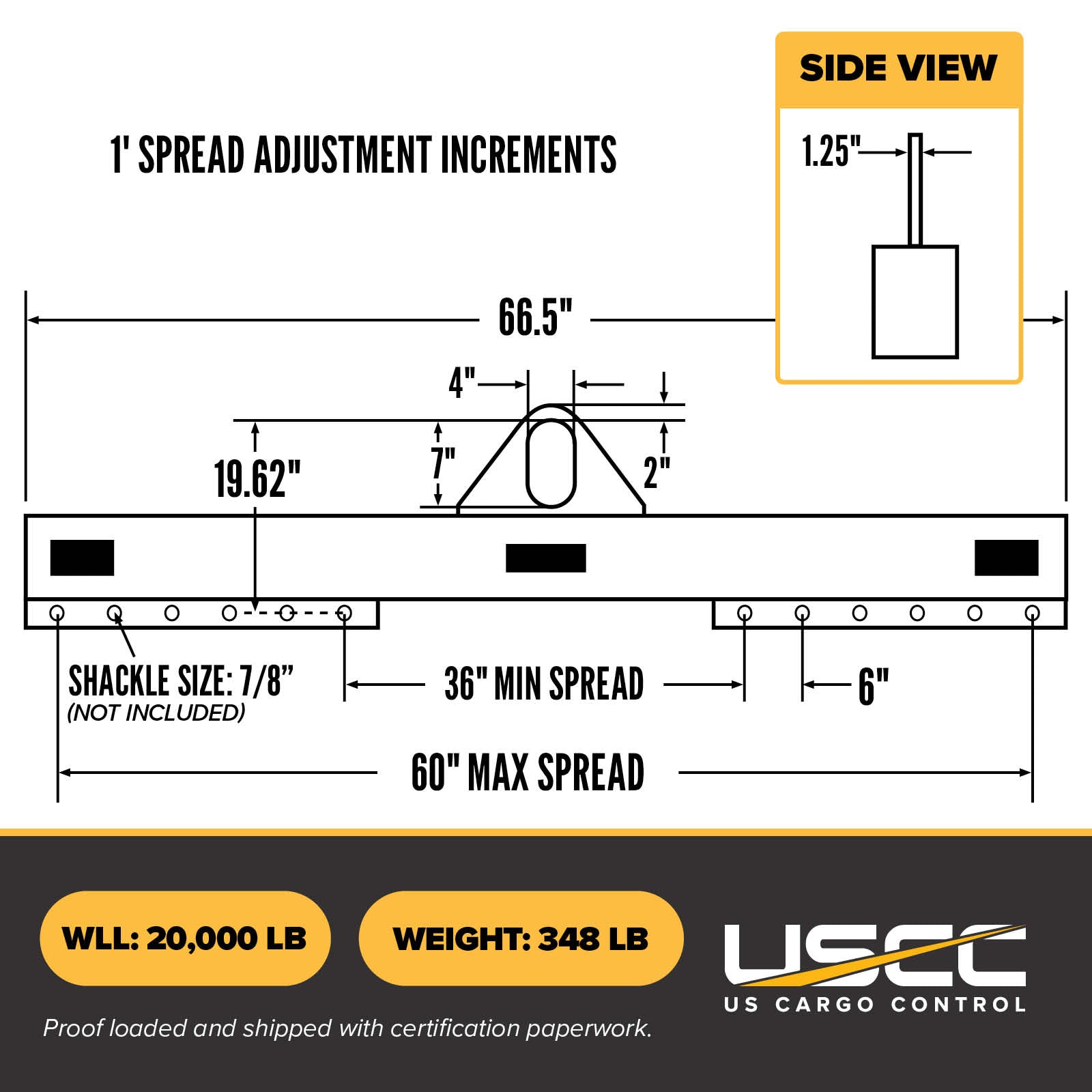

Working load limit: 10 tons (US) / 20,000 lbs.

Bail Dimensions: Inside Width: 4"
Inside Length: 7"
Top Thickness: 2"
Thickness: 1.25"

Brand part number: 22168

Finish: High visibility yellow powder coated paint

Manufacturer name: M&W

Material: Steel

Spread: 3' - 5'

Overall length: 66.5"

Product weight: 348 lbs.

Rated for Overhead Lifting: Yes

Safety factor: 3:1

Shipping and returns: This item ships complete with proof testing certificate; it cannot be returned due to safety risks associated with used materials.

Standards: Exceeds all ASME B30.20 and OSHA regulations.
Proof loaded per OSHA requirements.

Additional Info: Headroom: 19.62"
Spread Adjustment Increments: 6" per side

Spec Sheet

30-day Mfg. Warranty

Safety Notice

Description

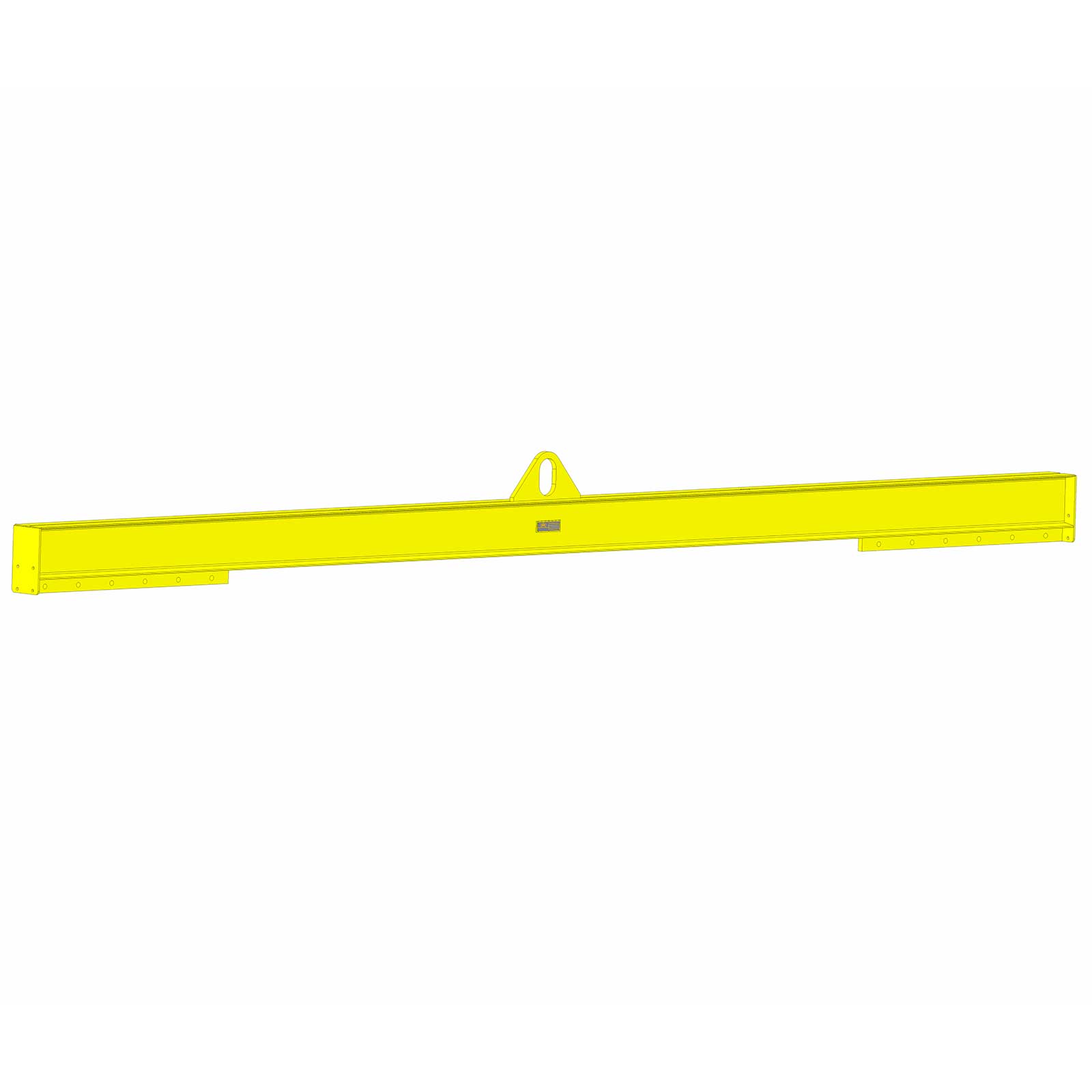

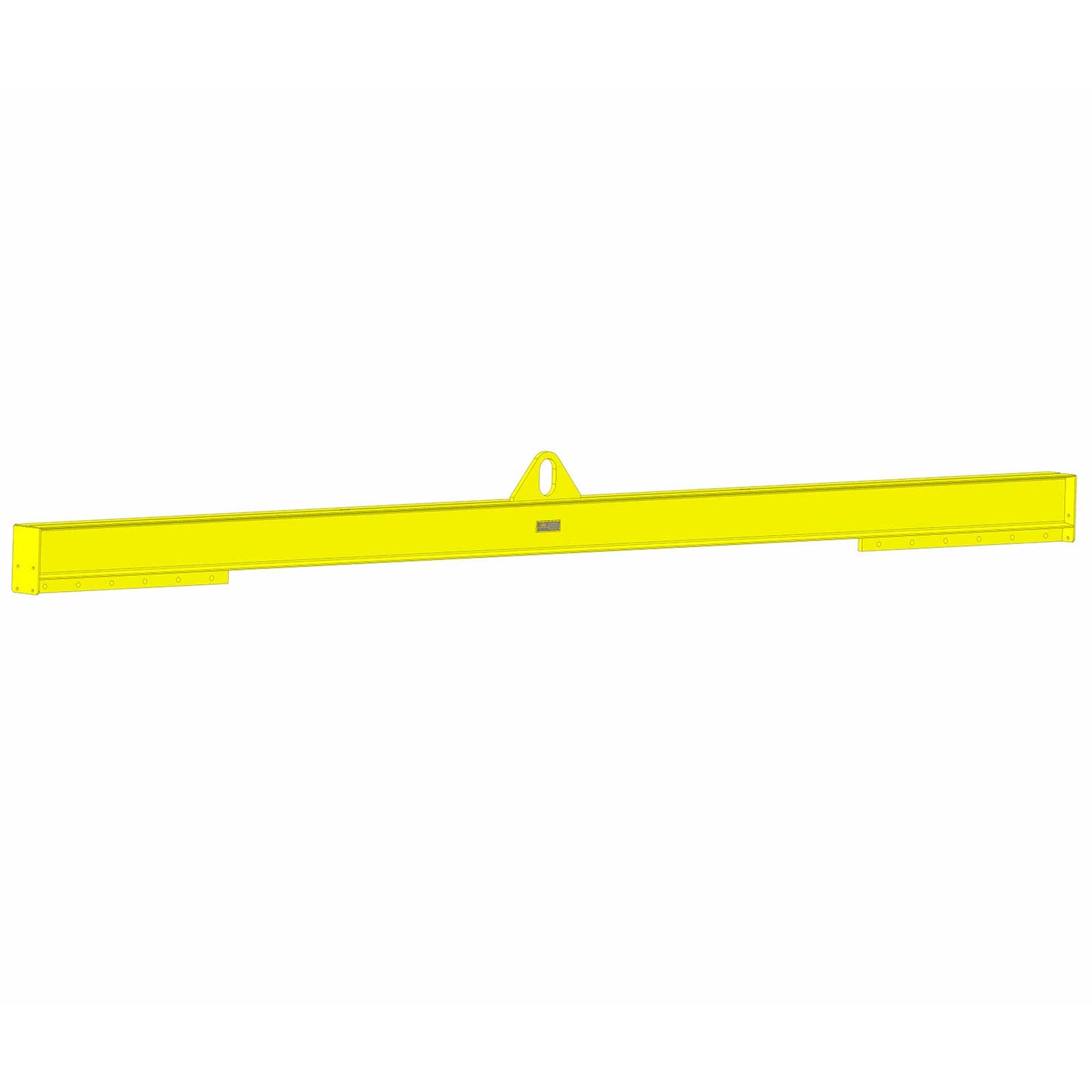

M&W 22168 Low Headroom Lifting Beam - Adjustable

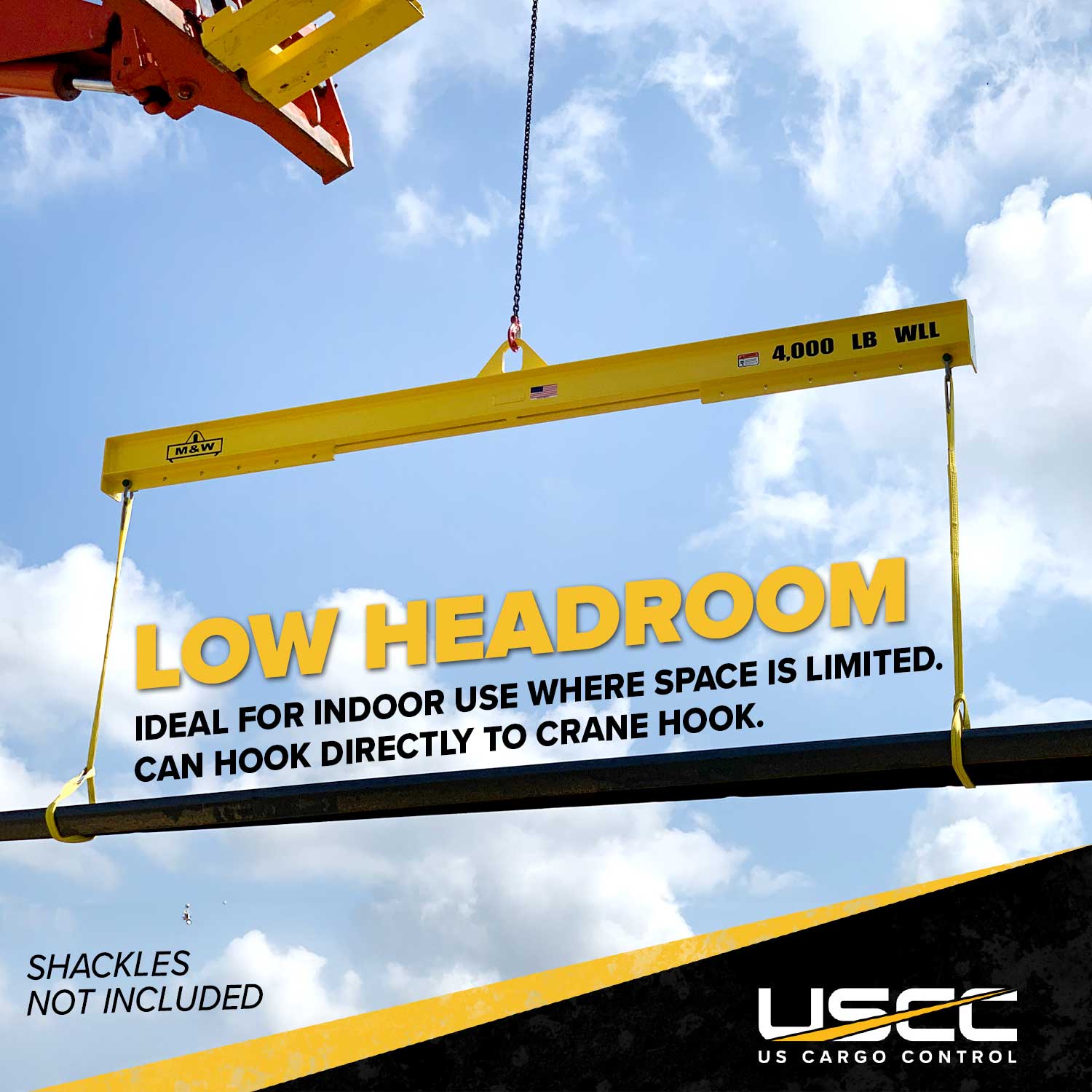

This low-headroom 3' to 5' adjustable lifting beam is designed for confined lifting applications and provides a reliable solution when space is limited. Its adjustable design allows for easy load balancing, while the heavy-duty steel construction with premium welds ensures durability at 20,000 lbs of capacity. The bright yellow powder coat finish allows for superior visibility. Compatible with hooks and shackles to offer versatility for various lifting needs. This beam is Suitable for indoor and outdoor use and can handle demanding lifting operations.

Looking for other adjustable lifting beam options? Check out our full adjustable lifting beam catalog

Looking to add shackles to your order? This product is compatible with7/8" shackles

Lifting Beams vs. Spreader Bars

When compared with spreader bars, lifting beams often use a singular center top lifting point that bears most of the load through bending forces and utilizes multiple attachment points underneath. Lifting beams often require less headroom to operate making them better suited for confined spaces.

3' - 5' Low Headroom Lifting Beam Features:

Made in the USA: Providing premium machined and welded quality that you can trust.
Individually Proof-Loaded Per OSHA Requirements: Ships with certification paperwork.
Industry-Compliant: Manufactured to exceed all ASME B30.20 and OSHA regulations.

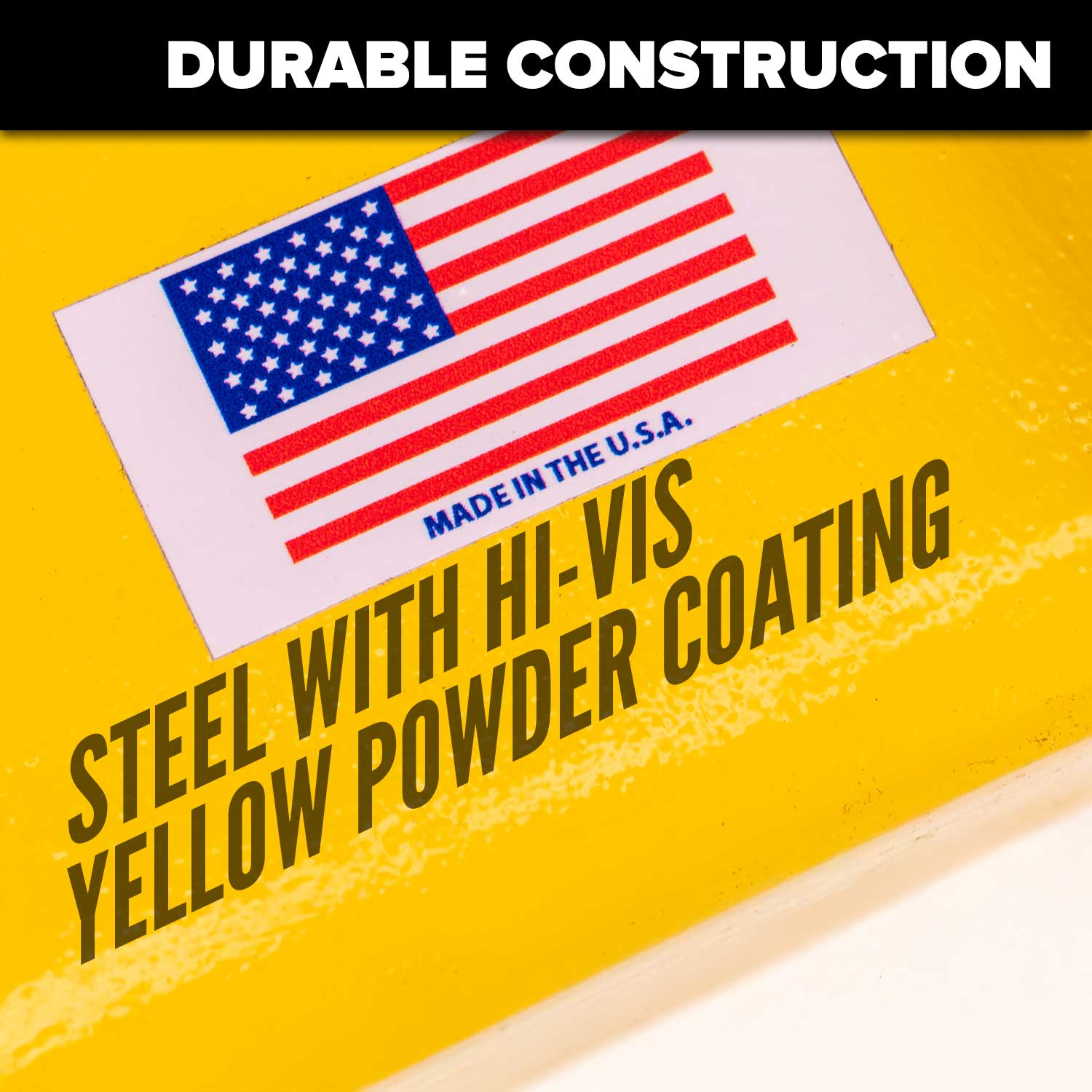

High Visibility Durable Powder Coat Finish: Powder coating is more resistant to scratches, chips, and other wear.
30-day limited manufacturer's warranty.

Custom Below-The-Hook Lifting Devices

Looking for a custom lifting beam or spreader bar? Get in touch with our product experts today - we'll work with you and an engineer to build the right configuration for you.

Complete Your Rigging Setup

Check out the rest of our rigging and lifting equipment, including lifting beams, shackles, and outrigger pads.
