SKU: SBCP2.5
M&W Custom Spreader Beam End Caps - Pair | For 2-1/2" Pipe
M&W Custom Spreader Beam End Caps - Pair | For 2-1/2" Pipe!
Continue Browsing
Spreader Beam End Caps
Lifting Beams & Spreader Bars
Rigging Supplies & Rigging Hardware
Related Articles
$1,390.19
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsCustom Configuration Options
Connect with an ExpertPayment Options
Specifications
Brand part number: 19499
Finish: High visibility yellow powder coated paint
Manufacturer name: M&W
Material: Steel
Product weight: 28 lbs.
Rated for Overhead Lifting: Yes
Safety factor: 3:1
Shackle size: 1/2" - 7/8" (not included)
Shipping and returns: This item ships complete with proof testing certificate; it cannot be returned due to safety risks associated with used materials.
Standards: Exceeds all ASME B30.20 and OSHA regulations when assembled to specifications using AS53 Grade B Schedule 40 pipe.
Proof loaded per OSHA requirements.
Proof loaded per OSHA requirements.
Additional Info: Minimum horizontal top rigging angle of 45°; M&W recommends a min of 60°
Description

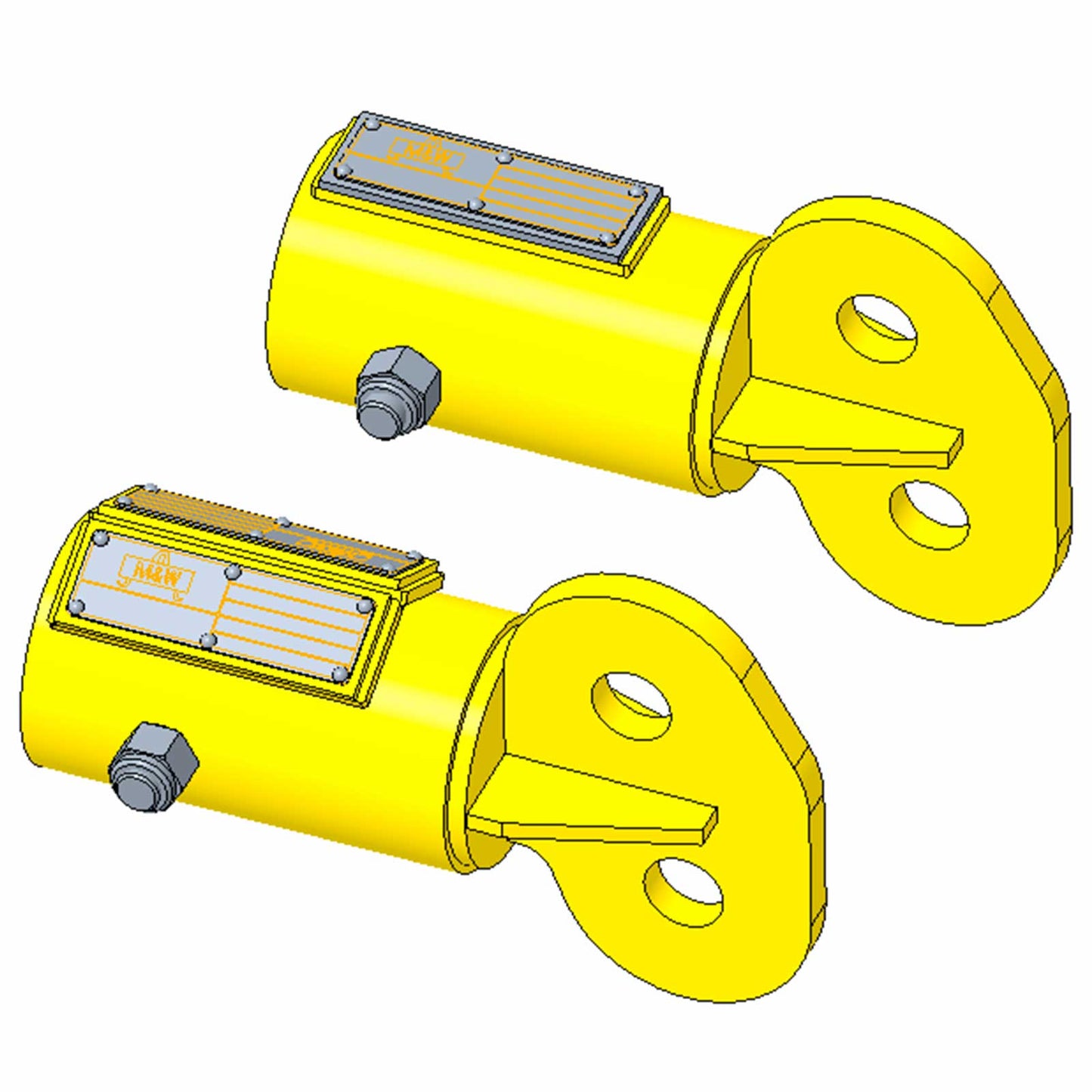

Spreader Beam End Caps for 2.5" Pipe

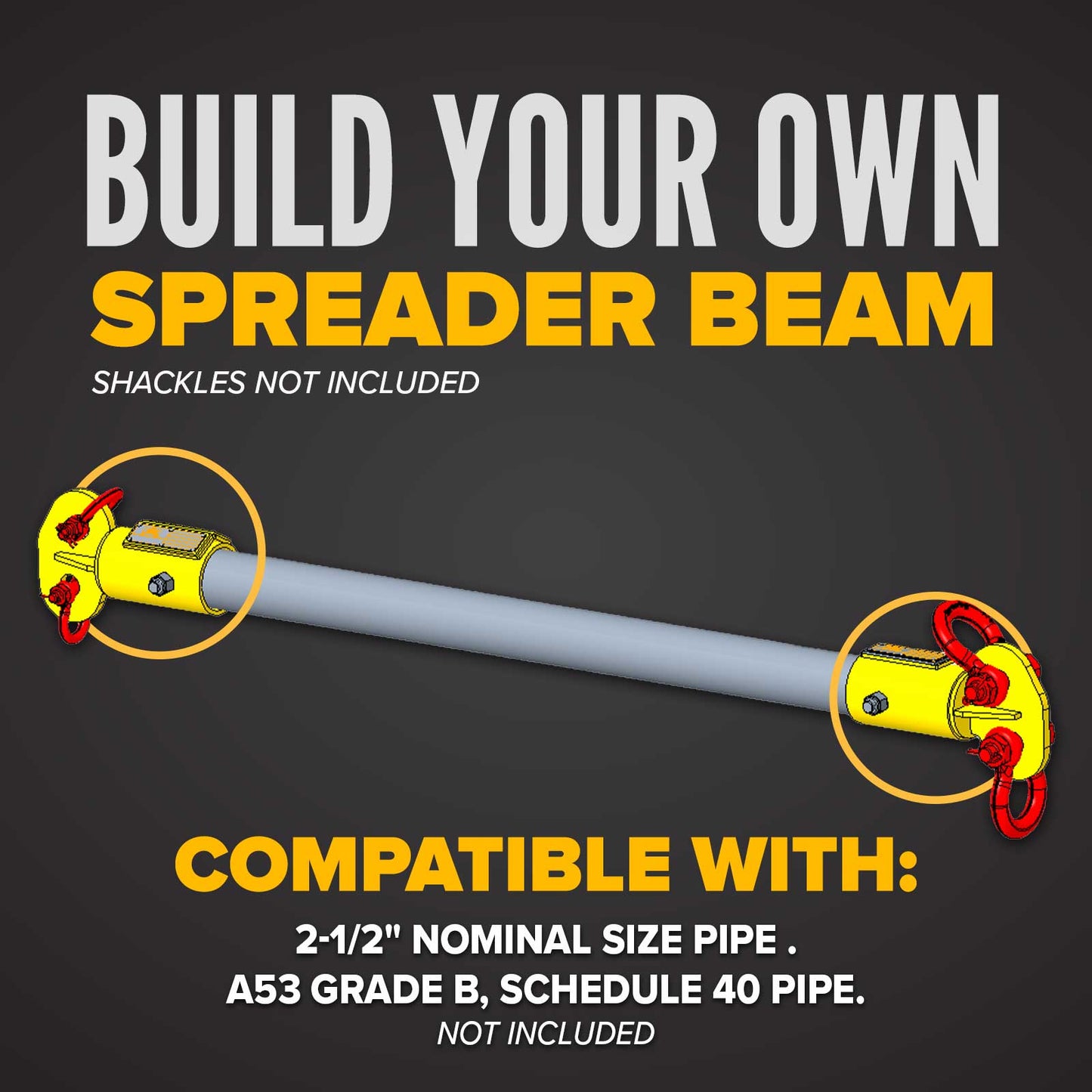

Build your own spreader beam by adding these end caps to A53 Grade B, Schedule 40 pipe. Their durable steel construction makes them perfect for either jobsite or warehouse use, and their high visibility yellow finish improves jobsite safety.
This configuration is compatible with a 2-1/2" nominal size pipe. The pipe should be free from any factory defects, irregularities (including weld joint irregularities), or damage. See the attached spec sheet for more details.
Beam End Cap Kit Features:
- Made in the USA: The end caps are domestically-made for quality you can trust.
- Individually Proof-Loaded Per OSHA Requirements: Ships with certification paperwork.

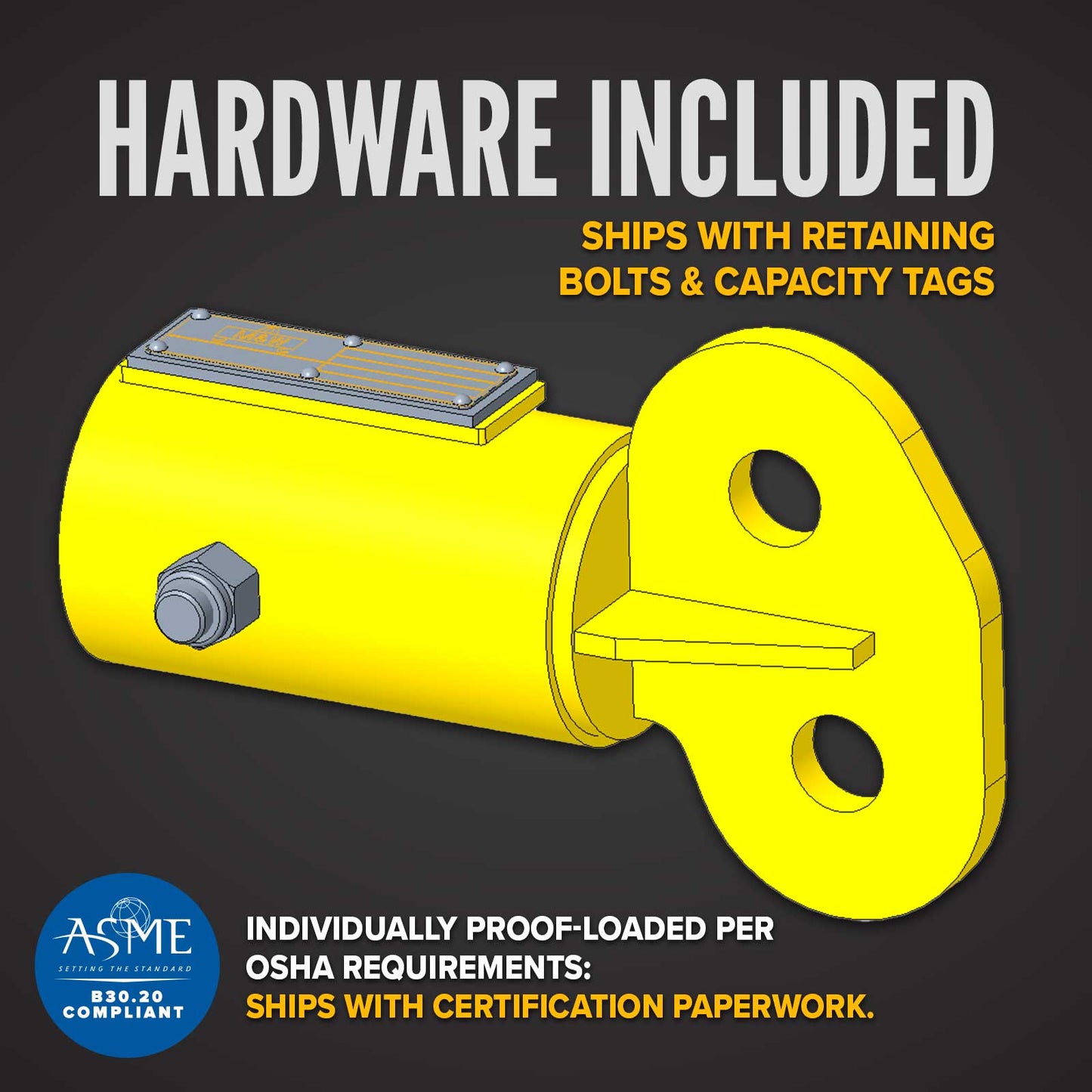

- Hardware Included: Ships complete with retaining bolts and capacities tags.
- Industry-Compliant: Manufactured to exceed all ASME B30.20 and OSHA regulations.
- Durable Powder Coat Finish: Powder coating is more resistant to scratches, chips, and other wear.
- 30-day limited manufacturer's warranty.
Spreader Beam End Cap Capacities

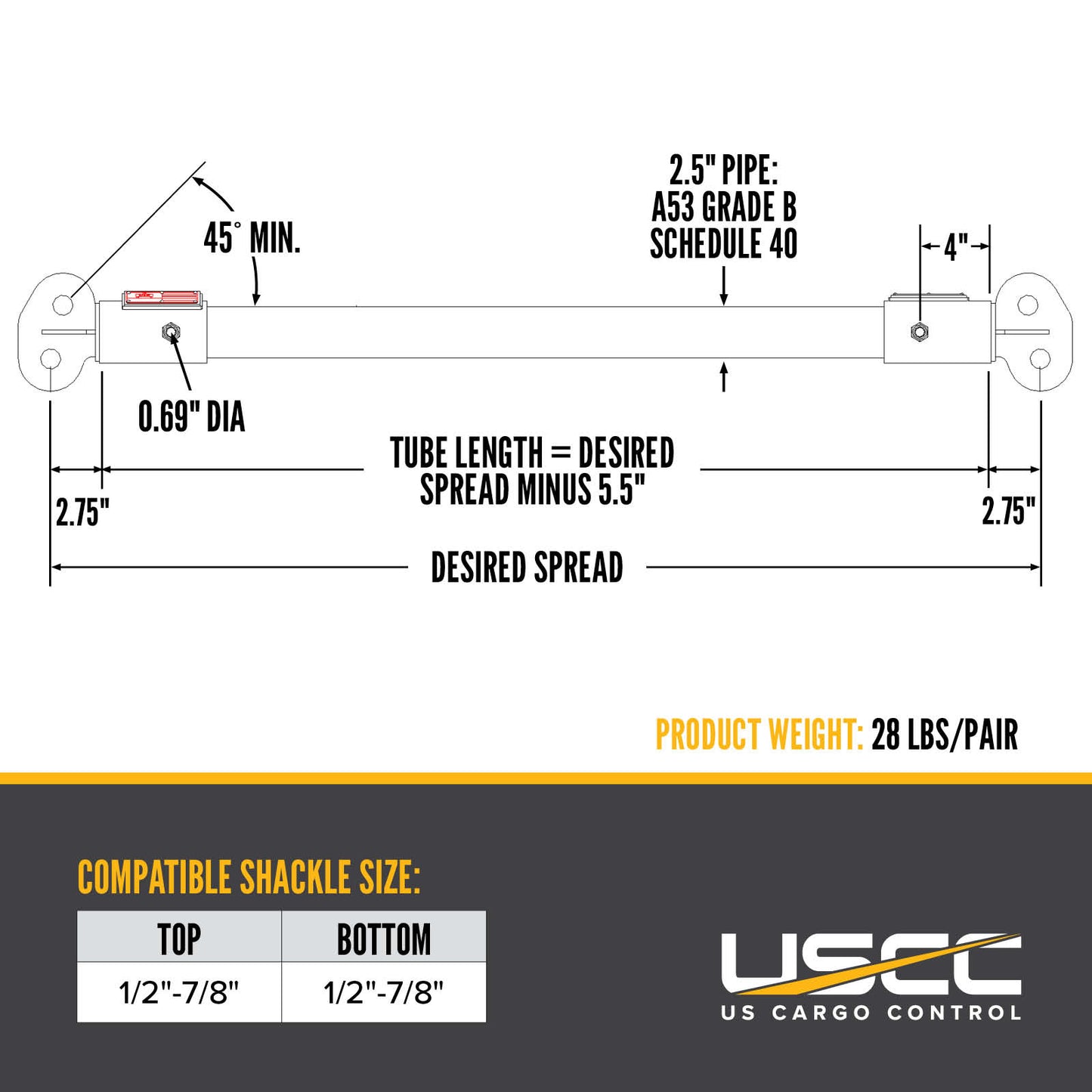

The working load limit on this product is determined by the length of pipe used - use the chart below to see what yours would be.
Note: For this working load limit to apply, the top rigging must be at least 45 or 60 degrees.
| Outside Spread | Working Load Limit |
|---|---|
| 4' | 15,000 lbs. |
| 5' | 14,000 lbs. |
| 6' | 13,000 lbs. |
| 8' | 11,000 lbs. |
| 10' | 8,000 lbs. |
| 12' | 5,800 lbs. |
| 14' | 4,000 lbs. |
| 15' | 3,000 lbs. |
Custom Below-The-Hook Lifting Devices
Looking for a custom lifting beam or spreader bar? Get in touch with our product experts today - we'll work with you and an engineer to build the right configuration for you.
We can also provide compatible top rigging, including wire rope slings or round sling bridles. Call now for pricing.
Complete Your Rigging Setup
Check out the rest of our rigging and lifting equipment, including lifting beams, shackles, and outrigger pads.
