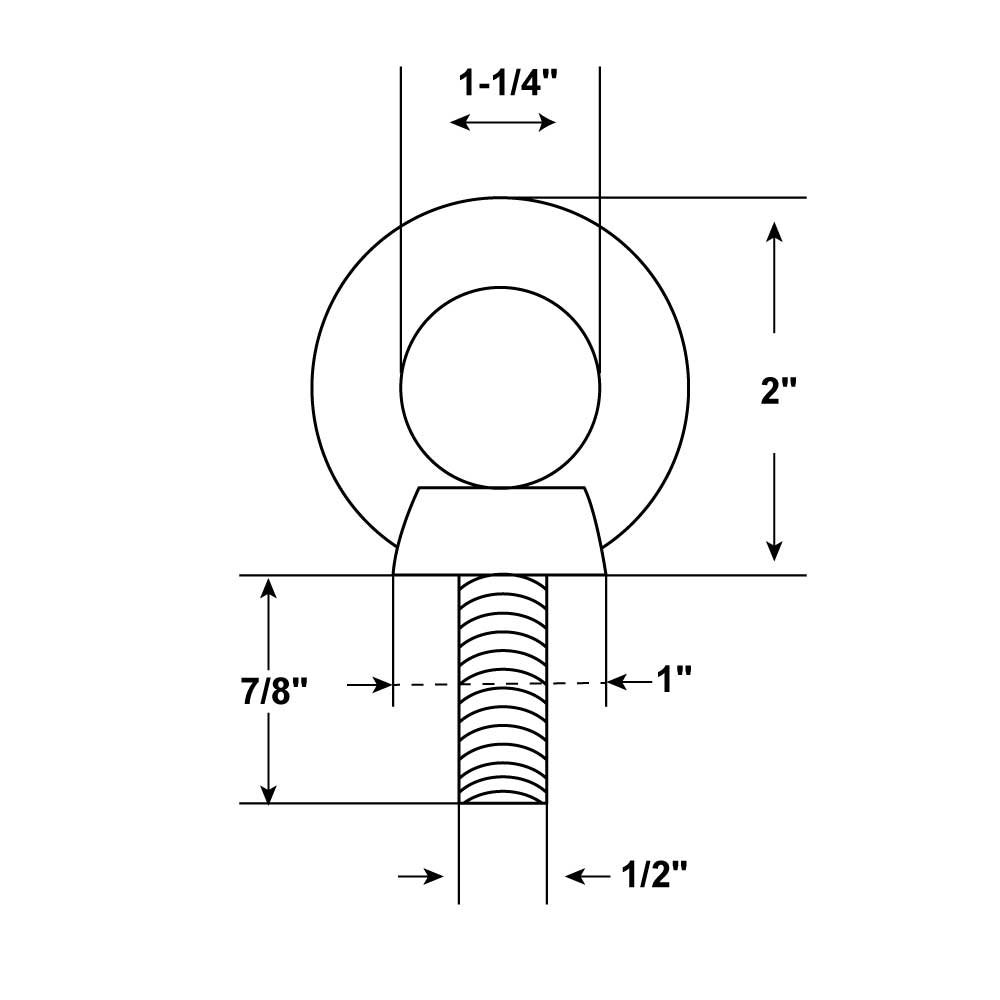

Assembly break strength: 8,400 lbs.
Diameter: 1/2"
Grade: 316 Stainless Steel
Working load limit: 2,100 lbs.
Overall length: 2.89"
Product weight: .2 lbs.
Safety factor: 4:1
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Standards: Meets or exceeds ASTM F541 & ASME B18.15 requirements.
Additional Info: Overall width: 1.94"

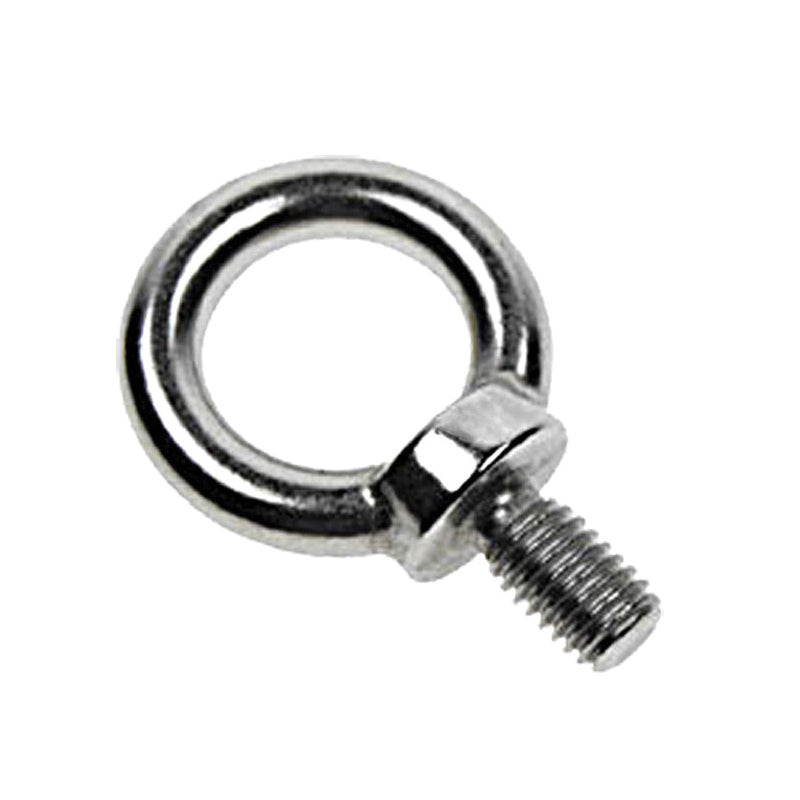

Machine Eye Bolt - Stainless Steel Type 316 - 1/2" x 7/8"Machines eye bolts are useful for lightweight rigging applications. 1/2" machine eye bolts are midsized bolts and have a working load limit of 2,100 lbs. These 1/2" machine eye bolts are made from type 316 stainless steel for corrosion resistance. Need help finding the machine bolts or rigging supplies for your applications? Call to speak with a sales associate.
Please Note:Loading at an angle will significantly reduce a bolt's rated capacity; a 45 degree angle reduces it to just 1/4 of the stated rating. Never load at an angle greater than 45 degrees from the bolt center line.
