SKU: GVSEB34X6
3/4" x 6" Galvanized Shoulder Eye Bolt
3/4" x 6" Galvanized Shoulder Eye Bolt!
SKU: GVSEB34X6
$9.09
Get 20+
$8.82/ea
Get 40+
$8.64/ea
Get 100+
$8.19/ea
Blazing Fast Shipments
Shipping & ReturnsBuy in Bulk
Request a QuoteQuestions? Need it custom?
We Can Help!Payment Options

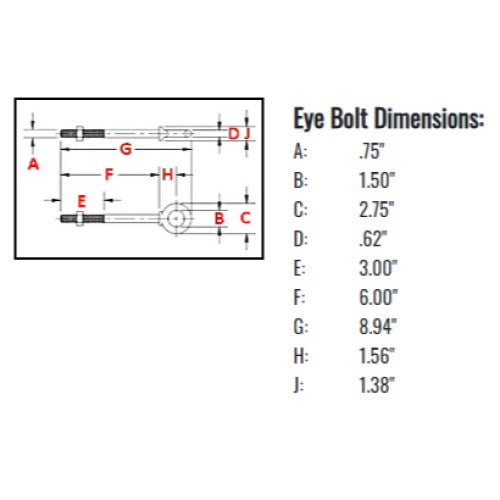

Specifications
Assembly break strength: 36,000 lbs.
Diameter: 3/4"
Working load limit: 7,200 lbs.
Finish: Galvanized
Material: Steel
Product weight: 1.7 lbs.
Safety factor: 5:1
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Standards: Meets or exceeds ASTM F541 & ASME B18.15 requirements.
Width: 1.56"
Description
Shoulder eye bolt is manufactured in heavy duty forged steel and galvanized for corrosion resistance. Eye bolts with shoulders can be used for either straight line or angular lifts, though using in an angular lift will significantly reduce the rated capacity.
Please Note:
Loading at an angle will significantly reduce a bolt's rated capacity. A 75 degree angle reduces the working load limit by 45%; a 60 degree angle reduces it by 65%; a 45 degree angle reduces it by 75%. Never load at an angle less than 45 degrees from the bolt center line.
