SKU: WLS-55-T

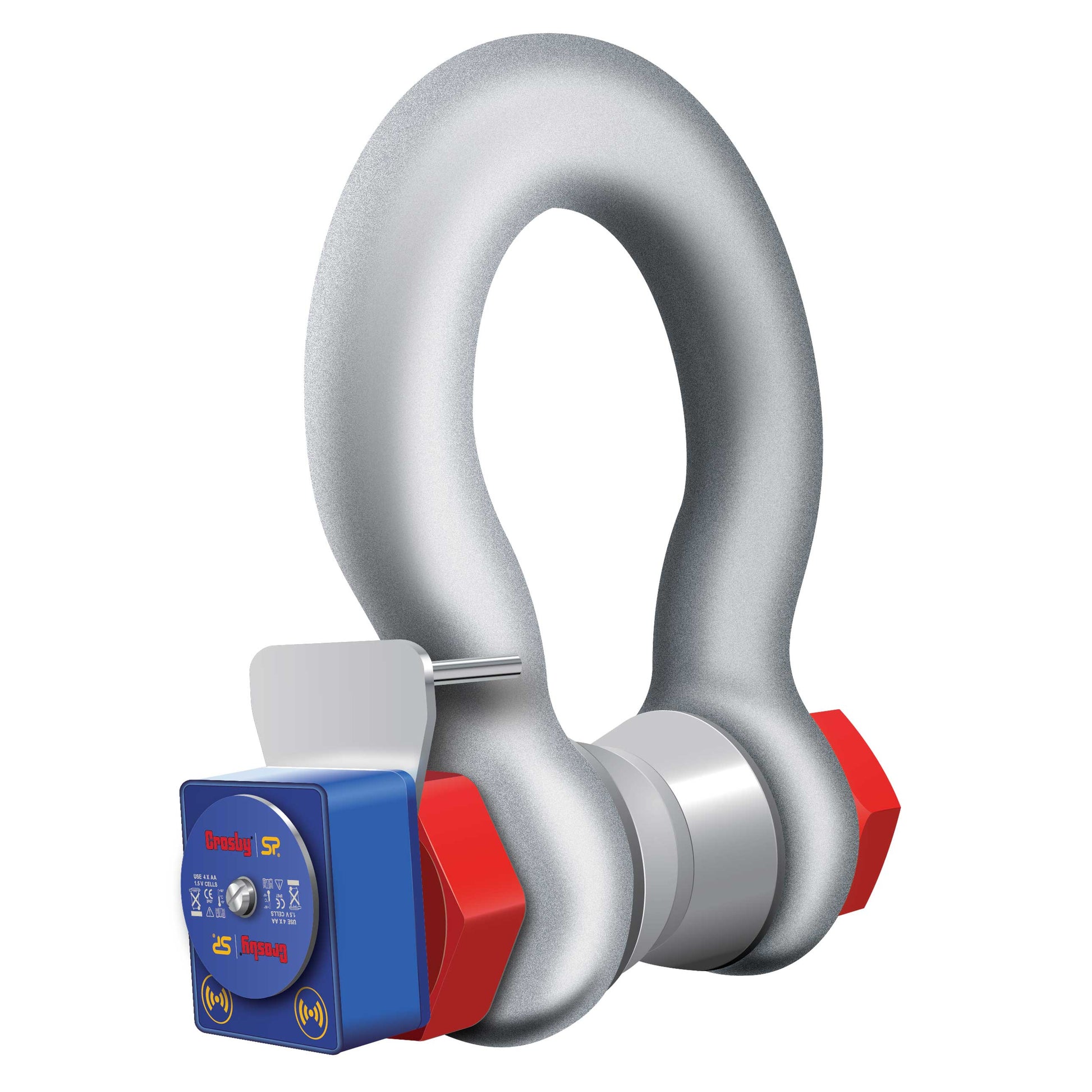

Straightpoint® 55 T Wireless Load Shackle - WLS55T
Straightpoint® 55 T Wireless Load Shackle - WLS55T!
$9,519.00
Blazing Fast Shipments
Shipping & ReturnsBuy in Bulk
Request a QuoteQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Load capacity: 121,000 lbs.
Accuracy: +/- 1% of Full Scale
Battery life: 1,200 hours continuous
Battery type: 4 x AA Alkaline Batteries
Brand part number: WLS55T / 2789199
Data rate: 3 updates per second
Manufacturer name: Crosby Straightpoint
Operating temperature: -10° to +50°C | 14° to 122° F
Output: Handheld
Product weight: 55 lbs.
Range: 3,280'
Resolution: 100 lbs.
Safety factor: 5:1 when used with bobbin
Standards: IP67
Description

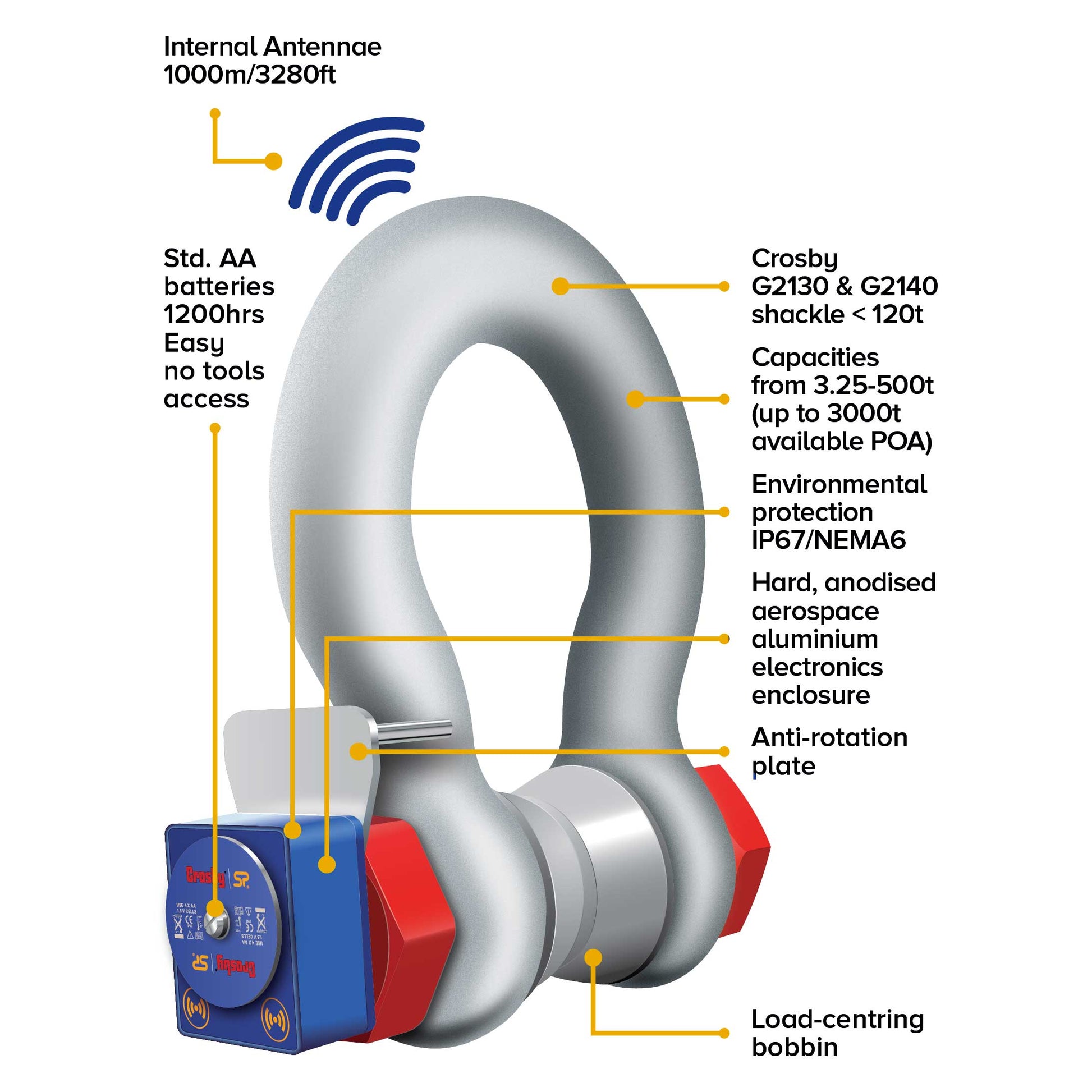

This wireless loadshackle from Straightpoint provides the perfect solution to limited headroom or super heavy lift projects. Straightpoint Loadshackles are made using Crosby brand shackles, a trusted industry leader. These advanced wireless Loadshackles use and internal antennae and four AA alkaline batteries to remotely transmit load readings and load tests from a safe distance (up to 3280 feet) and also generate real time test certificates on site. This 55-ton wireless load cell shackle (Straightpoint model #WLS55T & Crosby model #2789199) is designed for use with Straightpoint's SW-HHP handheld device, Straightpoint's INSIGHT computer software (sold separately). Each WLS is proof test, then equipped with a hard-anodized aluminum electronics enclosure, in accordance with IP67 or NEMA6. All Straightpoint loadshackles comply with ASME B30.26 and feature a load-centering bobbin. Lift yourself into the future of shackle rigging with this wireless shackle load cell today. We also offer Bluetooth-only wireless loadshackles and cabled loadshackles.
-
