SKU: TIMH-56-T
Straightpoint® 56 T Running Line Dynamometer - TIMH56T
Straightpoint® 56 T Running Line Dynamometer - TIMH56T!
$22,370.00
Blazing Fast Shipments
Shipping & ReturnsBuy in Bulk
Request a QuoteQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Load capacity: 123,200 lbs.
Accuracy: +/- 2% of Full Scale
Brand part number: TIMH10T / 2789133
Manufacturer name: Crosby Straightpoint
Operating temperature: -10° to +50°C | 14° to 122° F
Product weight: 179 lbs.
Standards: IP67
Wire rope diameter: 1-1/8" - 1-1/2"
Description

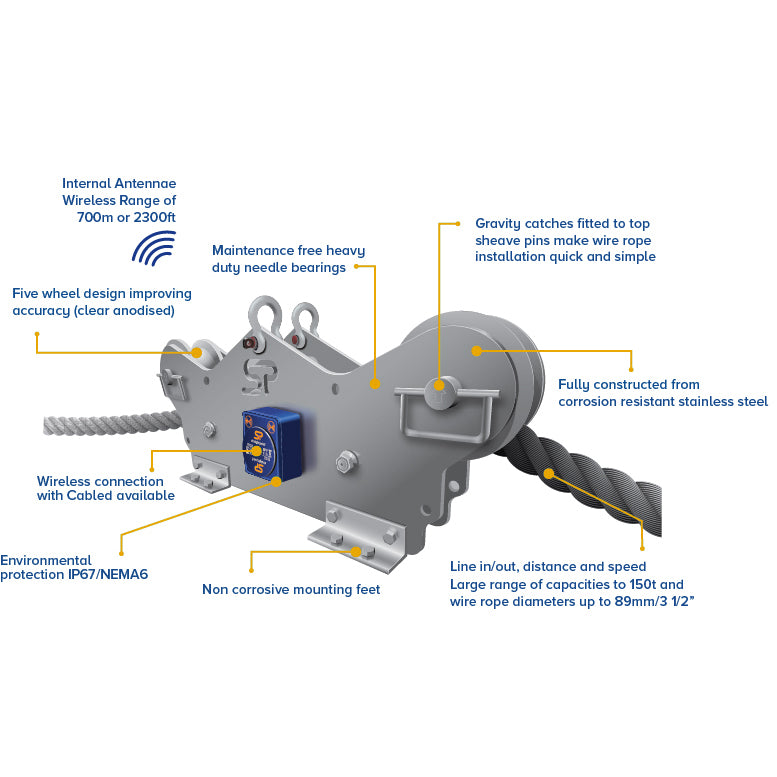

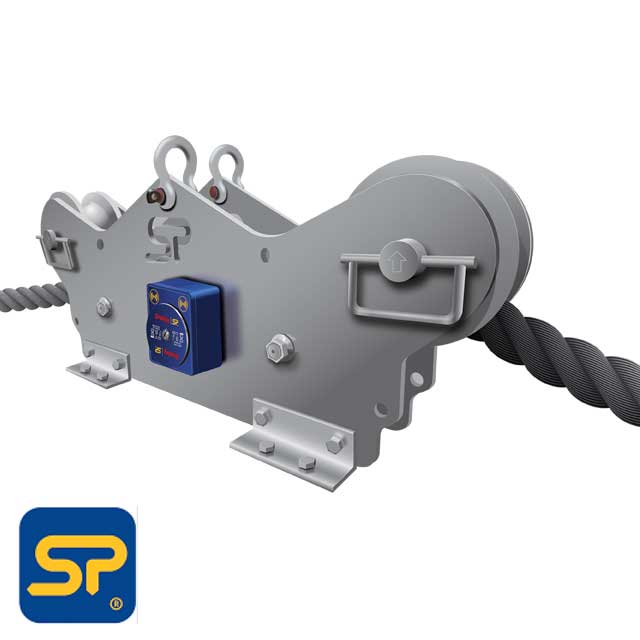

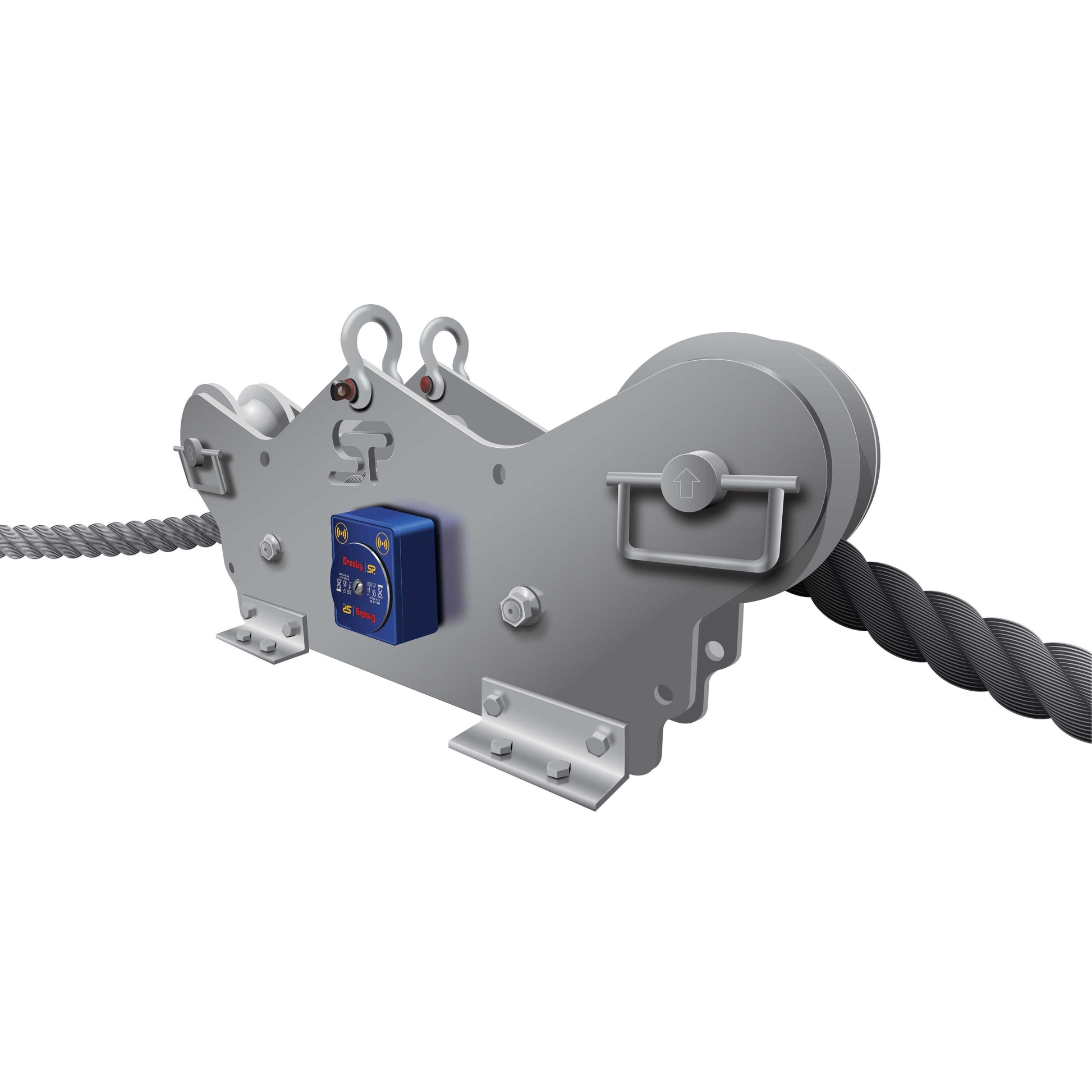

This running line tensionmeter from Straightpoint is a smart way to measure tension, line in/out speed, and distance for wire rope with 1-1/8"-1-1/2" diameter with a 56-ton maximum load rating. It is particularly useful in situations where there is no anchor or dead end on the line to rig a Straightpoint Radiolink or Loadlink digital dynamometer to measure tension force. This particular model (Straightpoint part #TIMH10T & Crosby part #2789133) has an output that connects to Straightpoint's SW-HHP handheld device (sold separately) or Straightpoint INSIGHT computer software (sold separately). For line out & speed, SW-MWLC software is required. This premium 56-ton running line dynamometer is made from corrosion resistant stainless steel and ideal for dockside, marine, offshore, towage, and salvage applications. We also offer a completely wireless running line dynamometer with the same wire rope dimension/load ratings.
-
