SKU: WLS-6-5-T

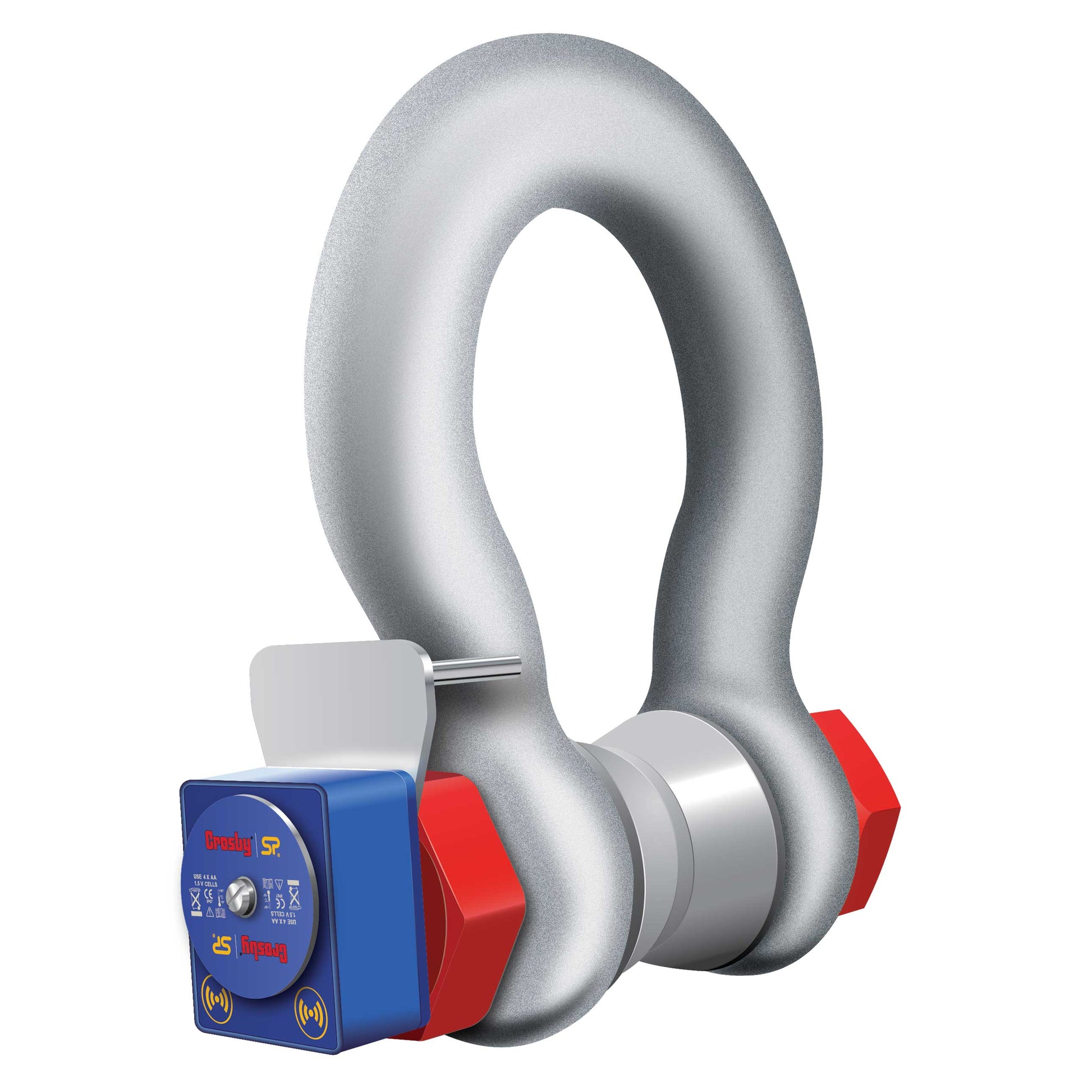

Straightpoint® 6.5 T Wireless Load Shackle - WLS6.5T
Straightpoint® 6.5 T Wireless Load Shackle - WLS6.5T!
Call for Price
Blazing Fast Shipments
Shipping & ReturnsTailored Business Programs
Partner with UsQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Load capacity: 14,300 lbs.
Accuracy: +/- 1% of Full Scale
Battery life: 1,200 hours continuous
Battery type: 4 x AA Alkaline Batteries
Brand part number: WLS6.5T / 2789200
Data rate: 3 updates per second
Manufacturer name: Crosby Straightpoint
Operating temperature: -10° to +50°C | 14° to 122° F
Output: Handheld
Product weight: 7 lbs.
Range: 3,280'
Resolution: 10 lbs.
Safety factor: 5:1 when used with bobbin
Standards: IP67
Additional Info: Shackle requires handheld device to work; please order both if you don't currently have one.
Description

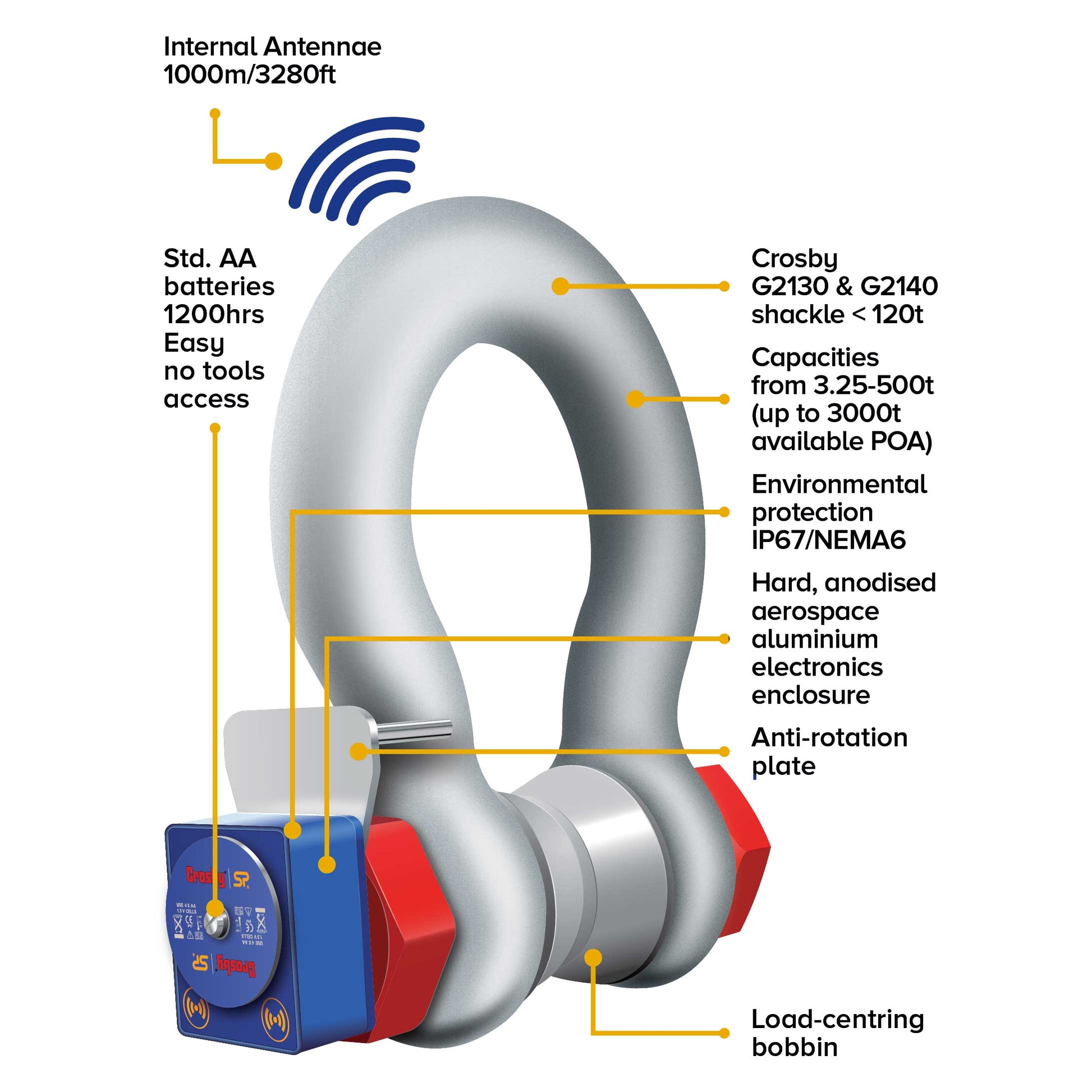

This wireless loadshackle from Straightpoint provides the perfect solution to limited headroom or super heavy lift projects. Straightpoint Loadshackles are made using Crosby brand shackles, a trusted industry leader. These advanced wireless Loadshackles use and internal antennae and four AA alkaline batteries to remotely transmit load readings and load tests from a safe distance (up to 3280 feet) and also generate real time test certificates on site. This 6.5-ton wireless load cell shackle (Straightpoint model #WLS6.5T & Crosby model #2789200) is designed for use with Straightpoint's SW-HHP handheld device, Straightpoint's INSIGHT computer software (sold separately). Each WLS is proof test, then equipped with a hard-anodized aluminum electronics enclosure, in accordance with IP67 or NEMA6. All Straightpoint loadshackles comply with ASME B30.26 and feature a load-centering bobbin. Lift yourself into the future of shackle rigging with this wireless shackle load cell today. We also offer Bluetooth-only wireless loadshackles and cabled loadshackles.
-
