KWB 3 Leg
-
6400 lbs.30° Capacity
9100 lbs.45° Capacity
11200 lbs.60° Capacity
starting at$0.00 -
8500 lbs.30° Capacity
12100 lbs.45° Capacity
14800 lbs.60° Capacity
starting at$0.00 -
13200 lbs.30° Capacity
18700 lbs.45° Capacity
22900 lbs.60° Capacity
starting at$0.00 -
22500 lbs.30° Capacity
31800 lbs.45° Capacity
39000 lbs.60° Capacity
starting at$0.00 -
33900 lbs.30° Capacity
47900 lbs.45° Capacity
58700 lbs.60° Capacity
starting at$0.00 -
53000 lbs.30° Capacity
74900 lbs.45° Capacity
91700 lbs.60° Capacity
starting at$0.00

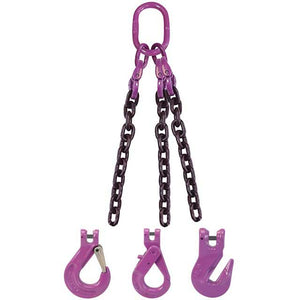

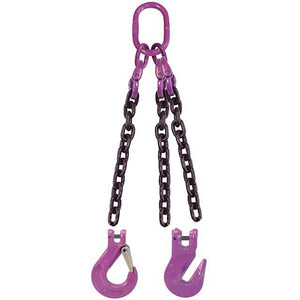

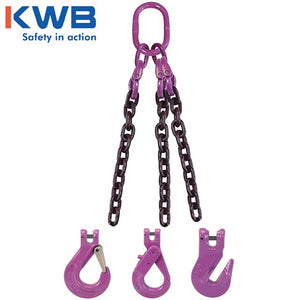

KWB 3 leg chain slings have three lengths of rugged chain connected to a master oblong at the top. These KWB lifting slings can be used at a 60, 45, or 30-degree angle of lift. Chain sling capacity varies by angle of lift and by chain size. See each product above for the various lifting capacities.
Our slings are assembled in America with Grade 100 signal violet chain and fittings that are European-made by KWB, a Pewag company. The Grade 100 fittings have a heavy powder coating that helps with corrosion resistance.
Adjustable 3 leg KWB chain slings, which have an additional length-adjusting hook are also available. Adjustable slings allow the user to shorten the chain leg of as needed for a specific application, without decreasing the WLL.

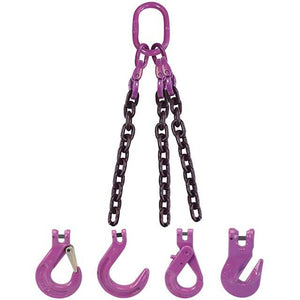

Hook Options for 3 Leg Lifting Slings
These KWB three leg chain slings are manufactured with a master oblong on one end and your choice of a sling hook, self-locking hook, foundry hook, or grab hook on the other end. A configuration with a hook on each end is also an option, or an oblong on each end. Contact our sales team for more information about custom chain slings.
Sling hook - also known as slip sling hooks, these large throat hooks are commonly used at the ends of chain slings and wire rope. they're typically self-locking to avoid disconnect.
Self-locking hook - these hooks are designed to pivot in the middle and lock when lifting pressure is applied. They cannot be opened while lifted with your overhead lifting chains.
Foundry hook - these are extra-large throat hooks that are used in unique situations that require a larger opening to manage loads.
Grab hook - these chain sling hooks have a small throat that attaches to the chain by slinging over the chain in-between links.
Proof Testing
Proof testing has been done on every link of chain to 2.5 times its working load limit. To get your custom chain sling tested at the time of manufacture, it must be requested when the order is placed with our sales specialists. For an additional fee, we will proof test your sling and issue a certificate when requested at the time the order is placed.
All of our chain meets or exceeds the latest guidelines of the National Association of Chain Manufacturers (NACM), ANSI B30.9 standards and OSHA specifications.
