SKU: SB85
86" - 97" Aluminum E-Track Load Bar - 2,200 lb Capacity
86" - 97" Aluminum E-Track Load Bar - 2,200 lb Capacity!
$52.99
Get 8+
$51.41/ea
Get 24+
$49.82/ea
Get 52+
$47.70/ea
Blazing Fast Shipments
Shipping & ReturnsBuy in Bulk
Request a QuoteQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Length: 86"
Working load limit: 2,200 lbs.
Material: Aluminum body
Zinc-plated end fittings
Zinc-plated end fittings
Overall length: 97"
Product weight: 16 lbs.
Quantity: Single
Type: E-Track / A-Track Shoring Beam
Additional Info: Vertical decking WLL: 2,200 lbs.
Description
Versatile E-Track Load Bar
These shoring beams are ideal for use in trailers that are narrower than our standardly-sized load bars. With a high-strength aluminum body and adjustable ends that lock into E-track, this load bar is stronger and more reliable than cargo bars that secure using friction.

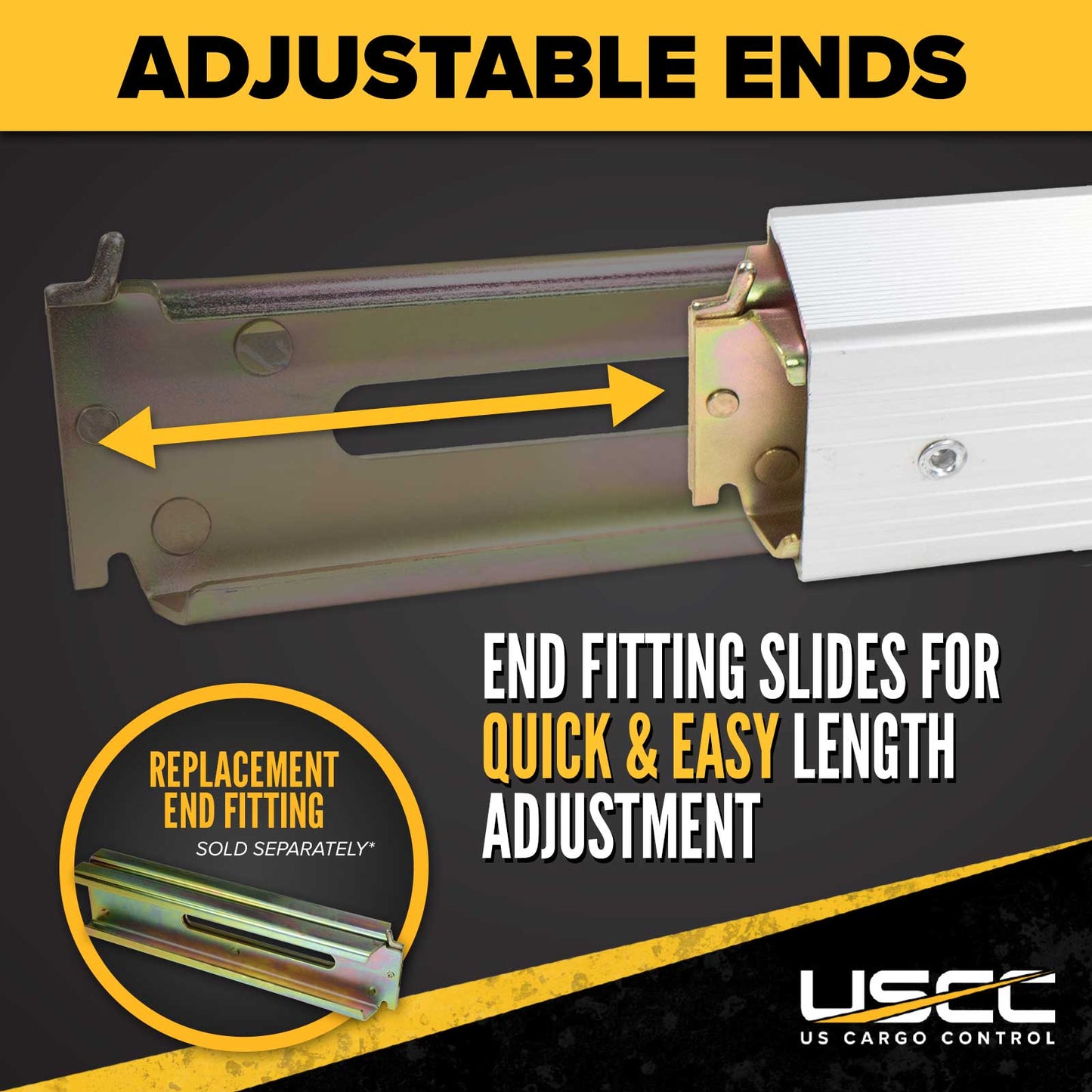

The ends are designed to slide in and out of the aluminum body, making the entire unit adjustable from 86" to 97".
Heavy-Duty Decking Bars
If you need more cubic usage out of your enclosed trailer, these E-track shoring beams are perfect for decking applications. Just attach two or more beams at the same height at different points along your trailer using E-track, then cover them with plywood or another flat surface to create your second level. This improves your transport capacity and even allows for better cargo organization.
Learn more about load bar decking on our blog!
E-Track Shoring Beam Features

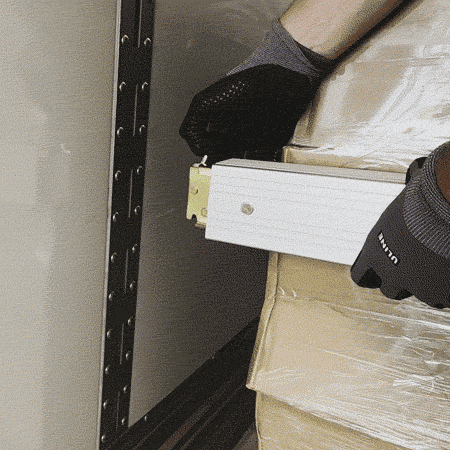

- Track-Compatible: Thumb release positively engages with both vertical and horizontal E-track / A-track.
- Easy Trigger Release: Simple to operate when wearing gloves, which can be a nuisance with other "trigger" E-track mechanisms.
-
Durable Construction: Lightweight aluminum beam and zinc-plated end fittings are strong and corrosion-resistant.
-
One-Person Operation: The adjustability lets you click and lock each side into place separately, so only one person is needed to install!
-
Customizable Length: Along with the adjustable ends, you can also shorten the aluminum body. Just remove the end, cut the body down to size, and reinstall the end.
More Cargo Securement Options
We also offer steel shoring beams and cargo load bars with 2" by 4" rubber feet for those applications where E-track doesn't apply.
Other popular cargo-bracing options include wood end sockets (an inexpensive way to shore up cargo using 2x4 lumber), dunnage bags, cargo nets, and E-track straps.
Please call for accurate shipping rates on quantities of 15 or more shoring beams.
