SKU: SC12EIB619

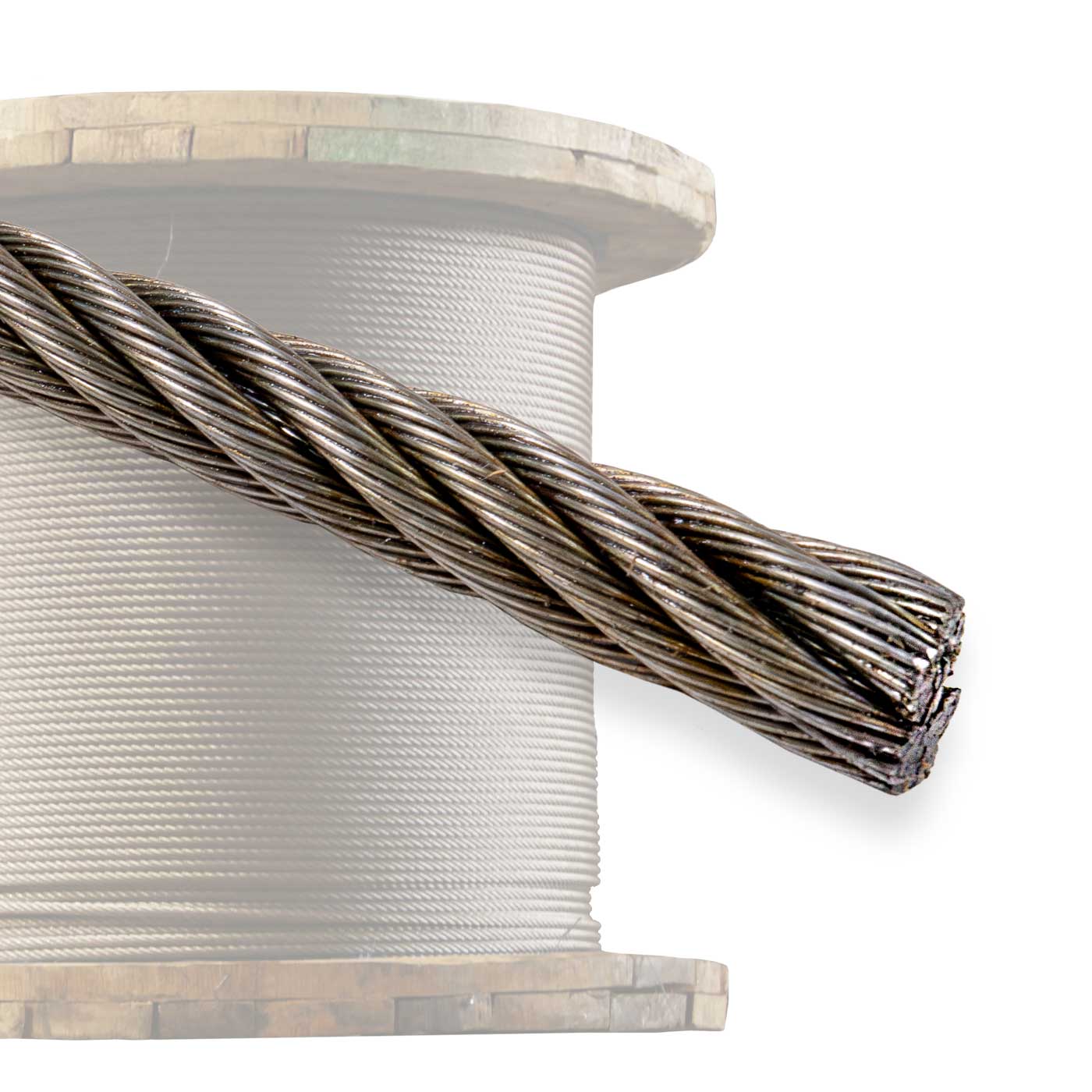

1/2" 6x19 Bright Wire Rope - EIPS IWRC | 2,500' Coil
1/2" 6x19 Bright Wire Rope - EIPS IWRC | 2,500' Coil!
SKU: SC12EIB619
$4,146.75
Blazing Fast Shipments
Shipping & ReturnsBuy in Bulk
Request a QuoteQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Assembly break strength: 13.3 tons / 26,600 lbs.
Grade: EIPS
Length: 2,500'
Core: IWRC
Finish: Bright
Product weight: 1,150 lbs.
Shipping and returns: This item ships LTL; learn more. This item cannot be returned due to safety risks associated with used materials.
Standards: Meets all dimensional and strength requirements of Federal Specification RR-W-410 (latest revision) and ASTM A1023
Weight per foot: 0.46
Wire rope class: 6x19
Wire rope diameter: 1/2"
Additional Info: Right Hand Regular Lay
Description
1/2" 6x19 Wire Rope Cable | Bright Steel
Made of strong Extra Improved Plowed grade steel (EIPS), this bright wire rope belongs to the 6x19 class, which is known for flexibility and abrasion-resistance. Along with the 6x37 class, 6x19 wire rope is the perfect general use steel cable and can be used for many applications, including as hoisting rope, suspension cables, winch lines, and more.
The 6x19 configuration offers better abrasion-resistance than the 6x37; however, it is less flexible and fatigue-resistant.
6x19 Wire Rope Configuration
Our wire rope is made using EIPS-grade cable. EIPS (Extra Improved Plow Steel) refers to the strength of the wire rope - its tensile strength is around 10% greater than an IPS grade, improving the break strength.
The class of this wire rope is 6x19. These numbers nominally refer to the construction of the wire rope - the number of outer strands around the core and an estimation of the number of wires within each of these outer strands. So for a 6x19 class, the number of outer strands is 6, and the number of wires making up each strand ranges from 15-26.
Finish & Core
This product has a bright steel finish, which means it's uncoated except for an A-1 petroleum-based lubricant. This lubricant offers basic corrosion- and water-resistance and reduces friction to protect the rope. The lubricant is applied to both internal and external wires for more in-depth protection.
The independent wire rope core (IWRC) provides more support than a fiber core - it's more resistant to crushing and is better suited for high temperature applications. Their general temperature range is between -40°F / -40°C and 400°F / 204°C.
Bright Steel Wire Rope Features:
- Our wire rope meets all dimensional and strength requirements of Federal Specification RR-W-410 (latest revision) and ASTM A1023.
- This item is imported from a vetted vendor - if you are looking for wire rope from a specific country, please call in or fill out our custom wire rope form.
- A certificate of conformity is available for a nominal fee - please request when you place your order.
Accessories & More
Complete your wire rope assembly - we also carry wire rope fittings and rigging hardware, including wire rope clips, turnbuckles, and eye bolts.
Custom wire rope configurations are also available - call or fill out our online form for a quote!
