SKU: MSSEB1X1-38

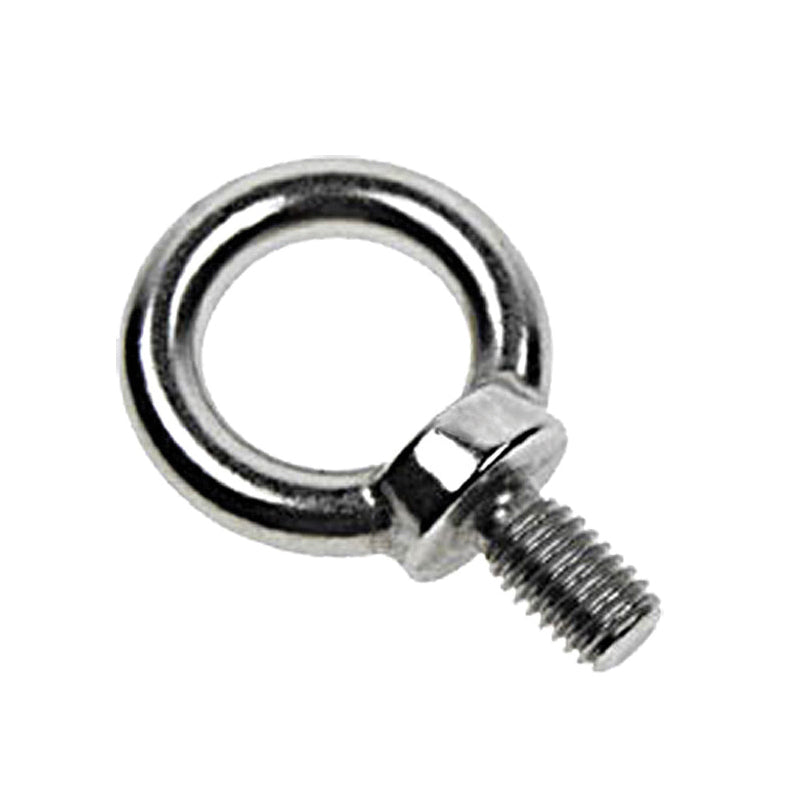

Machine Eye Bolt - Stainless Steel Type 316 - 1" x 1-3/8"
Machine Eye Bolt - Stainless Steel Type 316 - 1" x 1-3/8"!
SKU: MSSEB1X1-38
$41.29
Get 10+
$40.06/ea
Get 50+
$38.82/ea
Get 100+
$37.17/ea
Blazing Fast Shipments
Shipping & ReturnsBuy in Bulk
Request a QuoteQuestions? Need it custom?
We Can Help!Payment Options

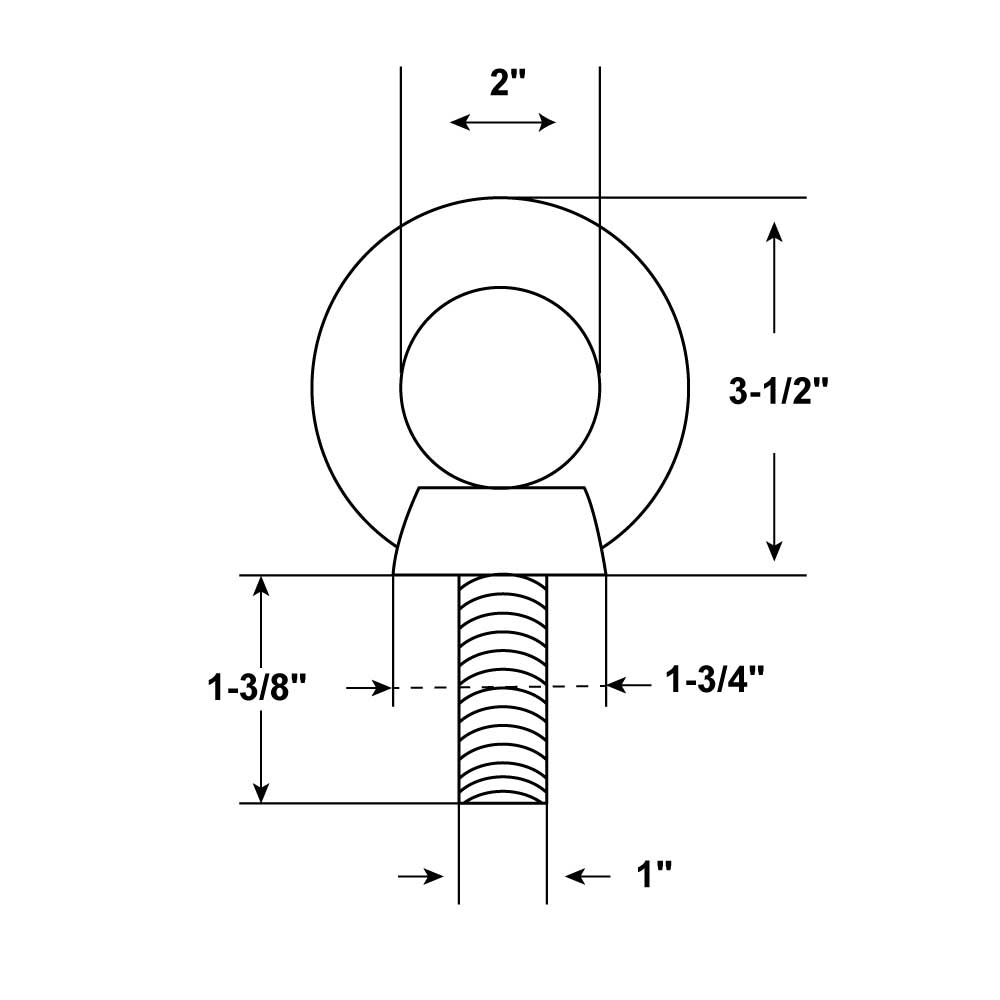

Specifications
Assembly break strength: 38,000 lbs.
Diameter: 1"
Grade: 316 Stainless Steel
Working load limit: 9,500 lbs.
Overall length: 5.04"
Product weight: 1.65 lbs.
Safety factor: 4:1
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Standards: Meets or exceeds ASTM F541 & ASME B18.15 requirements.
Additional Info: Overall width: 3.5"
Description
Machine eye bolts are often referred to as lifting eye bolts since they are commonly used as a connection point in lifting systems. Shoulder machinery eyebolts should always be used for angled lifts, because the shoulder gives it greater strength. Attaching slings or hooks directly to an eye bolt will increase the stress on the bolt, so shackles should be used for connection instead.
Please Note:
Loading at an angle will significantly reduce a bolt's rated capacity; a 45 degree angle reduces it to just 1/4 of the stated rating. Never load at an angle greater than 45 degrees from the bolt center line.
Please Note:
Loading at an angle will significantly reduce a bolt's rated capacity; a 45 degree angle reduces it to just 1/4 of the stated rating. Never load at an angle greater than 45 degrees from the bolt center line.
