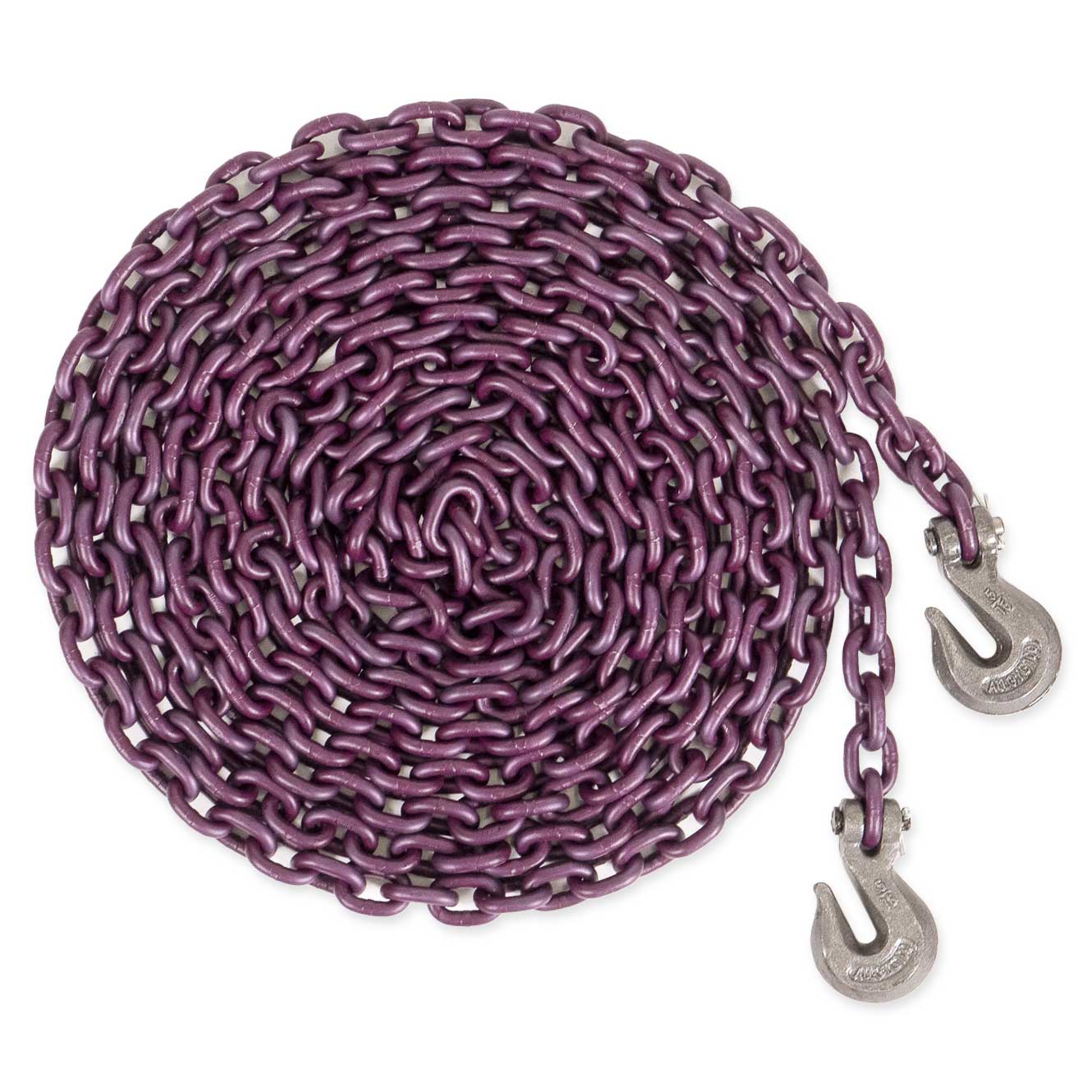

5/16" x 20' Tie Down Chain with Clevis Grab Hooks | Grade 100
5/16" x 20' Tie Down Chain with Clevis Grab Hooks | Grade 100!
SKU: TC51620100
$144.79
Blazing Fast Shipments
Shipping & ReturnsBuy in Bulk
Request a QuoteQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Assembly break strength: 22,800 lbs.
Grade: 100
Length: 20'
Working load limit: 5,700 lbs.
Chain size: 5/16"
End fitting: Clevis Grab Hook
Finish: Powder Coated Chain
Manufacturer name: KWB Chain / Import End Fittings
Material: Alloy Steel
Product weight: 23 lbs.
Safety factor: 4:1
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Additional Info: Items are made to order and most ship same day - exceptions apply to large orders.
Description

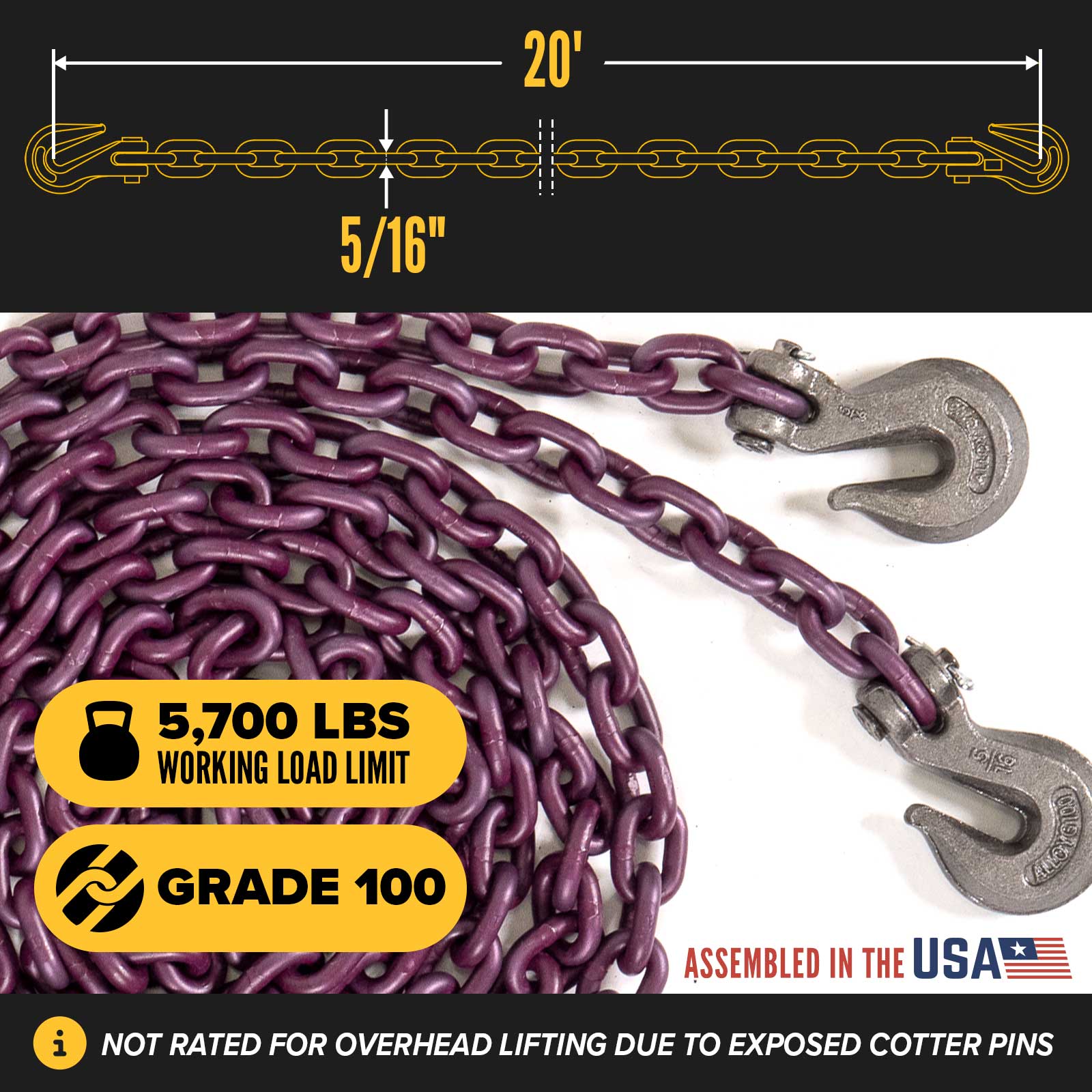

5/16" x 20' Grade 100 Chain Tie Down
When it comes to your heavy-duty loads, choose grade 100 tie down chain. Assembled in the USA with premium 5/16" KWB European-made chain and imported clevis grab hooks, they are built to last. They offer better resistance to abrasion and fatigue, along with higher working load limits.
5,700 lbs. Heavy-Duty Tie Down Chain Construction

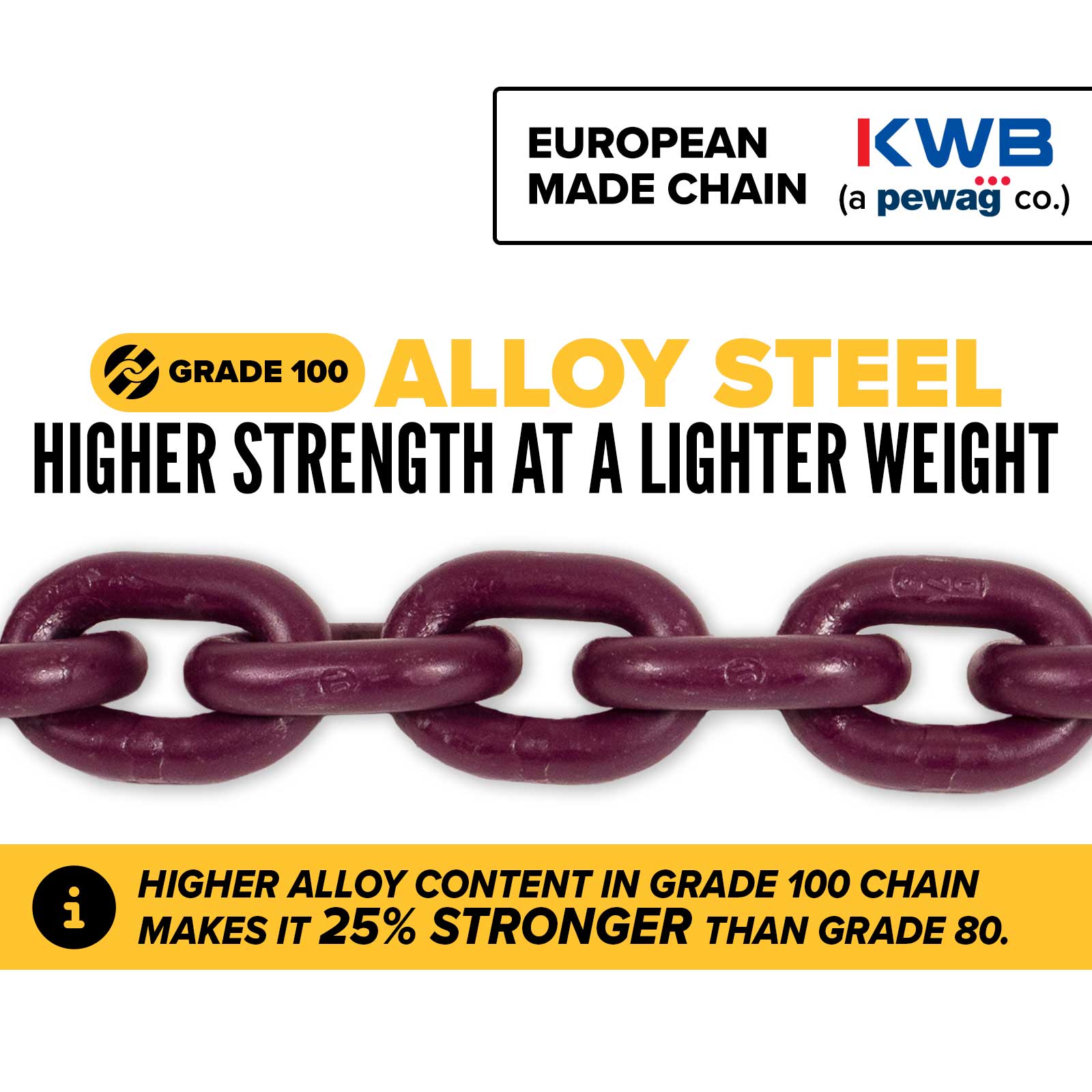

Due to the higher alloy content in grade 100 chain tie downs, they are 25% stronger than grade 80 chain options. This means it offers higher strength at a lighter weight so it's easier to handle!

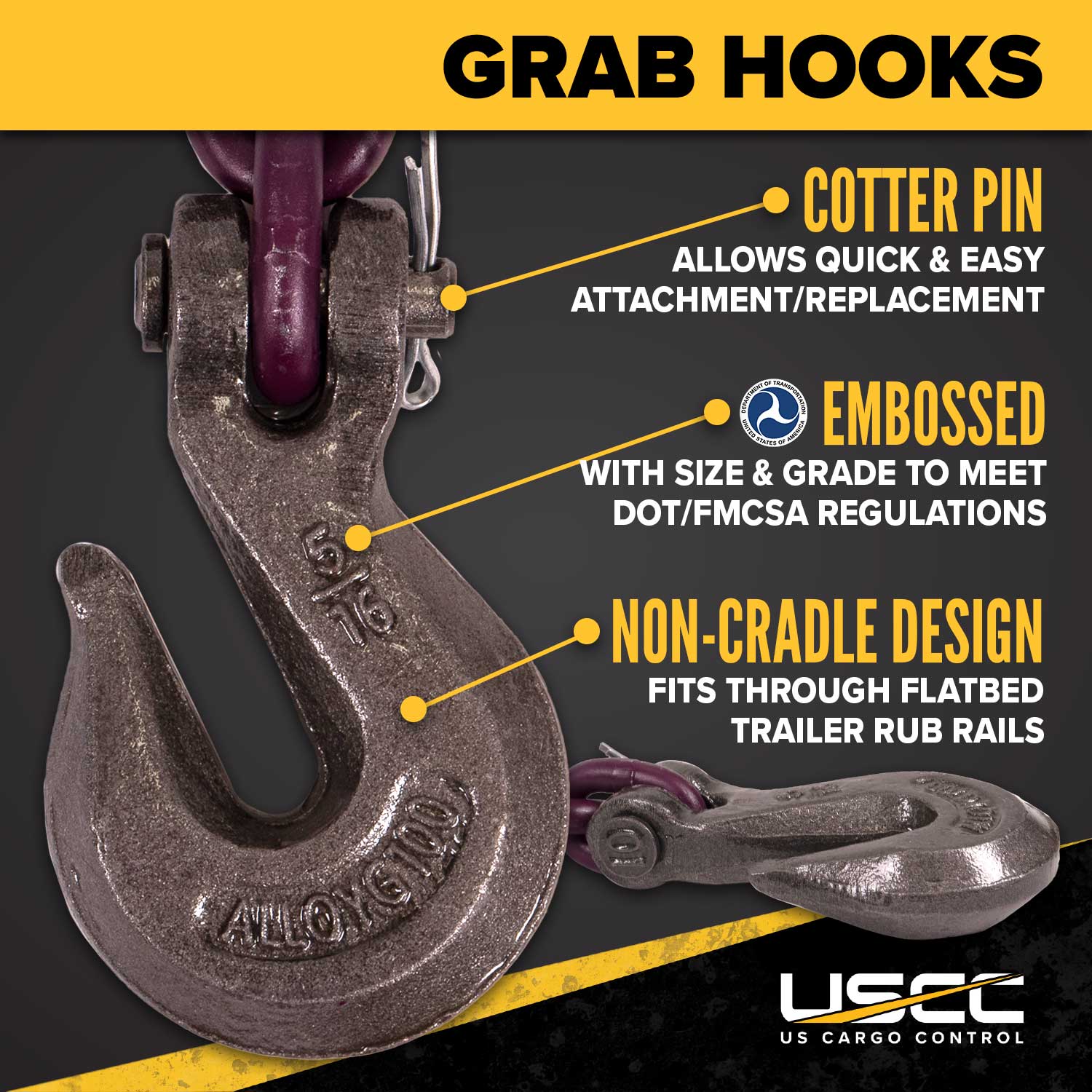

The clevis grab hooks on each end have a non-cradle design that allow them to fit through a flatbed trailer rub rail for quick yet secure connections, and the shallow throat opening lets you easily connect to chain. The cotter pin means you can replace damaged hooks with little hassle.
Note: G100 tie down chain is not approved for overhead lifting because the hooks have an exposed cotter pin.
G100 Truck Tie Down Chain Industry Compliance

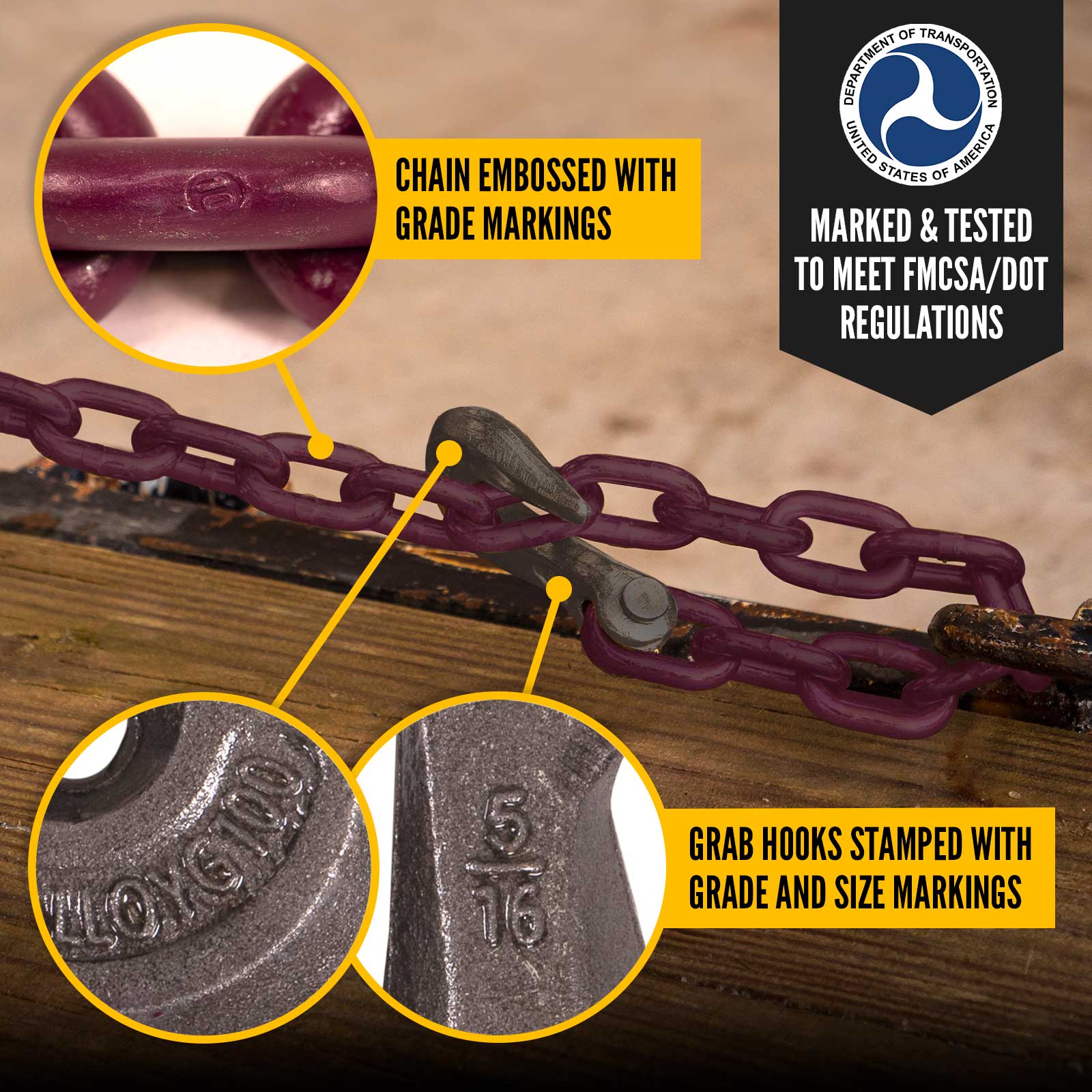

All of our tie down chain is DOT compliant and meets or exceeds FMCSA CFR49 Section 393.104 and NACM Welded Steel Chain Specifications. The hooks are embossed with the size and the grade, and the chain has grade embossing on the back of each link. They are also stamped with the manufacturer and grade every 12". This ensures you can quickly identify the chain you need, and that inspections are stress-free.

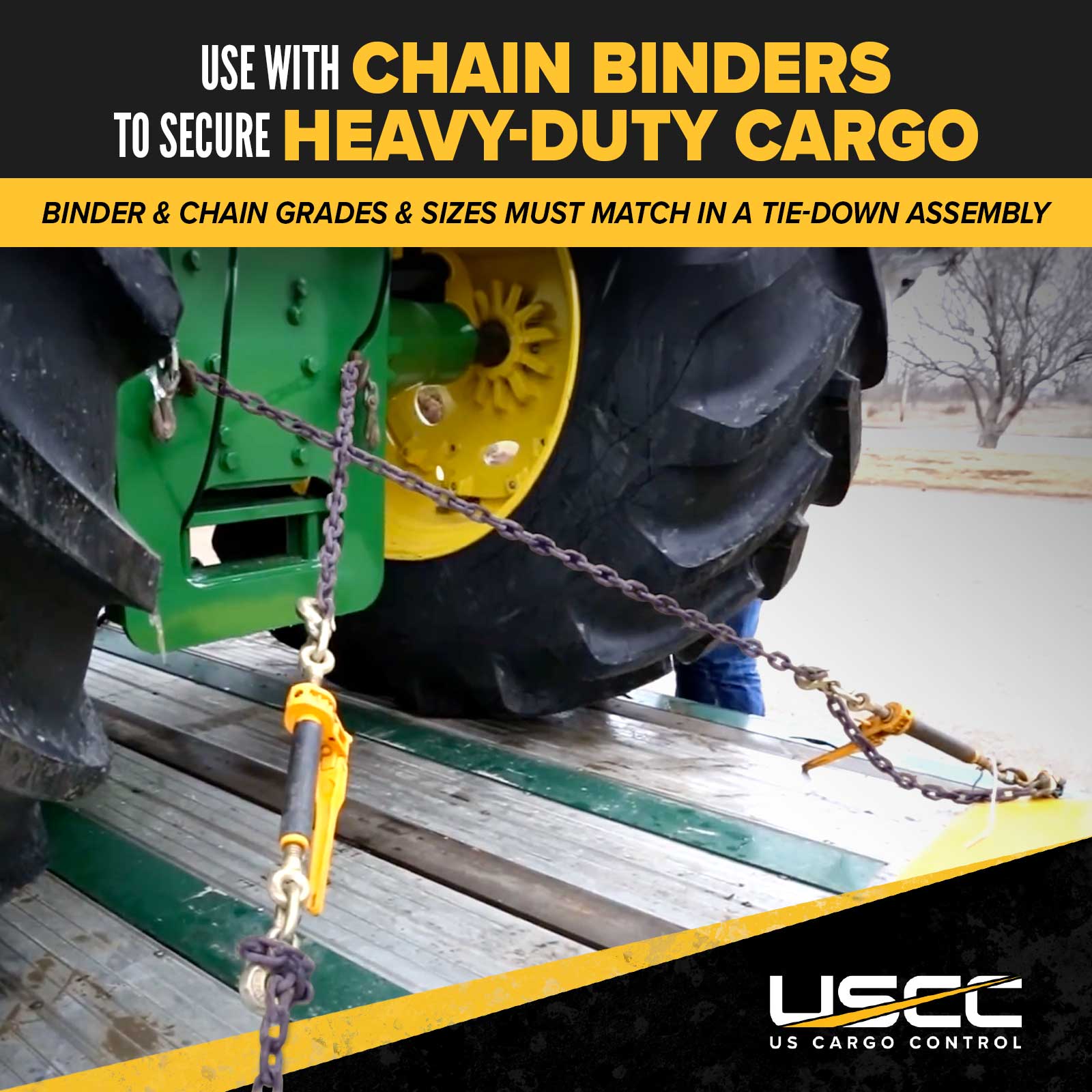

Compatible Chain Binders
- 5/16" - 3/8" Crosby Lebus Ratchet Binder
- 5/16" - 3/8" Heavy-Duty Ratchet Binder
- 5/16" - 3/8" Peerless Ratchet Binder Plus
- 5/16" - 3/8" Peerless QuikBinder Plus
- 5/16" - 3/8" Recoil-Less Lever Binder
Custom Tie Down Chain & More
If you are looking for a grade 100 chain tie down configuration you don't see on our site, request a custom tie down chain. We have both manufacturing and testing capabilities in-house, letting us build exactly what you need and confirm that it exceeds industry standards.
We also offer a full selection of load binders, corner protectors, coil mats, and other cargo equipment so you can create the perfect load securement system.
Chain Grade Breakdown
Not sure which chain grade you need? Call to speak to one of our product experts or refer to our helpful chart!
| Grade | Material | WLL (lbs) | ||||
| 9/32" (1/4") | 5/16" | 3/8" | 1/2" | 5/8" | ||
| 70 | Carbon Steel | 3,150 | 4,700 | 6,600 | 11,300 | 15,800 |
| 80 | Alloy Steel | 3,500 | 4,500 | 7,100 | 12,000 | 18,100 |
| 100 | Alloy Steel | 4,300 | 5,700 | 8,800 | 15,000 | 22,600 |
| 120 | High Strength Alloy Steel |
5,200 | 6,600 | 10,600 | 17,900 | 27,500 |
Source: Import
