SKU: CGH1280
1/2" Clevis Grab Hook | Grade 80
1/2" Clevis Grab Hook | Grade 80!
Related Articles
SKU: CGH1280
$28.49
Blazing Fast Shipments
Shipping & ReturnsBuy in Bulk
Request a QuoteQuestions? Need it custom?
We Can Help!Payment Options
Specifications
Assembly break strength: 48,000 lbs.
Grade: 80
Working load limit: 12,000 lbs.
Chain size: 1/2"
End fitting: Clevis Grab Hook
Material: Alloy Steel
Product weight: 2.4 lbs.
Safety factor: 4:1
Shipping and returns: This item cannot be returned due to safety risks associated with used materials.
Description

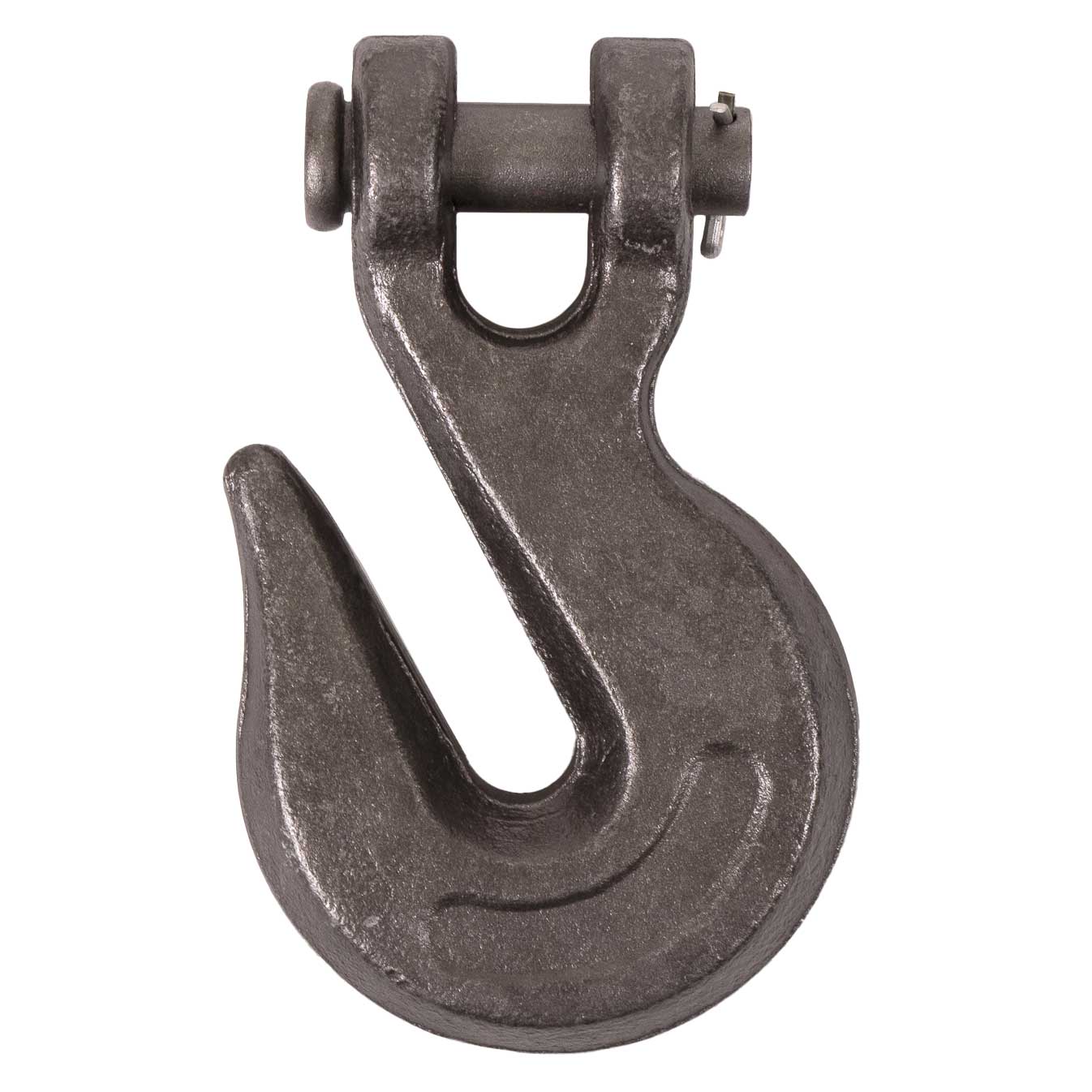

Grade 80 1/2" Clevis Grab Hook
Our grade 80 clevis grab hooks are intended for use in tie down applications. When combined with with G80 chain, they create a tie down chain that can keep your load securely in place. These hooks offer better resistance to abrasion and fatigue when compared to their grade 70 counterparts, and generally have a higher working load limit as well.
1/2" Chain Grab Hook Construction

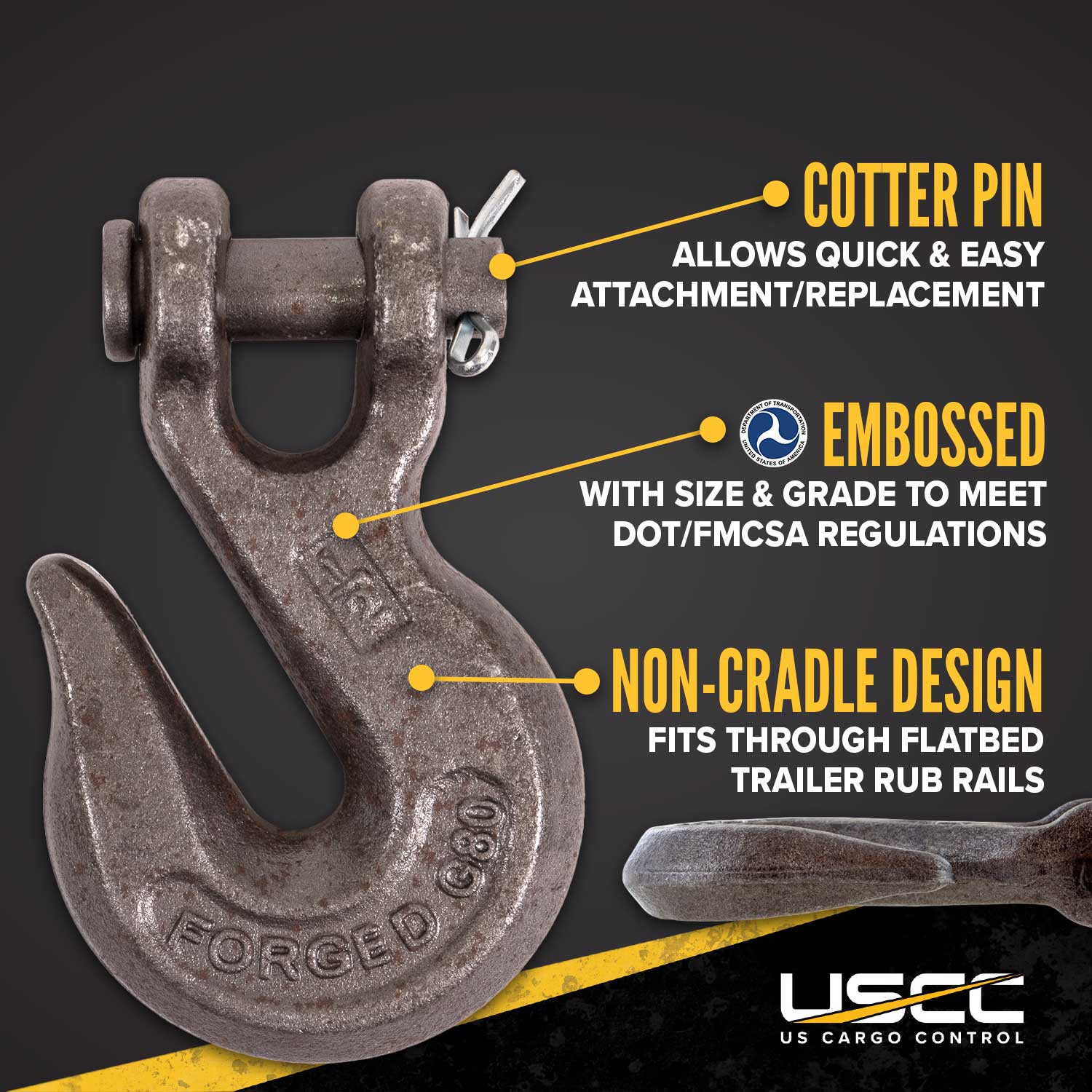

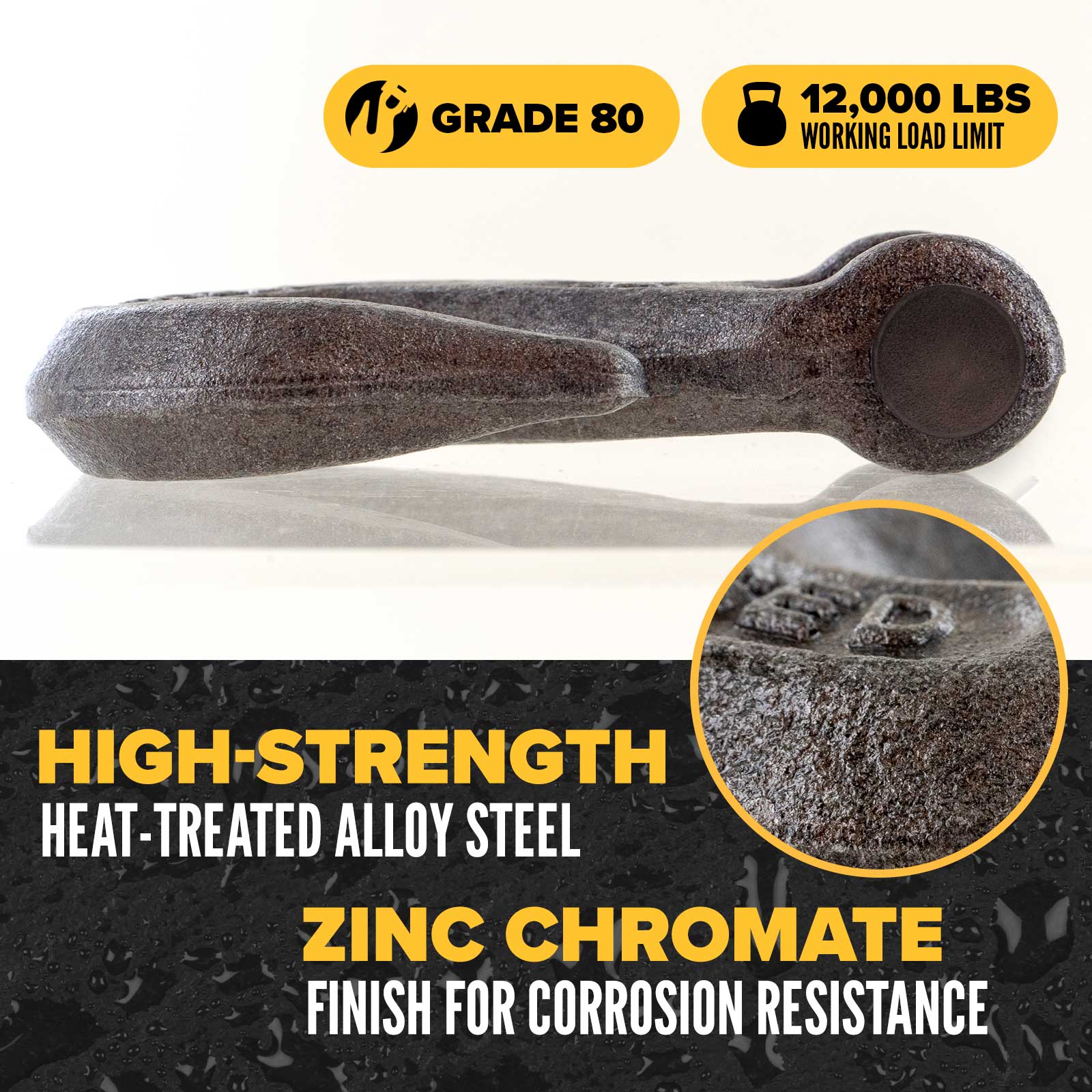

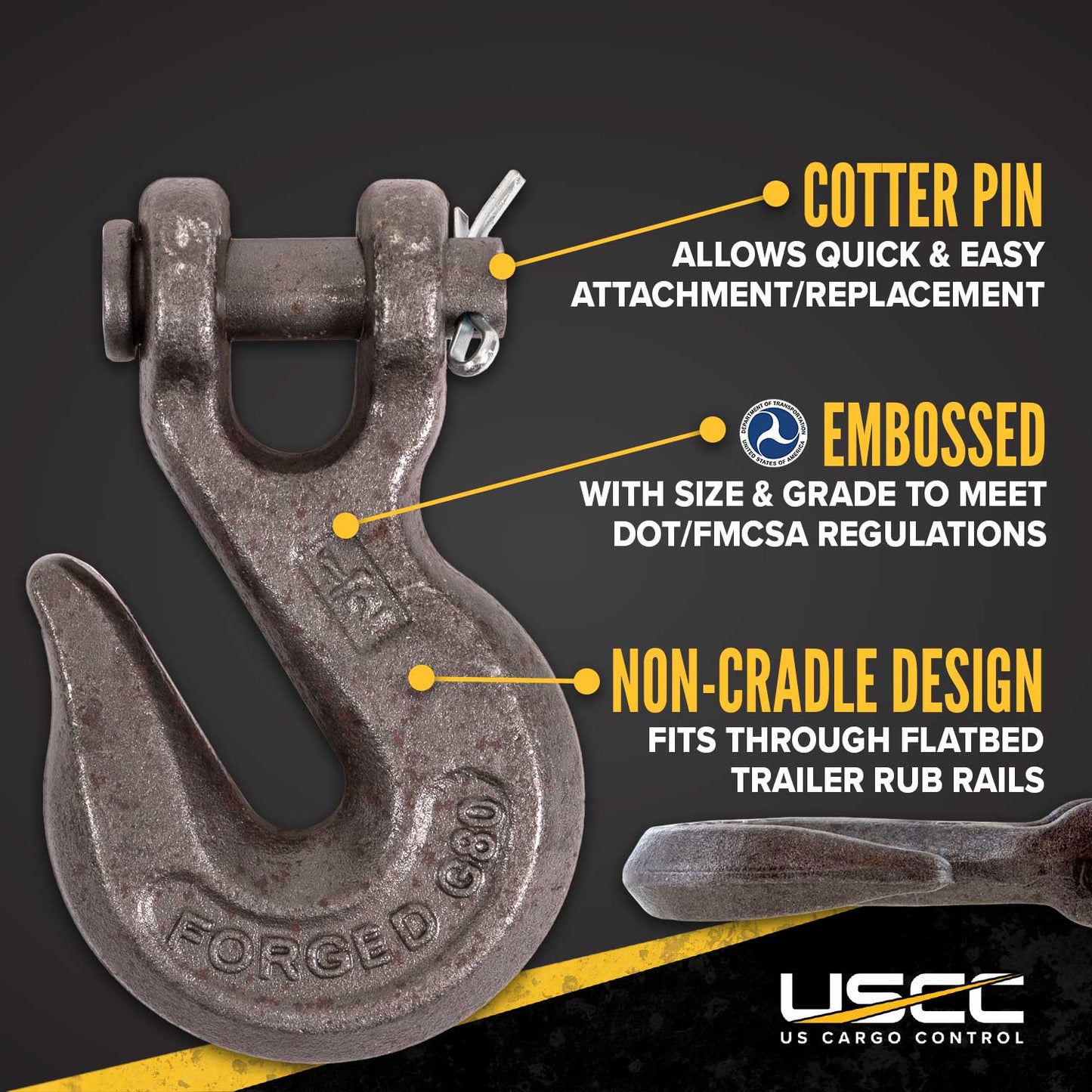

Created from heat-treated, high-strength alloy steel, this hook has a non-cradle design that allows it to fit through a flatbed trailer rub rail for quick yet secure connections. The shallow throat opening lets you easily connect to chain.
The cotter pin provides reliable attachments to chain and other accessories, as well as fast replacement if the hook becomes damaged.
Note: This item is not approved for overhead lifting due to the exposed cotter pin.
12,000 lbs. Clevis Hook Industry Compliance
This hook is embossed with the size and the grade to meet DOT requirements and for stress-free inspections.
Complete Your Tie Down Setup
Make sure you have everything you need to get your cargo safely from point A to point B - browse our selection of transport chain, load binders, corner protectors, and more! We even offer custom tie down chain configurations, so you can create the perfect product for your application.
Looking for a 1/2" grab hook in another grade? This hook is also available in grade 100 and grade 70.
Tie Down Chain Grade Breakdown
Not sure which chain grade you need? Call to speak to one of our product experts or refer to our helpful chart!
| Grade | Material | WLL (lbs) | ||||
| 9/32" (1/4") | 5/16" | 3/8" | 1/2" | 5/8" | ||
| 70 | Carbon Steel | 3,150 | 4,700 | 6,600 | 11,300 | 15,800 |
| 80 | Alloy Steel | 3,500 | 4,500 | 7,100 | 12,000 | 18,100 |
| 100 | Alloy Steel | 4,300 | 5,700 | 8,800 | 15,000 | 22,600 |
| 120 | High Strength Alloy Steel |
5,200 | 6,600 | 10,600 | 17,900 | 27,500 |
